LILYGO®

T-Weigh

T-Weigh

ESP32 T-Micro32 LoRa SX1262 Wireless Module 4-Group 4-Way HX711

Regular price $29.00 CAD
Regular price Sale price $29.00 CAD
Sale Sold out

⚠️Please note that all policy page on site only applies to items purchased from our store: https://www.lilygo.cc.

Relevant technical or usage issues can be also discussed in our GitHub or Community.

About Tax

At present, the price of the platform does not include tax.
Customers in Europe should pay attention to the tax problem after the package reaches the local country.

[orders over 150 euros may generate tax, which needs to be borne/handled by the customer, the local policy shall prevail.]

Commended User

People with programming foundation[engineers / students / makers, etc..]

Shipping & Delivery

Our default shipping method: General transportation
[shipped by Freight Forwarder]

Receive Package

After shipment:

15-30days

【PS: If there are force majeure factors such as epidemic situation/ strike or local policy adjustment, transportation may be delayed,Maybe you will receive your package within 17-70 days】

NoteAll the times just for reference only

Tracking your order:

http://m-track.4px.com/#/

Also, if you want to get other shipping support please reference our shipping policy.

Note:

Because there is no USB to serial chip on the product motherboard, needs the T-U2T auto-matic downloader to upload the program.


If you don't have a T-U2T, please select the "T-Weigh+T-U2T kit" to upload the program, or buy it separately.

Specifications

MCU  T-Micro32
Flash 4Mb
Bus Interfaces UART, SPI, I2C, CAN, I2S, SDIO
Wireless Connectivity Wi-Fi:802.11 b/g/n/, BLE V4.2
LoRa frequency band EU868 / US915
Onboard functions

Button (RST+BOOT),

DC 5~12V Power

SX1262

 Low Power LoRa Transceiver Low RX current of 4.6 mA
High sensitivity  down to -148 dBm
 +22 dBm or +15 dBm high efficiency PA
FSK, GFSK, MSK, GMSK, and LoRa modulation


Technology Support [Github]

If you need technical support please check the link to find more details.

T-Weigh



1. Size

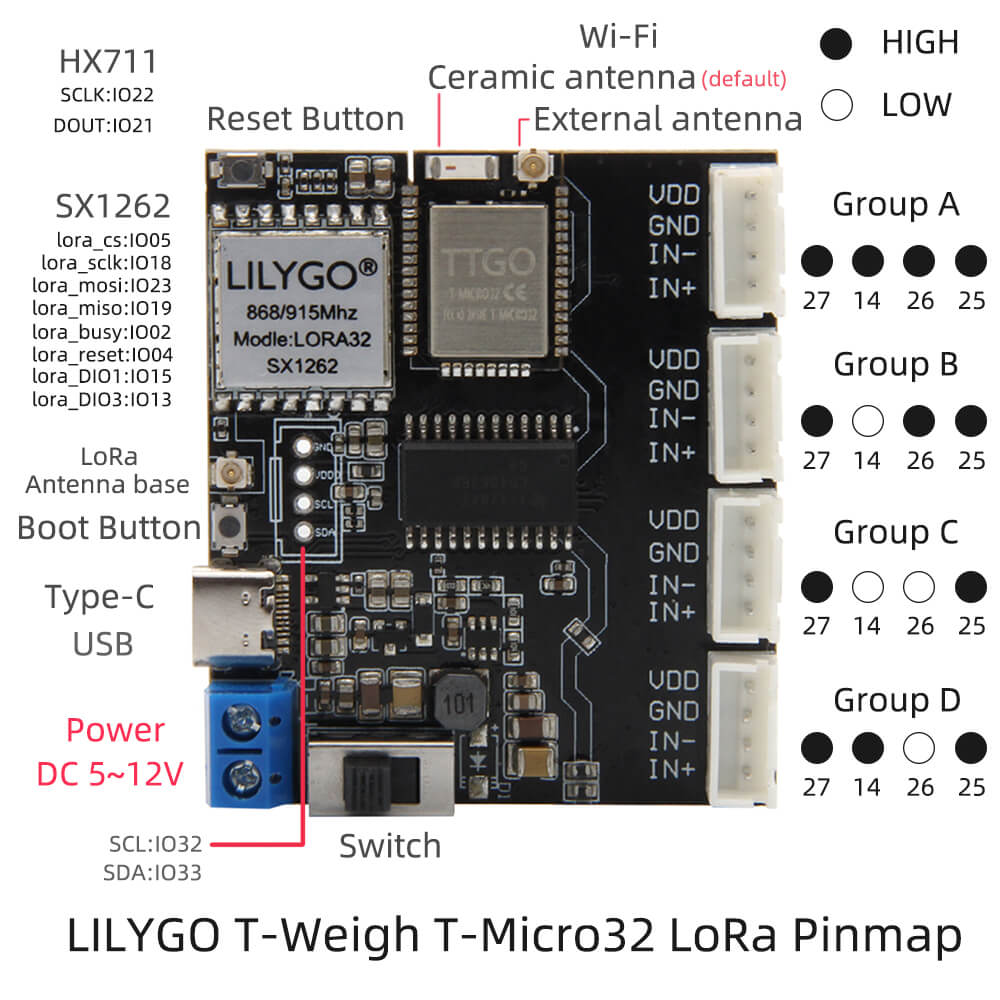

2. Pin Diagram

T-Weigh 868/915Mhz Options

1 X T-Weigh

1 X Antenna (868 / 915)

T-Weigh 868/915Mhz+T-U2T

1 X T-Weigh

1 X Antenna (868 / 915)

1 X T-U2T
