LILYGO®

T8-C3

T8-C3

ESP32-C3 Development Board WIFI Bluetooth Wireless Module

Regular price $4.94 USD
Regular price Sale price $4.94 USD
Sale Sold out

⚠️Please note that all policy page on site only applies to items purchased from our store: https://www.lilygo.cc.

Relevant technical or usage issues can be also discussed in our GitHub or Community.

About Tax

At present, the price of the platform does not include tax.
Customers in Europe should pay attention to the tax problem after the package reaches the local country.

[orders over 150 euros may generate tax, which needs to be borne/handled by the customer, the local policy shall prevail.]

Commended User

People with programming foundation[engineers / students / makers, etc..]

Shipping & Delivery

Methods & Delivery Time

Standard Express: 25-30 Days

YunTu Express: 15-20 Days

DHL: 10-17 Days

FedEx: 10-17 Days

NOTE

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for assistance.

Please note that all delivery times are estimated for reference only.

For more details please check our shipping policy.

LILYGO® T8-C3 ESP32-C3 Development Board WIFI Bluetooth Wireless Module Support TF With 3D Antenna For Arduino Compatible IDE

Specifications

MCU ESP32-C3 32-bit, RISC-V-based MCU
Flash  4MB
 Support Wi-Fi, Bluetooth V5.0+BLE
Programming language C/C++, MicroPython
Programming platform  Arduino, ESP-IDF
Onboard functions Reset Button, Battery Power Detection, TF card
Antenna

3D WiFi Antenna [Use by default]

(Support WiFi IPEX external antenna, but you need to adjust  the resistance)

Power supply

Support USB Type-C / Li-Po Battery
JST Connect type : JST 2pin 1.25mm

Technology Support


T8-C3 Introduction

  • T8-C3 On the basis of T8, the MCU is optimized to ESP32-C3 to upgrade the Bluetooth to Bluetooth V5.0, and some circuit layouts are optimized.

LILYGO July 11, 2022

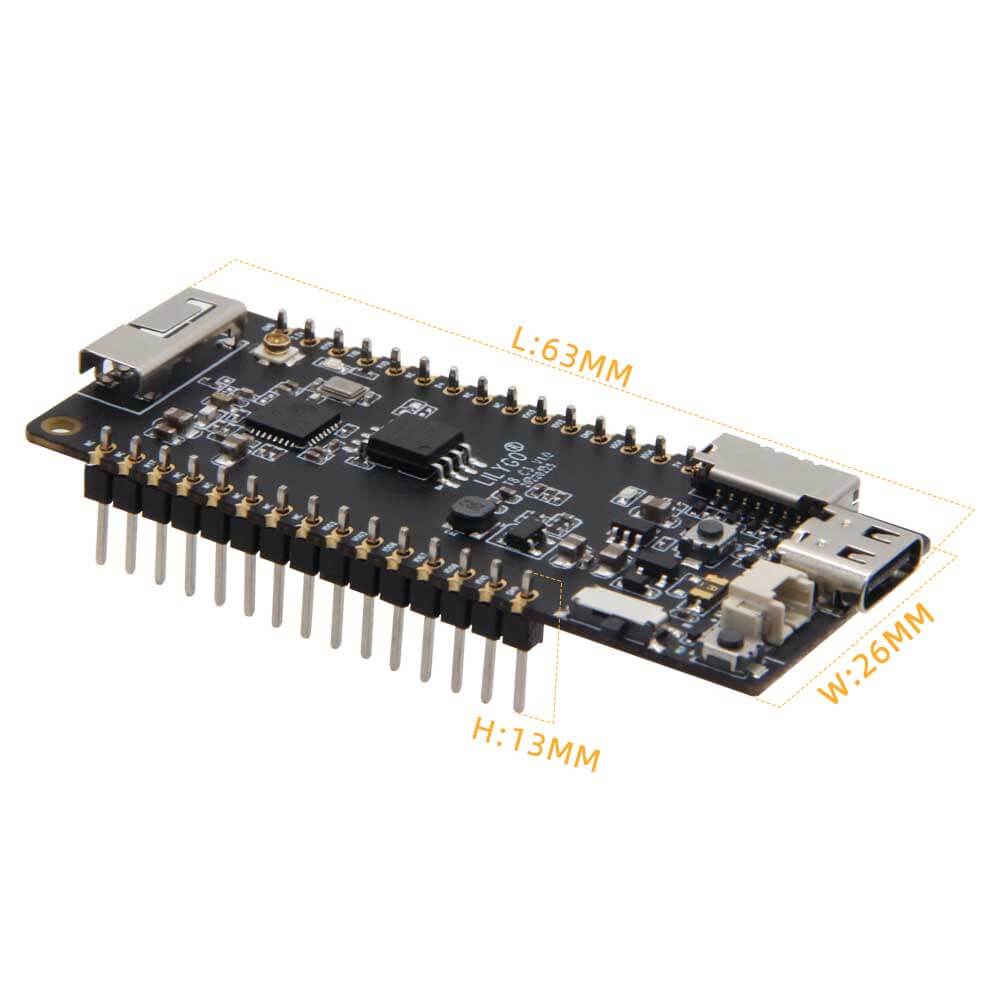

1. Size

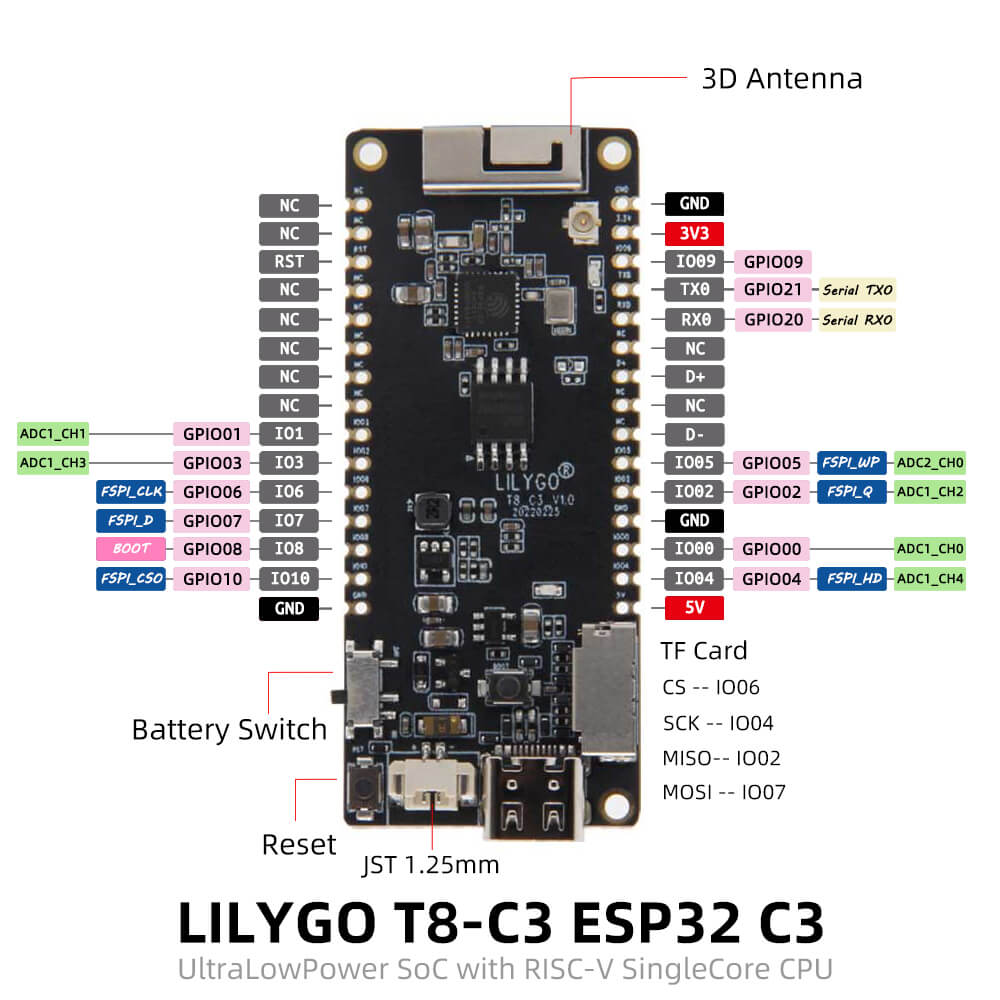

2. Pin Diagram

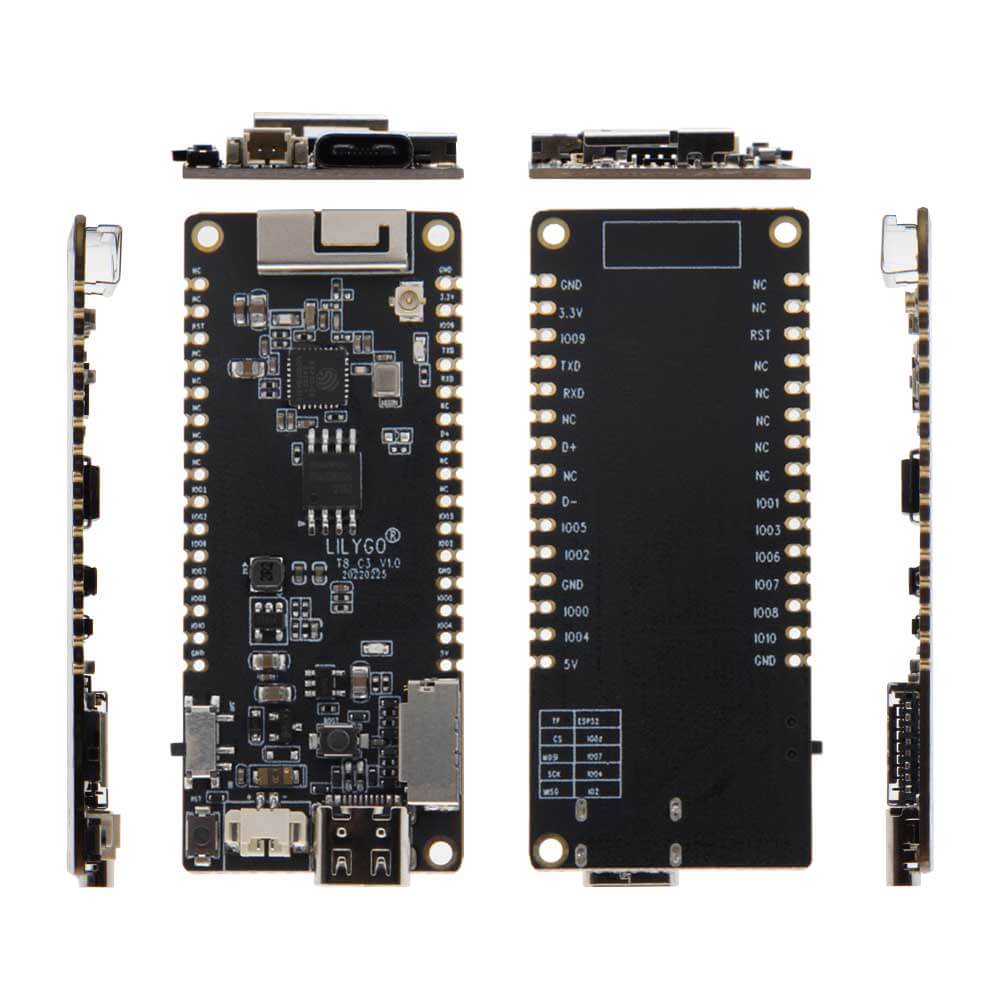

3. Appearance Details

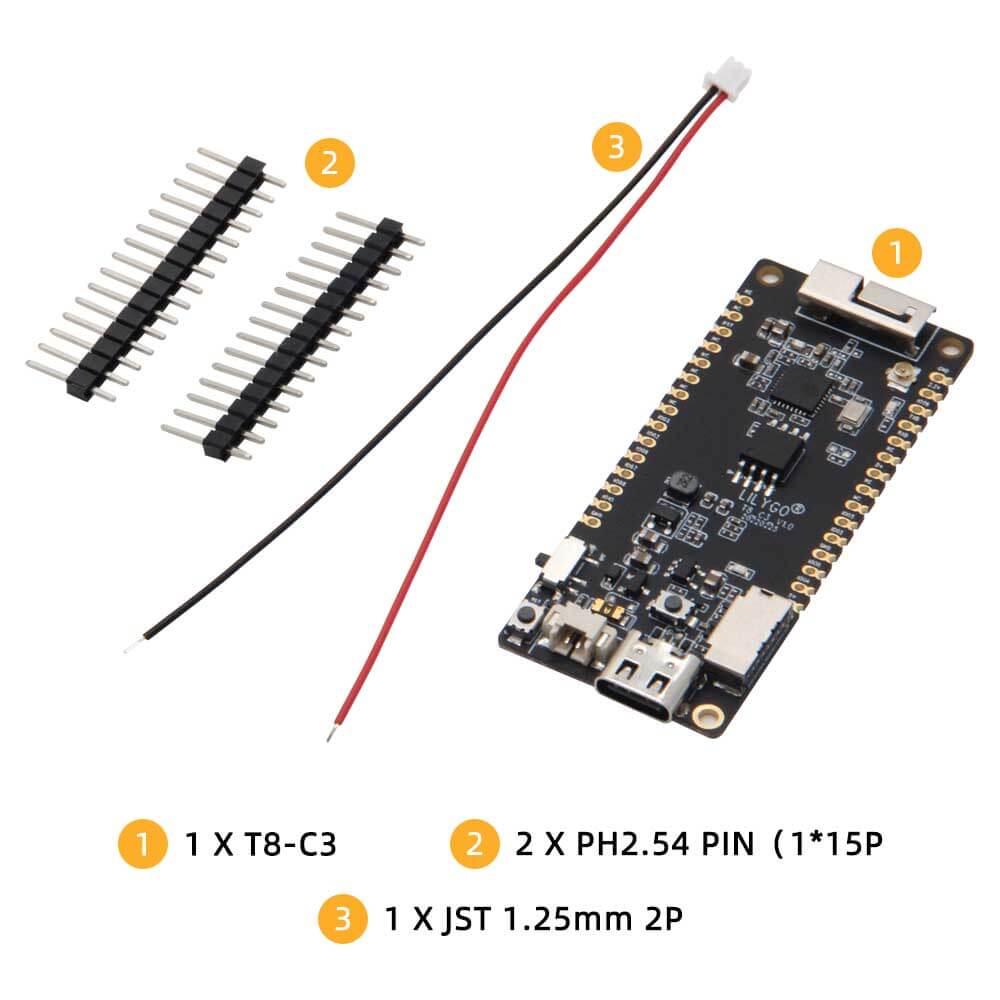

Option1: T8-C3

Option 2: T8-C3 + T-U2T
