LILYGO®

T-Watch 2020 V3

T-Watch 2020 V3

2020 V3 ESP32 Programmable Watch Microphone IPS Touchable

Regular price $36.55 USD
Regular price Sale price $36.55 USD
Sale Sold out

⚠️Please note that all policy page on site only applies to items purchased from our store: https://www.lilygo.cc.

Relevant technical or usage issues can be also discussed in our GitHub or Community.

How to pay with different payment methods

About Tax

At present, the price of the platform does not include tax.
Customers in Europe should pay attention to the tax problem after the package reaches the local country.

[orders over 150 euros may generate tax, which needs to be borne/handled by the customer, the local policy shall prevail.]

Commended User

People with programming foundation[engineers / students / makers, etc..]

Shipping & Delivery

Methods & Delivery Time

Standard Express: 25-30 Days

EUB: 25-30 Days

YunTu Express: 10-20 Days

DHL: 10-17 Days

FedEx: 10-17 Days

We can ship to DHL/FedEx through a third-party channel (Freight Forwarder) because we don't have DHL/FedEx account.
Means : we --> third-party channel(Freight Forwarder) -->official DHL /Fedex-->you

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for assistance.

Please note that all delivery times are estimated for reference only.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

The T-watch 2020 v3 is an open-source smartwatch that is highly customizable and can be used for a variety of applications.

Specifications

Host parameters
  • ESP32-D0WDQ6-V3 Chip WiFi / Bluetooth
  • FLASH 16MB
  • SRAM 520 kB SRAM / PSRAM 8MB
  • Custom function power button (6S / off) (/ 2S / on)
  • OCA process of 1.54 inch IPS 2D arc capacitive touch screen
  • Step algorithm function of BMA423 three-axis accelerometer
  • AXP202 PMU
  • PCF853 RTC chip
  • MAX98357 I2S amplifier chip
  • 8ʊ @ 1W speaker
  • Vibrating motor
  • Infrared signal transmitter
  • PDM microphone added to t-watch-2020 V3
 Application scenarios
  • IOT terminal controller
  • Voice interaction
  • Wearable devices
  • Stem education product
  • DIY creation

Technology Support

If you need technical support please check the link to find more details.

1. Basic tutorial (Youtube)

T-Watch

Installation of transparent watch strap[16:30]

2. Github

T-Watch_Library

TTGO_TWatch_Library/tree/master/examples/BasicUnit/TwatcV3Special/Microphone

T-WATCH-2020 document

Micropython ESP32 Firmware Download Address

What engineers have done with T-Watch 2020 V3

Control Home Appliances using ESP32 Watch

LILYGO T-WATCH-2020 V3

is based on the hardware function of T-WATCH-2020 and adds the PDM microphone function, which makes the product functions richer and more interesting. The MAX98357 I2S speaker is connected to the cloud and can be used to make intelligent voice control.

About T-WATCH-2020

is based on a design concept that can be programmed, can be worn, can be networked, and can be interactive. Integrated ESP32 with WIFI/Bluetooth, easy to program and develop, and more convenient to connect to the Internet.

2D IPS 1.54-inch watch capacitive touch screen using OCA process, zinc alloy metal process frame, making the device structure more robust and beautiful. Suitable for wearable use, The sensitive capacitive touch screen makes human-computer interaction smoother.

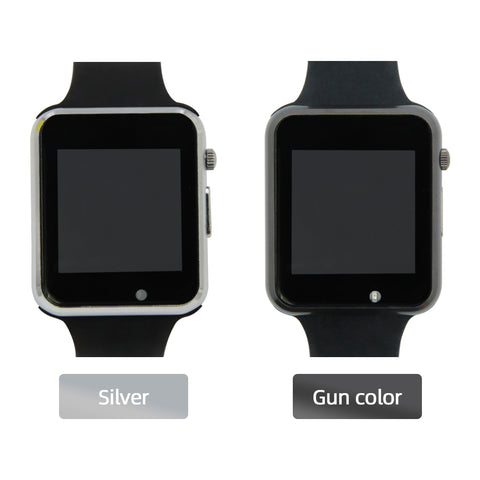

1. Color Contrast

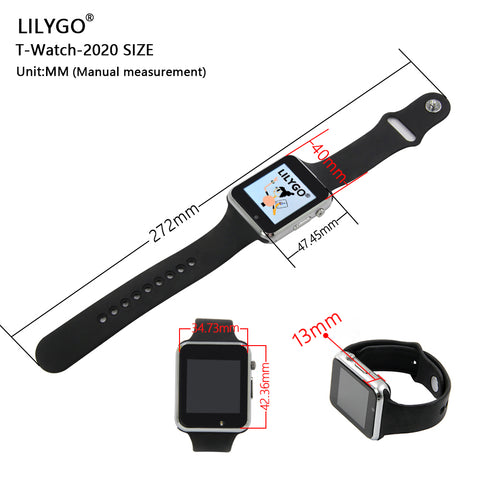

2. Size

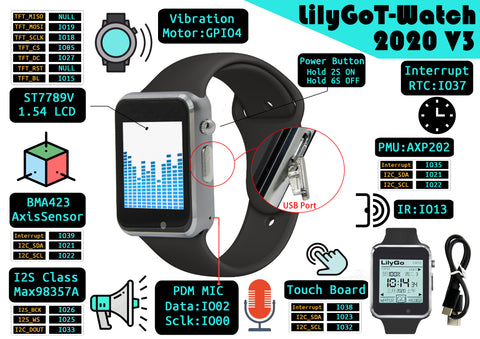

3. Pin Diagram


GunColor/ Silver

  • 1 X T-Watch
  • 1 X Cable
GunColor/ Silver+Transparent Strap

  • 1 X T-Watch
  • 1 X Cable
  • 1 X Transparent Strap
