LILYGO®

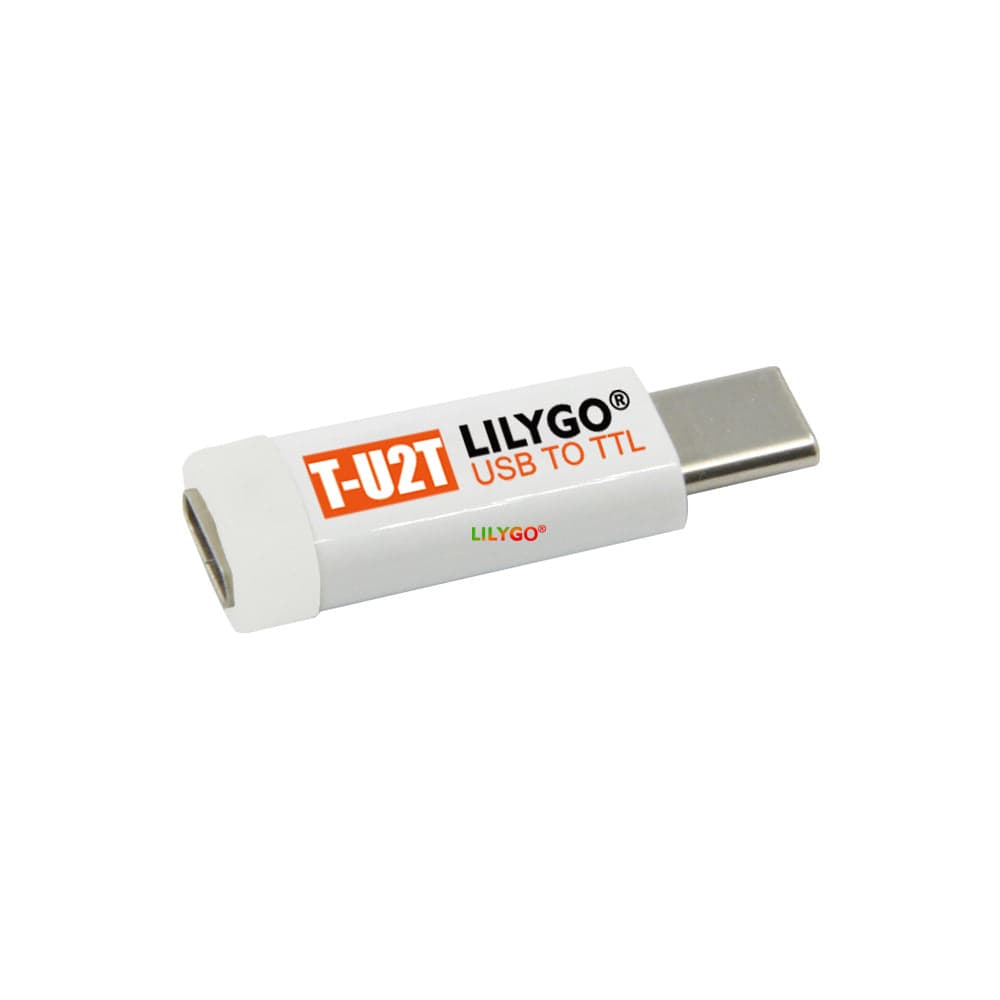

T-U2T

T-U2T

USB To TTL Automatic Downloader Development Board Open Source Module

Regular price $5.25 USD
Regular price Sale price $5.25 USD
Sale Sold out

⚠️Please note that all policy page on site only applies to items purchased from our store: https://www.lilygo.cc.

Relevant technical or usage issues can be also discussed in our GitHub or Community.

How to pay with different payment methods

About Tax

At present, the price of the platform does not include tax.
Customers in Europe should pay attention to the tax problem after the package reaches the local country.

[orders over 150 euros may generate tax, which needs to be borne/handled by the customer, the local policy shall prevail.]

Commended User

People with programming foundation[engineers / students / makers, etc..]

Shipping & Delivery

Methods & Delivery Time

Standard Express: 25-30 Days

EUB: 25-30 Days

YunTu Express: 10-20 Days

DHL: 10-17 Days

FedEx: 10-17 Days

We can ship to DHL/FedEx through a third-party channel (Freight Forwarder) because we don't have DHL/FedEx account.
Means : we --> third-party channel(Freight Forwarder) -->official DHL /Fedex-->you

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for assistance.

Please note that all delivery times are estimated for reference only.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

LILYGO® TTGO T-U2T USB To TTL Automatic Downloader CH9102 Programmer Adapter Serial Development Board Open Source Module


LILYGO® T-U2T USB To TTL Automatic Downloader CH9102

  • LILYGO T-U2T is the abbreviation of USB To TTL.
  • The original intention of this product design is that every time you design an ESP32 circuit board, you will find that the same circuit of USB To TTL appears on the schematic, especially when creating a small-sized circuit.
  • This circuit occupies a lot of space, and it also increases the cost, so we want to change it, Finally, we discovered that each product also has another feature that is the USB interface with TYPE-C.
  • So based on the characteristics of the male Type-c and female Type-C USB ports, we separately designed the CH9102 USB interface chip and automatic download circuit into the shape of a USB adapter.
  • We will start with new products (for example T-display e-paper version), there is no longer a duplicate USB To TTL circuit on the motherboard.
  • And you only need a T-U2T to use the LILYGO motherboard. T-U2T is also an open-source product. Other products with USB To TTL circuits can also be designed to be compatible with T-U2T.
  • This can not only save space on the circuit board but also save costs, especially in the current environment of a tight supply of chip wafers.

Specification

LILYGO T-U2T parameters

  1. USB chip CH9102 Max Read/Write Speed: 4Mbps
  2. Automatic download circuit
  3. boot button
  4. Power Indicator
  5. Type-C male
  6. Type-C female

Application scenarios

Requires USB To TTL motherboard
1. Size
2. Pin Diagram
