LILYGO®

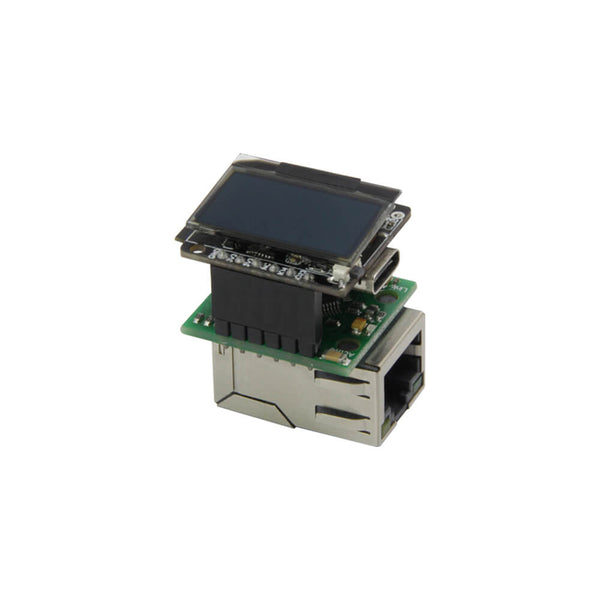

T-Lite W5500

T-Lite W5500

ESP32 Chip SSD1306 0.96 Inch Oled USB Programming Development Board

Regular price $5.49 USD
Regular price Sale price $5.49 USD
Sale Sold out

⚠️Please note that all policy page on site only applies to items purchased from our store: https://www.lilygo.cc.

Relevant technical or usage issues can be also discussed in our GitHub or Community.

About Tax

At present, the price of the platform does not include any tax.
European customers should pay attention to the tax problem after the package reaches the local country, which needs to be borne/handled by the customer, the local policy shall prevail

[orders over 150 euros may generate tax (Amount for reference only), for orders over this amount, we will not inform the customer separately, so please pay attention to it by yourself.]

Commended User

People with programming foundation[engineers / students / makers, etc..]

Shipping & Delivery

Please read the following rules carefully before submitting your order, otherwise, we can't process your order.

  1. For international orders, please make sure the language of the delivery address is in English
  2. For domestic orders (Mainland China), please make sure the language of the delivery address is Chinese.
  3. For Hong Kong, Macau, and Taiwan orders, please provide your tax ID number, or the corresponding ID card number, and the corresponding GUI Number if the recipient is a company name.

----------------------------------------------------------------

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. EUB: 25-30 Days
  3. YunTu Express: 10-20 Days
  4. DHL: 10-17 Days
  5. FedEx: 10-17 Days
  6. YanWen: 20-35 Days

Please note that all delivery times are estimated for reference only.

During ship, maybe some methods of transport do not update the logistic track until the parcel reaches the destination country.

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for help.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

 T-Lite W5500 can be used in conjunction with IOT gateway products

Specifications

Hardware


Chipset

ESP32

FLASH

4MB

SRAM

520 kB SRAM

Button

Boot,Reset

On-board clock

40MHz crystal oscillator

Display

SSD1306 / 0.96 Inch Oled

Antenna

Onboard ceramic antenna(Used by default) / Expandable antenna interface

Working voltage

2.7V-3.6V

Working temperature range

-40℃ ~ +85℃

Size

29.5*23*8MM

Weight

4.5g


Power Supply


Power Supply Input

USB 5V/1A

USB

Type-C

Wi-Fi

Description

Standard

FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (esp32 chip)

Protocol

802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval

Frequency range

2.4GHz~2.5GHz(2400M~2483.5M)

Transmit Power

22dBm

Communication distance

300m


Bluetooth


Protocol

Meet bluetooth v4.2BR/EDR and BLE standard

Radio frequency

With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH

Audio frequency

CVSD&SBC audio frequency


Software


Wi-Fi Mode

Station/SoftAP/SoftAP+Station/P2P

Security mechanism

WPA/WPA2/WPA2-Enterprise/WPS

Encryption Type

AES/RSA/ECC/SHA

Firmware upgrade

UART download/OTA(Through network/host to download and write firmware)

Software Development

Support cloud server development /SDK for user firmware development

Networking protocol

IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT

User Configuration

AT + Instruction set, cloud server, android/iOSapp

OS

FreeRTOS



Technology Support [Github]

If you need technical support please check the link to find more details.

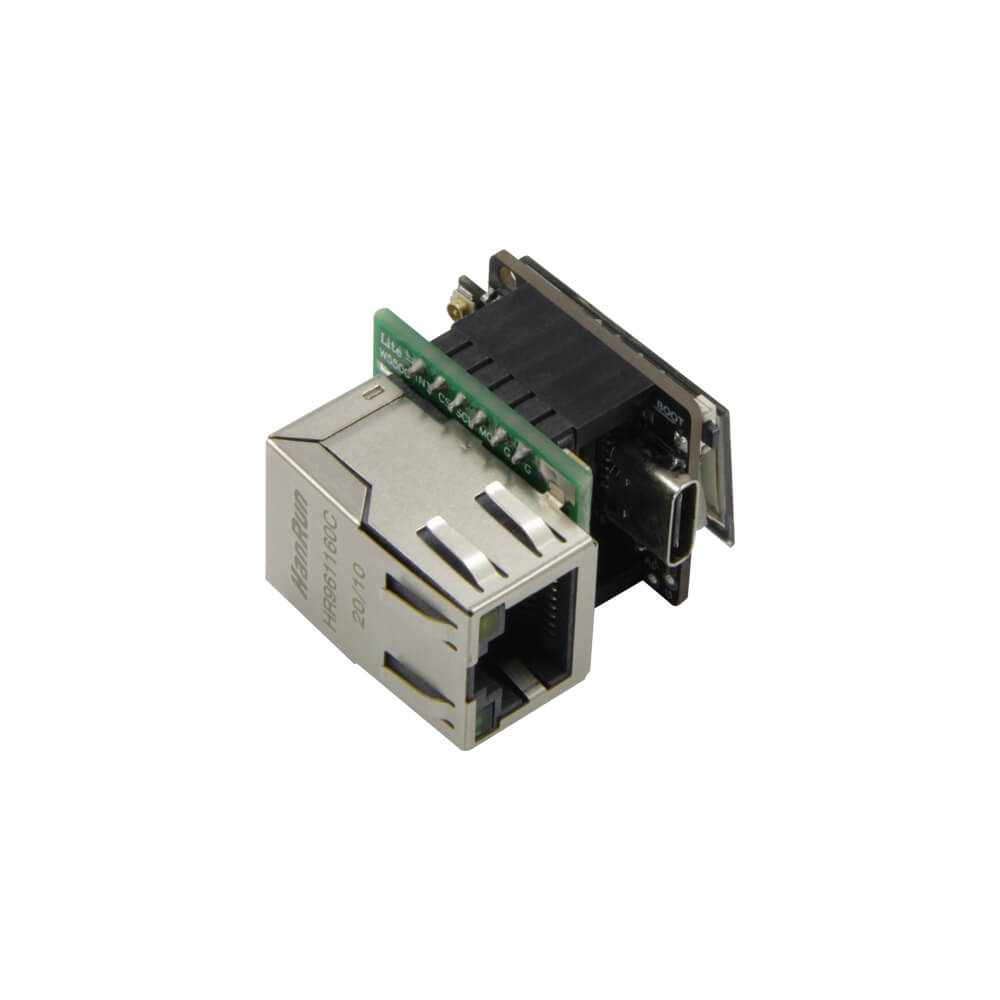

T-Lite W5500

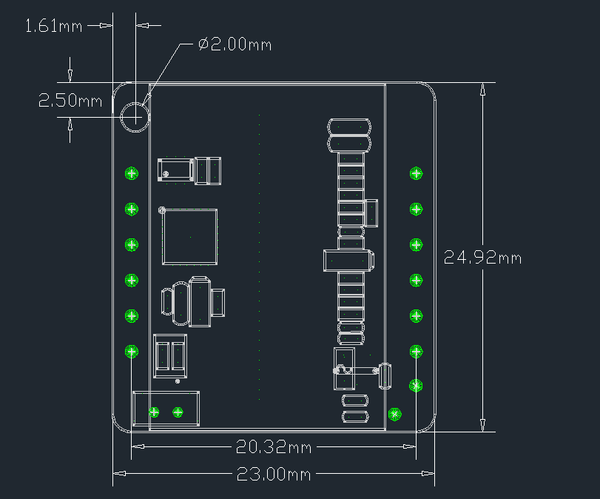

Size

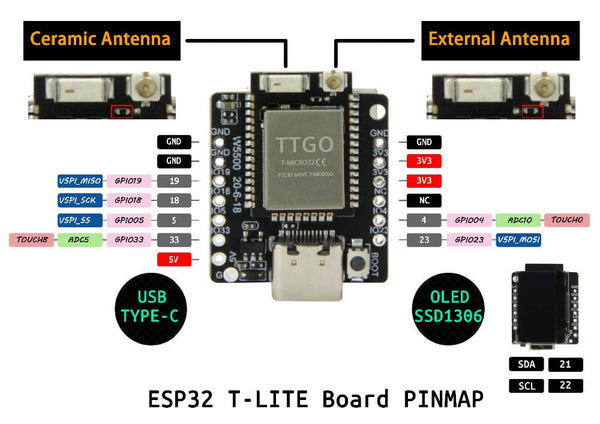

Pin Diagram

Details

T-Lite CH9102F

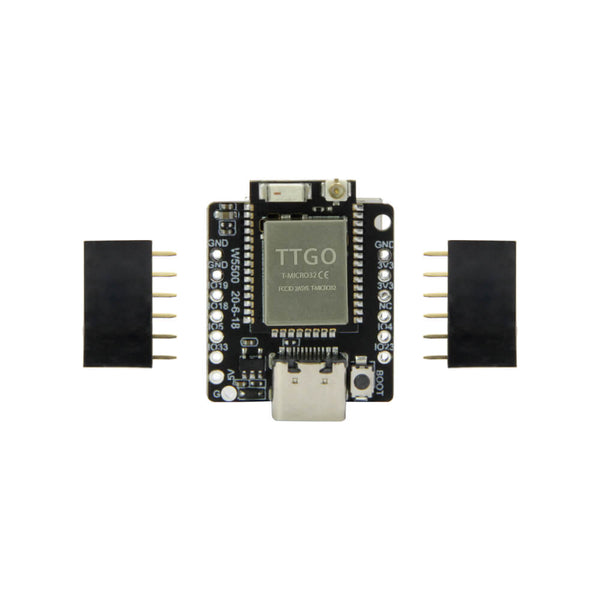

1 X T-Lite
2 x Female Pin

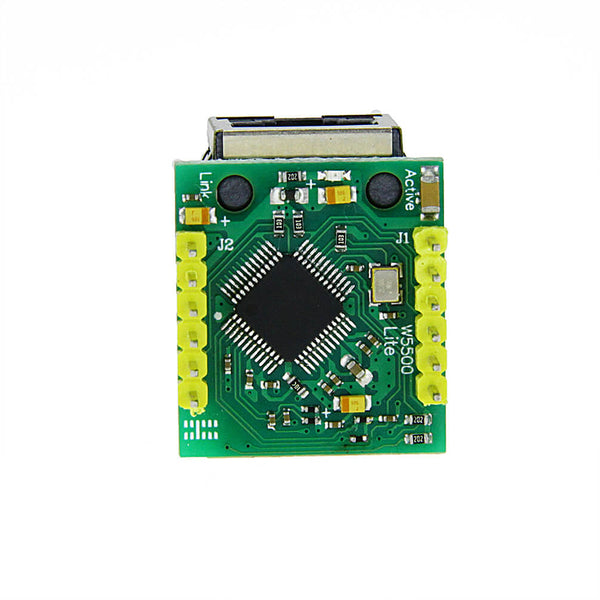

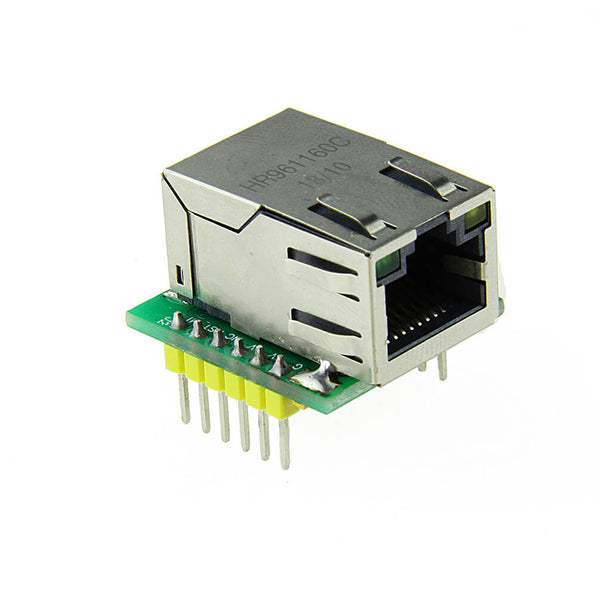

1 X W5500 Gateway Module(Default solder header)



View full details
