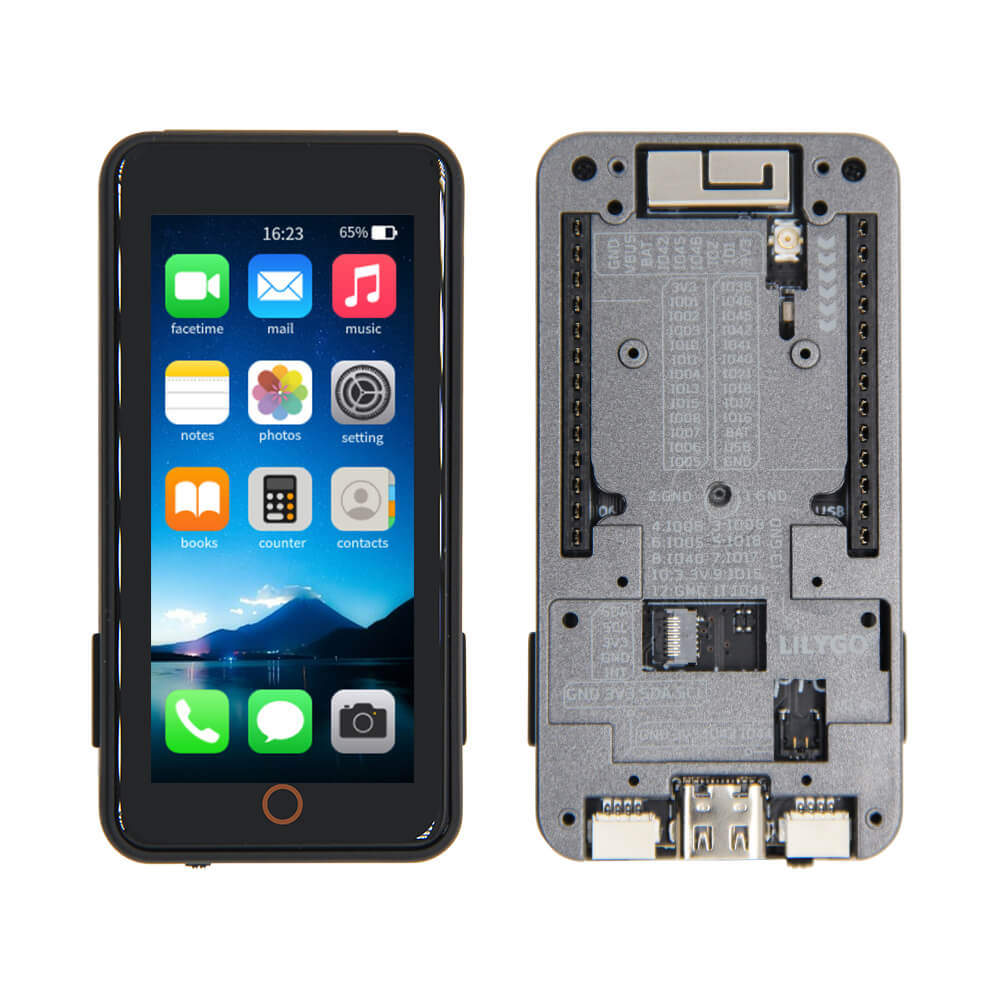

T-Display S3 pro is the upgraded version of T-Display S3.
The main thing is the use of a larger screen 2.33-inch screen and the addition of the chip SY6970 for phone OTG.

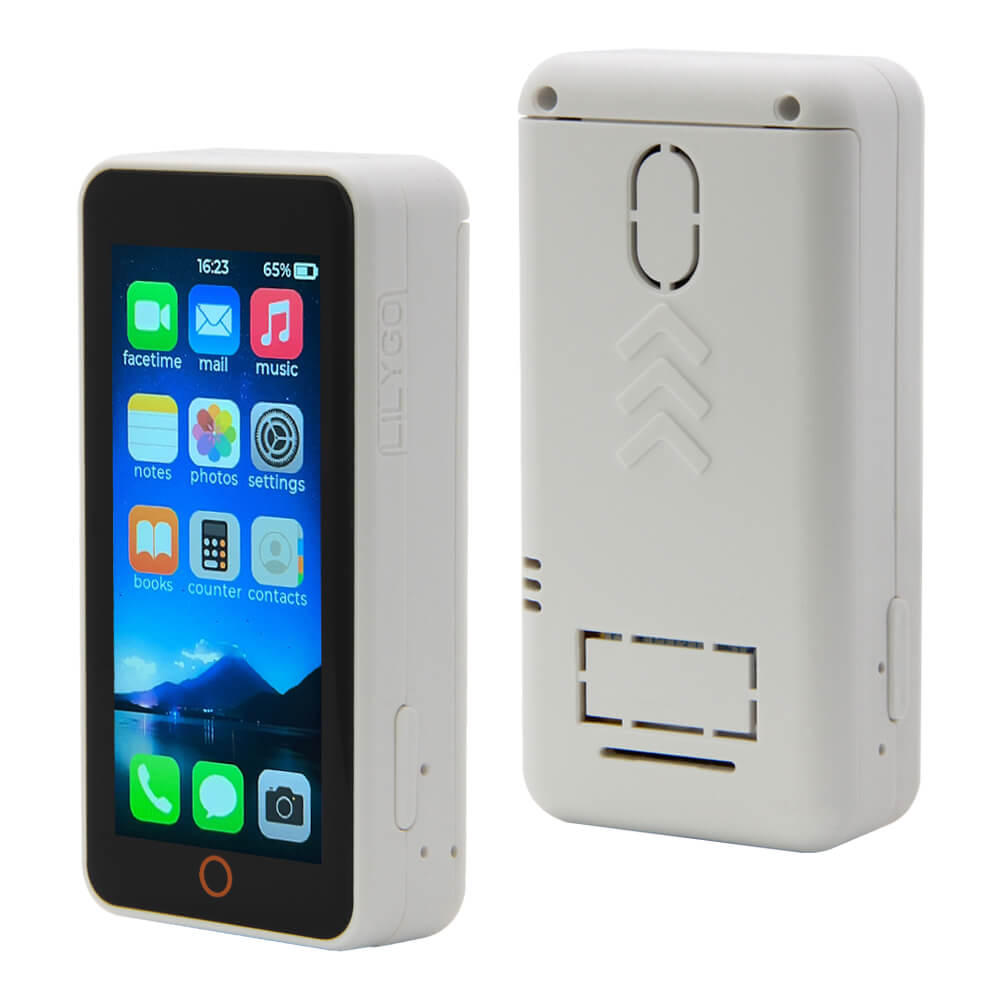

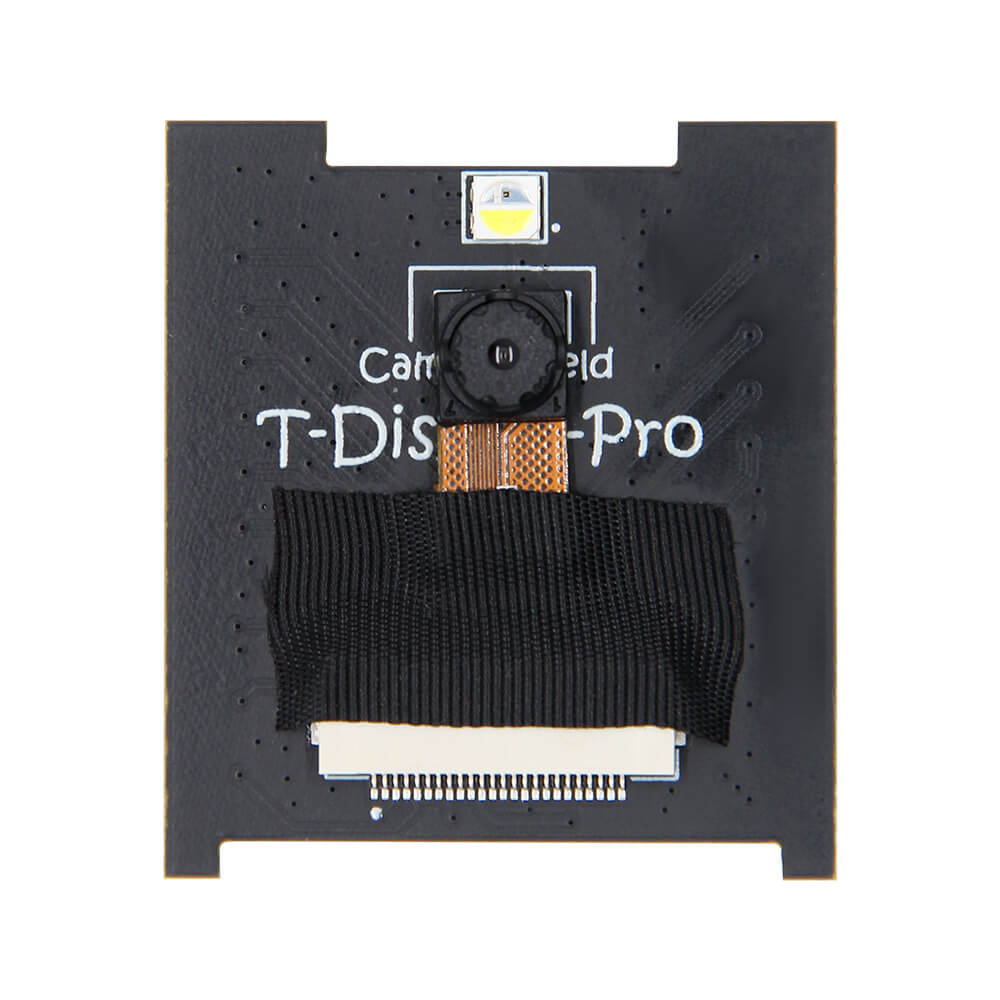

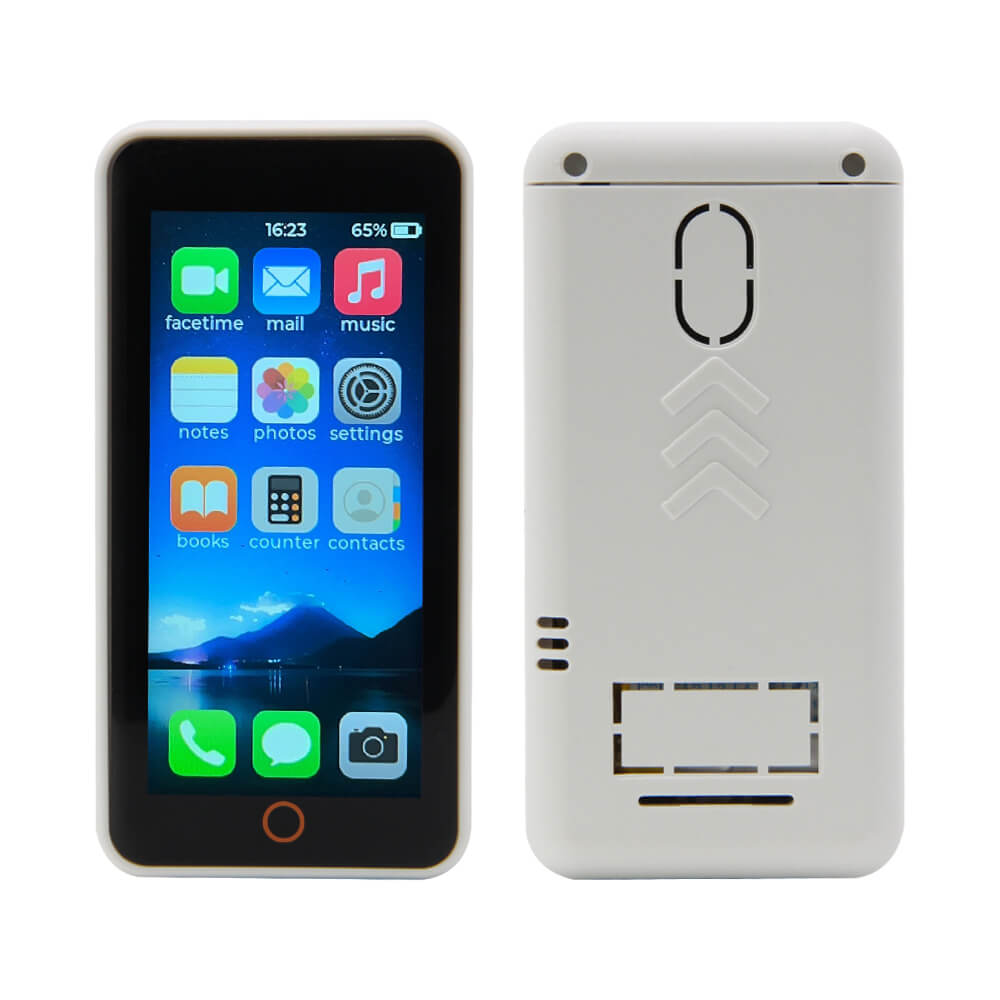

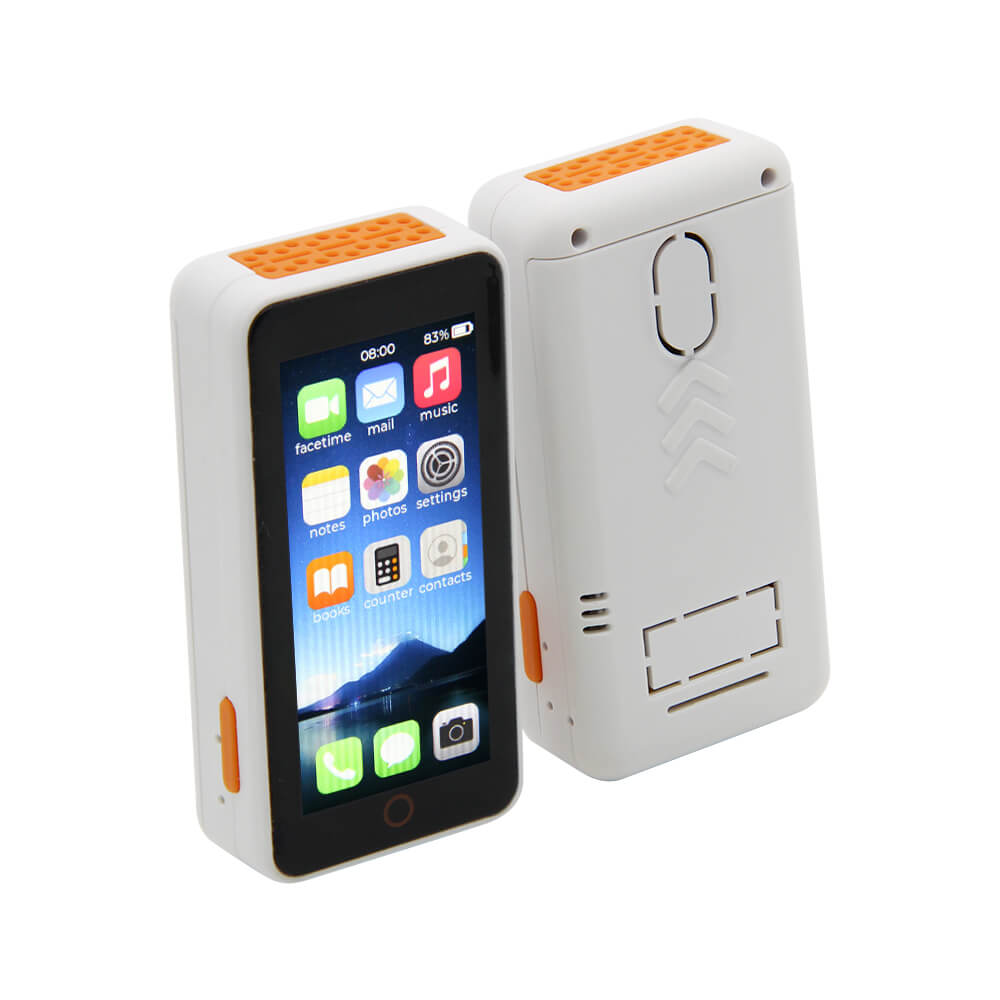

Continuing the way of T-display S3, the case is ABS, and there is added the expansion of the camera module through POGOpin for the use of a built-in module. Ambient light and proximity sensors on the top of the screen, two integrated QWIIC ports, and a battery power switch. An optional MPU9250 IMU module is also available internally.
Note:

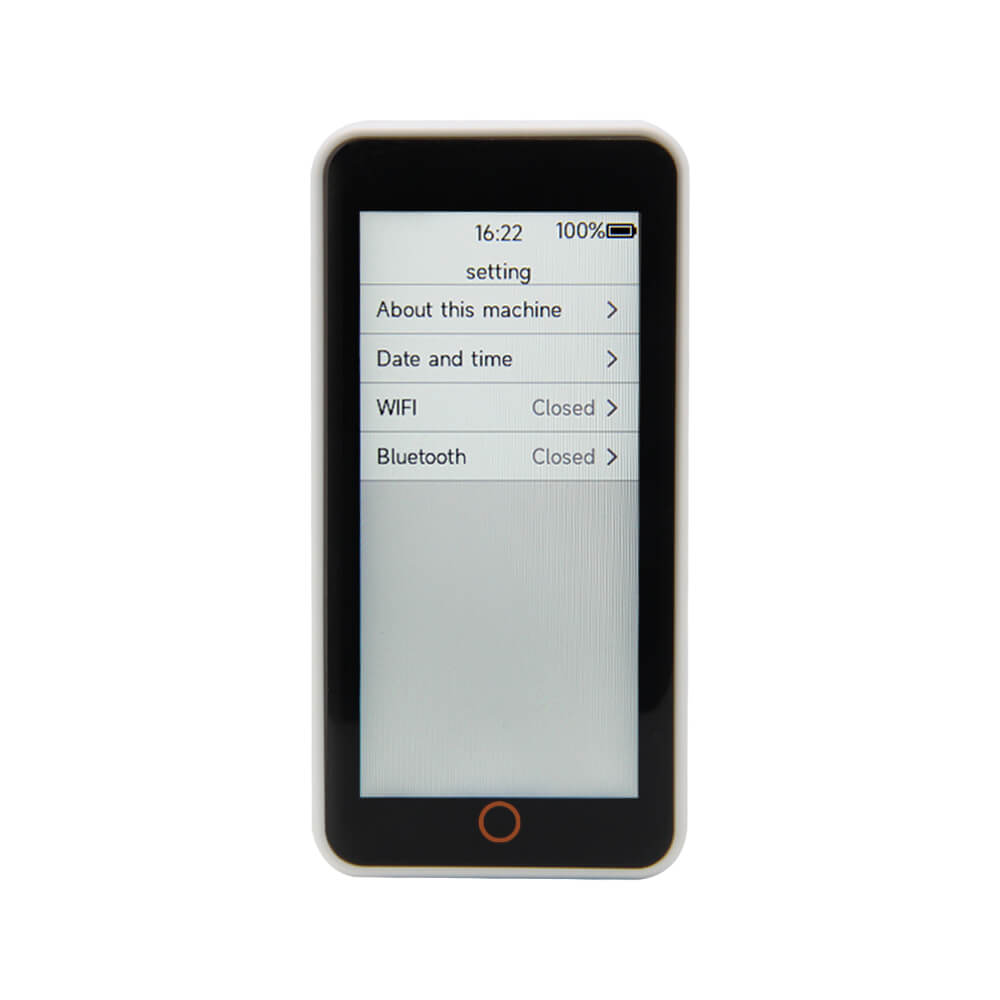

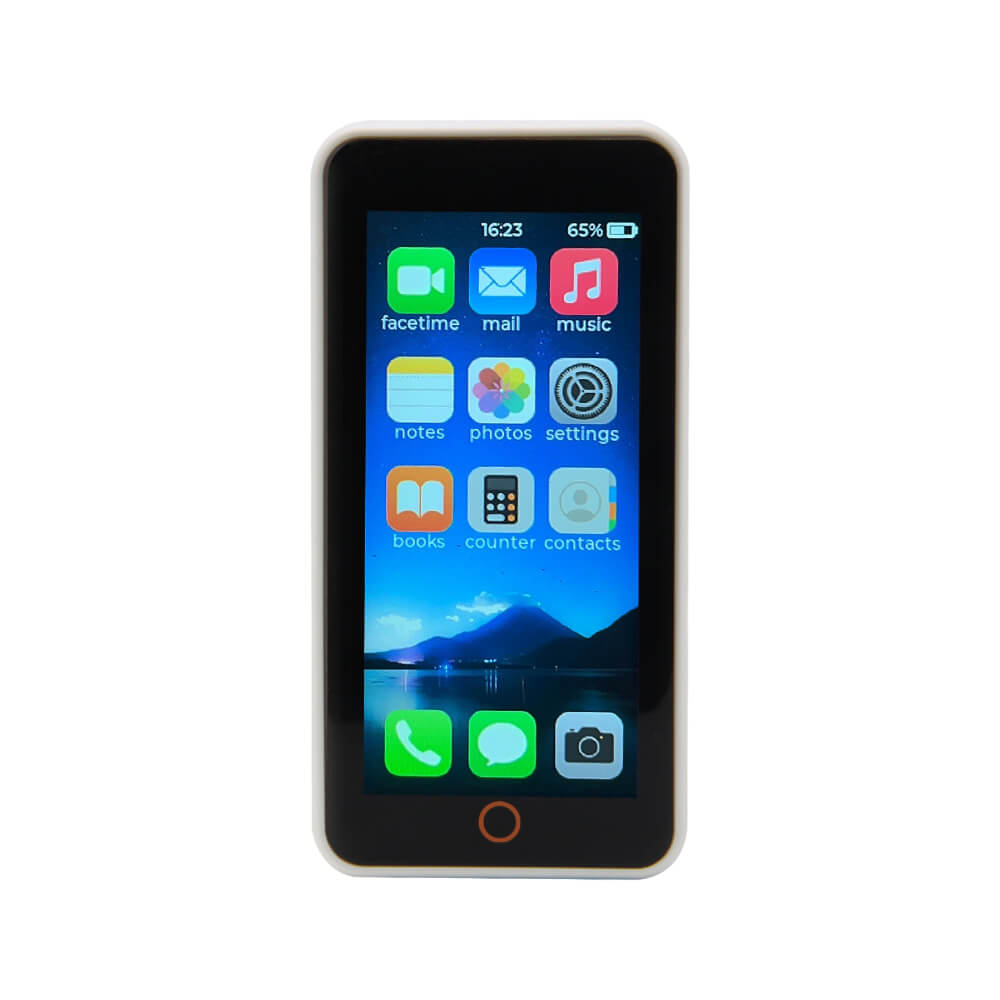

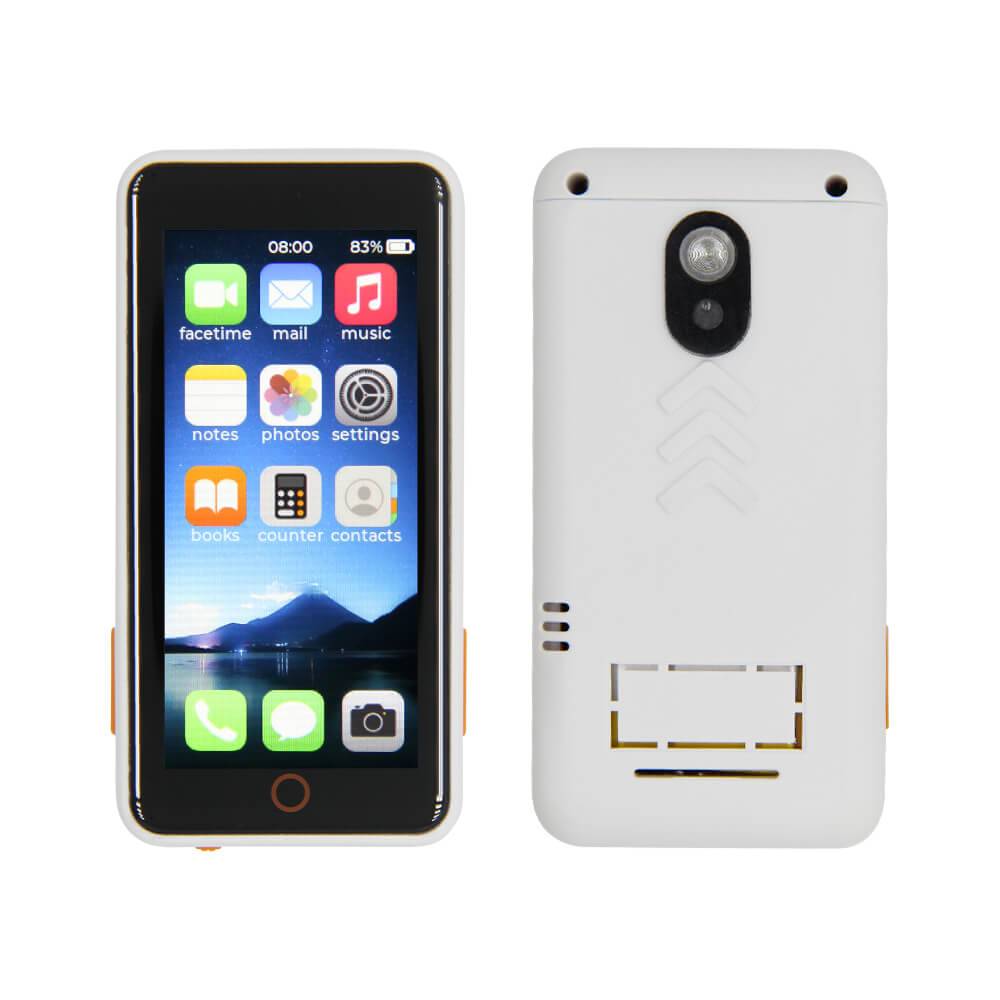

The interface shown in the picture is a sample UI routine, not a function that this product has. Specific on-board features are subject to detailed descriptions
Specifications
MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
Wireless Connectivity | Wi-Fi 802.11, BLE 5+BT mesh |
Programming Platform | Arduino-ide, Micropython |
Flash | 16MB |
PSRAM | 8MB |
Support | USB OTG |
Onboard functions | Boot+Reset+IO12+IO16 |
Button 2.33 inch Touch IPS TFT LCD: |
Resolution | 222(H)RGB x 480(V) |
Drive Chip | ST7796 |
Interface | SPI |
2C Digital Light Sensor LTR-553ALS-01: |
Features | Digital light sensor [ALS] & proximity sensor [PS] |
External board |
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.

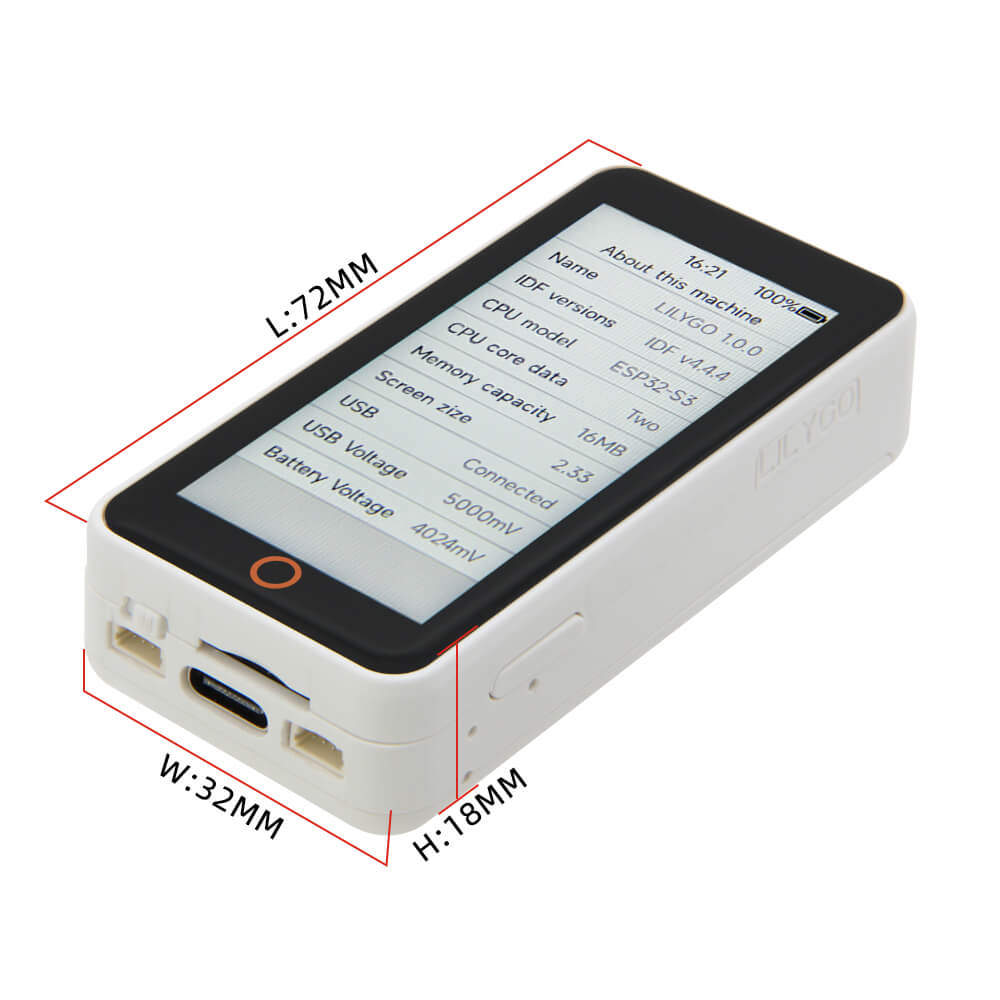

Size [For reference]

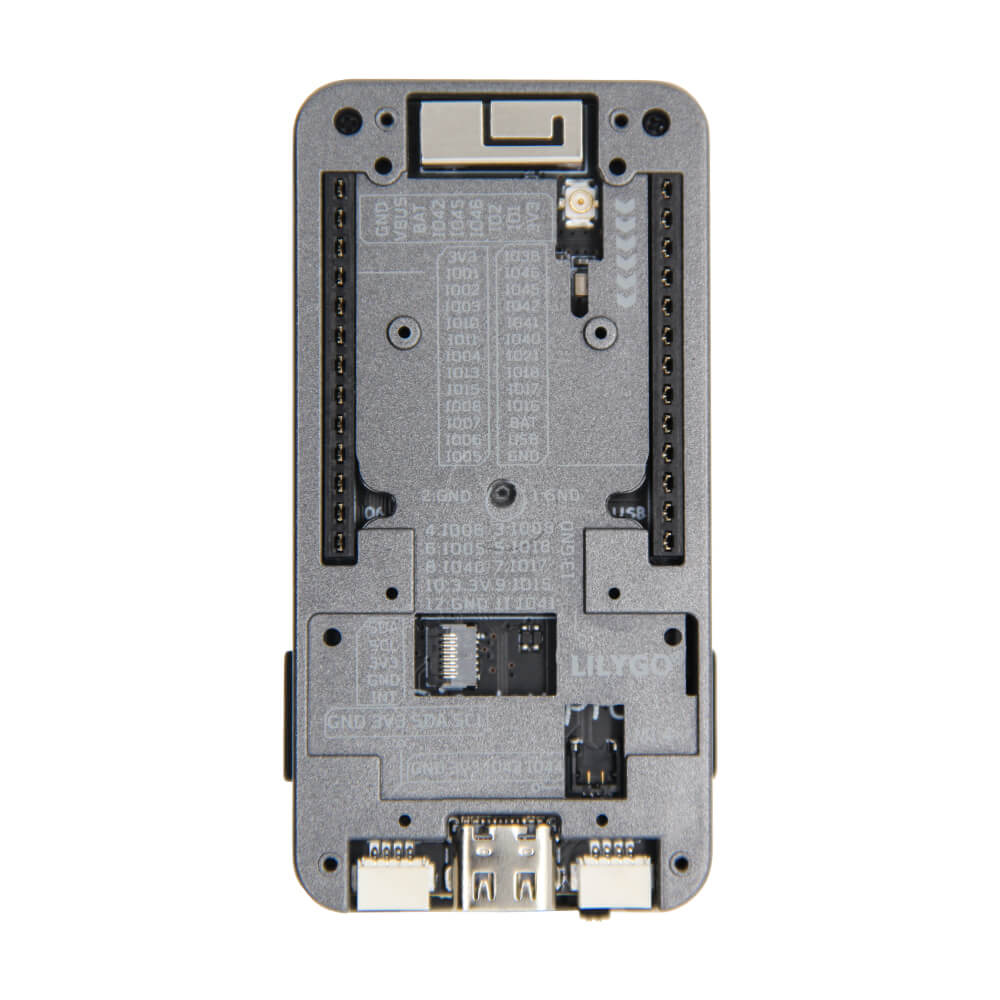

Pin Diagram

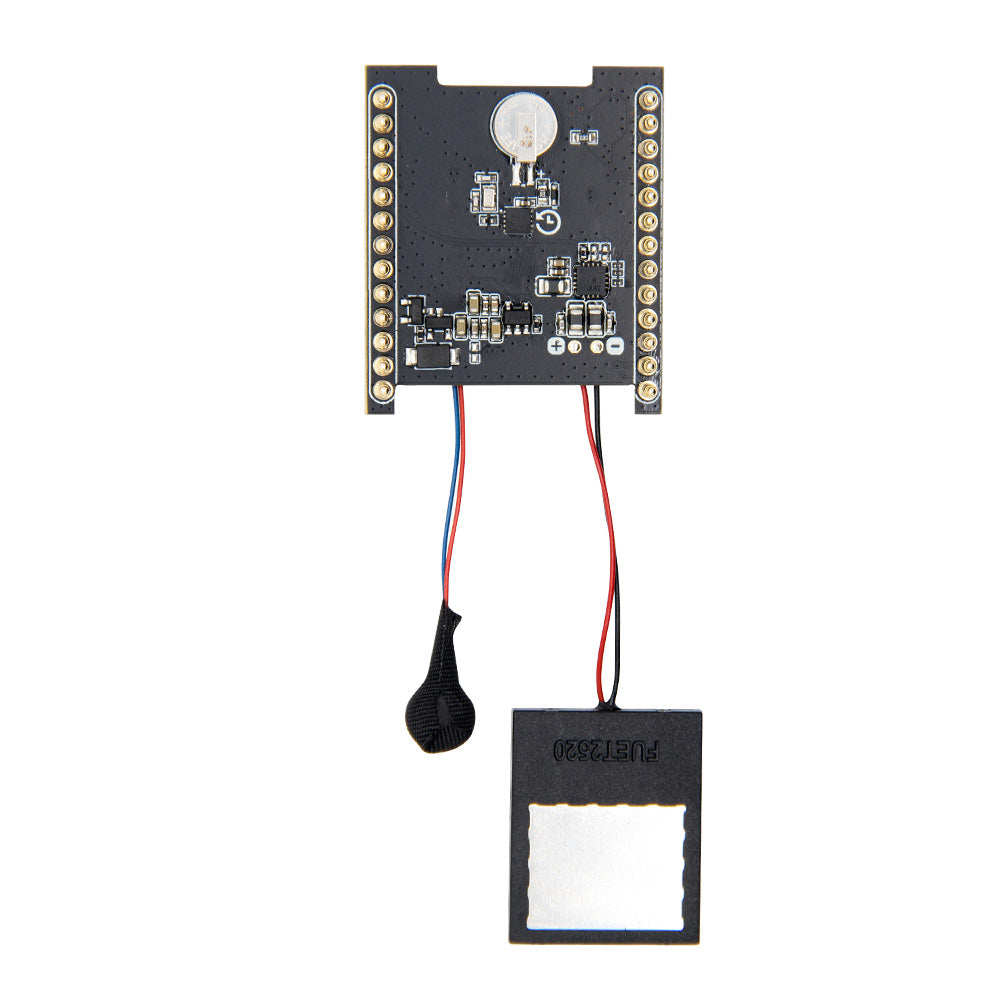

External board
Without Camera
With Camera
More Details
T-Display S3 Pro
External board
Share
Very good product.
Product looked great and watching a number of Youtube videos would suggest easy to program. I have tried a number of the example Lilygo Arduino sketches with only minimal success. The touch screen doesn't appear to work except with the factory.bin file flashed to it. It this could be resolved then the review might be a lot better.
I believe it is a great product, very compact with SD support, camera, MIC, ett. A nice evolution of the best-selling T-Display-S3
What I miss it is an easiest way to install in Arduino IDE, you cannot use T-Display-S3 an the T-Pro at the same time, which is the weakest point to all these products.
I think you have to go indeep to improve the installation and the compatibility with graphic libraries.
The best ESP32 S3 microcontroller along with a very well-mounted touchscreen in a box, it includes all the accessories for making portable applications, including the battery. I am very satisfied with the product.
Excellent product, good plastic case, very good display (brightness, resolution, size) and it includes the battery. I'm testing some projects from other users who share their programs on the web.
I only miss one thing, the standard bluetooth port, because I can't use this device to send data to a thermal printer.
