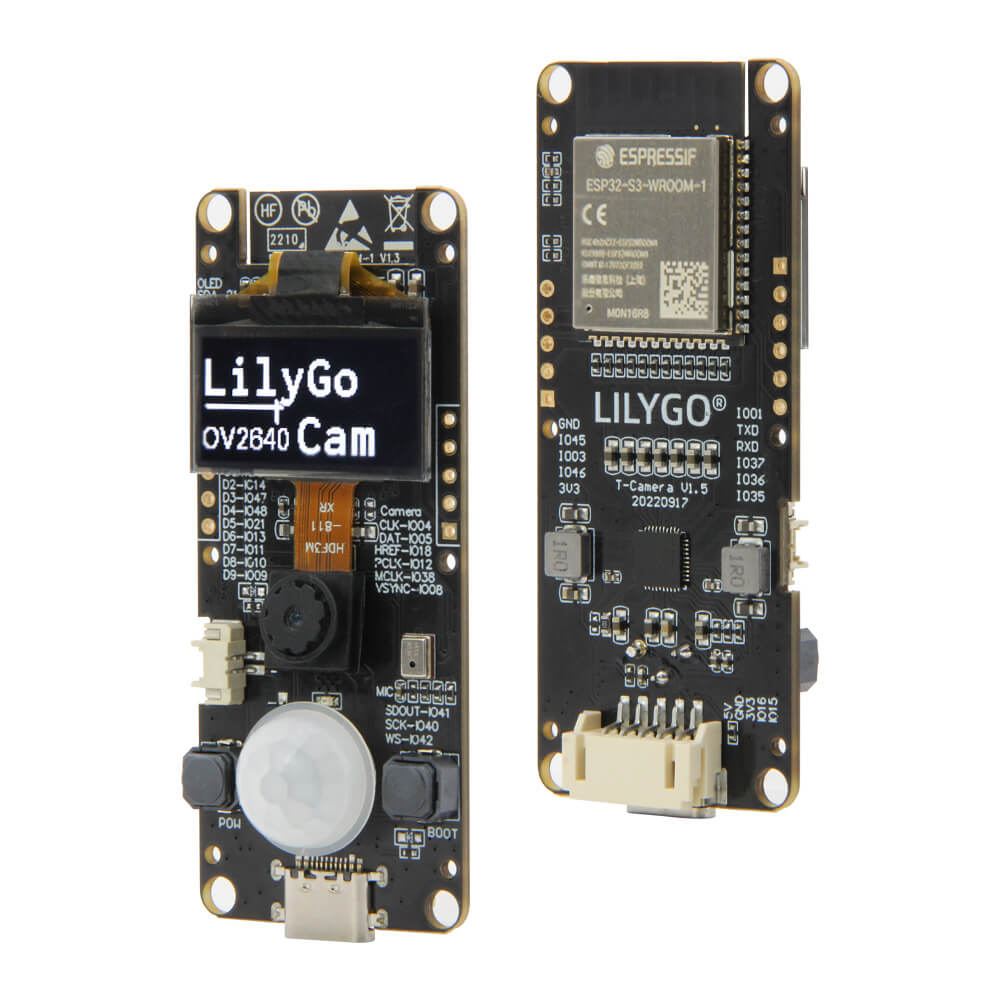

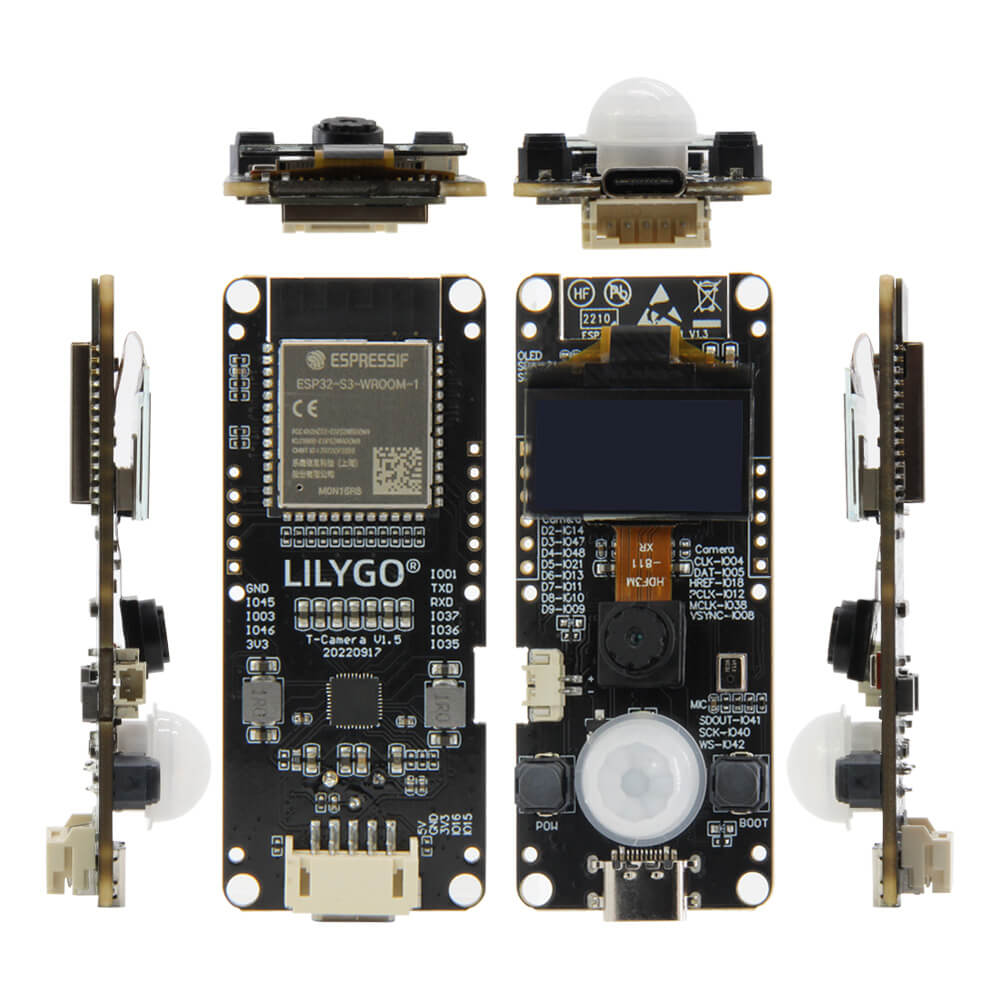

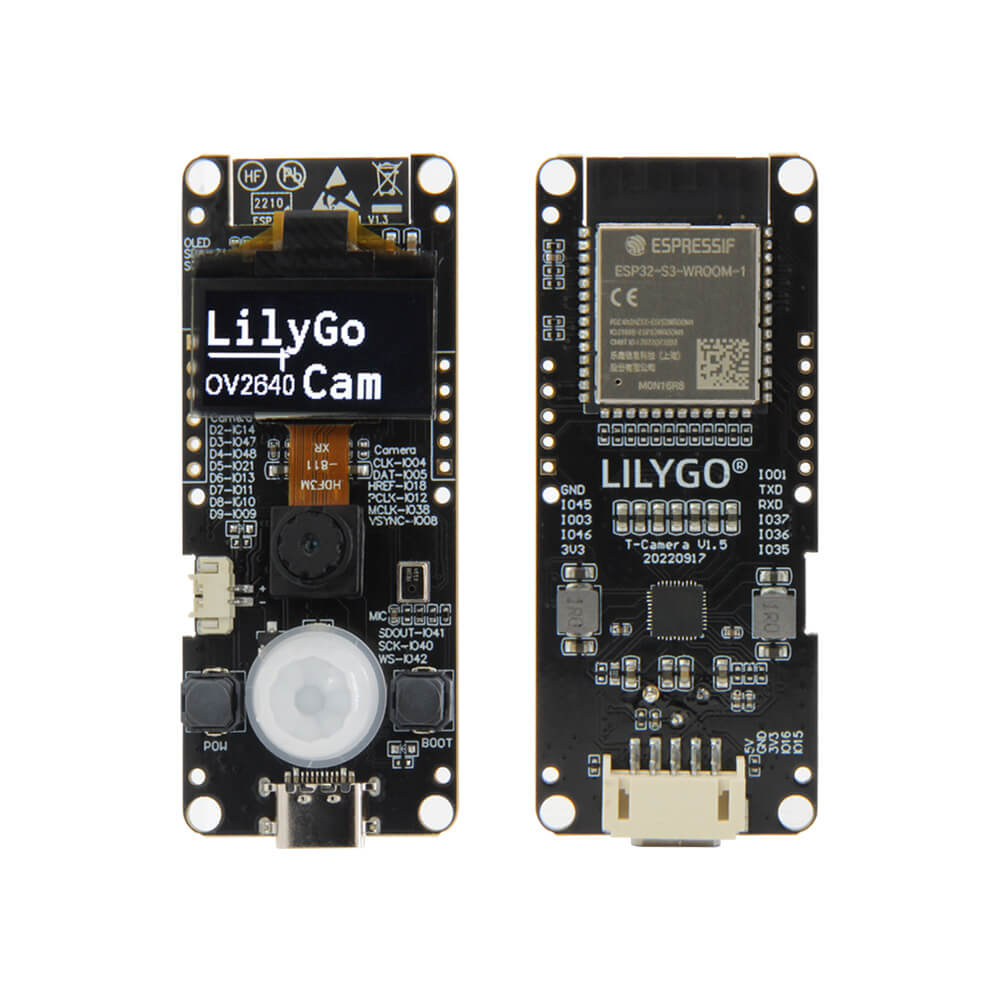

T-Camera S3

T-Camera S3

ESP32-S3 OV2640 FN1 6R8 Dual-core microprocessor Development Board

$17.31
$17.31
Sale Sold out

Payment Method

Accepted payment methods

Methods & Delivery Time

  • DHL 7-10 business days
  • FedEx 7-10 business days
  • Standard Express 10-25 business days
  • Overseas Warehouse* 7-15 business days


*Available from: Germany, USA, Canada

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

We only charge the product cost and shipping cost.

1. For Standard Express Order: You may not need to deal with customs clearance, just need to pay attention to the track of the parcel, but this is not absolute, if your parcel is inspected by the customs, then you need to assist in dealing with customs clearance.

2. For DHL/ FedEx Order: You need to deal with the relevant customs clearance matters, as well as pay the tariff, the specific amount of tariff please pay attention to the policy of your country.

----------------------

The above tariffs are for reference only, please pay attention to your country's tax policy for more detailed instructions, if you need our help or have questions please feel free to contact us.

LilyGo New Development Boards, adapts to T-Camera shell.

Specifications

MCU ESP32-S3FN1 6R8 Dual-core microprocessor
Wireless Connectivity Wi-Fi 802.11, BLE 5 + BT mesh
Programming Platform Arduino-ide、 VS Code
PSRAM 8MB
Flash  16MB
 OV2640-Camera module(Optional OV5640 Ver)
Pixels 2 Million (UXGA 1622X1200)
Voltage  3.3V
 OLED I2C SSD1306 0.96 inch
Resolution 128x64
Drive Protocol I2C
SDA IO07
SCL  IO06




Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

T-Camera S3

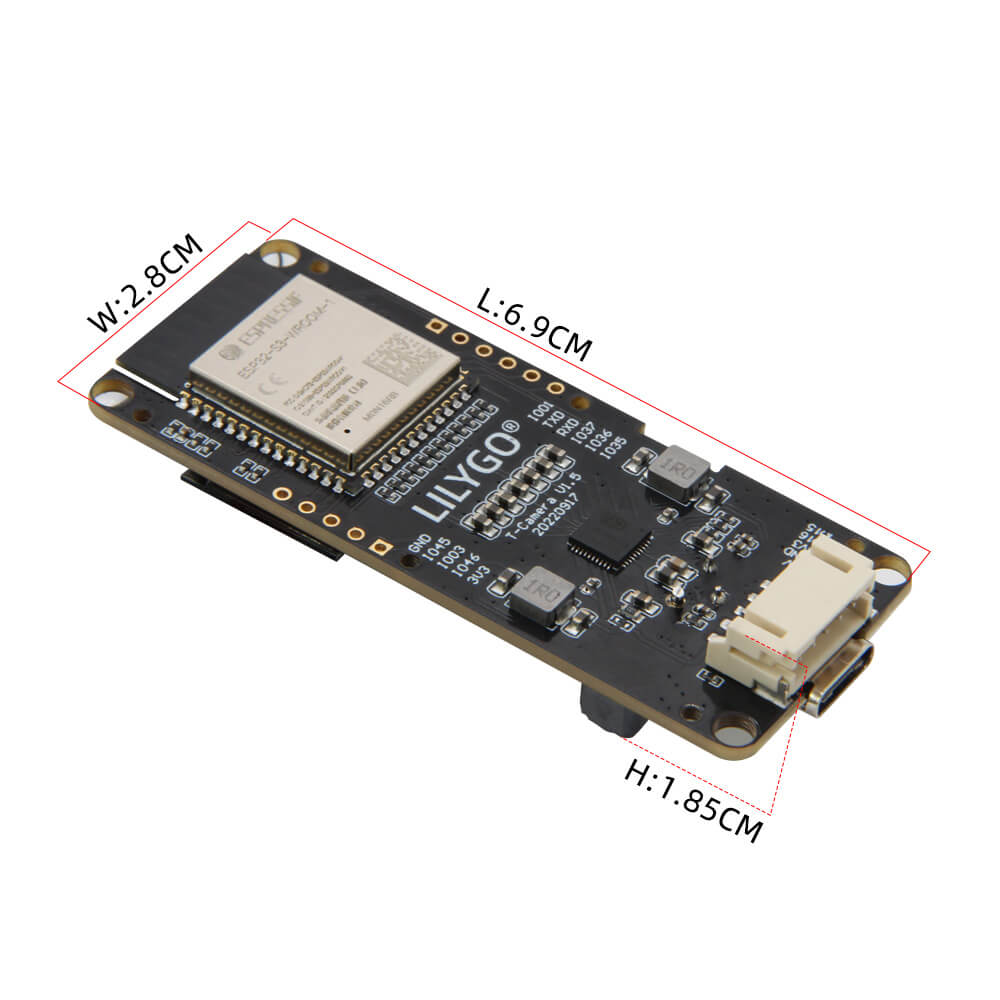

Size

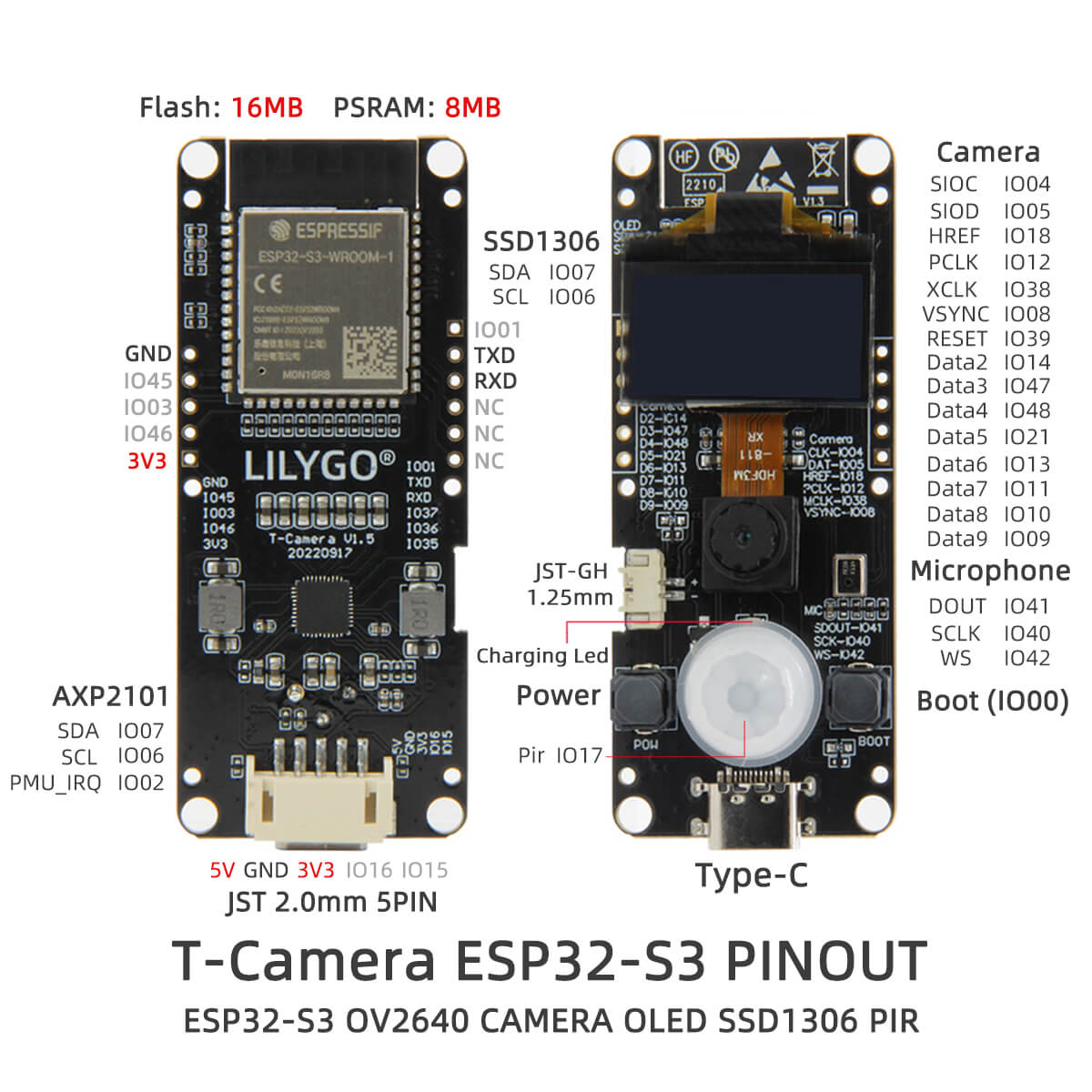

Pin Diagram

More Details
