LILYGO®

T-Wrist E-paper 1.54 Inch Display

T-Wrist E-paper 1.54 Inch Display

T-Wrist E-paper 1.54 Inch Display ESP32 Wireless Module

Regular price $21.22 USD
Regular price Sale price $21.22 USD
Sale Sold out

⚠️Please note that all policy page on site only applies to items purchased from our store: https://www.lilygo.cc.

Relevant technical or usage issues can be also discussed in our GitHub or Community.

How to pay with different payment methods

About Tax

At present, the price of the platform does not include tax.
Customers in Europe should pay attention to the tax problem after the package reaches the local country.

[orders over 150 euros may generate tax, which needs to be borne/handled by the customer, the local policy shall prevail.]

Commended User

People with programming foundation[engineers / students / makers, etc..]

Shipping & Delivery

Methods & Delivery Time

During ship, maybe some methods of transport do not update the logistic track until the parcel reaches the destination country.

  1. Standard Express: 25-30 Days
  2. EUB: 25-30 Days
  3. YunTu Express: 10-20 Days
  4. DHL: 10-17 Days
  5. FedEx: 10-17 Days

We can ship to DHL/FedEx through a third-party channel (Freight Forwarder) because we don't have DHL/FedEx account.
Means : we --> third-party channel(Freight Forwarder) -->official DHL /Fedex-->you

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for assistance.

Please note that all delivery times are estimated for reference only.

When we are processing the order, if the system suggests that your postcode is remote, we will automatically replace it with another shipping channel of the same class for you (except HDL and FedEx), We will send you an email if there are special situations, or you can leave us a message if you have any requirements.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

The Version‘s Picture Hasn't Changed

Please don't worry when the corresponding image doesn't change when you choose a certain version, just focus on the text describing the version and we'll make sure to put the right product in your package!


Specifications

MCU  ESP32
FLASH  4MB
Bus Interfaces UART , SPL , 12C , CAN , 12S , SDIO
Wireless Connectivity  Wi-fi , Bluetooth V4.2
Optional version Basic / GNSS / Backlight
Onboard functions Buttons : RST + 1035 , battery power detection
1 . 54 Inch SPI E-paper Display Grey level : 2
Resolution 200x200
Full refresh time 2s
Vibrating DC Motor Strong vibration , low noise , fast speed
LG77 GNSS module supports GPS , GLONASS , Beidou
 Support T-U2T Flash Download Tool
 Computer- > USB Type-c data cable- > Ezi uncoCan be connected to use T-U2T USB toserial downloader , convenient , fast and safe



Technical support

If you need technical support, check out the links for more details.

Github link

3D printing shell, the product does not have a shell; if necessary, you can print it yourself.

3D printing shell

3D printing shell, the product does not have a shell; if necessary, you can print it yourself.

https://github.com/Xinyuan-LilyGO/E-Paper-watch/tree/main/3D_file



1.54 Inch Wrist E-paper GPS Options:

  • 1 X 1.54 Inch Wrist E-paper

  • 1 X GPS Antenna

  • 1 X Power Cord (JST 1.25mm 2P)

  • 1 X Type-C USB Cable

1.54 Inch Wrist E-paper GPS+T-U2T Options:

  • 1 X 1.54 Inch Wrist E-paper

  • 1 X GPS Antenna

  • 1 X Power Cord (JST 1.25mm 2P)

  • 1 X Type-C USB Cable

  • 1 X T-U2T

View full details

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
q
qewer33

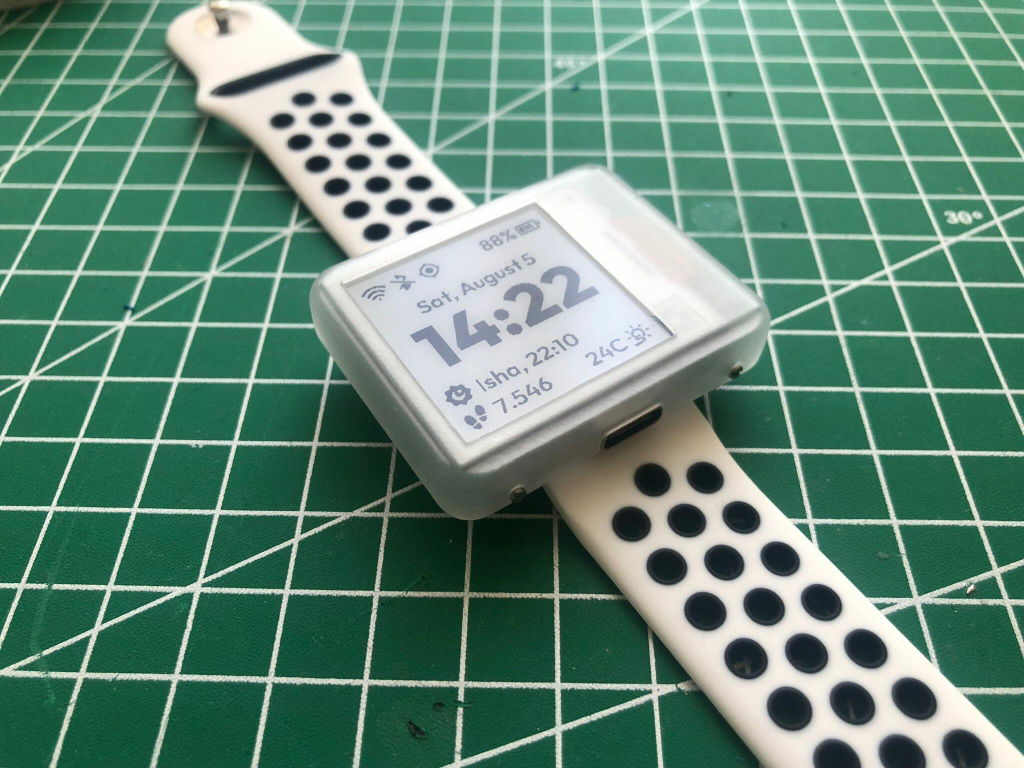

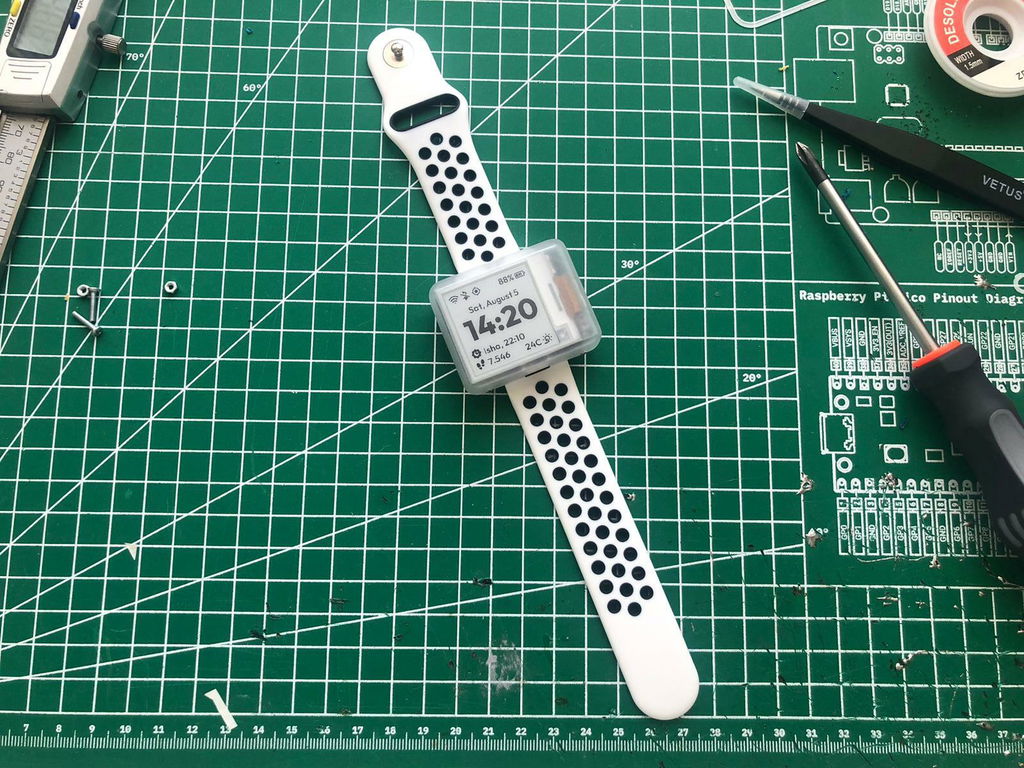

Amazing board! Made a custom smartwatch with it

Very nice board overall. The e-paper display is just great and the GPS functionality is amazing. The only thing I didn't like was the vibration motor, for some reason it vibrated every time the ESP32 woke up from deep sleep and I couldn't find a solution to fix it so ı just removed the motor. Designed a custom watch case for it and currently writing firmware in order to turn it into a proper watch. You can check out my project at: https://github.com/qewer33/qpaperOS
