T-SIMCAM is based on the design of the PCI-E motherboard, it is equipped with:
-
MCU: ESP32-S3 (supports WIFI and Bluetooth 5.0)
-
Camera: OV2640 2 Million Pixels
-
mPCIe: Support LILYGO T-PCIE SIM module
-
Microphone: I2S Digital Microphone
Note:
This needs to be used with our PCIE-SIM module
Specifications
MCU | ESP32-S3R8 |
Wireless Connectivity | Wi-Fi 802.11, BLE 5+ BT mesh |
Programming Platform | Arduino-ide, VS Code |
Onboard functions | Boot + Reset Button, TF Card |
PSRAM | 8MB |
FL ASH | 16MB |
0V2640-Camera module | |
Pixels | 2 Million (UXGA 1622X1200) Voltage: 3.3V |
Dual-core LX7 microprocessor |
12S Digital Microphone Low Power mode, high performance, and reliability. |
Sample Code For Reference [Github]
If you need technical support please check the link to find more details.
T-SIMCAM
What engineers have done with T-SIMCAM
Connecting with the server anywhere

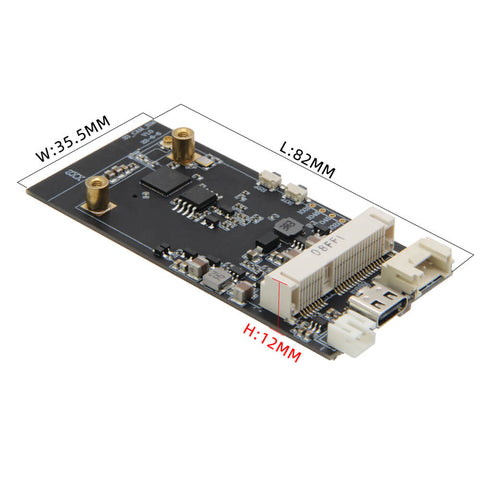

1. Size
2. Pin Diagram
3. Appearance
Note : Shipping list only the control board.
If you need PCIE SIM module, you need to purchase it separately .
