LILYGO®
SIM Development Board ESP32 Wireless Module
Couldn't load pickup availability
⚠️Please note that all policy page on site only applies to items purchased from our store: https://www.lilygo.cc.
Relevant technical or usage issues can be also discussed in our GitHub or Community.
About Tax
About Tax
At present, the price of the platform does not include tax.
Customers in Europe should pay attention to the tax problem after the package reaches the local country.
[orders over 150 euros may generate tax, which needs to be borne/handled by the customer, the local policy shall prevail.]
Commended User
Commended User
People with programming foundation[engineers / students / makers, etc..]
Shipping & Delivery
Shipping & Delivery
Methods & Delivery Time
Standard Express: 25-30 Days
YunTu Express: 10-20 Days
DHL: 10-17 Days
FedEx: 10-17 Days
NOTE
If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for assistance.
Please note that all delivery times are estimated for reference only.
Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)
For more details please check our shipping policy.
Specifications
| MCU | ESP32 |
| Flash | 4MB |
| PSRAM | 8MB |
| Serial Chip | CH9102 |
| REGION | Global |
| LTE&GSM | SIM7000G |
| Wireless protocol |
Wi-Fi + Bluetooth 4.2 3D WiFi antenna[Use by default] |

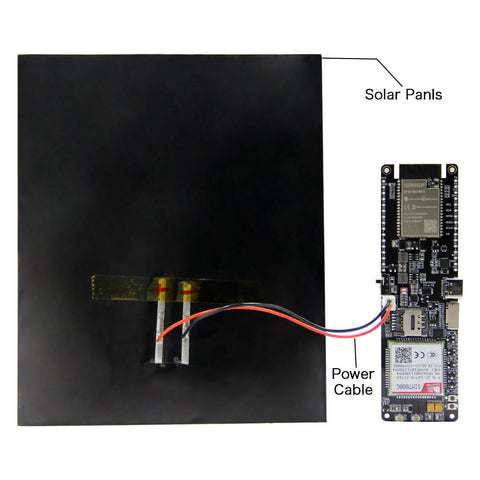

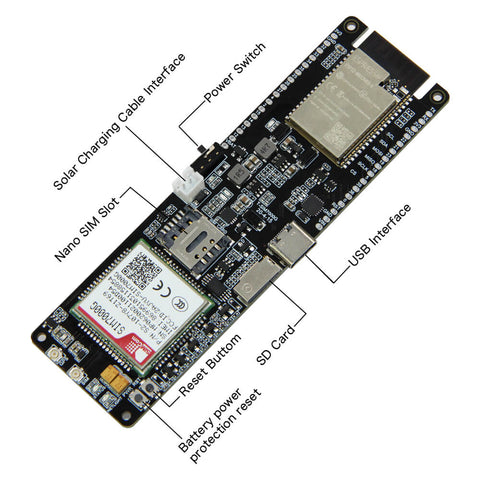

| Power Supply Mode | USB Type-C / 18650 battery holder / 2pin Solar charging cable interface |
| Support | TF card , Nano SIM card[2G], GPS |
Technology Support [Github]
If you need technical support please check the link to find more details.

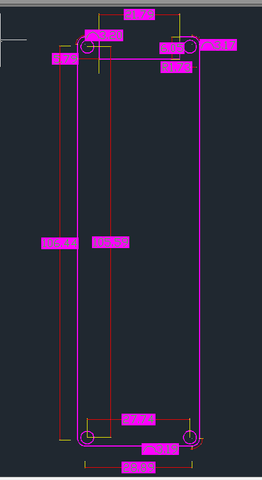

1. Size

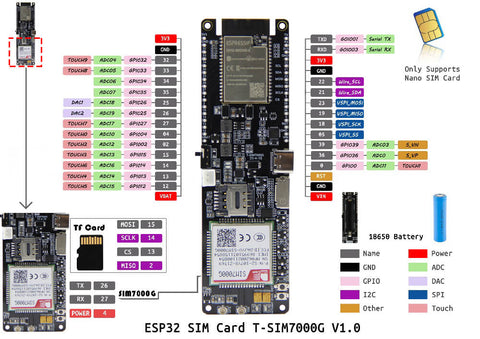

2. Pin Diagram
It can be used with Lora 868/915Mhz function Shield to send and receive data over a long distance with low power consumption[Product link will be updated here soon..].

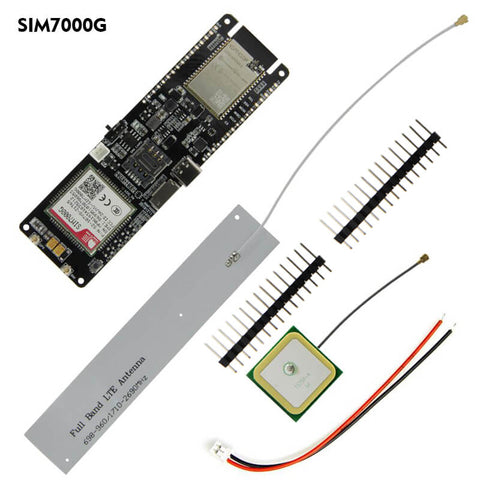

- 1x T-SIM7000G
- 1x SIM antenna
- 1x GPS antenna
- 1x Power cable
- 2x Pin
(Notice: The shipping list does not include TF card and SIM card）
