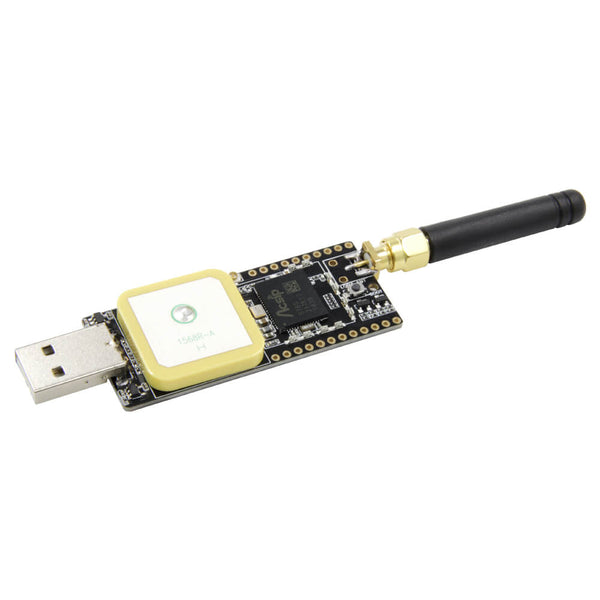

T-Motion

T-Motion

Regular price $24.01 USD
Regular price Sale price $24.01 USD
Sale Sold out

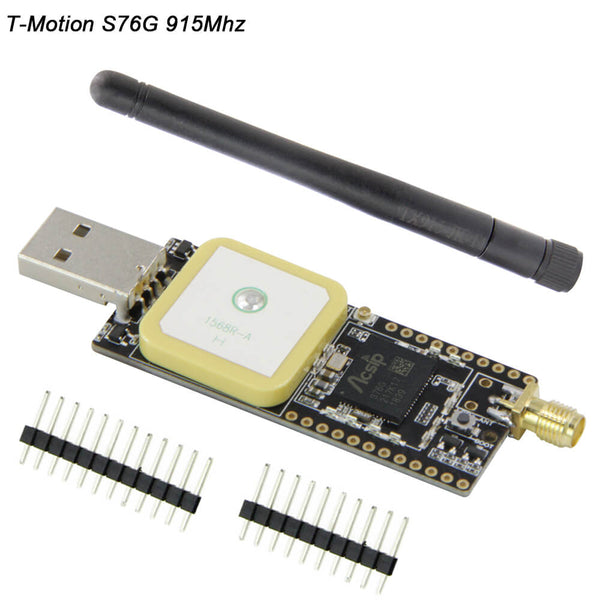

S76G STM32 LoRa

⚠️If you need technical support, you can get a quicker response on our GitHub (the tech team will check it directly). Please provide your Tax/Personal ID (if available), this will expedite the shipment of your order.

Instructions Before Order

If you order the wrong product or want to add another or change your shipping address, please re-edit the correct information and place a new order, then contact us to cancel the incorrect order.

If you have a tax ID or personal ID please provide as much as possible, otherwise, if your country requires this information we will block your order and contact you via email, which will slow down the shipment.

We strongly recommend choosing DHL or FedEx if your order is over $200.

Generally, except for DHL or FedEx, we will automatically split orders over $150-200 into two packages due to customs clearance, loss prevention issues, etc.

For more please check here

Shipping & Delivery

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. EUB: 25-30 Days
  3. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  4. DHL: 10-17 Days
  5. FedEx: 10-17 Days
  6. YanWen: 20-35 Days

Please note that all delivery times are estimated for reference only.

During ship, maybe some methods of transport do not update the logistic track until the parcel reaches the destination country.

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for help.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

About Tax

At present, the price of the platform does not include any tax.
European customers should pay attention to the tax problem after the package reaches the local country, which needs to be borne/handled by the customer, the local policy shall prevail

[orders over 150 euros may generate tax (Amount for reference only), for orders over this amount, we will not inform the customer separately, so please pay attention to it by yourself.]

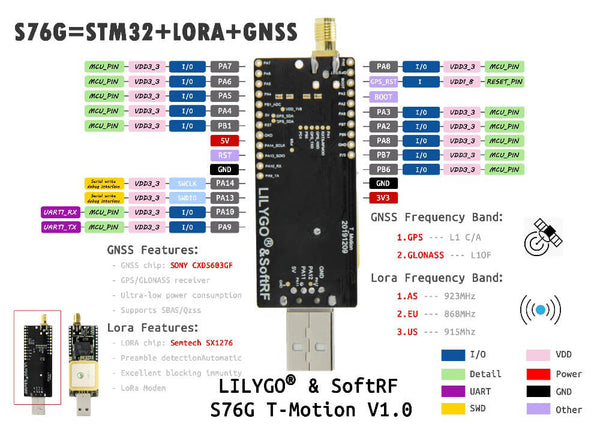

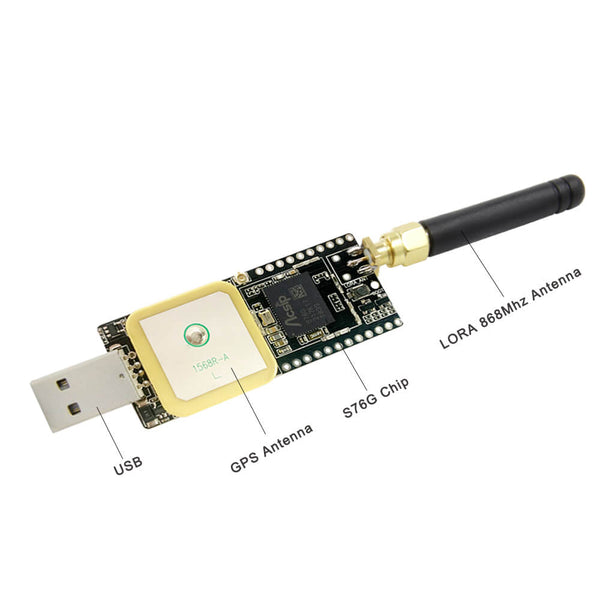

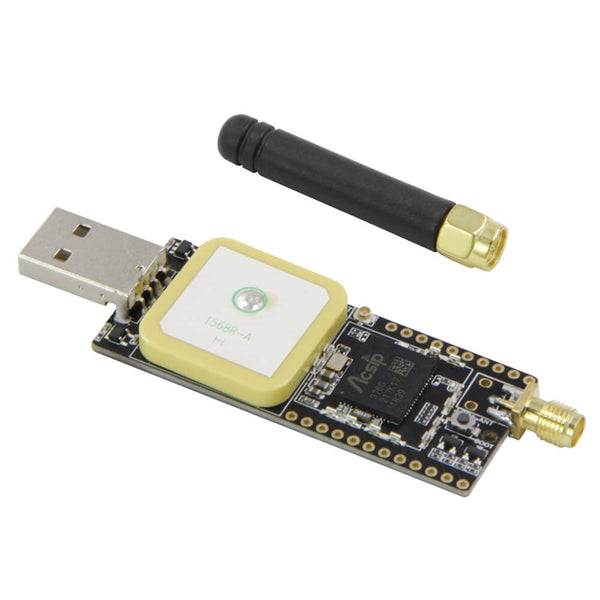

Main chip S76G = STM32L073Z + LoRa + GNSS Module
Butto BOOT
Car clock 26MHz active crystal
Antenna Model GPS & LoRa Antenna
Operating temperature range -45~80 ℃

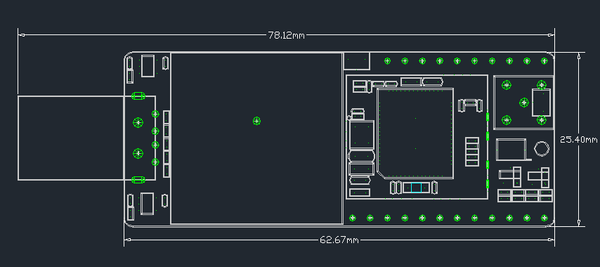

Size 78.12*25.40*62.67mm
Weight 30g
Power Specifications
Working voltage 5v input
Working current About 18mA
USB  USB male



Github
 S7xG Flashing Instructions

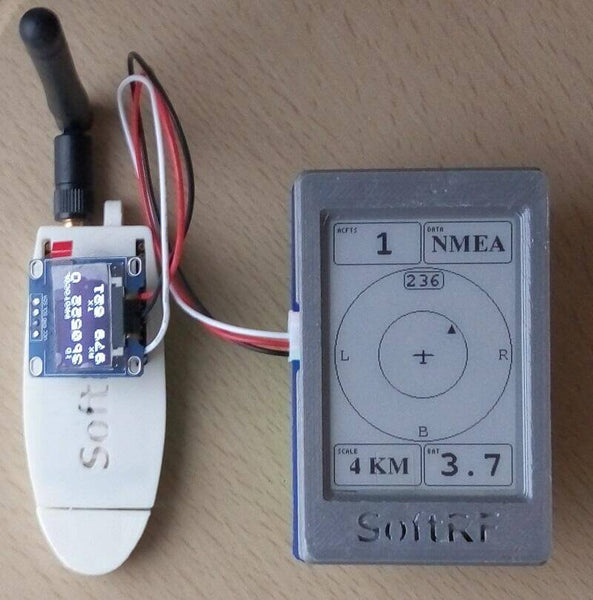

SoftRF T-Motion Firmware
SoftRF Configuration Tool
T- Motion More information


T-Motion 868Mhz (Notice:SoftRF writer firmware is installed by default)



  • 1 X T-Motion1 X LoRa 868MHz Antenna

  • 2 X Pin

T-Motion 915/923Mhz (Notice:SoftRF writer firmware is installed by default)



  • 1 X T-Motion

  • 1 X LoRa 915/923MHz Antenna

  • 2 X Pin

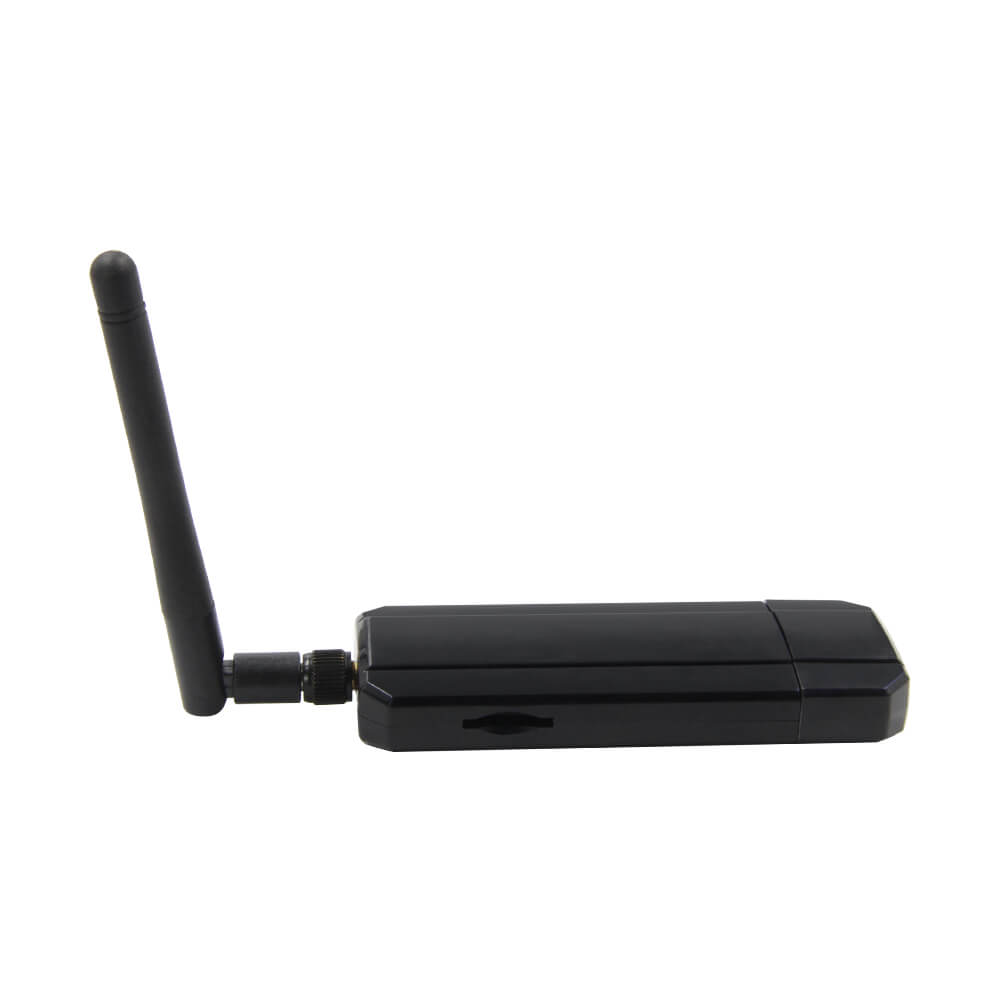

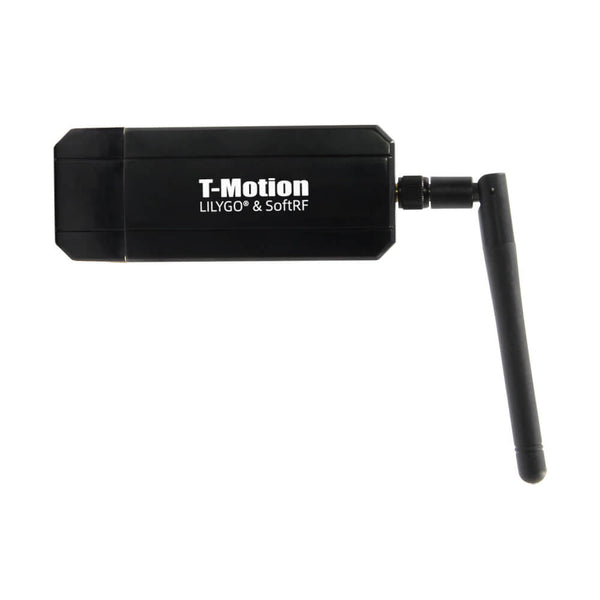

T-Motion 868MHz or 915Mhz With Shell

(Notice:SoftRF writer firmware is installed by default)

  • 1 X T-Motion

  • 1 XLoRa 868MHz or 915MHz Antenna

(Product is not assembled by default)

View full details

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Rob Hanbury

The T-Motion is excellent. It works very well. But currently it does not receive or be received by Flarms. It also seems to have a poor GPS; slow and often drops out.
