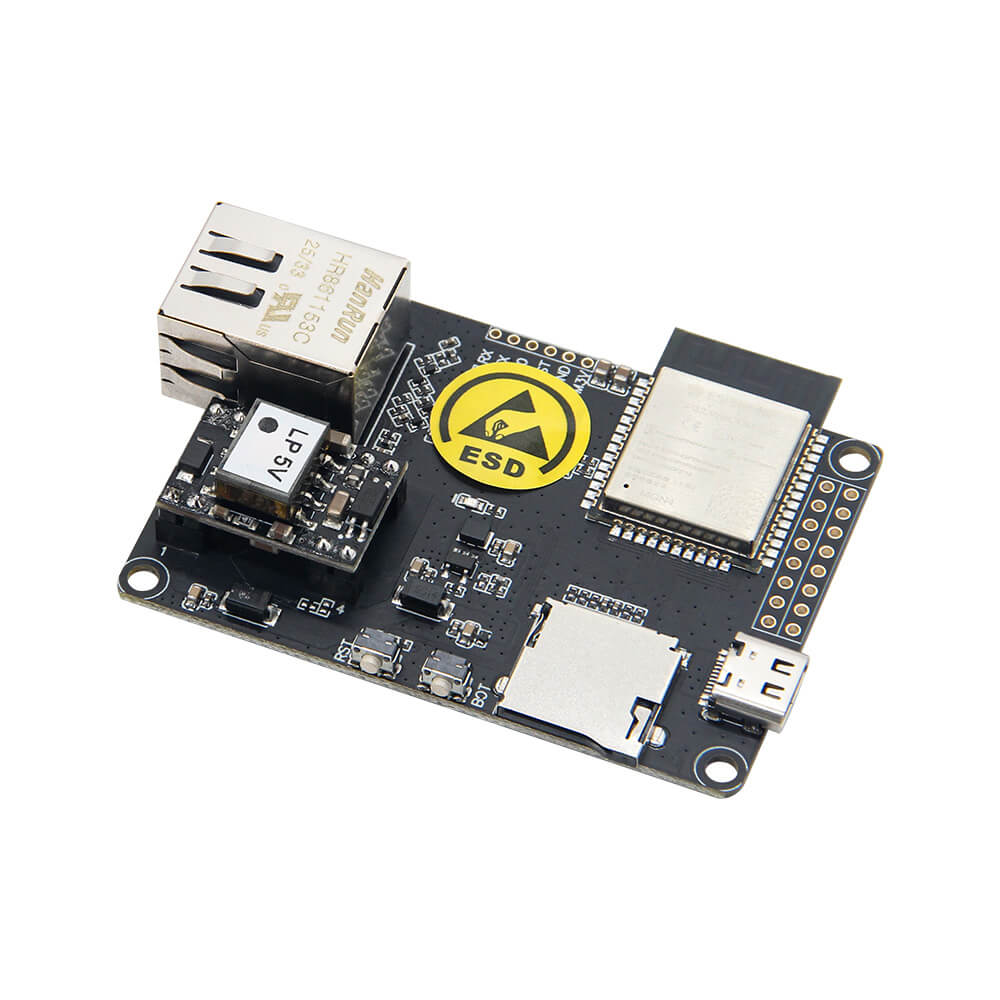

LILYGO® TTGO T-Internet-POE ESP32-WROOM LAN8720A Chip Ethernet Adapter And Downloader Expansion Board Programmable Hardware

Specifications

MCU	ESP32
FLASH	4MB
Wireless Connectivity	Wi-Fi:802.11 b/g/n/, BLE V4.2
Onboard Buttons	RST+BOOT Support TF Card
USB	Type-C Power Supply
Downloader optional	CH340C
Si3404 PoE PD Voltage input range	37V~ 57V

LAN8720 Ethernet Network Port:

Single-Chip Ethernet Physical Layer Transceiver
Flexible Power Management Architecture

Technology Support [Github]

If you need technical support please check the link to find more details.

T-Internet-POE

Product Detail

- Compatible with PoE mode A (powered by data pair) and PoE mode B (powered by backup pair) and auto MDIX, allowing the use of straight and crossover Ethernet cables.

- 20 needle footprint with 3.3V, V+ power, and 15 ESP32GPIO are available for your application.

- The compact 75mm by 40mm footprint is compatible with 4 mounting holes of ordinary M2.5 or 4-40 screws.

- A small programming/USB serial console sub-module has been created so that the Inter-POE module can be easily programmed to meet the user's application needs.

Note: the USB interface only has a charging function, the product needs a downloader to program.

Notice: This product needs to be used with Downloader Expansion Board.

1. Size

2. Pin Diagram

Option 1

Notice: There is no Downloader Expansion Board for this option.

1 X T-Internet-POE
1 X Double Row Pin

Option 2

Notice: This option is equipped with Downloader Expansion Board.Not soldered to POE by default

1 X T-Internet-POE
1 X Double Row Pin
1 X Downloader Expansion Board

View full details

Who can use
It's easier to master these development boards with a basic programming knowledge [engineers/ students/ makers, etc..]
Accelerated processing
International orders please make sure your address is in English
For Hong Kong, Macau and Taiwan orders, please note your personal ID.
Got a question
Click on the bubble in the bottom right corner where some frequently asked questions are answered, or just drop us a line.

T-Internet-POE

Very handy product

I really liked it, all my expectations were met

I am passionate about building a smart home Home Assistant, there are more and more devices and mostly these are WiFi devices. I wanted to try a wired connection and chose T-Internet-POE. Your store kindly provided me with a sample for review on my YouTube channel, where I left a positive review and showed the project that I implemented using this board. Thank you very much, I will recommend your products to everyone

Very pleased with T-Internet-POE

I bought a pair of these, and my first project worked out great. One suggestion I have would be to bring out +5v on the GPIO header. I've got a sensor board that won't run on 3v3, but it turns out you're making +5v on board. My solution was to bodge a wire onto C48/C60 but having it by default would be great!
