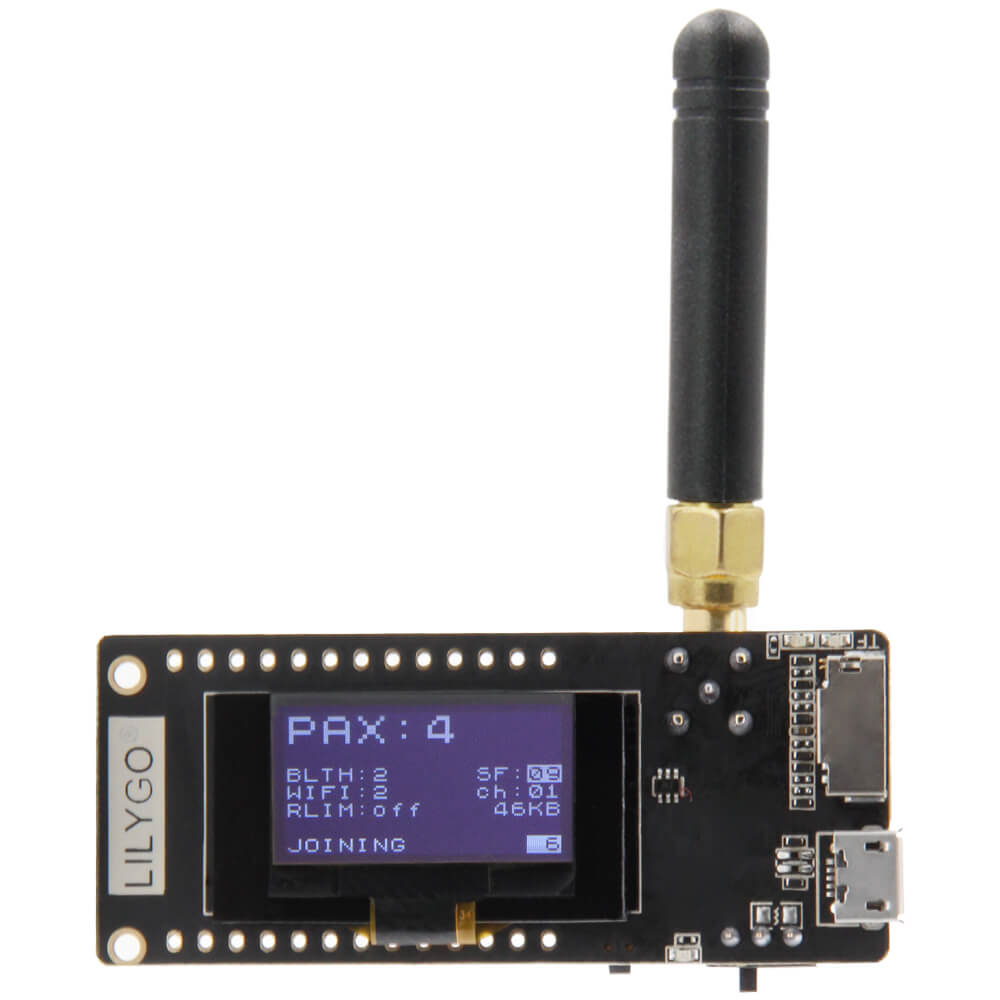

LoRa32 V2.1_1.6

LoRa32 V2.1_1.6

ESP32 433/868/915MHZ 0.96 Inch OLED SD Card WIFI Module

Regular price $15.60 USD
Regular price Sale price $15.60 USD
Sale Sold out

⚠️If you need technical support, you can get a quicker response on our GitHub (the tech team will check it directly). Please provide your Tax/Personal ID (if available), this will expedite the shipment of your order.

Instructions Before Order

If you order the wrong product or want to add another or change your shipping address, please re-edit the correct information and place a new order, then contact us to cancel the incorrect order.

If you have a tax ID or personal ID please provide as much as possible, otherwise, if your country requires this information we will block your order and contact you via email, which will slow down the shipment.

We strongly recommend choosing DHL or FedEx if your order is over $200.

Generally, except for DHL or FedEx, we will automatically split orders over $150-200 into two packages due to customs clearance, loss prevention issues, etc.

For more please check here

Shipping & Delivery

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. EUB: 25-30 Days
  3. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  4. DHL: 10-17 Days
  5. FedEx: 10-17 Days
  6. YanWen: 20-35 Days

Please note that all delivery times are estimated for reference only.

During ship, maybe some methods of transport do not update the logistic track until the parcel reaches the destination country.

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for help.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

About Tax

At present, the price of the platform does not include any tax.
European customers should pay attention to the tax problem after the package reaches the local country, which needs to be borne/handled by the customer, the local policy shall prevail

[orders over 150 euros may generate tax (Amount for reference only), for orders over this amount, we will not inform the customer separately, so please pay attention to it by yourself.]

LILYGO Paxcounter Disaster-Radio LoRa V2.1_1.6.1 ESP32 433/868/915MHZ 0.96 Inch OLED SD Card Slot Bluetooth WIFI Module Metering Passenger Flows

Main features:

  • Digital RSSI function
  • Automatic frequency correction
  • Automatic gain control
  • Fast wake-up and frequency hopping
  • Highly configurable data packet handler
  • SMA Antenna

T3-S3 V1.0

Specifications

MCU ESP32
 Flash 4MB
 Serial Chip CH9102
Wireless protocol Wi-Fi + Bluetooth 4.2
Support TF card slot
Onboard functions Reset \ Power switch
Antenna

3D WiFi Antenna [Use by default]

(Support WiFi IPEX external antenna, but you need to jump resistance)
LoRa antenna

Power Supply

Support USB Micro / Li-Po Battery Dual Power Supply
JST GH 2pin 1.25mm
[USB can power the battery]


Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

ESP32-Paxcounter
TTGO-LoRa-Series

Paxcounter Testing

cyberman54-ESP32-Paxcounter

LoRa32 V2.1_1.6 Disaster-Radio

https://disaster.radio/
https://github.com/sudomesh/disaster-radio
https://github.com/sudomesh/disaster-radio/releases/tag/0.2.0

Note : Pay attention to the OLED when opening the box.

Long Range Low Power LoRa Transceiver

  • High sensitivity: -i48dBm
  • Transceive rate: 300 kbps
  • Optional Hardware
  • Version: SX1278[433Mhz] / SX1276[868/915Mhz]

LoRa32 V2.1_1.6

  • Paxcounter is an ESP32 MCU-based program for metering passenger flows in realtime. It counts how many mobile devices are around. This gives an estimation how many people are around.

  • Paxcounter detects Wifi and Bluetooth signals in the air, focusing on mobile devices by evaluating their MAC adresses.

  • Intention of this project is to do this without intrusion in privacy: You don't need to track people owned devices, if you just want to count them.

  • Paxcounter does not persistenly store MAC adresses and does no kind of fingerprinting the scanned devices.

  • Data can either be be stored on a local SD-card, transferred to cloud using LoRa WAN network or MQTT over TCP/IP, or transmitted to a local host using serial (SPI) interface.

  • Disaster.radio is an off-grid, solar-powered, long-range mesh network built on free, open source software and affordable hardware.

  • Designed to be open, distributed, and decentralized, disaster.radio is currently in the prototype/development phase.


1. Size

2. Pin Diagram

433/868/915 Mhz CH9102F Options

(NoticeThe shipping list does not include battery and SD card)

  • 1 X LoRa32 V2.1 433/868/915 Mhz
  • 1 X Power Cable(Jst 2pin 1.25mm)
  • 1 X Antenna
  • 2 X Pin
