This T-PCIE is equipped with a 4.0H socket, which is used to link the T-PCIE SIM module. We have many T-PCIE SIM modules, you can match freely, we have SIM868, SIM7000X, SIM7600X, SIM7020X, SIM7070X, SIM7080X, A7608X-H, and A7670X.
LILYGO® 2022/4/8
|
Hardware Specifications |
|
|
Chipset |
ESP32-WROVER-B/E(B and E are shipped randomly) |
|
FLASH |
4MB/16M |
|
PSRAM |
8MB |
|
SRAM |
520 kB SRAM |
|
Button |
PWR Power Switch,Reset |
|
USB to TTL |
CH9102F |
|
On-board clock |
40MHz crystal oscillator |
|
Peripherals |
SIM Nano Card Slot,Mini PCIE Card Slot |
|
Antenna |
Onboard antenna(Default) |
|
Working voltage |
2.7V-3.6V |
|
Working current |
- |
|
Sleep current |
About 700uA |
|
Working temperature range |
-40℃ ~ +85℃ |
|
Size |
75*33*10.5mm |
|
Weight |
14.5g |
|
Power Supply Specifications |
|
|
Power Supply Input |
USB 5V/1A |
|
Charging current |
500mA |
|
Battery Input |
3.7-4.2V |
|
Charge IC |
AXP192 |
|
JST Connector |
2Pin 2.0mm |
|
USB |
Type-C |
Technology Support [Github]
If you need technical support please check the link to find more details.
T-PCIE

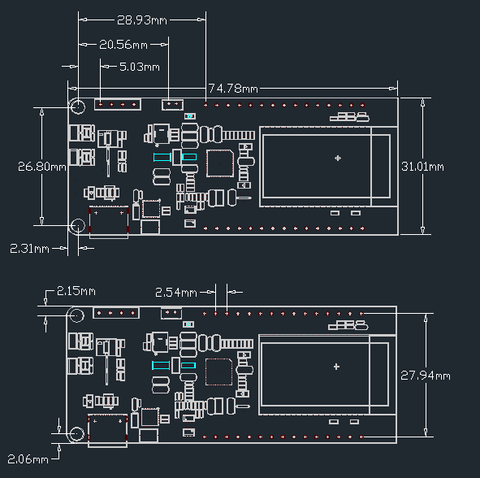

1. Size
2. Pin Diagram
3. Appearance
T-PCIE CH9102
- 1 XT-PCIE CH9102 4MB/ 16MB
- 1 X Charging Cable
- 2XPin

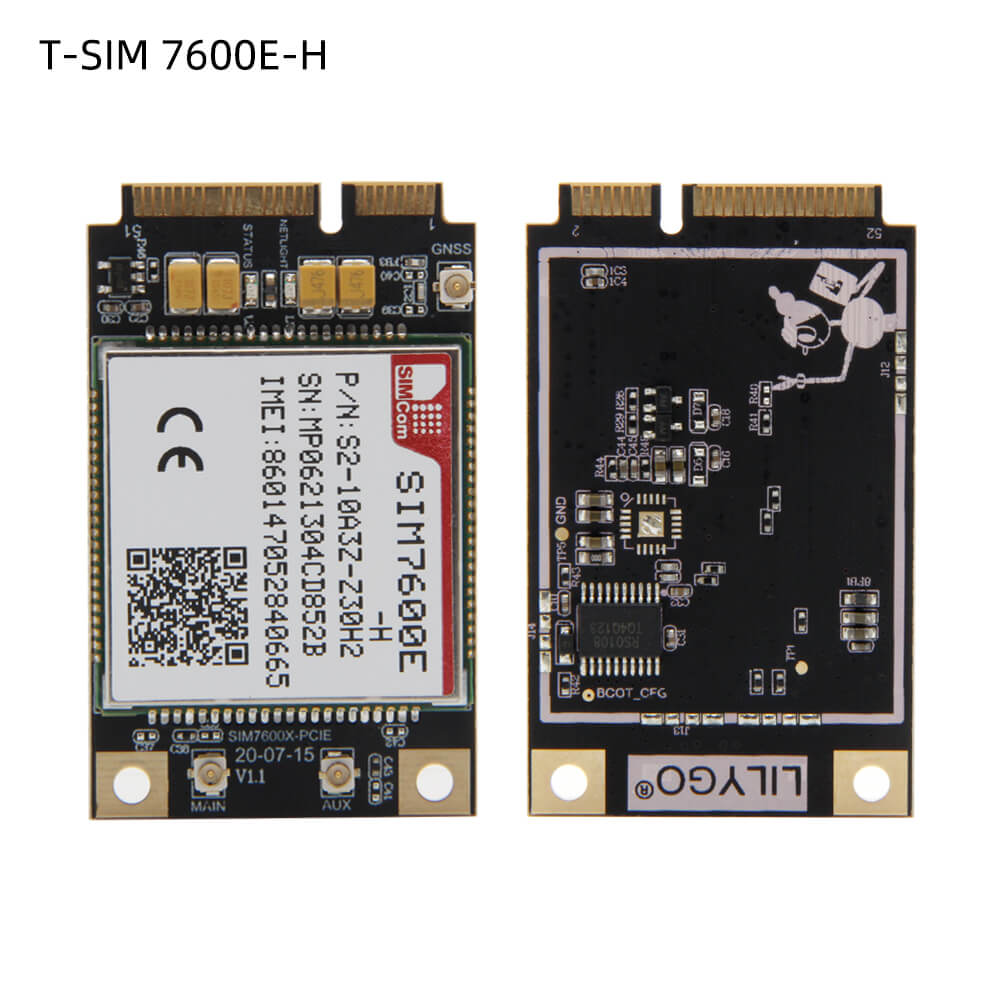

T-PCIE
- 1X SIM module [no MCU on board]
- 1X LET Antenna
- 1X GPS Antenna
- 2X Screw
[Note: The SIM module is for reference only, the specific model depends on your purchased version ]
[No MCU on board, you need to purchase the main control module separately and then use it together. ]
