T5 e-Paper

T5 e-Paper

4.7 Inch ESP32-S3 Development Driver Board

$39.99
$39.99
Sale Sold out

Payment Method

Accepted payment methods

Methods & Delivery Time

  • DHL 7-10 business days
  • FedEx 7-10 business days
  • Standard Express 10-25 business days
  • Overseas Warehouse* 7-15 business days


*Available from: Germany, USA, Canada

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

We only charge the product cost and shipping cost.

1. For Standard Express Order: You may not need to deal with customs clearance, just need to pay attention to the track of the parcel, but this is not absolute, if your parcel is inspected by the customs, then you need to assist in dealing with customs clearance.

2. For DHL/ FedEx Order: You need to deal with the relevant customs clearance matters, as well as pay the tariff, the specific amount of tariff please pay attention to the policy of your country.

----------------------

The above tariffs are for reference only, please pay attention to your country's tax policy for more detailed instructions, if you need our help or have questions please feel free to contact us.

Due to the problem of the characteristics of the ink screen, it cannot be partially refreshed for a long time, otherwise, it will leave residual images and lead to irreversible damage.

Specifications

MCU ESP32-S3-WROOM-1-N16R8
Wireless Connectivity Wi-fi Bluetooth V5.0
Programming Environment Arduino-ide VS Code
Onboard Functions
Flash 16MB
PSRAM 8MB
Support PCF8563 RTC Battery capacity detection

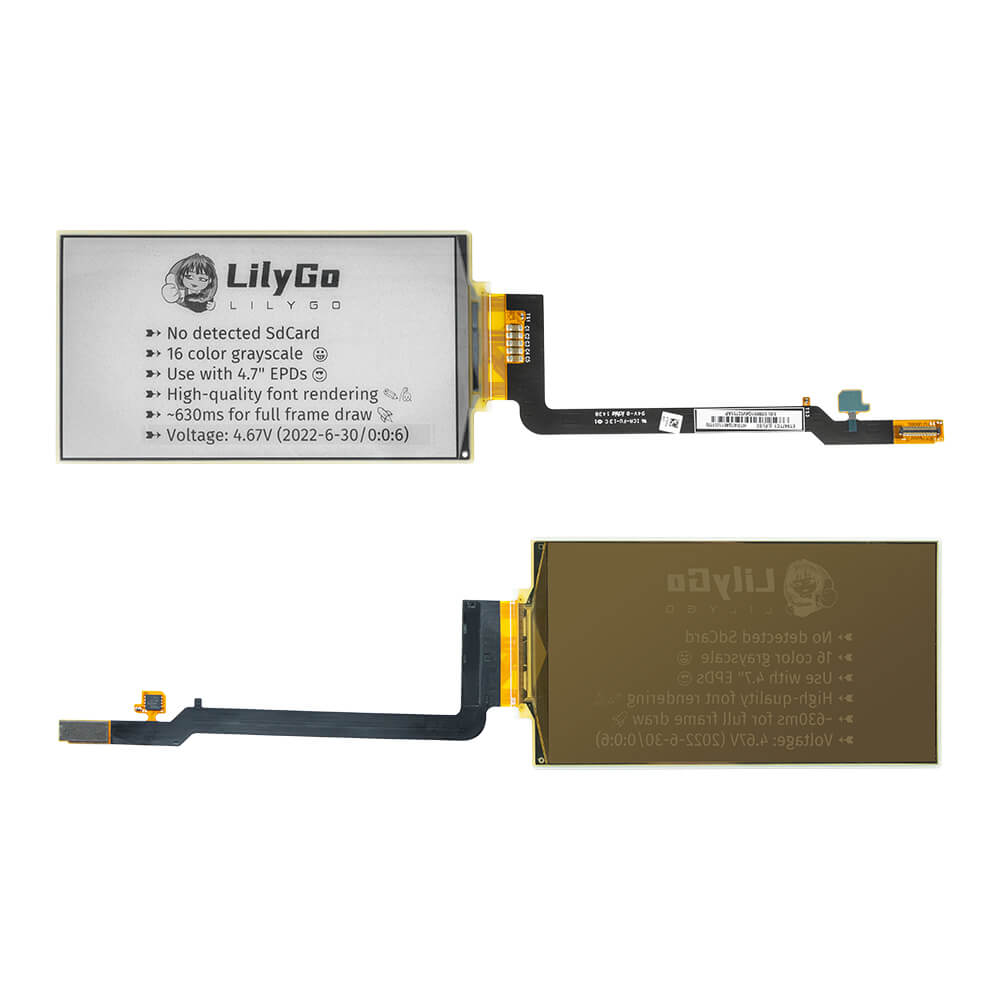

 4 . 7-inch Ultra-low Power E-paper
Driver IC  EDO47TC1
Size 4.7 inch
Gray levels 16
Resolution 540 x 960 pixels
Ultra Wide viewing angle low power consumption

Sample Code For Reference [Github]

If you need technical support please check the link below for more details.

T5 4.7

Touch Version

Basic Version

What's in the box



Touch Version


Basic Version


View full details

  • Who can use

    It's easier to master these development boards with a basic programming knowledge [engineers/ students/ makers, etc..]

  • Accelerated processing

    International orders please make sure your address is in English
    For Hong Kong, Macau and Taiwan orders, please note your personal ID.

  • Got a question

    Click on the bubble in the bottom right corner where some frequently asked questions are answered, or just drop us a line.

Customer Reviews

Based on 20 reviews
65%
(13)
15%
(3)
5%
(1)
5%
(1)
10%
(2)
D
David Kuruc
mixed experience

It's my first experience with an e-paper display.
Some information is missing — for example, how to use the included 3M double-sided adhesive tape. (I attached the display to the board myself, and only afterward found a wrong connection on the display. Removing the 3M tape was a real pain.)

Wake-up from sleep via touch is missing. I was forced to solder a different connection.
Also, the epd_driver library has some missing features — rotated text or 8-bit partial refresh is limited for creative layouts.

The battery connector is too tight in the socket; it cannot be easily unplugged. I broke the first one because there is no simple way to remove it.
Maybe mine is unusual, but the straight line at the bottom is slightly curved.

The USB-C to USB-C cable doesn’t work.
The buttons for the bootloader are not recognized by the ESP as regular buttons, so there is only one button available for waking up from sleep and for programming.
Also, reset from Arduino doesn’t work.

The product is of good quality overall, and it’s a nice starting point for getting into e-ink at this price.

V
Vladimir Kozlov

Good

P
Peter Martis

T5 e-Paper

A
Arnaud Tocabens
Not work

The screen is very difficult, no example work. Now it doesnt work anymore, seems USBc port is disconnected.

Hi, you can refer to our sample code in GitHub, you mentioned “it doesnt work anymore” please add some detailed description to send an email to “orders@lilygo.cc”, we will try our best to help you.

A
Andrew Alcock
Overheats

If the device is used always-on, rather than being placed into deep sleep after a few seconds, the device overheats and stops responding. This makes the touch screen pretty useless unless you can find a way of waking the device from sleep whenever someone wants to use it.

Hi Sir,

Thank you for the feedback, am sorry about that, could you help to take a picture for us of where the product is overheating? Our support team will contact you in a moment.
