T-Higrow

T-Higrow

ESP32 Soil Tester DHT11 BEM280 Garden Flowers Temperature

Regular price $8.83 USD
Regular price Sale price $8.83 USD
Sale Sold out

⚠️If you need technical support, you can get a quicker response on our GitHub (the tech team will check it directly). Please provide your Tax/Personal ID (if available), this will expedite the shipment of your order.

Instructions Before Order

If you order the wrong product or want to add another or change your shipping address, please re-edit the correct information and place a new order, then contact us to cancel the incorrect order.

If you have a tax ID or personal ID please provide as much as possible, otherwise, if your country requires this information we will block your order and contact you via email, which will slow down the shipment.

We strongly recommend choosing DHL or FedEx if your order is over $200.

Generally, except for DHL or FedEx, we will automatically split orders over $150-200 into two packages due to customs clearance, loss prevention issues, etc.

For more please check here

Shipping & Delivery

Methods & Delivery Time

  1. Standard Express/ YanWen: 25-30 Days
  2. EUB: 25-30 Days
  3. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  4. DHL: 10-17 Days
  5. FedEx: 10-17 Days

Please note that all delivery times are estimated for reference only.

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for help.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

About Tax

At present, the price of the platform does not include any tax.
European customers should pay attention to the tax problem after the package reaches the local country, which needs to be borne/handled by the customer, the local policy shall prevail

[orders over 150 euros may generate tax (Amount for reference only), for orders over this amount, we will not inform the customer separately, so please pay attention to it by yourself.]

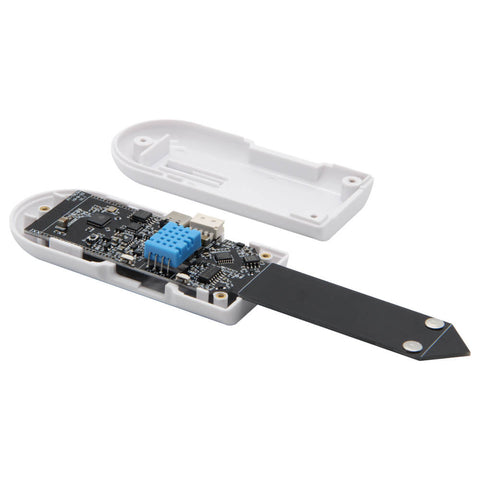

LILYGO® T-Higrow ESP32 Soil Tester DHT11 BEM280 Garden Flowers Temperature Moisture Sensor WiFi Bluetooth Wireless Control Meter



T-Higrow Introduction

  • This capacitive soil moisture sensor differs from most of the resistive sensors on the market, using the capacitive sensing principle to detect soil moisture.

  • It avoids the problem that the resistance sensor is easy to corrode and greatly prolongs its working life.

Note:

  • Since BME280 already includes temperature and humidity sensor, it already includes the function of DHT11, we have removed the DHT11 sensor on the BME280 version to reduce costs.

Specifications

 MCU ESP32
FLASH 4MB
Wi-Fi 802.11 b/g/n
 Xtensa dual-core 32-bit LX6 microprocessor
Bluetooth  BLE V4.2
Onboard Reset Button + Custom Button IO35 + ABS material shell + Jst 2pin 1.25mm connector
Version Optional DHT11/ BME280 Version
Digital 16bit Ambient Light Sensor SDA: IO25; SCL: IO26
IC Name BH1750
Interface I2C bus
 Wide range and High resolution(1 - 65535 lx)
50Hz/ 60Hz Light noise reject-function



Main function

  1. Soil Fertility detection
  2. Soil moisture detection
  3. Light intensity detection
  4. Ambient temperature and humidity 6. USB+200mA battery
  5. Low power sleep

Technology Support [Github]

If you need technical support please check the link to find more details.

More information

TTGO-HiGrow

3D Shell Print Download:

https://www.tinkercad.com/search?category=tinkercad&q=HiGrow

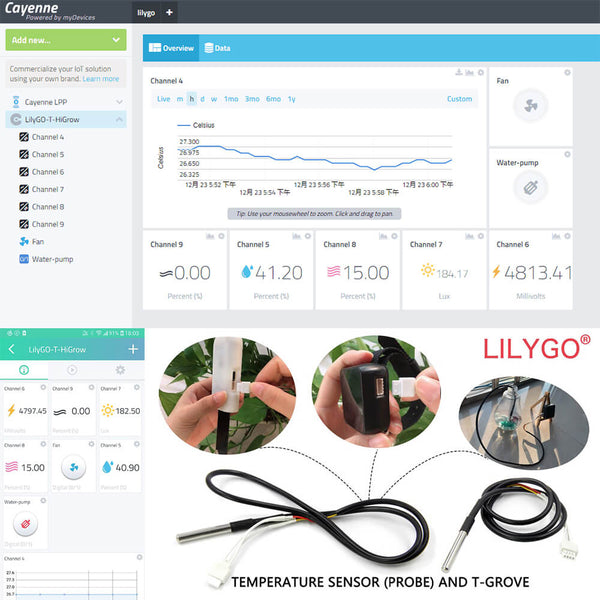

T-Higrow LoRa 868MHz / 915MHz Function Expansion Board

Waiting...

T-Higrow can be used with T-Higrow and T-Watch with Grove interface.

For example:

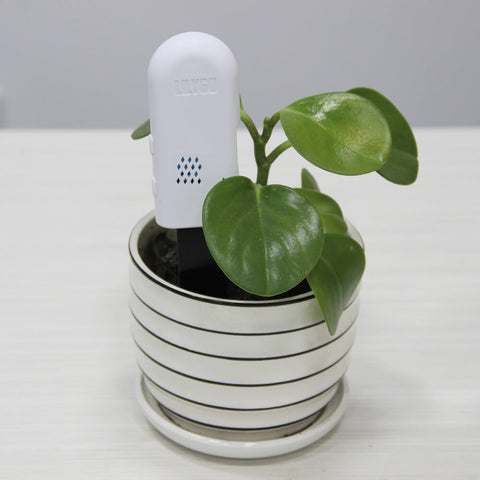

  • It can be used with T-Higrow to test the temperature and humidity of flowerpot soil and environment, as well as the water temperature of the fish tanks when raising fish. Of course, it can also test other temperatures as long as you want.

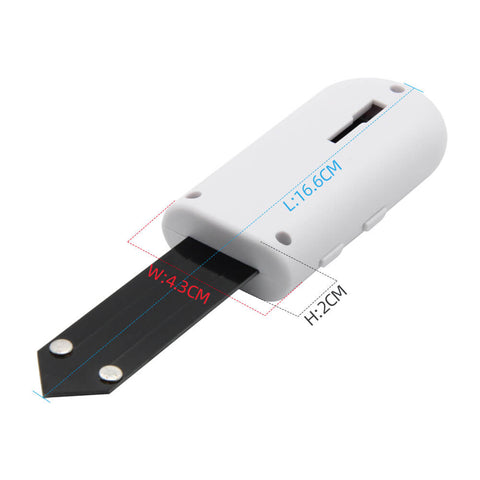

1. Size

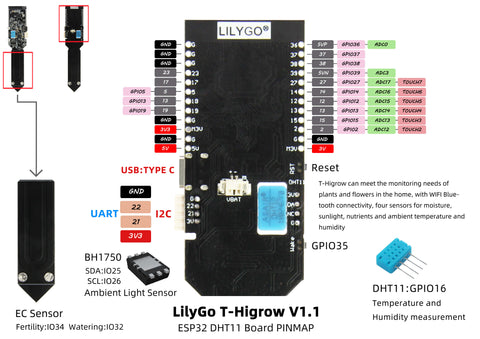

2. Pin Diagram

BME280

DHT11

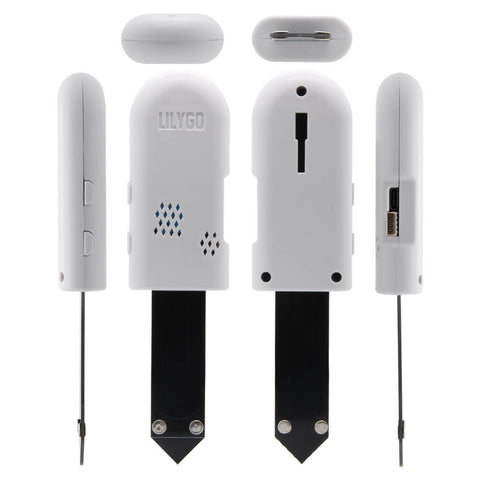

 3. Appearance details

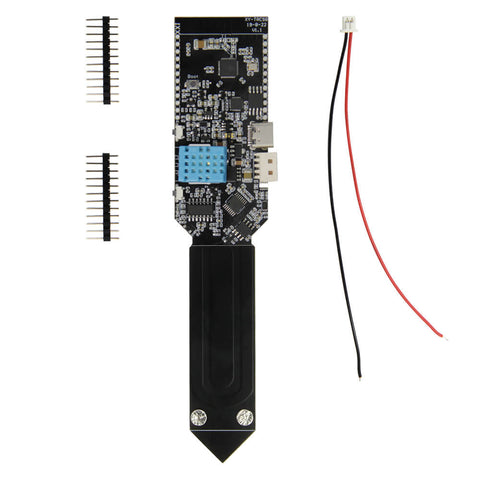

T-Higrow DHT11 CH9102 Options

  • 1 x T-Higrow DHT11

  • 1 x Power cable

  • 2 x Pin

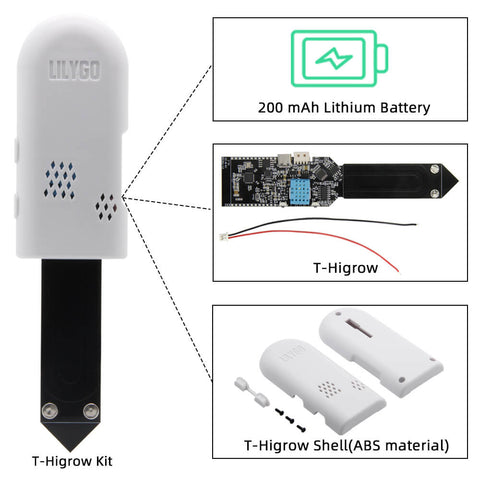

T-Higrow DHT11 Kit CH9102 Options

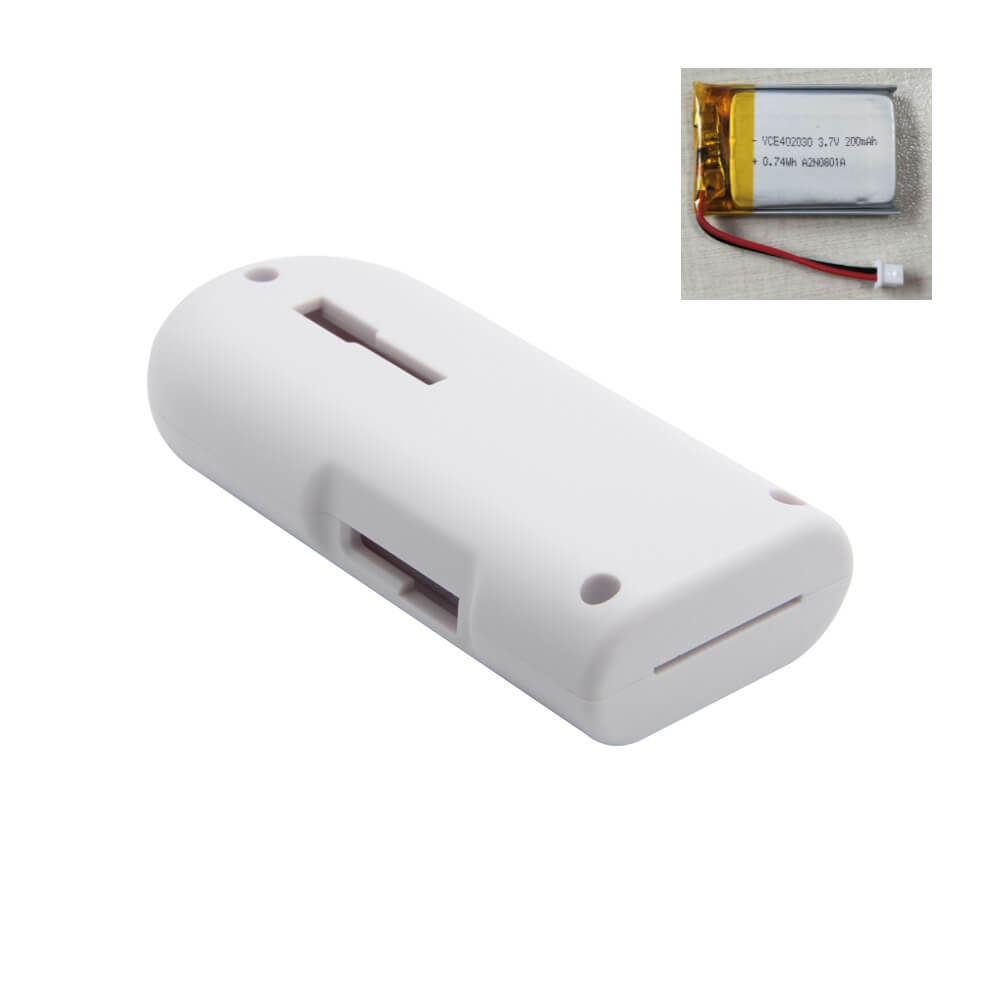

  • 1 X T-Higrow DHT11 Kit

(Include T-Higrow Module ,White ABS Shell and Built-in 200 mAh lithium battery)

T-Higrow BME280 CH9102 Options

  • 1 x T-Higrow BME280
  • 1 x Power cable
  • 2 x Pin

T-Higrow BME280 Kit CH9102 Options

  • 1 X T-Higrow BME280 Kit

(Include T-Higrow Module, White ABS Shell, and Built-in 200 mAh lithium battery)





View full details

Customer Reviews

Based on 6 reviews
50%
(3)
33%
(2)
0%
(0)
0%
(0)
17%
(1)
A
Andrew Smith
Nifty little tools - excellent!

Really enjoyed getting these to work. ESPhome works will. No complaints.

J
John Oleinik
Esphome install easy

Works well, great combo of sensors. Can’t get conductivity to work, however

B
Bob
Battery lasts 1 day max

this device still pulls 18ma of current when in deep sleep mode, rendering it useless

J
Joshua Taylor
Great multi function device

Wrote some custom firmware for it, and have used it to monitor my raised beds, green house, and even my chicken brooder. The ESP32 is a great microcontroller for the money, and is easy to integrate into web based IoT solutions.

d
ds
T-Higrow with case

The device works as designed. Only 4 stars, just because the sample code is very limited to showcase the capabilities of the device.
