T-Embed

T-Embed

IoT embedded panel for programmable development

Regular price $28.56 USD
Regular price Sale price $28.56 USD
Sale Sold out

⚠️If you need technical support, you can get a quicker response on our GitHub (the tech team will check it directly). Please provide your Tax/Personal ID (if available), this will expedite the shipment of your order.

Instructions Before Order

If you order the wrong product or want to add another or change your shipping address, please re-edit the correct information and place a new order, then contact us to cancel the incorrect order.

If you have a tax ID or personal ID please provide as much as possible, otherwise, if your country requires this information we will block your order and contact you via email, which will slow down the shipment.

We strongly recommend choosing DHL or FedEx if your order is over $200.

Generally, except for DHL or FedEx, we will automatically split orders over $150-200 into two packages due to customs clearance, loss prevention issues, etc.

For more please check here

Shipping & Delivery

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. EUB: 25-30 Days
  3. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  4. DHL: 10-17 Days
  5. FedEx: 10-17 Days
  6. YanWen: 20-35 Days

Please note that all delivery times are estimated for reference only.

During ship, maybe some methods of transport do not update the logistic track until the parcel reaches the destination country.

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for help.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

About Tax

At present, the price of the platform does not include any tax.
European customers should pay attention to the tax problem after the package reaches the local country, which needs to be borne/handled by the customer, the local policy shall prevail

[orders over 150 euros may generate tax (Amount for reference only), for orders over this amount, we will not inform the customer separately, so please pay attention to it by yourself.]

Note [For orange button]:

Since the edge of the button is orange, the color of the light shown in RGB is recommended to use white light, if the corresponding RGB color cannot be displayed, please purchase carefully.

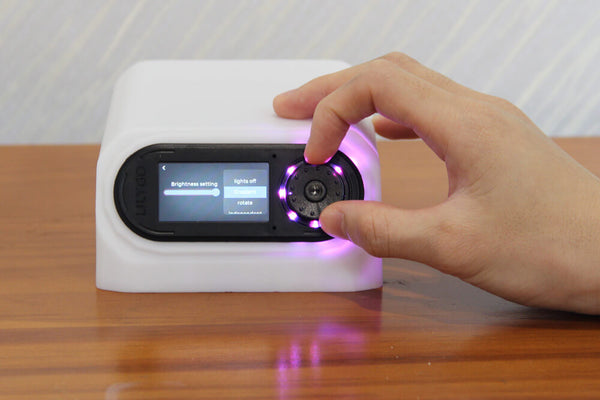

 T-Embed is an IoT embedded panel designed for programmable development. ABS+PC material (optional translucent version) panel + circuit board integrated standardized design, providing product 3D drawings and reference design drawings. Easy design to embed on your product.

Specifications

MCU ESP32-S3
Material ABS
Wireless Wi-Fi IEEE 802.11 b/g/n; Bluetooth 5, Bluetooth mesh
 1.9-inch IPS color TFT LCD
Model ST7789
Brightness 350(TYP)Cd/m2
Resolution 170(H)RGBx 320(V)
 Rotary encoder + confirmation key in one
Microphone  X 2
NUMBERS OF DETENT 24
PULSE/ROTATION 12 PULSE/360°
Speaker 8 ohm @ 1W
Ring RGB light x 7
GROVER x 1
 2.54 x 8pin GPIO interface
 TF card holder
Type-C USB
Battery charge and discharge protection circuit@1.25mm battery interface



Sample Code For Reference [Github]

If you need technical support please check the link to find more details.

T-Embed

T-Embed Shell

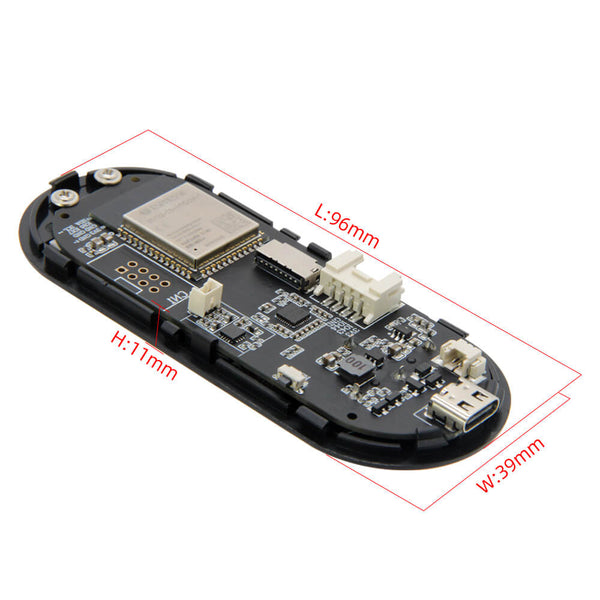

Board Size

Pin Diagram



Other (Shipping list does not include the white box)

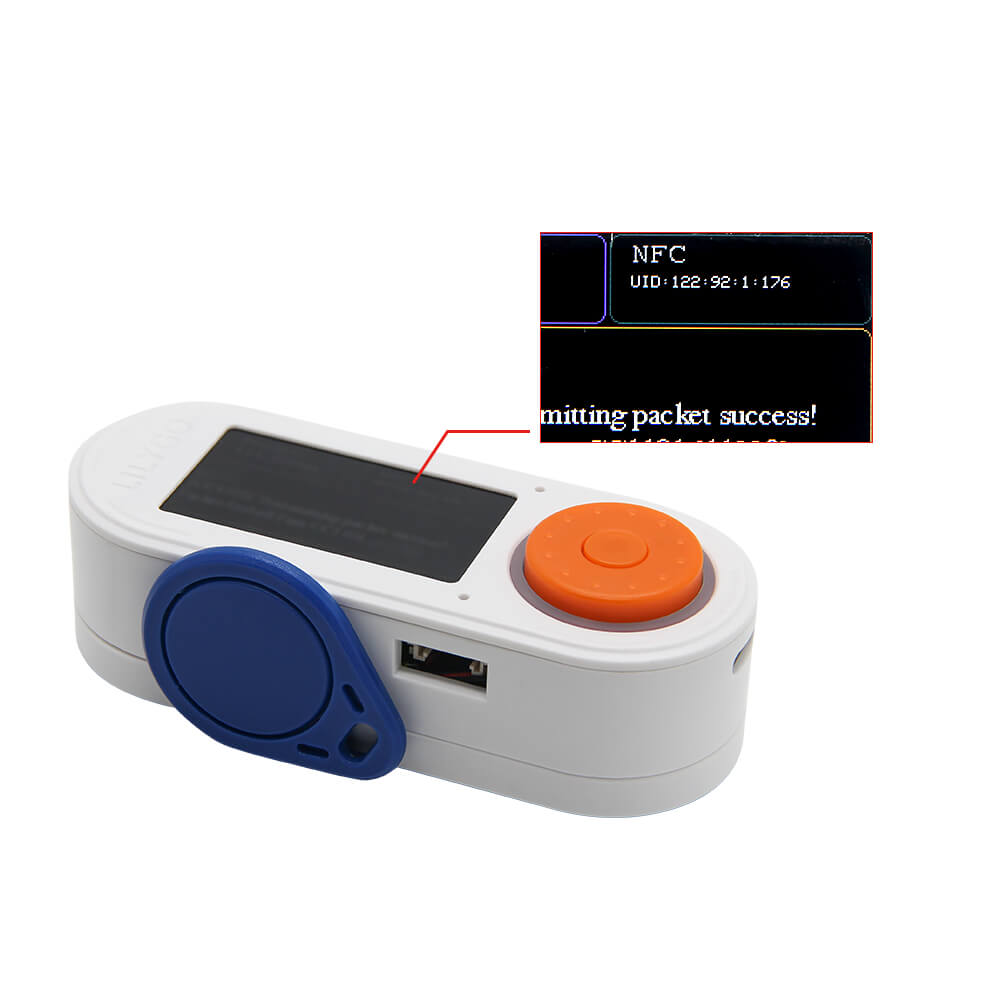

T-Embed With Shell



T-Embed

1 X T-embed
1 X IDC3 simple horn socket 2.54 8pin
1 X Flex Cable 2.54 8pin 10cm
1 X Battery Cable [jst 2pin 1.25mm]
1 X Speaker

Note: Batteries are not included in the list

T-Embed With Shell

1 X T-embed
1 X IDC3 Box Header Connector 2.54 ( 2*4P)
1 X 2.0mm Male PIN (1*5P)
1 X JST1.25mm2P
1 X Box Header Cable 2.54 8pin 10cm
1 X 2.0mm Male PIN (1*6P)

Note: Batteries are not included in the list
