LILYGO®

T-Track

T-Track

Full viewing angle wireless display development board

Regular price $16.98 USD
Regular price Sale price $16.98 USD
Sale Sold out

⚠️If you need technical support, you can get a quicker response on our GitHub (the tech team will check it directly). Please provide your Tax/Personal ID (if available), this will expedite the shipment of your order.

Instructions Before Order

If you order the wrong product or want to add another or change your shipping address, please re-edit the correct information and place a new order, then contact us to cancel the incorrect order.

If you have a tax ID or personal ID please provide as much as possible, otherwise, if your country requires this information we will block your order and contact you via email, which will slow down the shipment.

We strongly recommend choosing DHL or FedEx if your order is over $200.

Generally, except for DHL or FedEx, we will automatically split orders over $150-200 into two packages due to customs clearance, loss prevention issues, etc.

For more please check here

Shipping & Delivery

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. EUB: 25-30 Days
  3. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  4. DHL: 10-17 Days
  5. FedEx: 10-17 Days
  6. YanWen: 20-35 Days

Please note that all delivery times are estimated for reference only.

During ship, maybe some methods of transport do not update the logistic track until the parcel reaches the destination country.

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for help.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

About Tax

At present, the price of the platform does not include any tax.
European customers should pay attention to the tax problem after the package reaches the local country, which needs to be borne/handled by the customer, the local policy shall prevail

[orders over 150 euros may generate tax (Amount for reference only), for orders over this amount, we will not inform the customer separately, so please pay attention to it by yourself.]

T-Track is an innovative development board. The full viewing angle and the brilliant display will keep you up 'til dawn, brainstorming and coding with glee!  Track your projects and ideas with T-Track. Get ready for smooth sailing on your creative journey!

Specifications

MCU ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth5 (LE)
Development Arduino, PlatformlO-IDE, Micropython
Flash 16MB
PSRAM 8MB
Boot function PIN  IO00

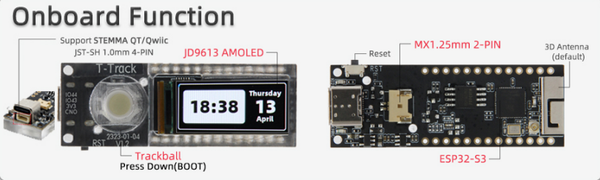

Onboard functions Trackball, Reset Button, 3D Antenna


1.1 inch JD9613 SPI AMOLED

Resolution 126 X 294
Interface 4-Wire SPI
Active Area 10.962x25. 578 mm, Driver IC: JD9613
Viewing Angle  Full View Angle

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

T-Track

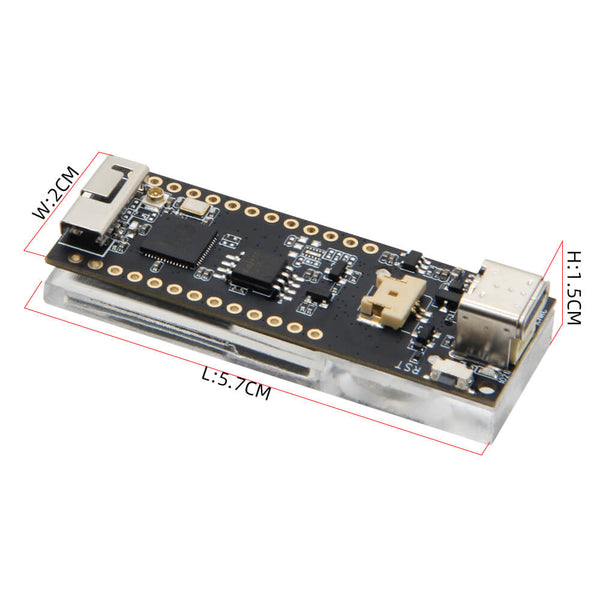

 Size

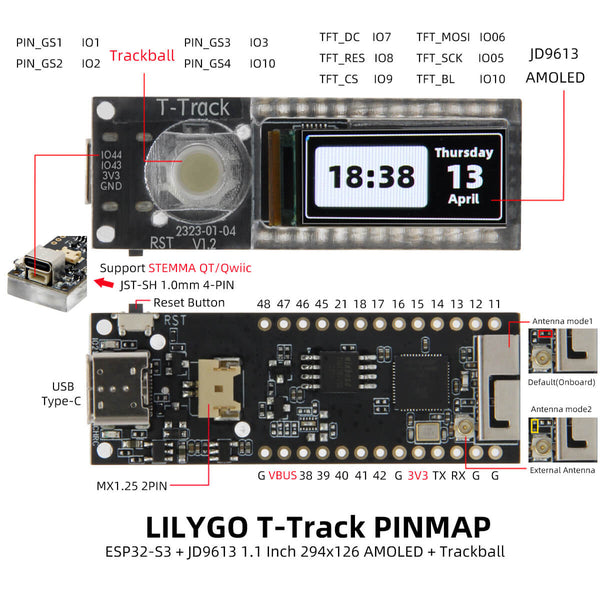

Pin Diagram



View full details
