T-QT Pro

T-QT Pro

13 total reviews

Regular price $9.05
Regular price Sale price $9.05
Sale Sold out

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  3. DHL: 10-17 Days
  4. FedEx: 10-17 Days

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

We only charge the product cost and shipping cost.

1. For Standard Express Order: You may not need to deal with customs clearance, just need to pay attention to the track of the parcel, but this is not absolute, if your parcel is inspected by the customs, then you need to assist in dealing with customs clearance.

2. For DHL/ FedEx Order: You need to deal with the relevant customs clearance matters, as well as pay the tariff, the specific amount of tariff please pay attention to the policy of your country.

----------------------

The above tariffs are for reference only, please pay attention to your country's tax policy for more detailed instructions, if you need our help or have questions please feel free to contact us.

Specification

MCU  ESP32-S3FN4R2 Xtensa LX7 microprocessor
Wireless Connectivity Wi-Fi 802.11 b/g/n, BL V5.0+BLE
Programming Platform Arduino-ide, Micropython
Flash 4M
PSRAM 2M
Clock frequency 240Mhz
Onboard functions IO00+IO47
Battery Detection IO04


LCD: GC9107 TFT IPS LCD

LCD  Resolution: 128*128px
Support 4-Wire SPI interface
Display Area 15.2064(H)*15.2064(V)
Display Colors 262K
Brightness 260 cd/m2



Sample Code for Reference [Github]

If you need technical support please check the link to find more details.

T-QT Pro



What's the difference between T-QT Pro

Version S3FN8 Basic S3FN8 Shell Version S3FN4R2 Basic S3FN4R2 Welded PIN S3FN4R2 Shell
Chip Model ESP32-S3FN8 ESP32-S3FN8 ESP32-S3FN4R2 ESP32-S3FN4R2 ESP32-S3FN4R2
Battery Charge
Battery Discharge
Flash 8M 4M
PSRAM - 2M
LCD Driver GC9A01
Screen Size 0.85 Inch LCD

1. Pin Diagram

2. Size

3. Appearance Details

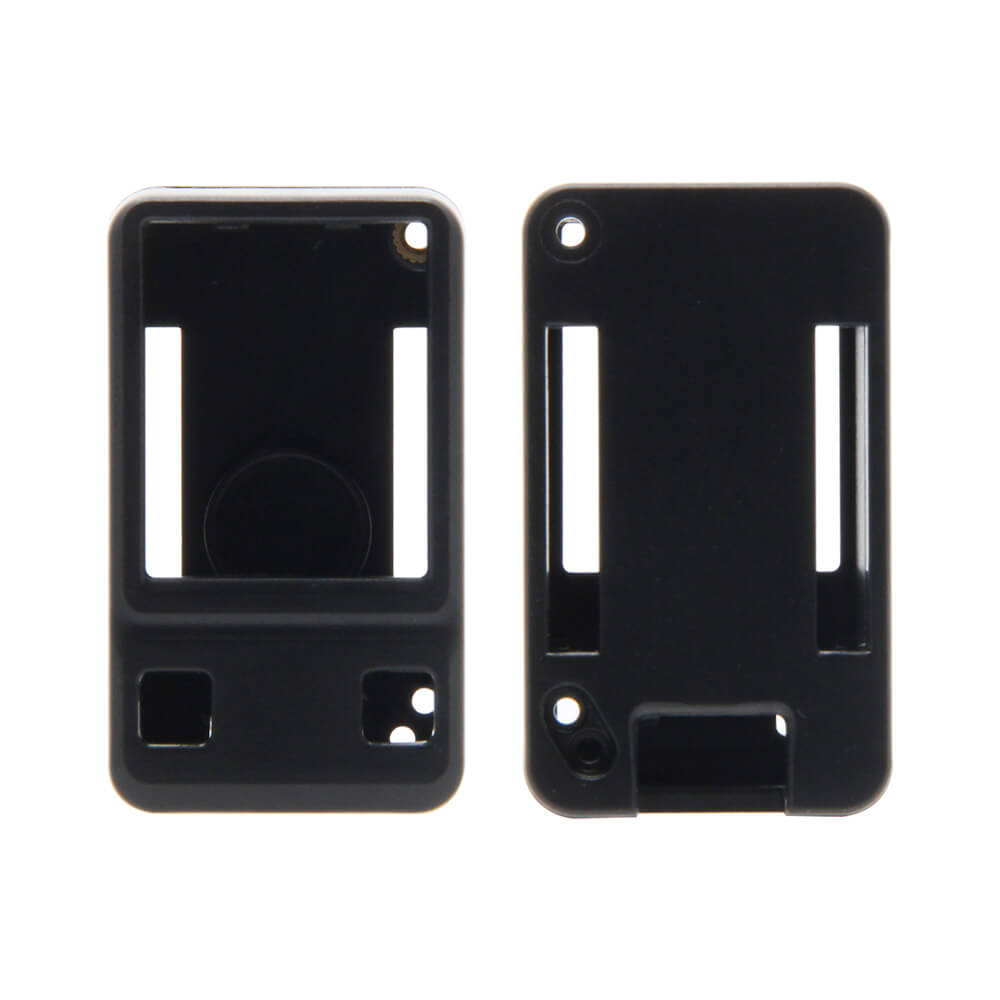

T-QT with Shell


View full details
  • Who can use

    It's easier to master these development boards with a basic programming knowledge [engineers/ students/ makers, etc..]

  • Accelerated processing

    International orders please make sure your address is in English
    For Hong Kong, Macau and Taiwan orders, please note your personal ID.

  • Got a question

    Click on the bubble in the bottom right corner where some frequently asked questions are answered, or just drop us a line.

Customer Reviews

Based on 13 reviews
69%
(9)
23%
(3)
8%
(1)
0%
(0)
0%
(0)
D
DENNIS FLORENTIN
Sensacional

Ambas placas llegaron en buen estado, funcionando, es un muy buen producto, contento con la compra.

M
Mikel Latorre geca
Bien

Muy buen producto con mucho potencial. Aunque se le ha puesto poco cuidado en la documentación. Se necesitan más ejemplos o guías.

R
Roman Kiss
Using T-QT Pro as an IoT Device

Thanks for this product. I am using it as an IoT device connected to the Azure IoT Central for handling a telemetry data in my student class.

Notice, that the T-QT Pro has been reflashed with a nanoFramework firmware and the device application is developed using C# like other projects in the Microsoft Visual Studio 2022 included tracing and debugging a code.

A
Anonymous
LILYGO-Uhr

konnte aus Zeitmangel noch nicht bearbeitet werden. Finde diese Teile aber sehr gut!

S
Svetlin Radkov

Top
