LILYGO®

T-Micro32 Plus

T-Micro32 Plus

ESP32 Development Board Wireless Compatible Module

Regular price $6.54 USD
Regular price Sale price $6.54 USD
Sale Sold out

⚠️Please note that all policy page on site only applies to items purchased from our store: https://www.lilygo.cc.

Relevant technical or usage issues can be also discussed in our GitHub or Community.

About Tax

At present, the price of the platform does not include any tax.
European customers should pay attention to the tax problem after the package reaches the local country, which needs to be borne/handled by the customer, the local policy shall prevail

[orders over 150 euros may generate tax (Amount for reference only), for orders over this amount, we will not inform the customer separately, so please pay attention to it by yourself.]

Commended User

People with programming foundation[engineers / students / makers, etc..]

Shipping & Delivery

Please read the following rules carefully before submitting your order, otherwise, we can't process your order.

  1. For international orders, please make sure the language of the delivery address is in English
  2. For domestic orders (Mainland China), please make sure the language of the delivery address is Chinese.
  3. For Hong Kong, Macau, and Taiwan orders, please provide your tax ID number, or the corresponding ID card number, and the corresponding GUI Number if the recipient is a company name.

----------------------------------------------------------------

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. EUB: 25-30 Days
  3. YunTu Express: 10-20 Days
  4. DHL: 10-17 Days
  5. FedEx: 10-17 Days
  6. YanWen: 20-35 Days

Please note that all delivery times are estimated for reference only.

During ship, maybe some methods of transport do not update the logistic track until the parcel reaches the destination country.

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for help.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

T-Micro32 Plus Introduction

  • The T-Micro32 Plus version is a continuation of another version based on the T-Micro32 module version The micro form factor of the T-Micro32 module.

  • The white ceramic antenna is replaced by a stronger signal RED C3 ceramic Antenna, and GPIO pins are added to replace the reserved pins (see the comparison chart for details)

  • Flash has been increased to 8MB, and 2MB PSRAM has been added (due to the addition of PSRAM and some pins are used, if you need to replace it, please pay attention to check whether the GPIO is used when using it), which is suitable for more application development scenarios.

T-Micro32 V2.0

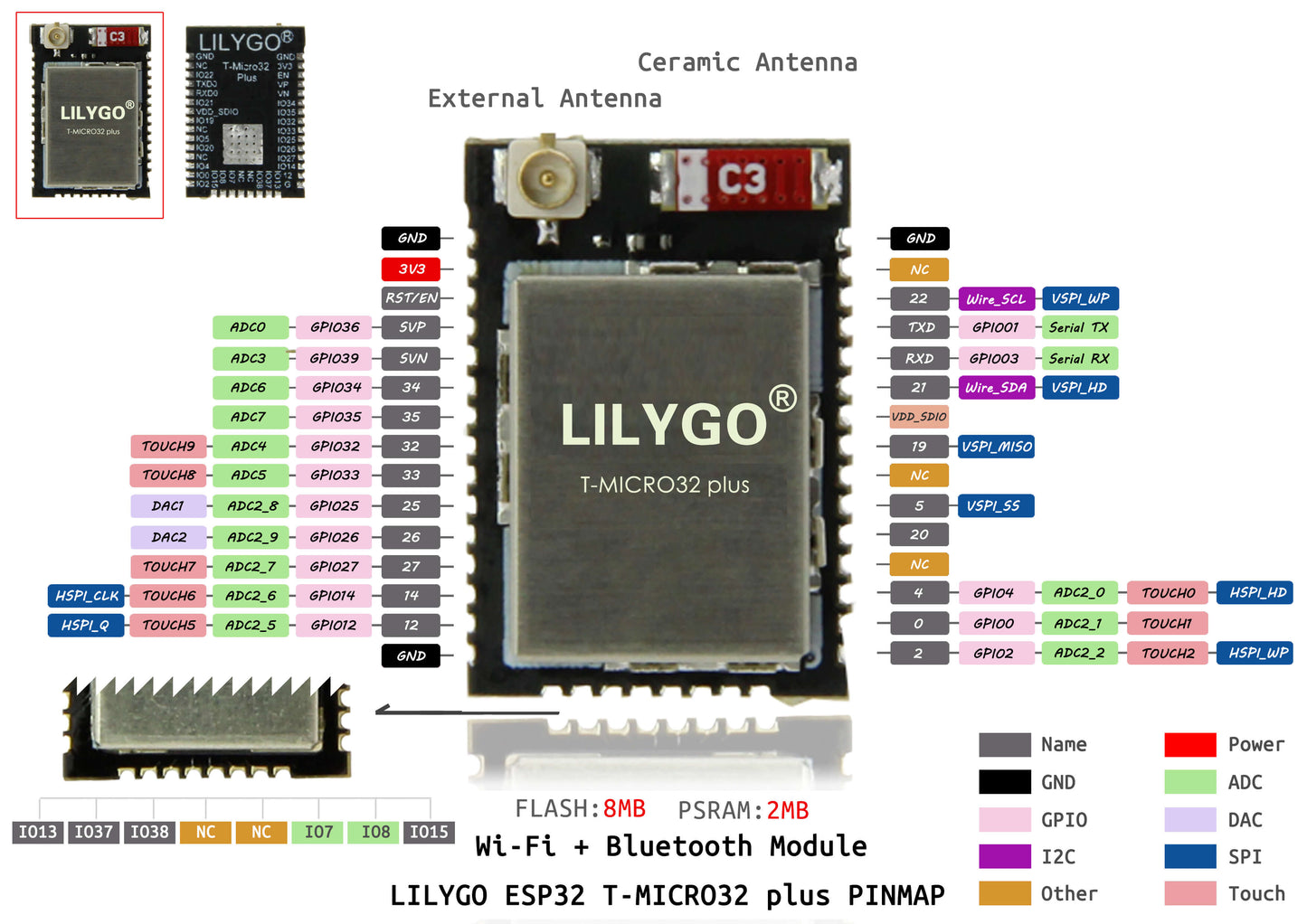

Pin Diagram


Appearance Details

T-Micro32 Plus 1/5pcs Options

  • 1/5 X T-Micro32 Plus(Built-in C3 Ceramic Antenna)
