LILYGO® TTGO T-Internet-COM ESP32 Wifi Bluetooth Board For T-PCIE Ethernet IOT Module With SIM TF Card Slot Type-C Connector
Specification
| MCU | ESP32 |
| FLASH | 16MB |
| PSRAM | 8MB |
| Bus Interfaces | UART, SPI, I2C, CAN, I2S, SDIO |
| Wireless Connectivity | Wi-Fi 802.11 b/g/n/, BLE V4.2 |
| Onboard Buttons | RST+BOOT |
| WS2812 RGB | GPIO12 |
| USB to TTL chip | CH9102 |
| POWER | DC 5~12V |
|
L AN8720 Ethernet Network Port |
Single-Chip Ethernet Physical Layer Transceiver Flexible Power Management Architecture |
Technology Support [Github]
If you need technical support please check the link to find more details.

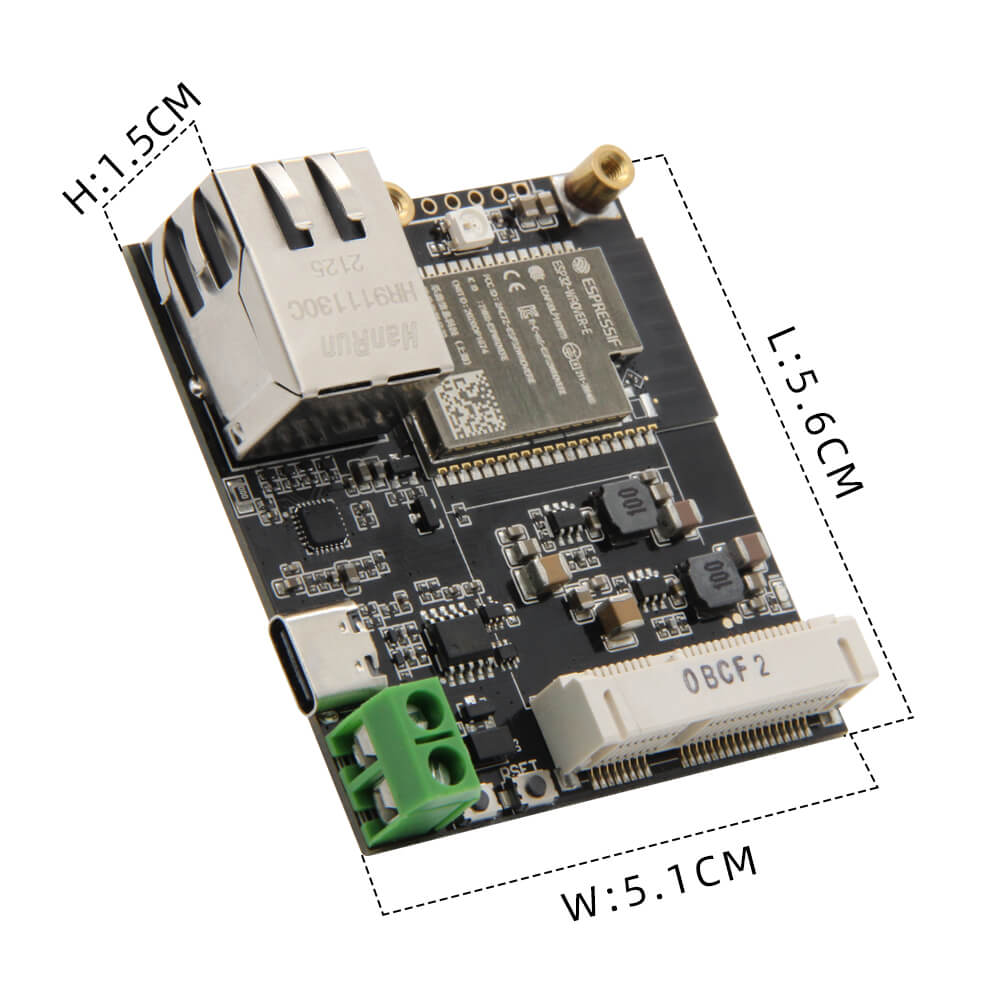

1. Size

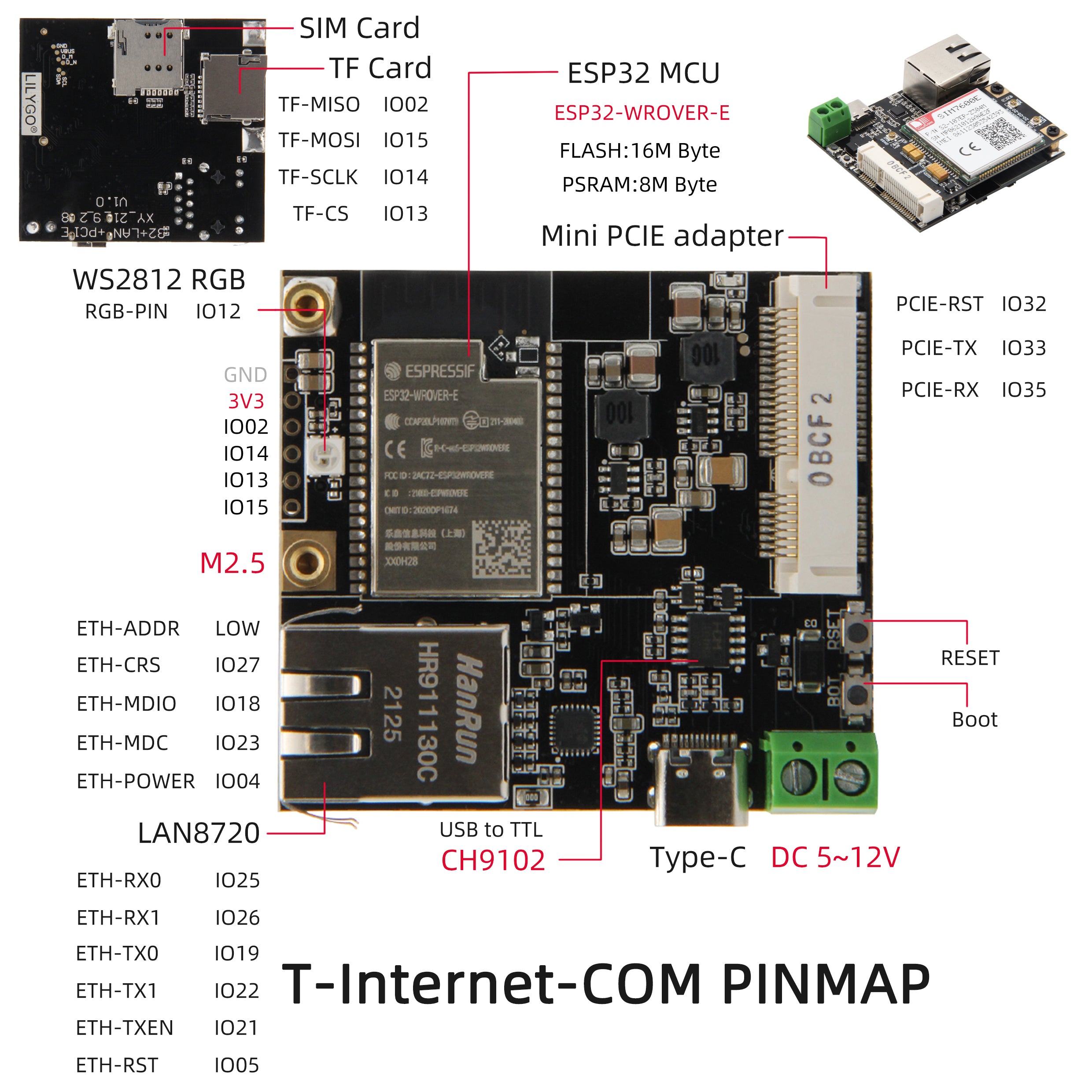

2. Pin Diagram

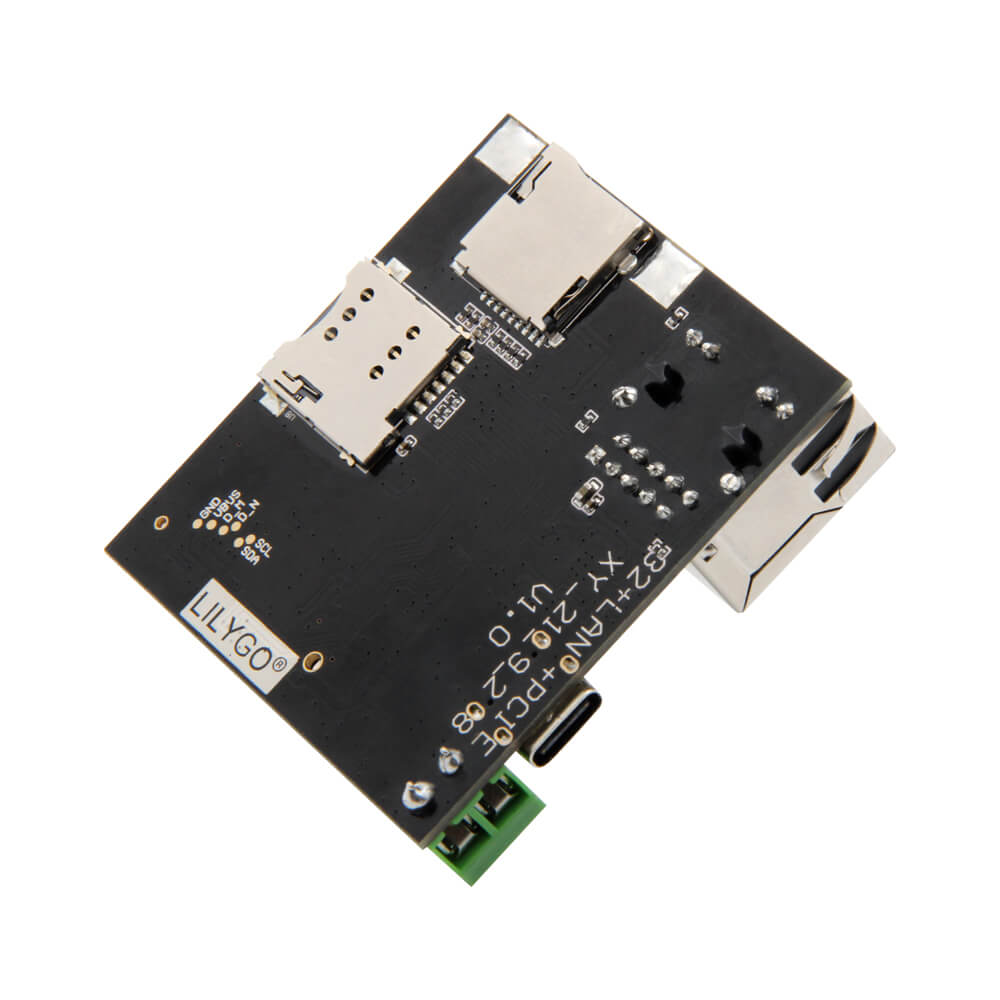

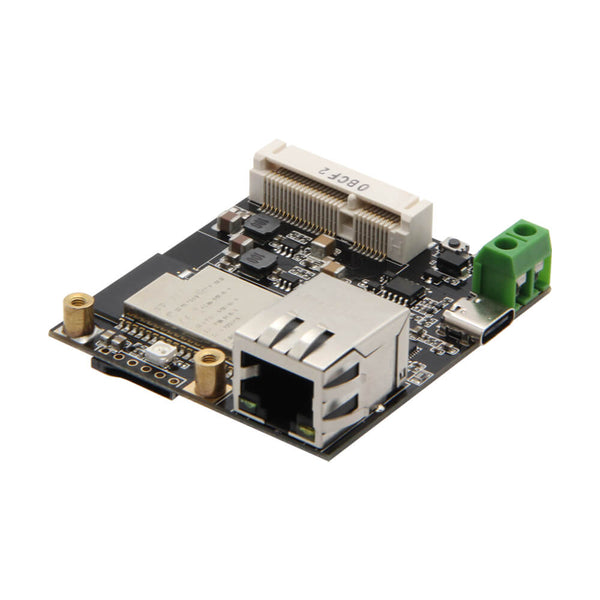

3. Appearance

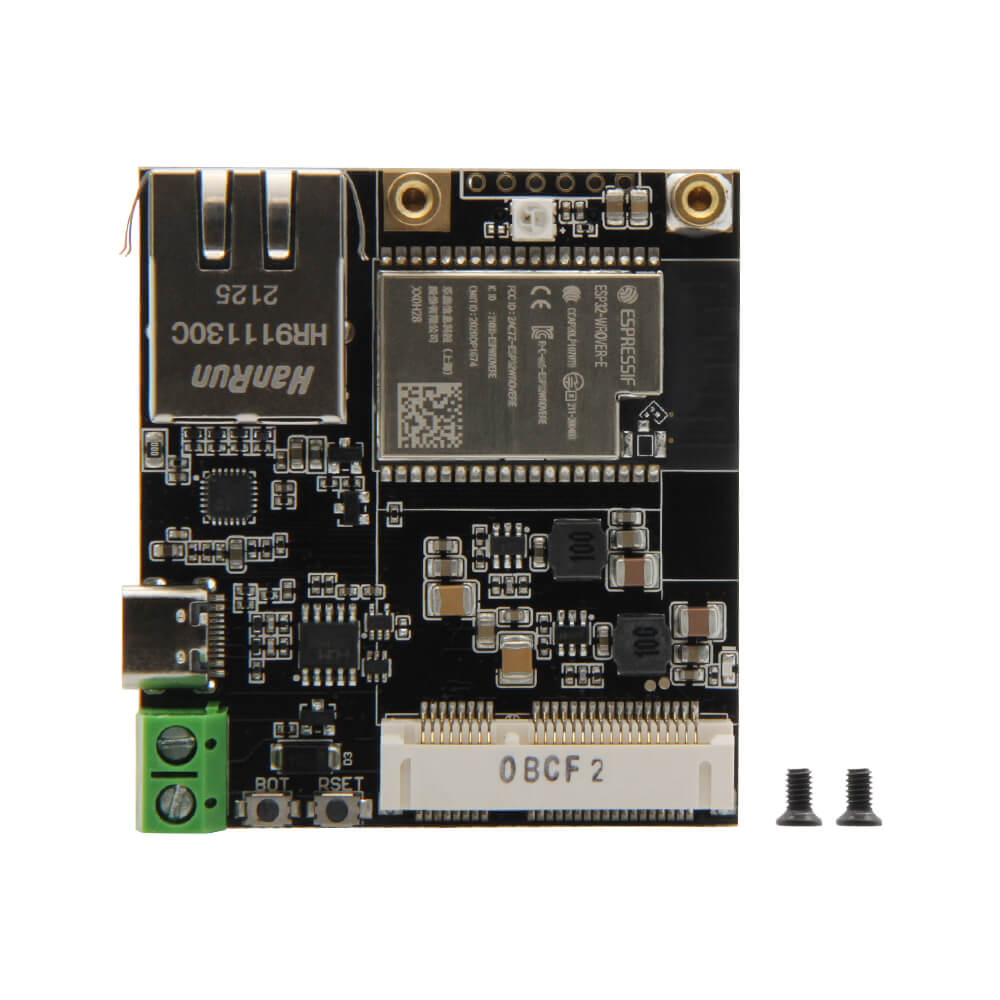

- 1 X T-Internet-COM
- 2 X M2.5X5mm screws
[Note: PICE-SIM series modules are not included by default]
[Without SIM / TF Card.]
