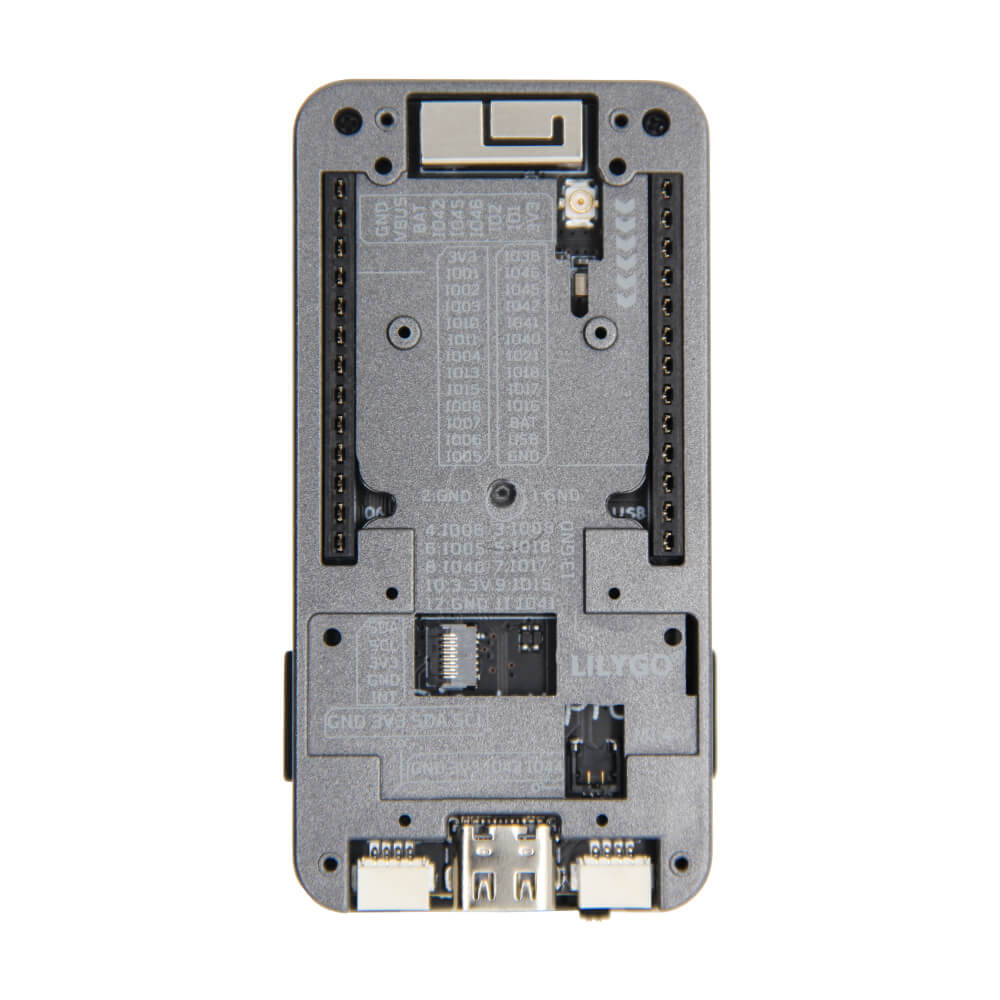

T-Display S3 Pro

T-Display S3 Pro

2.33-inch screen add SY6970 for phone OTG support multi-touch board

Regular price $46.54 USD
Regular price Sale price $46.54 USD
Sale Sold out

⚠️If you need technical support, you can get a quicker response on our GitHub (the tech team will check it directly). Please provide your Tax/Personal ID (if available), this will expedite the shipment of your order.

Instructions Before Order

If you order the wrong product or want to add another or change your shipping address, please re-edit the correct information and place a new order, then contact us to cancel the incorrect order.

If you have a tax ID or personal ID please provide as much as possible, otherwise, if your country requires this information we will block your order and contact you via email, which will slow down the shipment.

We strongly recommend choosing DHL or FedEx if your order is over $200.

Generally, except for DHL or FedEx, we will automatically split orders over $150-200 into two packages due to customs clearance, loss prevention issues, etc.

For more please check here

Shipping & Delivery

Methods & Delivery Time

  1. Standard Express/ YanWen: 25-30 Days
  2. EUB: 25-30 Days
  3. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  4. DHL: 10-17 Days
  5. FedEx: 10-17 Days

Please note that all delivery times are estimated for reference only.

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for help.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

About Tax

At present, the price of the platform does not include any tax.
European customers should pay attention to the tax problem after the package reaches the local country, which needs to be borne/handled by the customer, the local policy shall prevail

[orders over 150 euros may generate tax (Amount for reference only), for orders over this amount, we will not inform the customer separately, so please pay attention to it by yourself.]

 T-Display S3 pro is the upgraded version of T-Display S3.
The main thing is the use of a larger screen 2.33-inch screen and the addition of the chip SY6970 for phone OTG.
Continuing the way of T-display S3, the case is ABS, and there is added the expansion of the camera module through POGOpin for the use of a built-in module. Ambient light and proximity sensors on the top of the screen, two integrated QWIIC ports, and a battery power switch. An optional MPU9250 IMU module is also available internally.

Note:

The interface shown in the picture is a sample UI routine, not a function that this product has. Specific on-board features are subject to detailed descriptions

Specifications

MCU ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity Wi-Fi 802.11, BLE 5+BT mesh
Programming Platform Arduino-ide, Micropython
Flash 16MB
PSRAM 8MB
Support USB OTG
Onboard functions Boot+Reset+IO12+IO16
 Button 2.33 inch Touch IPS TFT LCD:
Resolution 222(H)RGB x 480(V)
Drive Chip ST7796
Interface SPI
 2C Digital Light Sensor LTR-553ALS-01:
Features Digital light sensor [ALS] & proximity sensor [PS]
External board



Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

 T-Display S3 Pro

 External board

 Size [For reference]

Pin Diagram

 External board

Without Camera

With Camera

More Details

T-Display S3 Pro

 External board





View full details
