T-Display S3 AMOLED
T-Display S3 AMOLED
Touch and no-touch versions available
Couldn't load pickup availability
Payment Method
About Shipping
About Shipping
Methods & Delivery Time
- DHL 7-10 business days
- FedEx 7-10 business days
- Standard Express 10-25 business days
- Overseas Warehouse* 7-15 business days
*Available from: Germany, USA, Canada
Please note that all delivery times are estimated for reference only.
Check More Info: Shipping Policy
About Tax
About Tax
We only charge the product cost and shipping cost.
1. For Standard Express Order: You may not need to deal with customs clearance, just need to pay attention to the track of the parcel, but this is not absolute, if your parcel is inspected by the customs, then you need to assist in dealing with customs clearance.
2. For DHL/ FedEx Order: You need to deal with the relevant customs clearance matters, as well as pay the tariff, the specific amount of tariff please pay attention to the policy of your country.
----------------------
The above tariffs are for reference only, please pay attention to your country's tax policy for more detailed instructions, if you need our help or have questions please feel free to contact us.

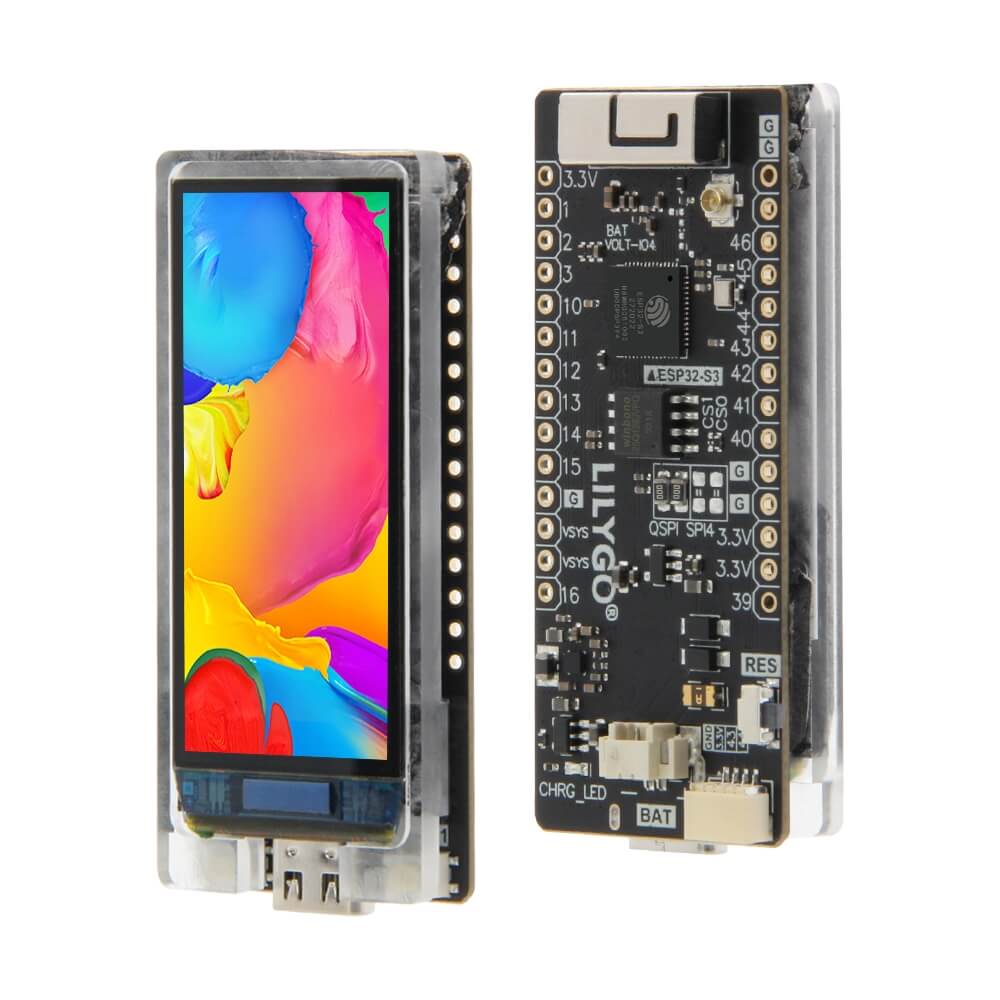

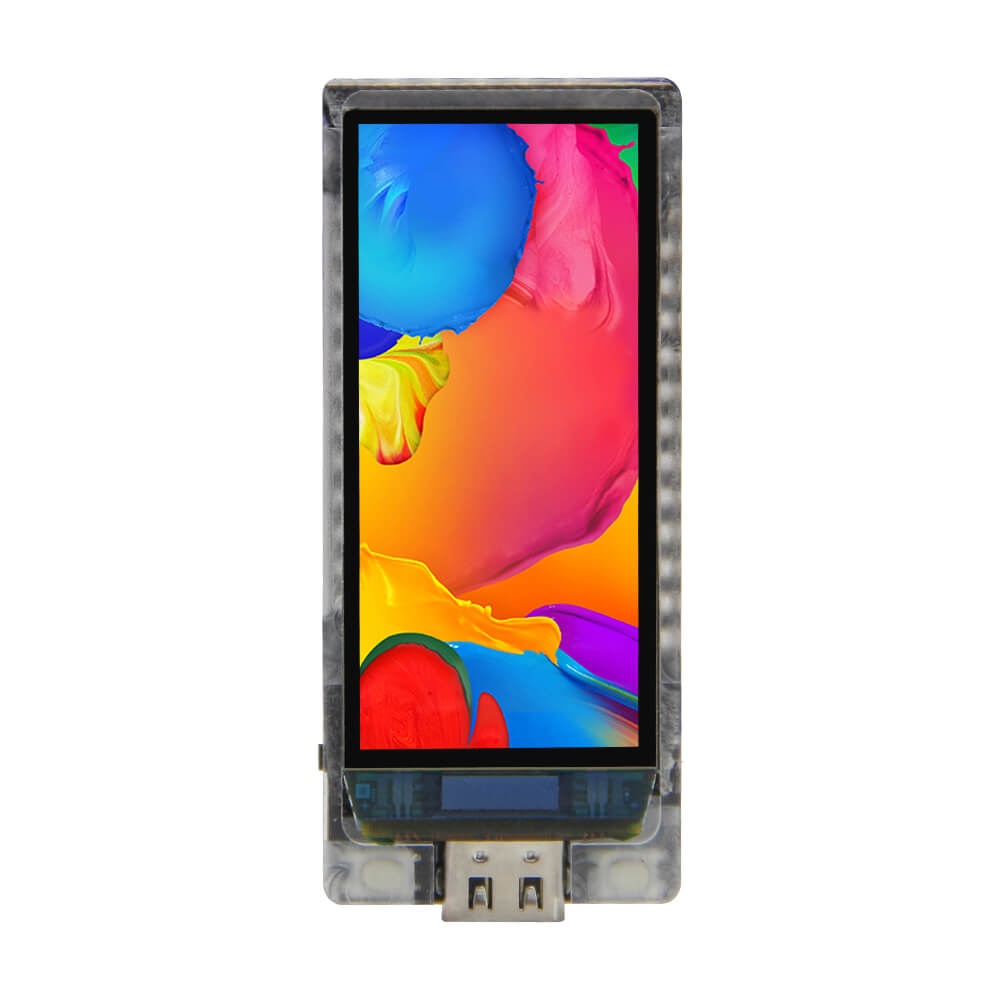

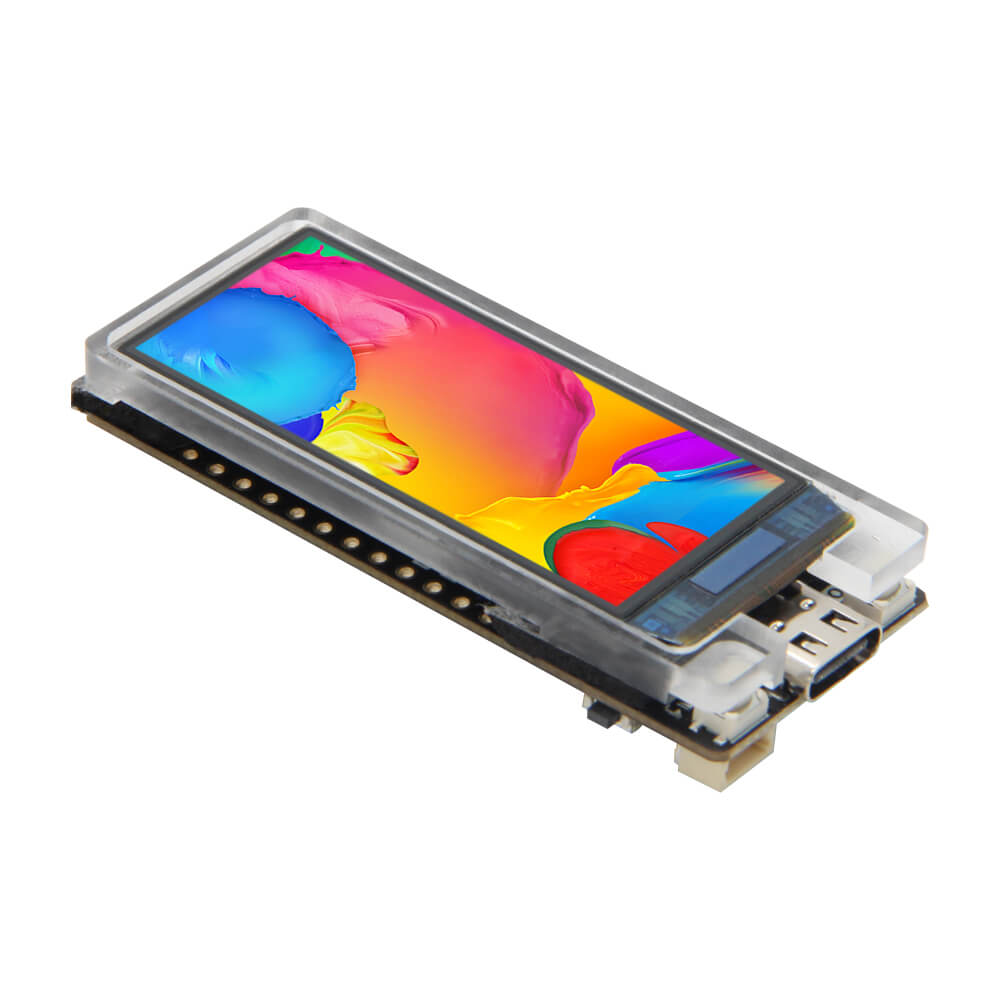

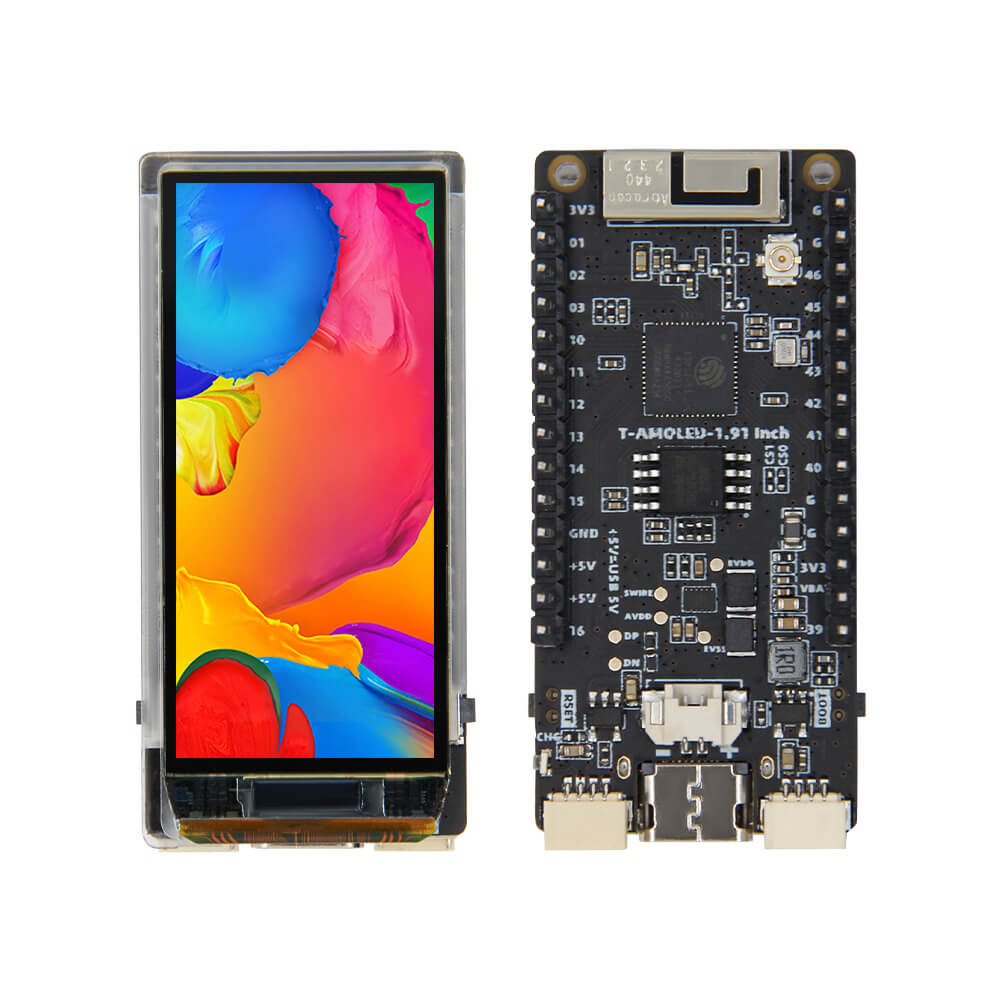

T-Display-S3 AMOLED is a display screen module with a 1.91" diagonal screen, based on our previous S3 module, we have upgraded the screen, resolution and antenna from LCD to AMOLED and the antenna to 3D antenna.
Using SPI interface, it is compatible with any microcontroller with SPI capability. The module is equipped with a built-in battery management system, making it a convenient solution for portable applications. The compact size and low power consumption make it ideal for wearable and IoT projects.
We have received many shares from engineers who have made the S3 module into a classic game console, monitor, timer, etc. The S3 module can carry many of your ideas. Use it to bring your ideas to life.

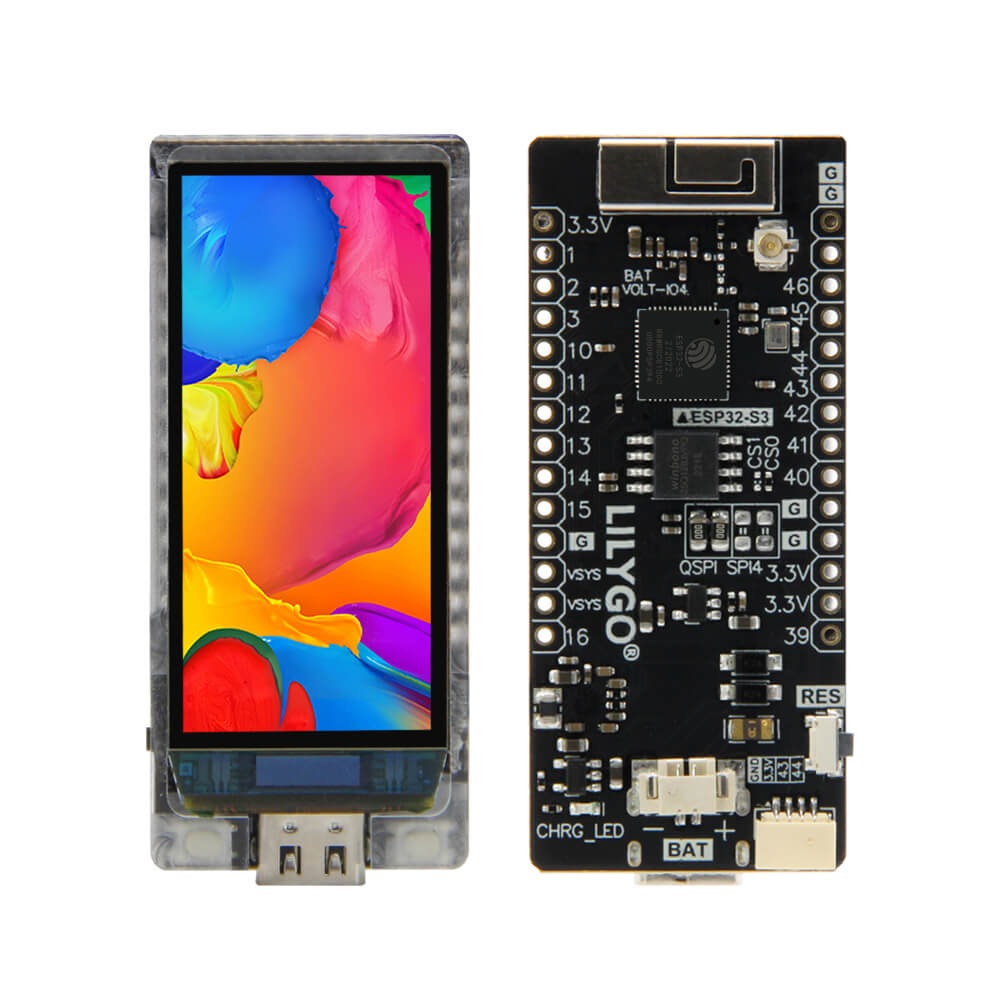

Version Upgrade
We've upgraded the base version (no touch functionality), check out the comparison!
| V1.0 | V2.0 |
 |
 |
Some of the buttons have changed positions, choose the right version according to your preference.
Specifications
| MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | 2.4 GHz Wi-Fi & Bluetooth5 (LE) |
| Development | Arduino, PlatformIO-IDE, Micropython |
| Flash | 16MB |
| PSRAM | 8MB |
| Bat Voltage Detection | IO04 |
| Onboard functions | Boot (IO00) + Reset + IO21 Button |

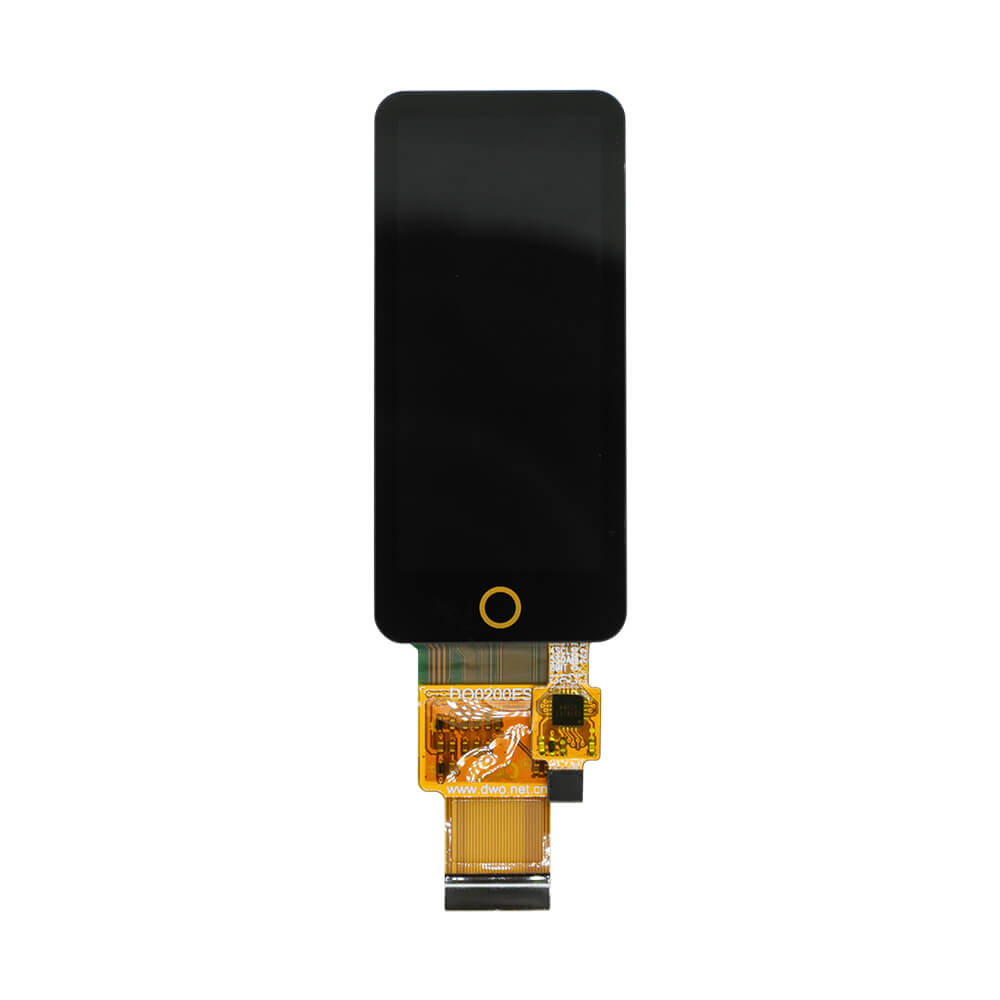

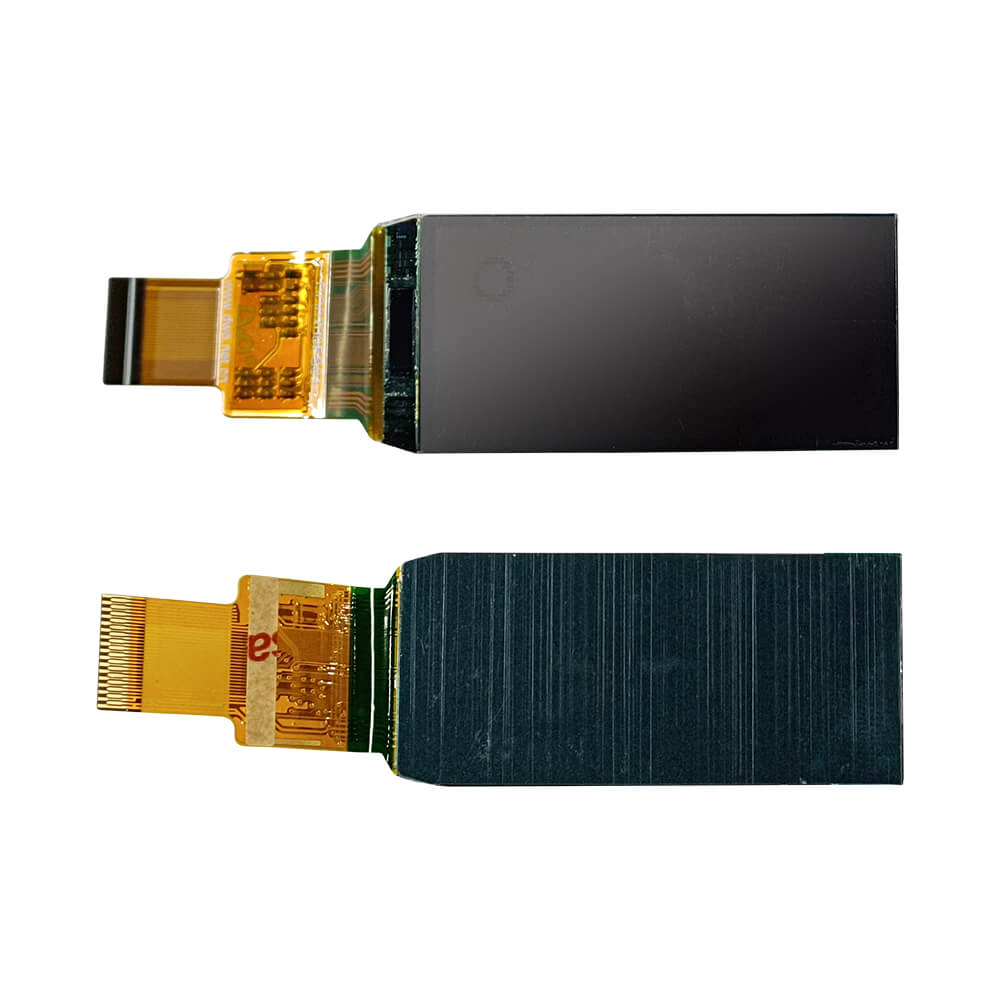

1.91 inch RM67162 IPS AMOLED:
| Resolution | 240 X RGB X 536(H) |
| Interface | SPI |
| Active Area | 19.8*44.22mm |
| Driver IC | RM67162 |

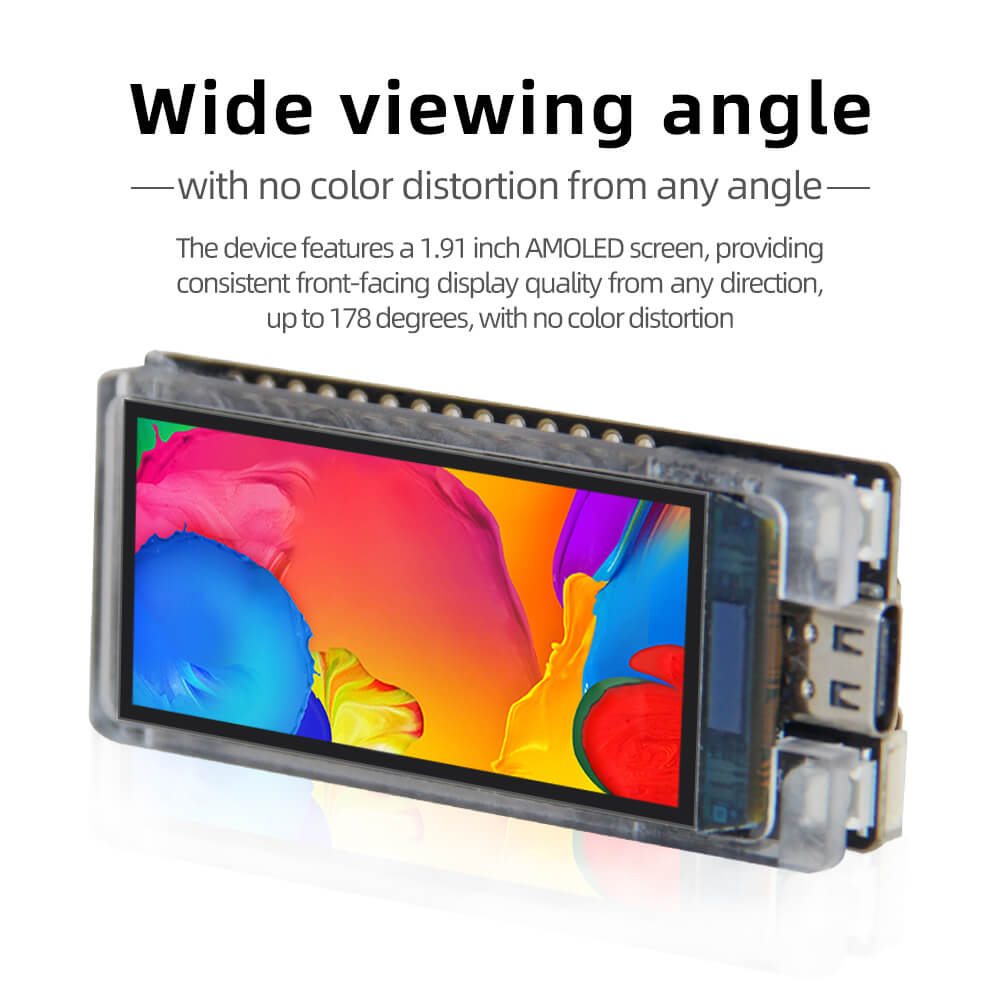

| Viewing Angle | IPS Full View Angle |
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
T-Display-S3 AMOLED
Pin Diagram

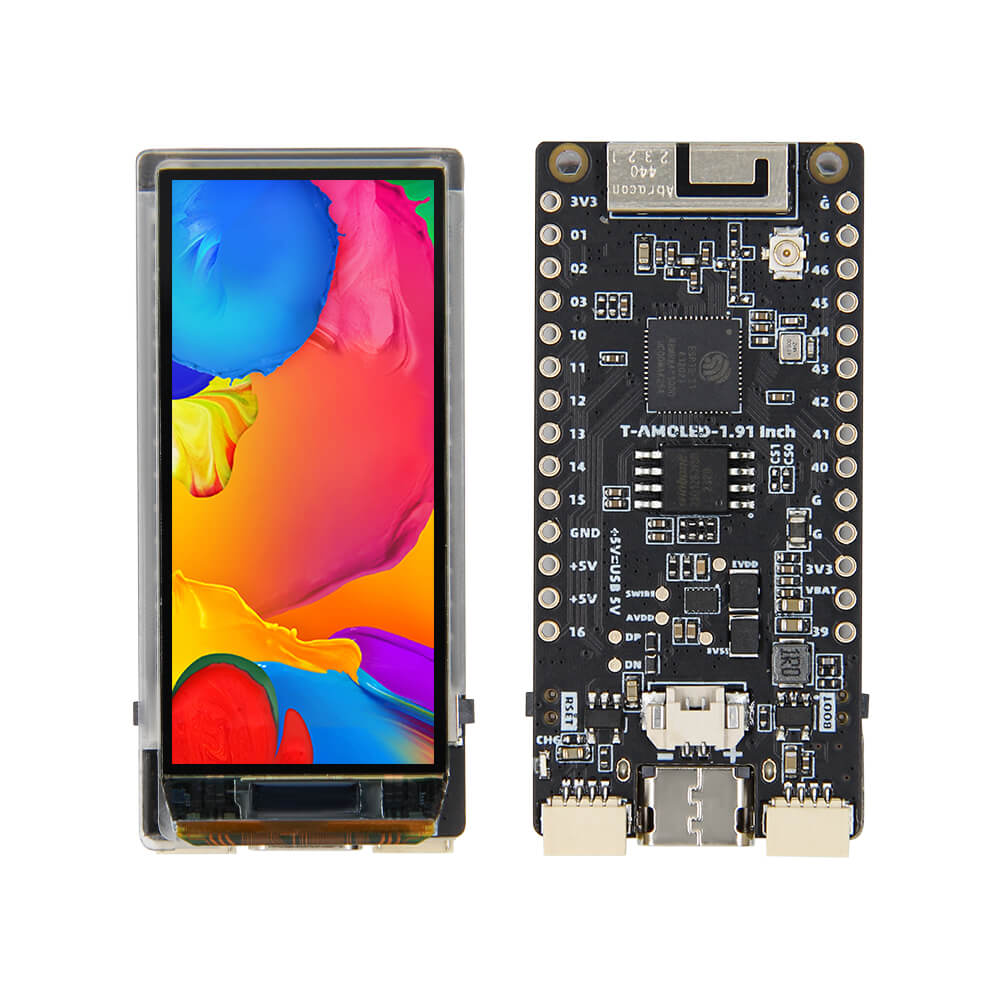

Basic Version

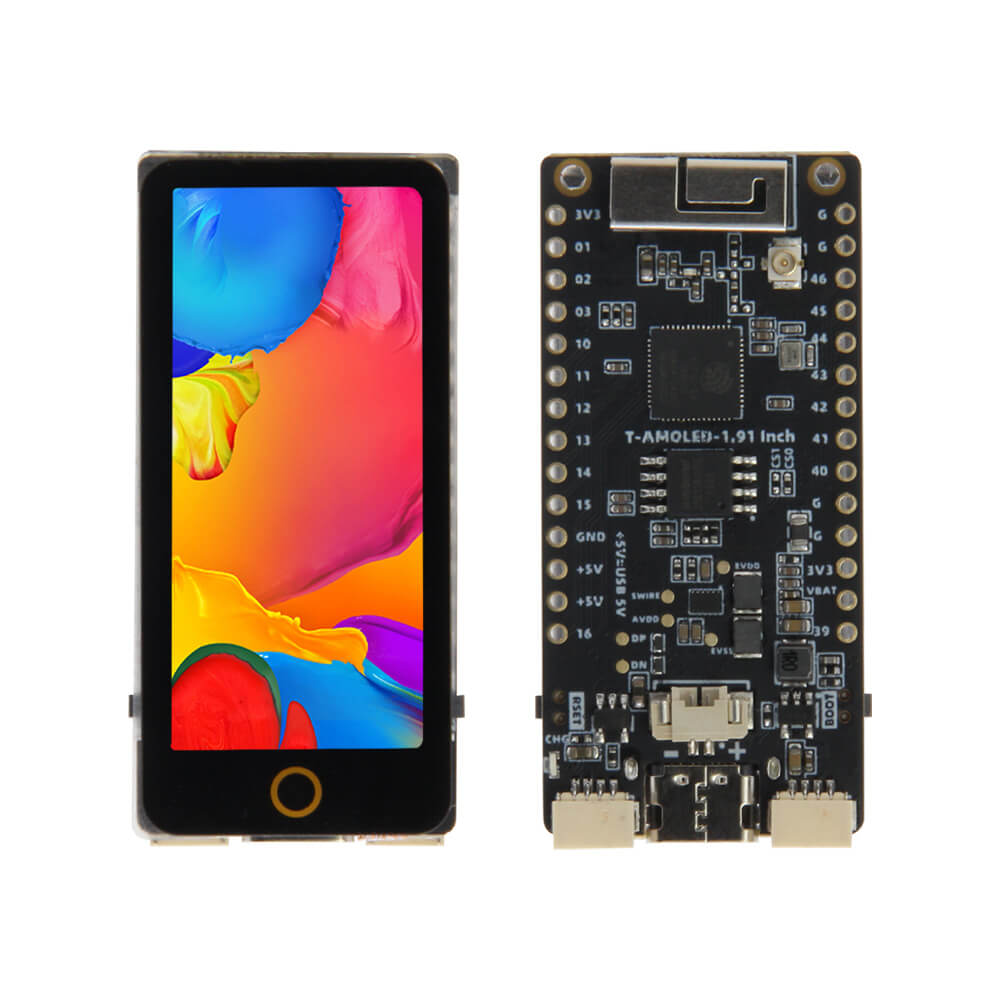

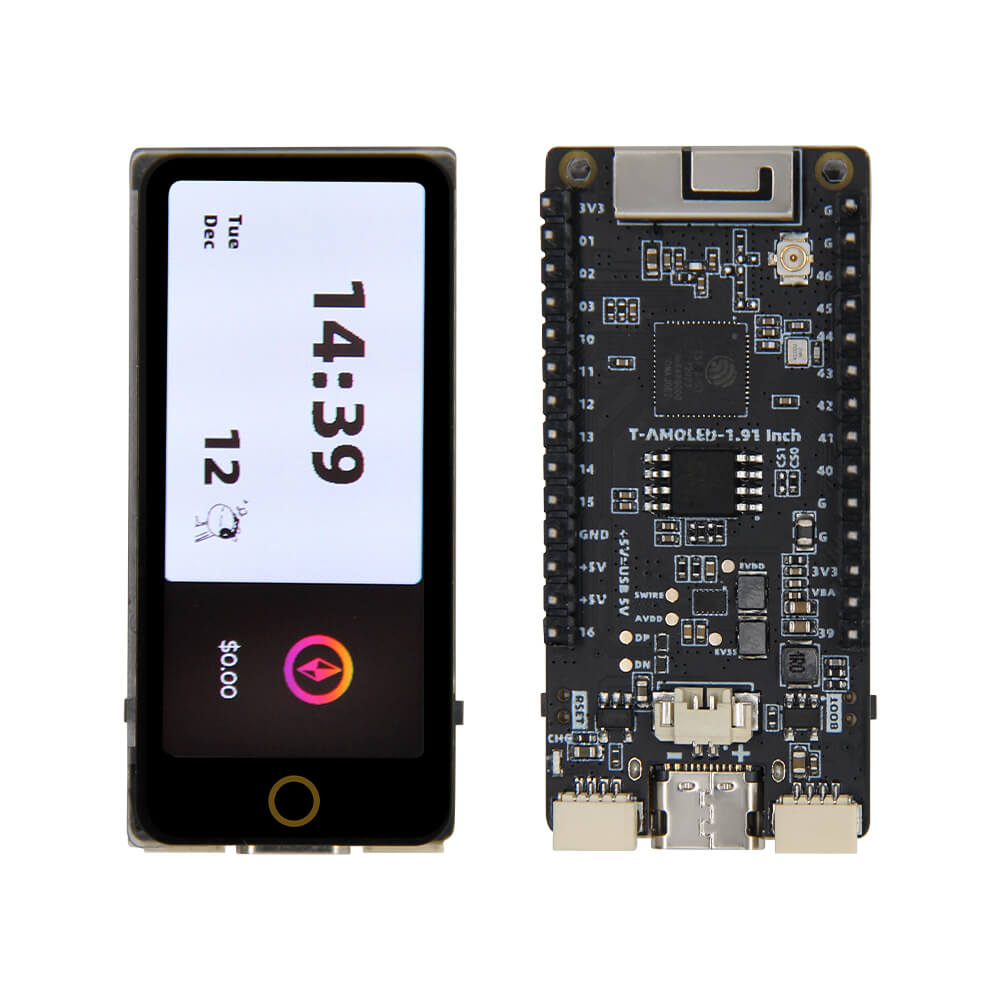

Touch Version
More Details
