T-Beam Meshtastic

T-Beam Meshtastic

ESP32 LoRa Wireless Module

Regular price $30.80 USD
Regular price Sale price $30.80 USD
Sale Sold out

⚠️If you need technical support, you can get a quicker response on our GitHub (the tech team will check it directly). Please provide your Tax/Personal ID (if available), this will expedite the shipment of your order.

Instructions Before Order

If you order the wrong product or want to add another or change your shipping address, please re-edit the correct information and place a new order, then contact us to cancel the incorrect order.

If you have a tax ID or personal ID please provide as much as possible, otherwise, if your country requires this information we will block your order and contact you via email, which will slow down the shipment.

We strongly recommend choosing DHL or FedEx if your order is over $200.

Generally, except for DHL or FedEx, we will automatically split orders over $150-200 into two packages due to customs clearance, loss prevention issues, etc.

For more please check here

Shipping & Delivery

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. EUB: 25-30 Days
  3. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  4. DHL: 10-17 Days
  5. FedEx: 10-17 Days
  6. YanWen: 20-35 Days

Please note that all delivery times are estimated for reference only.

During ship, maybe some methods of transport do not update the logistic track until the parcel reaches the destination country.

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for help.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

About Tax

At present, the price of the platform does not include any tax.
European customers should pay attention to the tax problem after the package reaches the local country, which needs to be borne/handled by the customer, the local policy shall prevail

[orders over 150 euros may generate tax (Amount for reference only), for orders over this amount, we will not inform the customer separately, so please pay attention to it by yourself.]

Meshtastic T-Beam ESP32 LoRa 433/868/915/923Mhz SX1276/SX1278 Wireless Module WiFi GPS NEO-6M With 0.96 inch OLED Display For Arduino.

Battery Size Reference



Sample Code For Reference [Github]

If you need technical support please check the below link to find more details.

Meshtastic Firmware

LILYGO Lora Series

Specifications

MCU ESP32
Flash 4MB
PSRAM 8MB
Serial Chip CH9102
Wireless protocol Wi-Fi + Bluetooth 4.2
PMU AXP2101
Onboard functions 3 Buttons (Power+IO38+Reset)
Antenna
  • 3D WiFi Antenna [Use by default]
  • (Support WiFi IPEX external antenna, but you need to jump resistance)
  • LoRa antenna
  • GPS ceramic antenna


GPS

  • NE0-6M GPS Modules: Support GPS protocol
  • Onboard RTC crystal, Support interrupt/ wakeup

LoRa

  • Long Range Low Power LoRa Transceiver
  • High sensitivity: -i48dBm
  • Transceive rate: 300 kbps
  • Optional Hardware
  • Version: SX1278[433Mhz] / SX1276[868/915/923Mhz]

Display Details

  • OLED: 0.96 inch
  • Driver: SSD1306

Software

  • Meshtastic

Power Supply Mode

Support USB Micro/ 18650 battery holder [USB can power the battery]

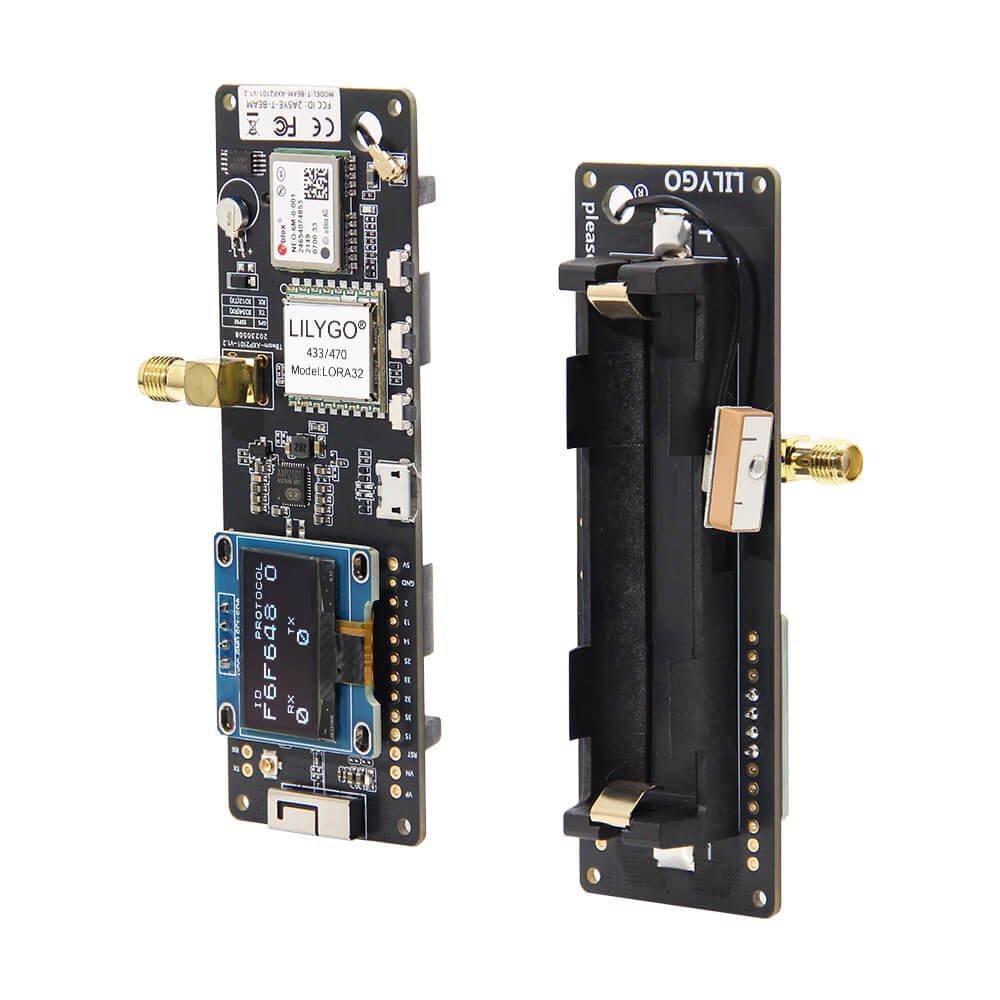

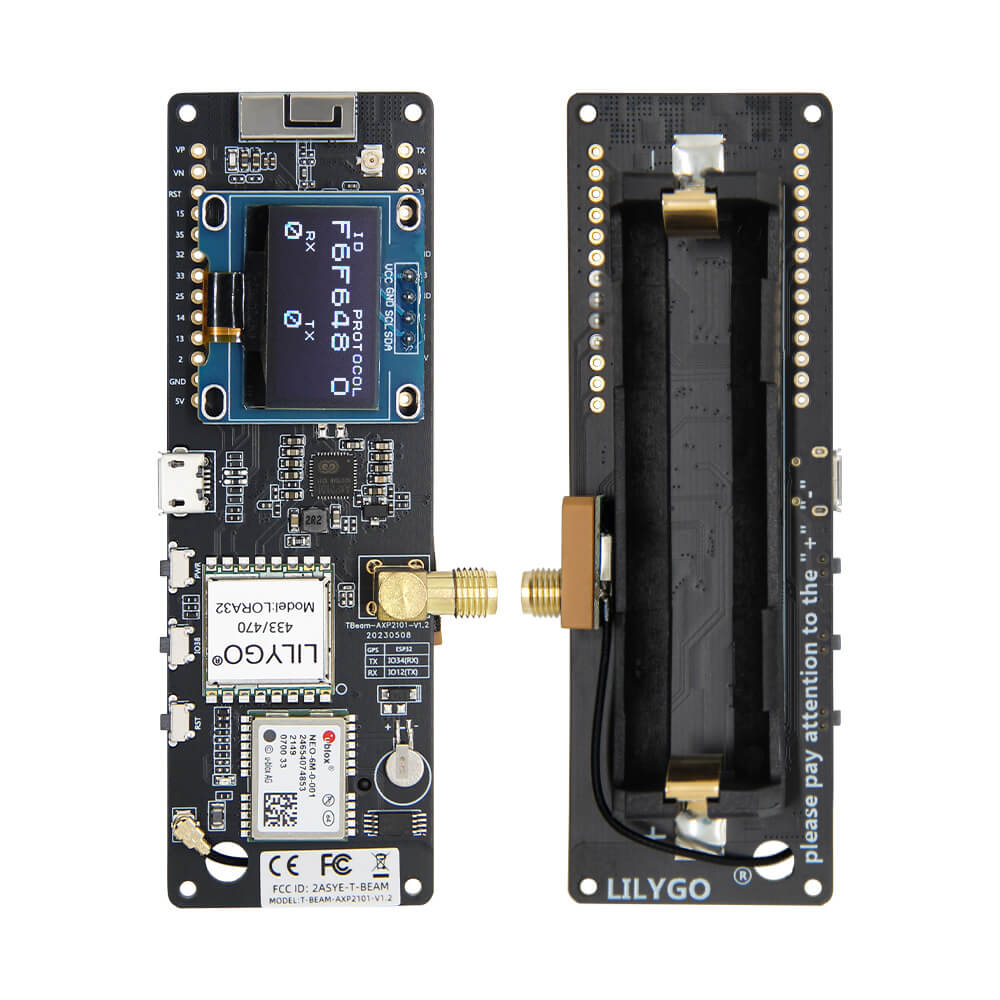

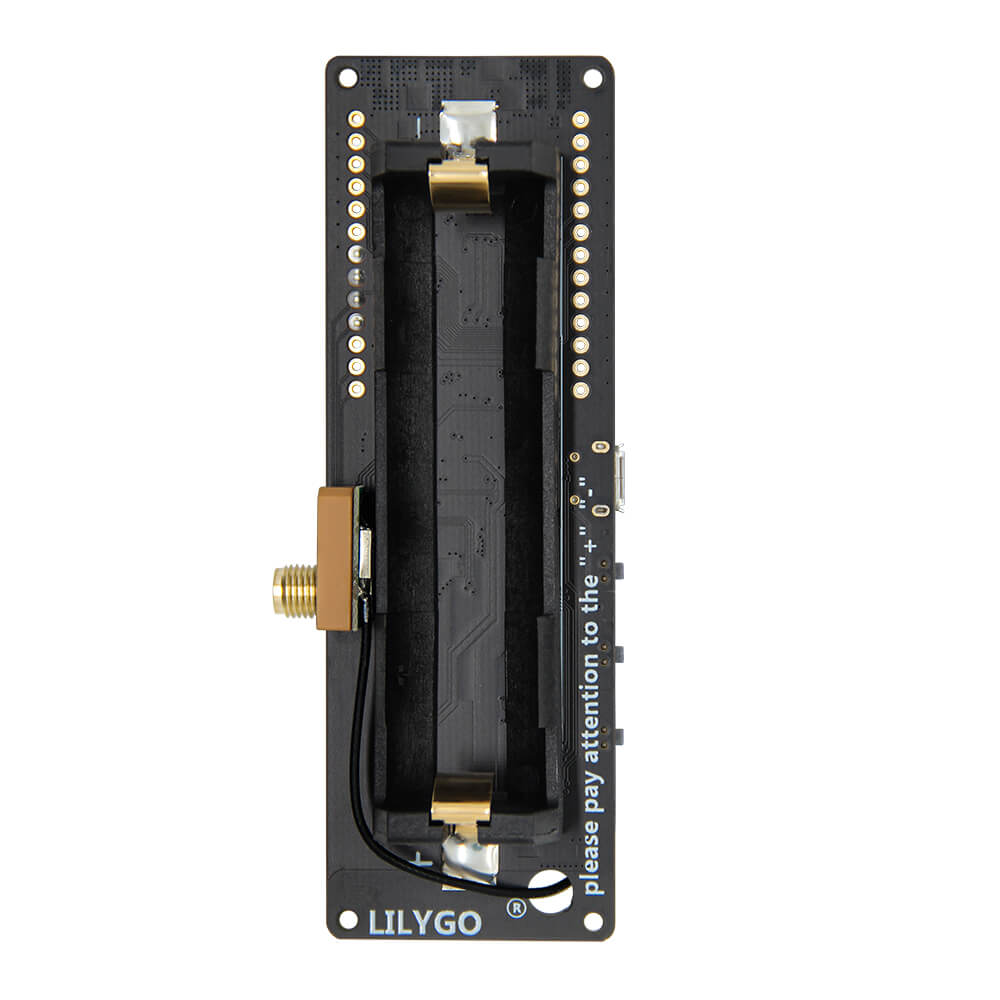

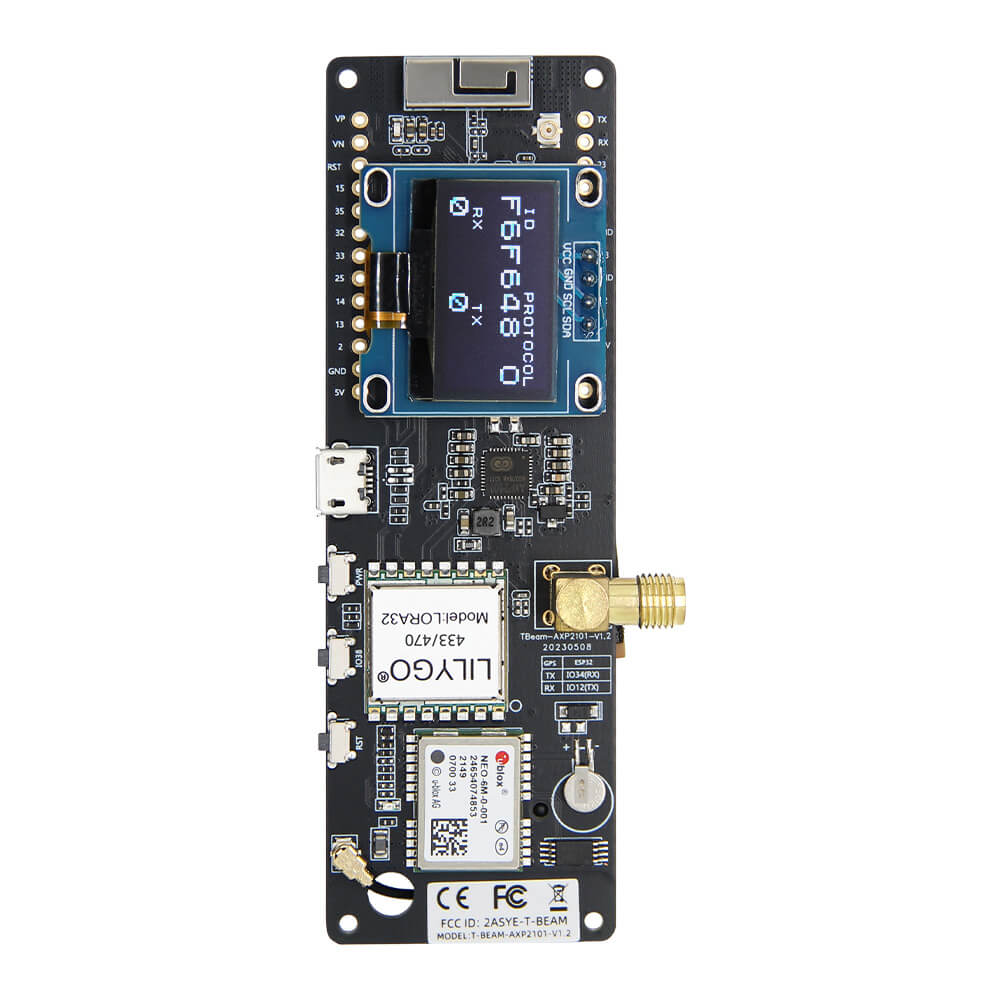

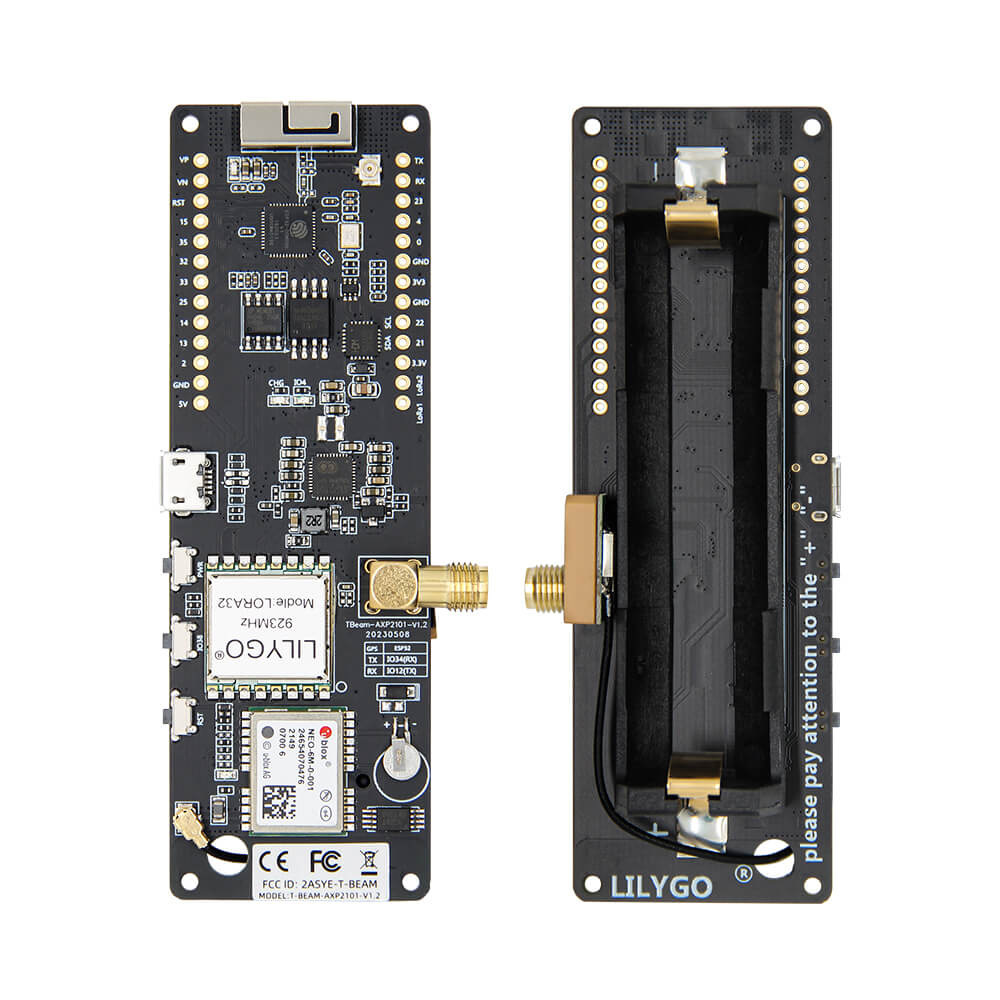

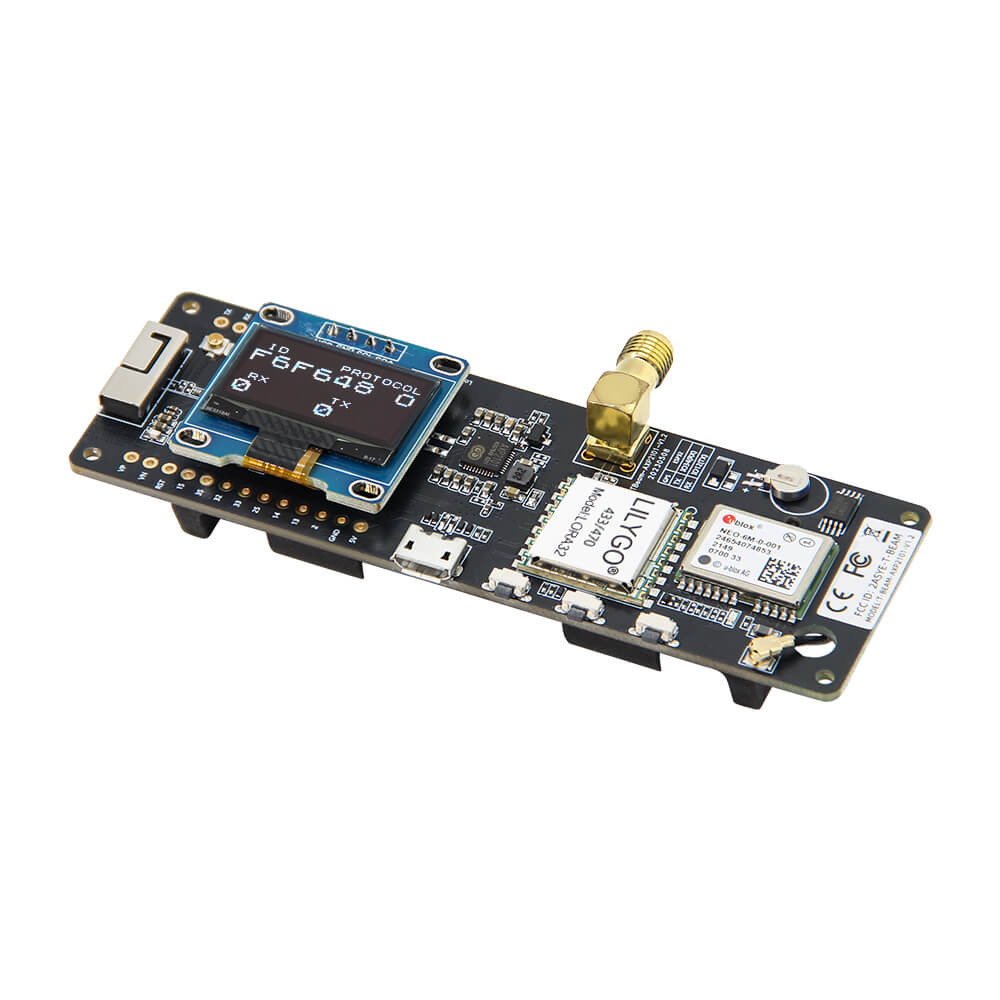

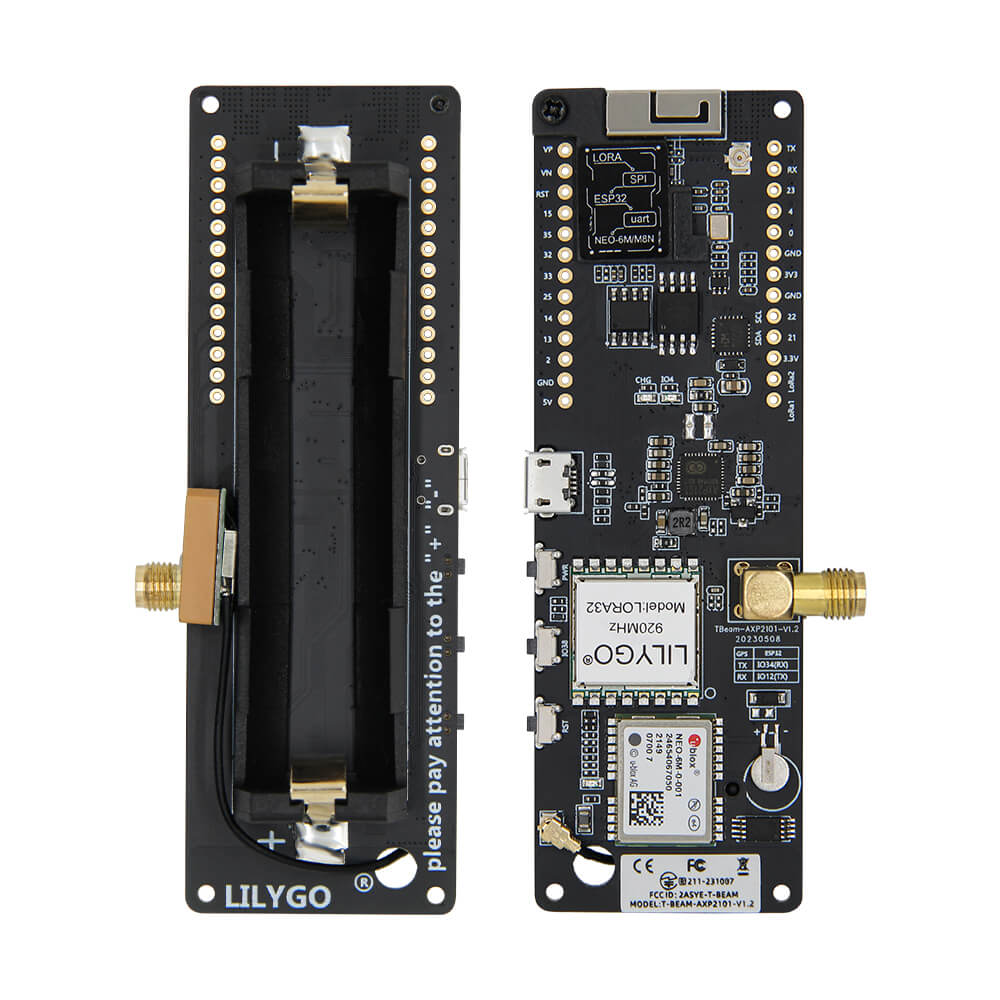

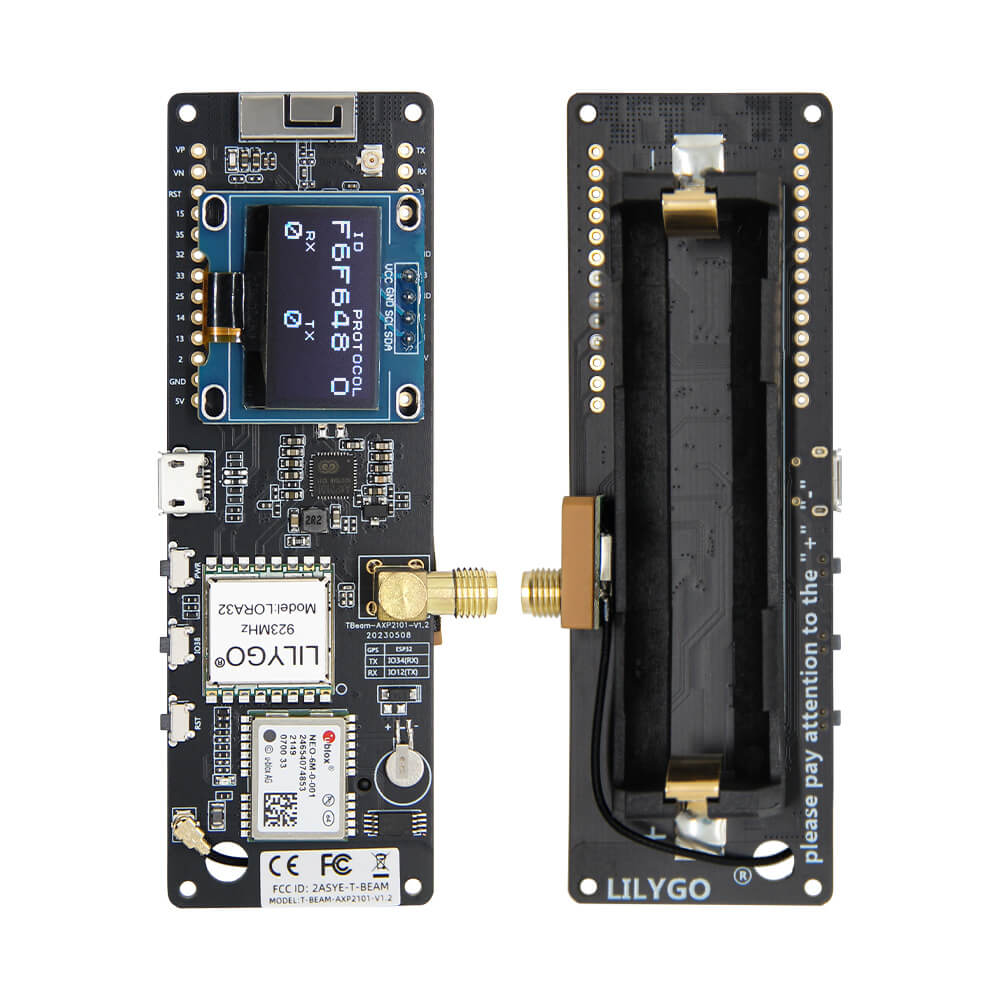

1. Appearance

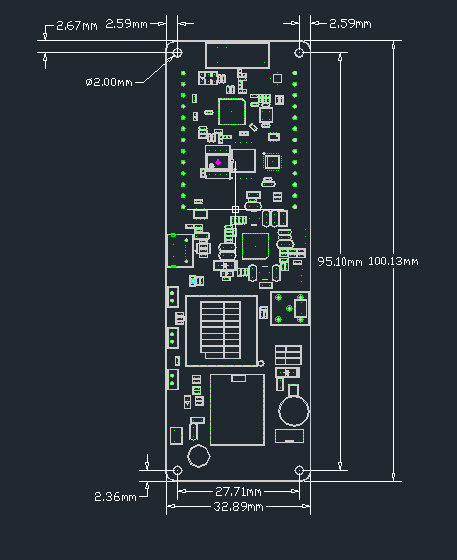

2. Size

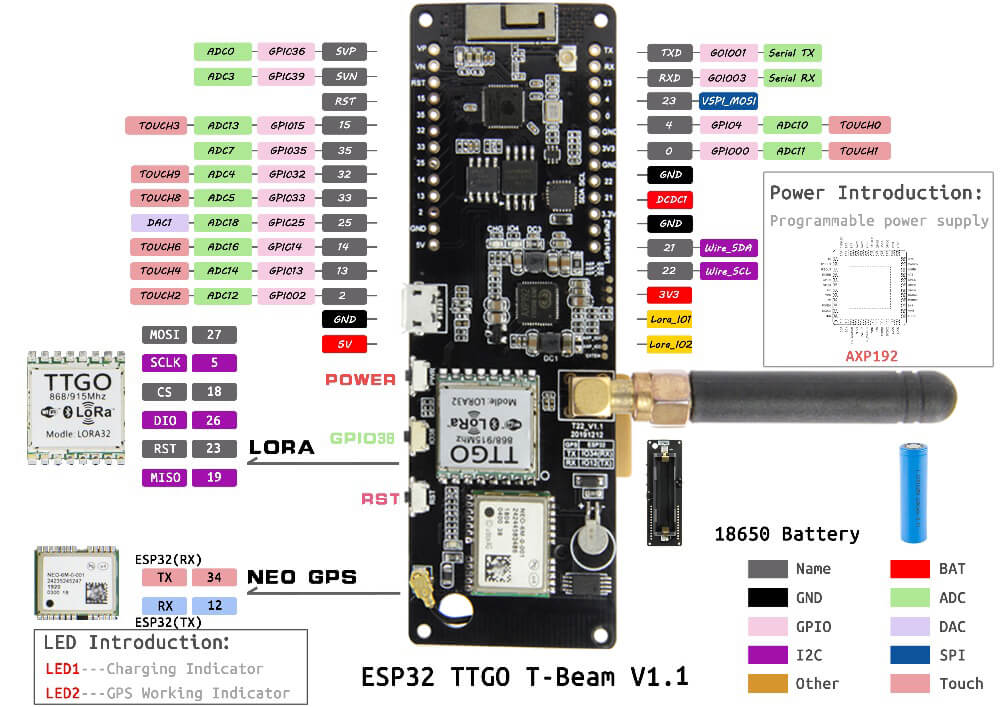

3. Pin Diagram


[Pay attention to the OLED when opening the box, ship without 18650 battery]



433Mhz or 868Mhz Options

(OLED Not Soldered Version)

  • 1 X T-Beam

  • 1 X 433Mhz or 868Mhz Antenna

  • 1 X 0.96 inch 128X64  OLED

  • 2 X Pin

915Mhz or 923Mhz Options

(OLED Not Soldered Version)

  • 1 X T-Beam

  • 1 X 915Mhz or 923Mhz Antenna

  • 1 X 0.96 inch 128X64 OLED

  • 2 X Pin

433Mhz or 868Mhz Options

(OLED Soldered Version)

  • 1 X T-Beam (Include Soldered OLED)

  • 1 X 433Mhz or 868Mhz Antenna

  • 2 X Pin

915Mhz or 923Mhz Options

(OLED Soldered Version)

  • 1 X T-Beam (Include Soldered OLED)

  • 1 X 915Mhz or 923Mhz Antenna

  • 2 X Pin
