LILYGO®

T-Display

T-Display

ESP32 WiFi Bluetooth Development Board

Regular price $8.00 USD
Regular price Sale price $8.00 USD
Sale Sold out

⚠️If you need technical support, you can get a quicker response on our GitHub (the tech team will check it directly).

Instructions Before Order

If you order the wrong product or want to add another or change your shipping address, please re-edit the correct information and place a new order, then contact us to cancel the incorrect order.

If you have a tax ID or personal ID please provide as much as possible, otherwise, if your country requires this information we will block your order and contact you via email, which will slow down the shipment.

We strongly recommend choosing DHL or FedEx if your order is over $200.

Generally, except for DHL or FedEx, we will automatically split orders over $150-200 into two packages due to customs clearance, loss prevention issues, etc.

For more please check here

Shipping & Delivery

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. EUB: 25-30 Days
  3. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  4. DHL: 10-17 Days
  5. FedEx: 10-17 Days
  6. YanWen: 20-35 Days

Please note that all delivery times are estimated for reference only.

During ship, maybe some methods of transport do not update the logistic track until the parcel reaches the destination country.

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for help.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

About Tax

At present, the price of the platform does not include any tax.
European customers should pay attention to the tax problem after the package reaches the local country, which needs to be borne/handled by the customer, the local policy shall prevail

[orders over 150 euros may generate tax (Amount for reference only), for orders over this amount, we will not inform the customer separately, so please pay attention to it by yourself.]

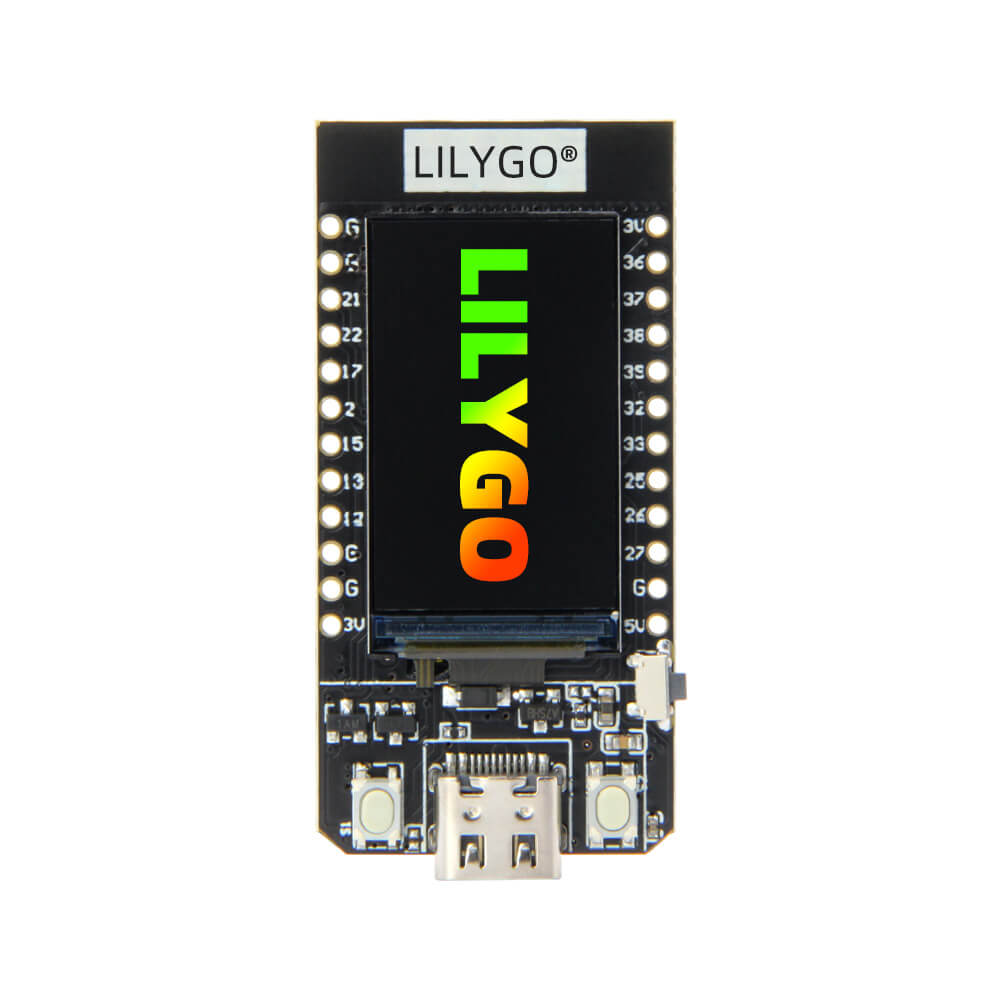

A basic development board with LCD, and a built-in ESP32 chip as master control, supports daily entry-level programming.

Specifications

MCU  ESP32 Xtensa dual-core LX6 microprocessor
Wireless Connectivity  Wi-Fi 802.11 b/ g/ n, BL V4.2+BLE
Programming Platform  Arduino-ide、Micropython
Serial chip CH9102
Optional Flash: 4M/16M
Onboard functions Buttons: l006+I007, battery power detection



Description

For 1.14 inch ST7789V IPS LCD

  • Resolution: 135 x 240
  • High Density 260 PPI
  • 4-Wire SPI interface
  • Working Power Supply: 3.3V
  • 1.14" diagonal
  • Full-color TFT Display
  • Drive: ST7789

1. Appearance



2. Size

3. Pin diagram



T-Display CH9102F Chip [4MB/ 16MB ]Options
  • 1 X TTGO T-Display

  • 1 X Power Cable

  • 2 X Pin

Technology Support

You can also get more technical support on GitHub

Quick start

  1. Copy TFT_eSPI to the <C:\Users\Your User Name\Documents\Arduino\libraries> directory
  2. Open Arduino IDE, find TFT_eSPI in the file, and for example, the T-Display factory test program is located at TFT_eSPI -> FactoryTest, you can also use other sample programs provided by TFT_eSPI 3 In the Arduino IDE tool options, select the development board ESP32 Dev Module, select Disable in the PSRAM option, select 4MB in the Flash Size option, Other keep the default
  3. Select the corresponding serial port. If you are not sure, please remove all the serial ports, leaving the board in the USB connection state, just select that one
  4. Finally, click upload, the right arrow next to the tick

SD card connection

Demonstrate how to use the second SPI device, using the SD card as a demonstration device

Name V18
TFT Driver ST7789
TFT_MIS N/A
TFT_MOSI 19
TFT_SCLK 18
TFT_CS 5
TFT_DC 16
TFT_RST N/A
TFT_BL 4
I2C_SDA 21
I2C_SCL 22
ADC_IN 34
BUTTON1 35
BUTTON2 0
ADC Power 14


Certificate

Has passed CE/ FCC/ UKCA/ MIC certification

(LILYGO exclusive; unauthorized use is prohibited, otherwise, legal responsibility will be pursued.)

If necessary, please refer to our certification page



View full details
