LILYGO®

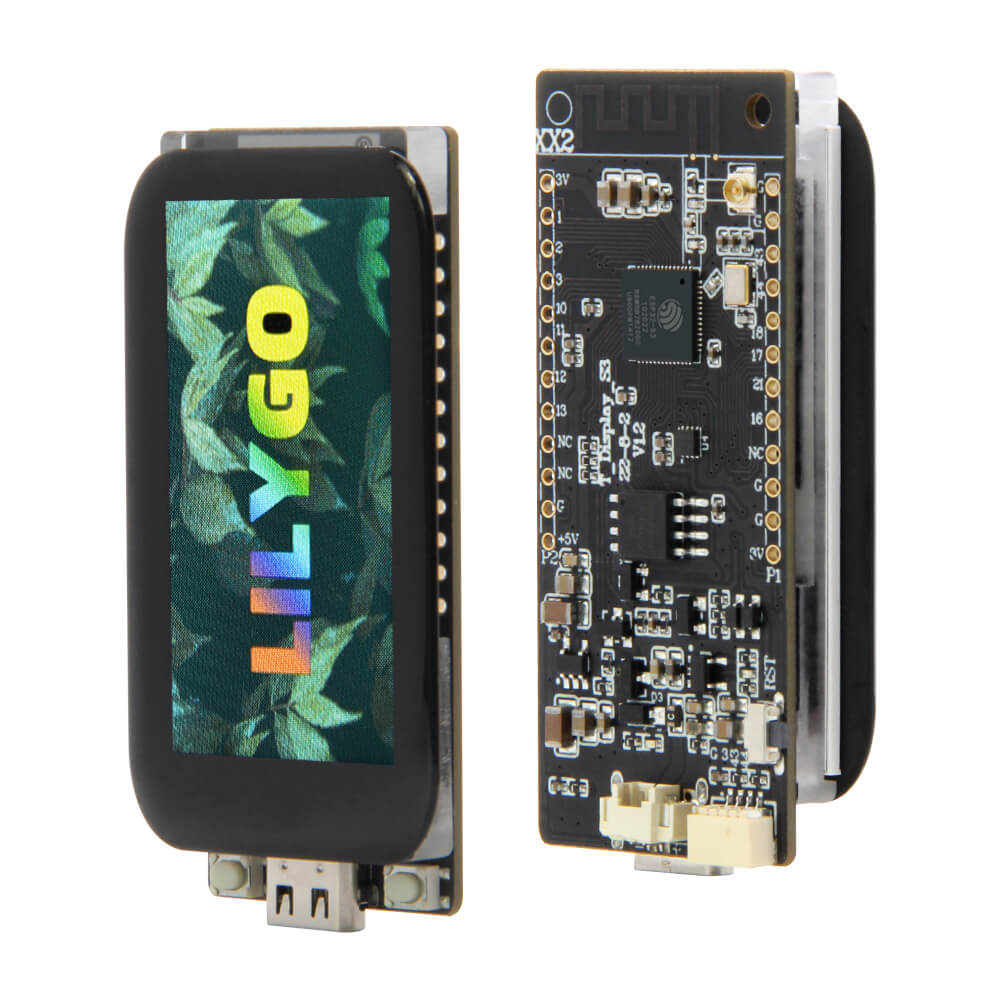

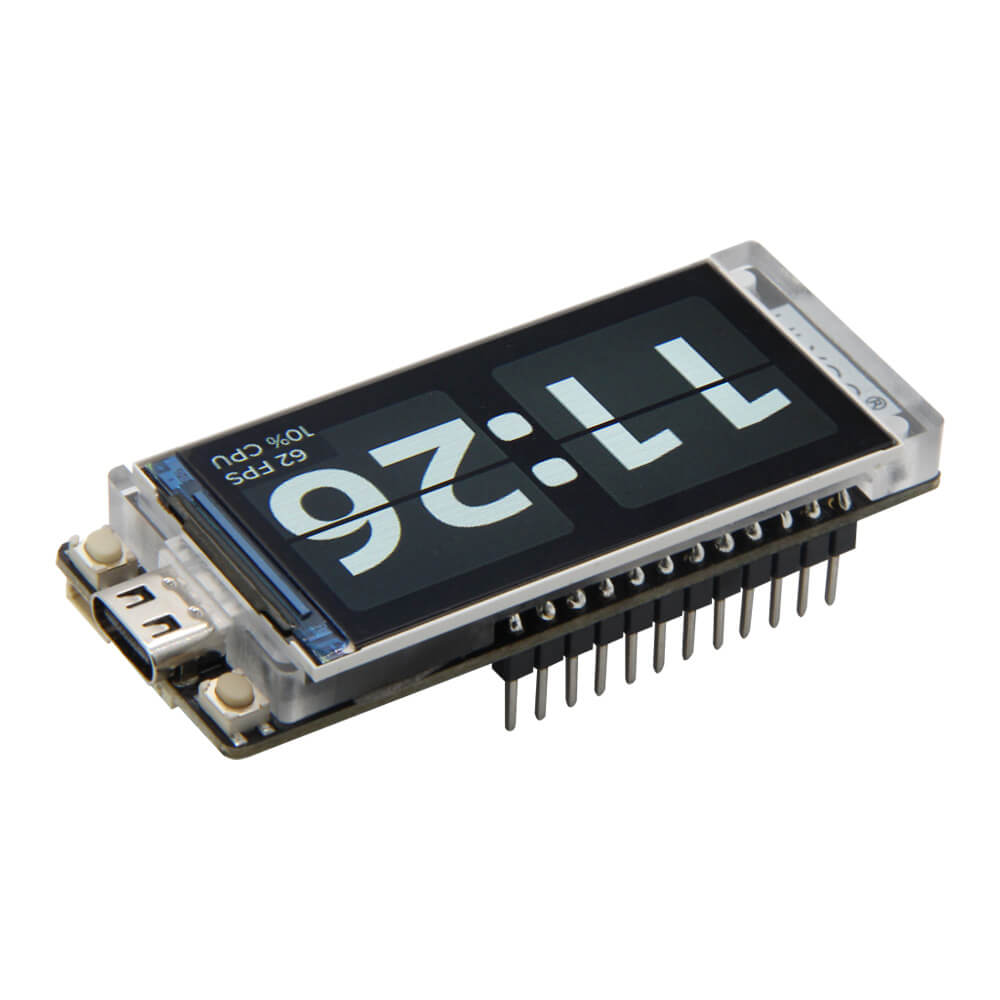

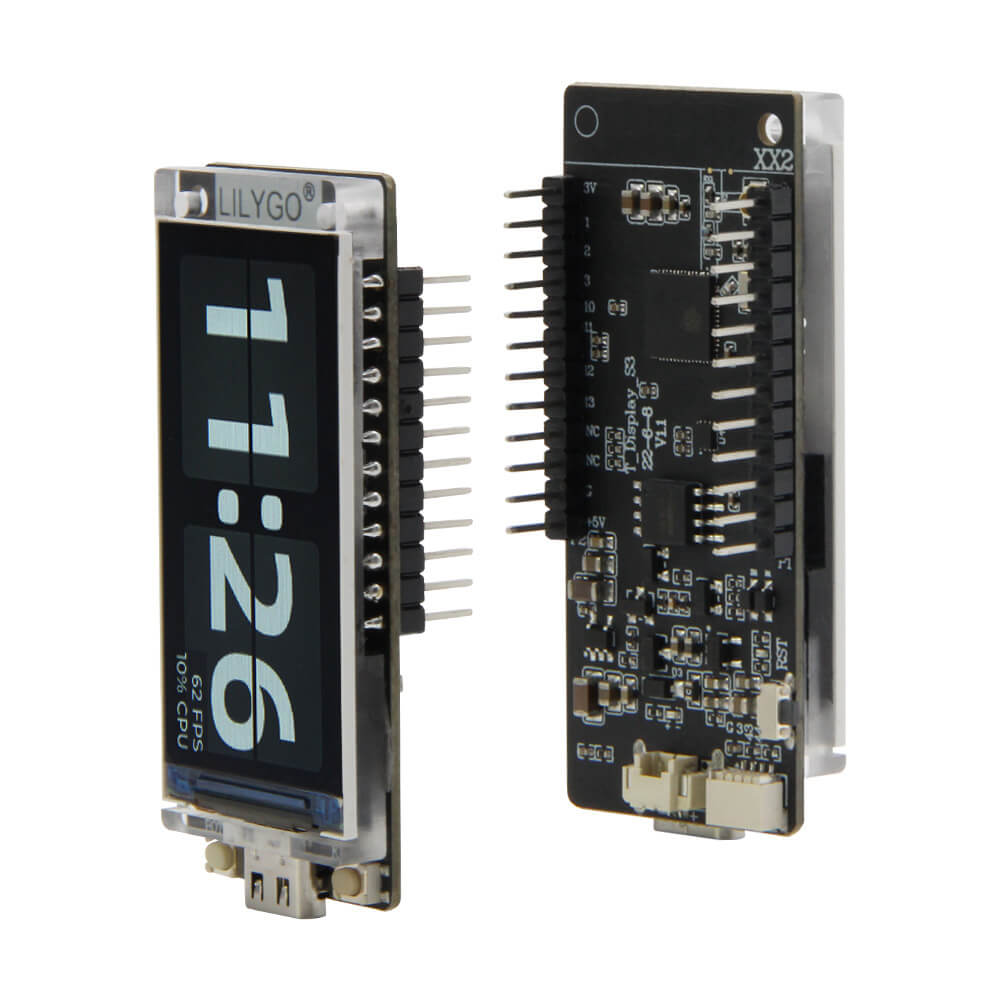

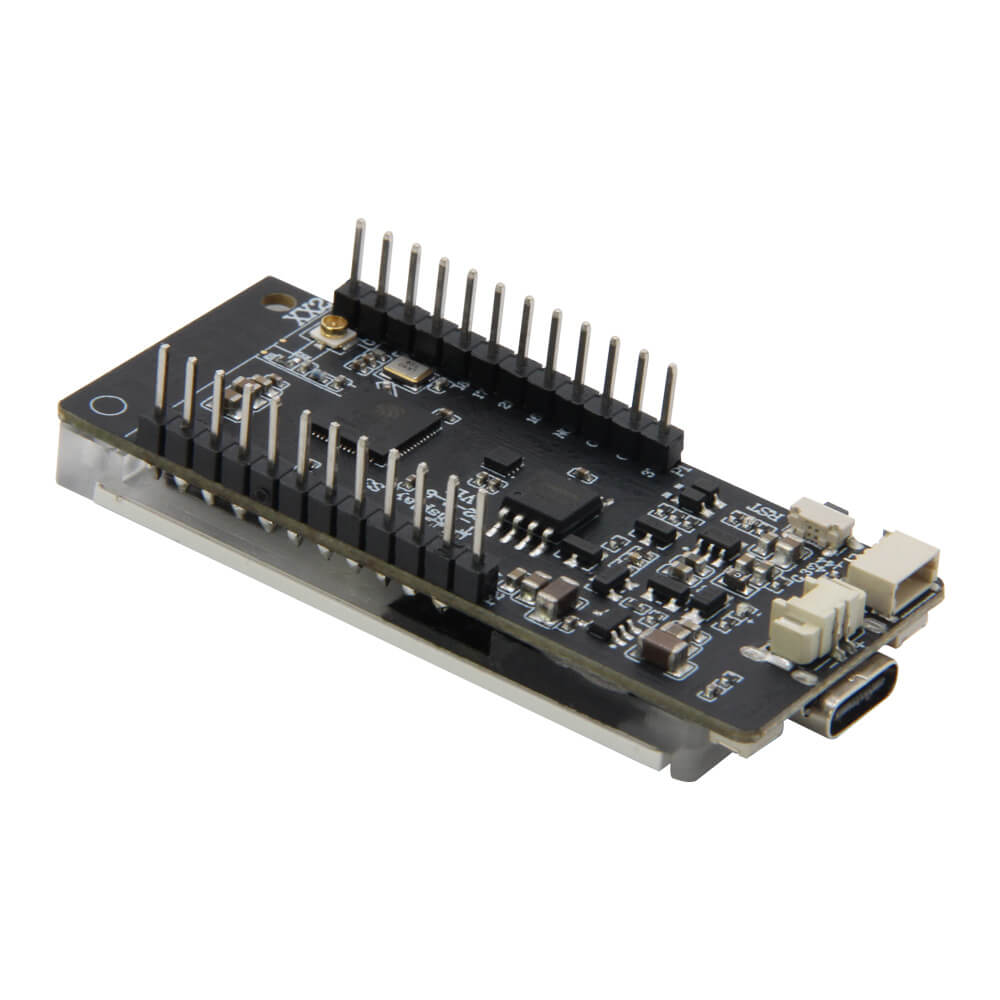

T-Display-S3 (Soldered)

T-Display-S3 (Soldered)

ESP32-S3 1.9 inch ST7789 LCD Display Development Board

Regular price $14.07 USD
Regular price Sale price $14.07 USD
Sale Sold out

⚠️If you need technical support, you can get a quicker response on our GitHub (the tech team will check it directly).

Instructions Before Order

If you order the wrong product or want to add another or change your shipping address, please re-edit the correct information and place a new order, then contact us to cancel the incorrect order.

If you have a tax ID or personal ID please provide as much as possible, otherwise, if your country requires this information we will block your order and contact you via email, which will slow down the shipment.

We strongly recommend choosing DHL or FedEx if your order is over $200.

Generally, except for DHL or FedEx, we will automatically split orders over $150-200 into two packages due to customs clearance, loss prevention issues, etc.

For more please check here

Shipping & Delivery

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. EUB: 25-30 Days
  3. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  4. DHL: 10-17 Days
  5. FedEx: 10-17 Days
  6. YanWen: 20-35 Days

Please note that all delivery times are estimated for reference only.

During ship, maybe some methods of transport do not update the logistic track until the parcel reaches the destination country.

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for help.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

About Tax

At present, the price of the platform does not include any tax.
European customers should pay attention to the tax problem after the package reaches the local country, which needs to be borne/handled by the customer, the local policy shall prevail

[orders over 150 euros may generate tax (Amount for reference only), for orders over this amount, we will not inform the customer separately, so please pay attention to it by yourself.]

LILYGO® T-Display-S3 ESP32-S3 1.9 inch ST7789 LCD Display Development Board WIFI Bluetooth5.0 Wireless Module 170*320 Resolution

Note:

  • Compatible With ST7789.


Specifications

MCU ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity Wi-Fi 802.11, BLE 5 + BT mesh
Programming Platform Arduino-ide、 Micropython
Flash 16MB
PSRAM 8MB
Bat voltage detection IO04
Onboard functions

Boot + Reset + IO14 Button +

JST-SH 1.0mm 4pin Connector

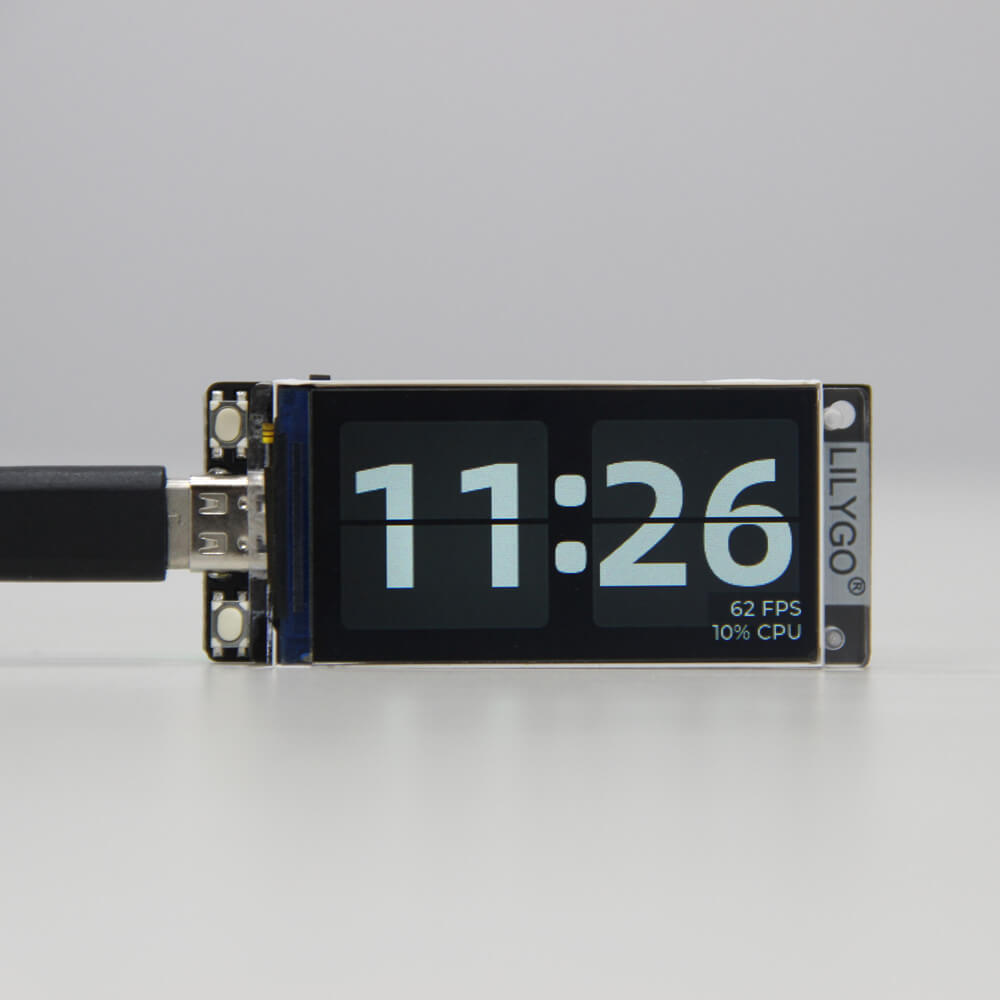

LCD 1.9" diagonal, Full-color TFT Display
Drive Chip ST7789V
Resolution 170(H)RGB x320(V) 8-Bit Parallel Interface
Working power supply 3.3v

Technology Support [Github]

If you need technical support please check the link to find more details.

T-Display-S3

T-Display-S3 Introduction

  • The T-Display series has added a new member.

  • It comes with the latest ESP32-S3 [Wi-Fi 802.11, BLE 5 + BT mesh].

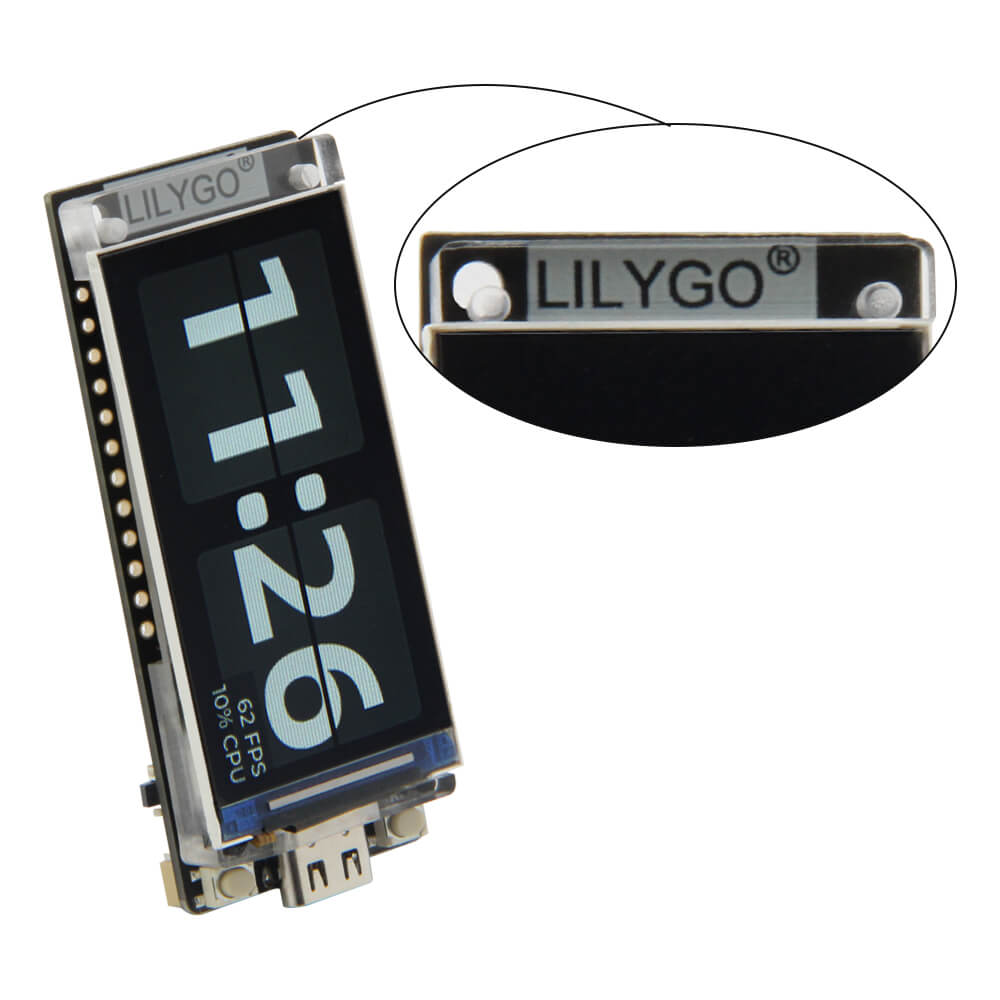

  • The screen has also been expanded from the original 1.14 inches to 1.9 inches, and an acrylic plate has been added to fix it.

  • This will be the second LILYGO model Display with an acrylic plate fixed.

  • The overall design continues the design of the T-Display series.

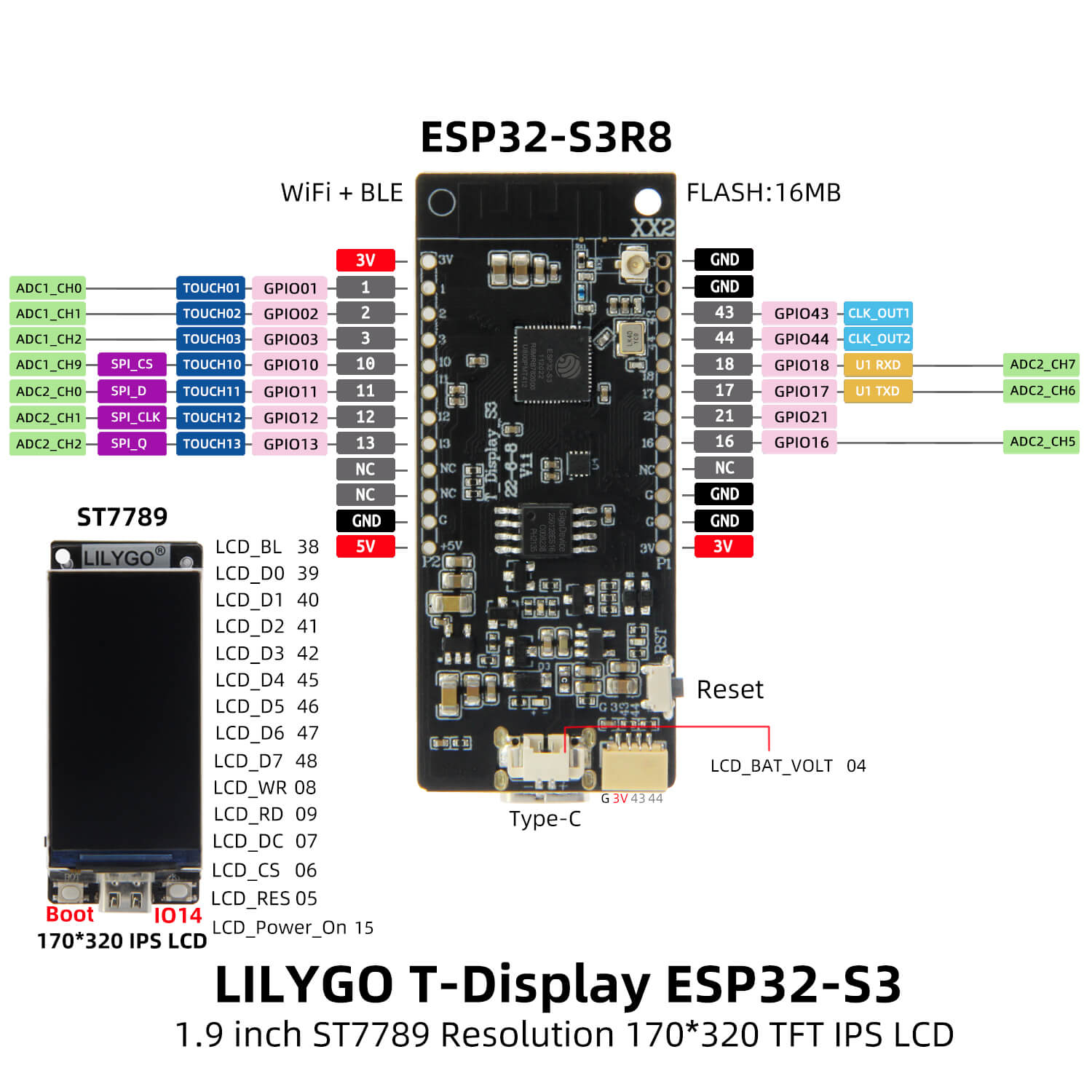

1. Pin Diagram

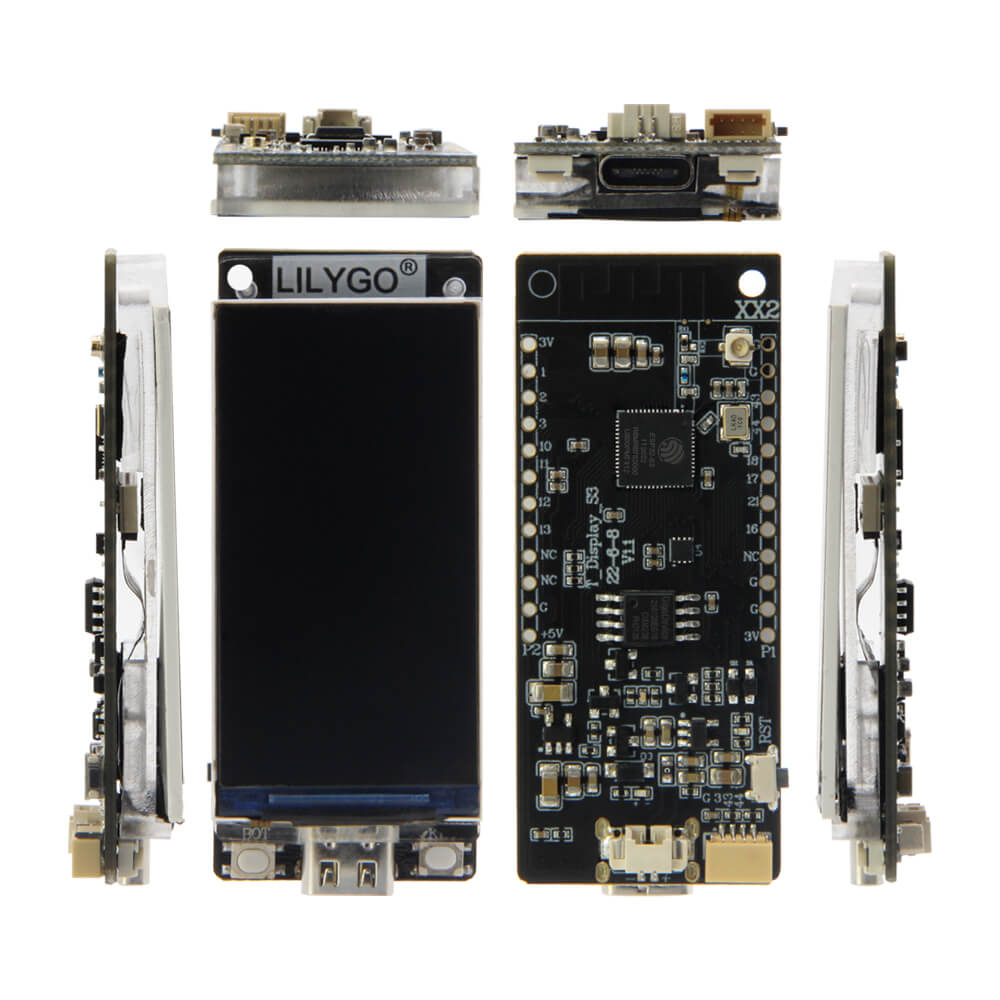

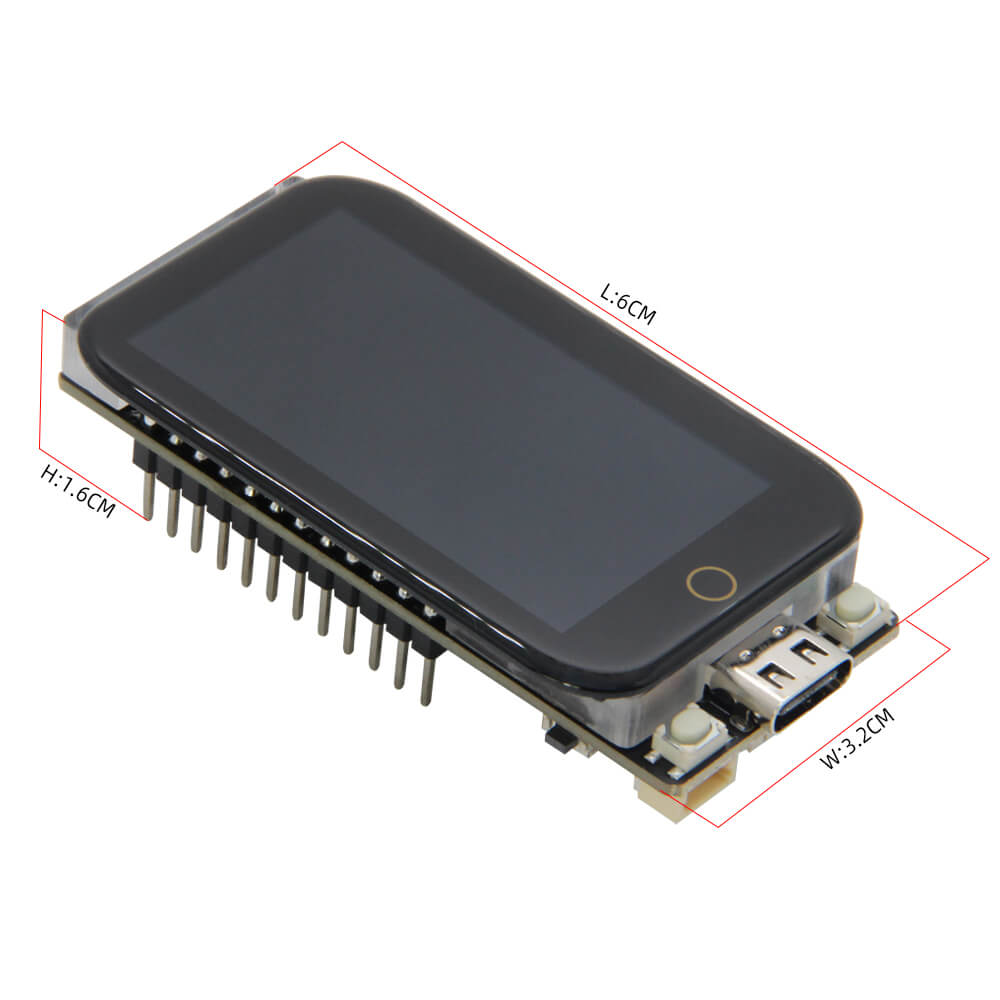

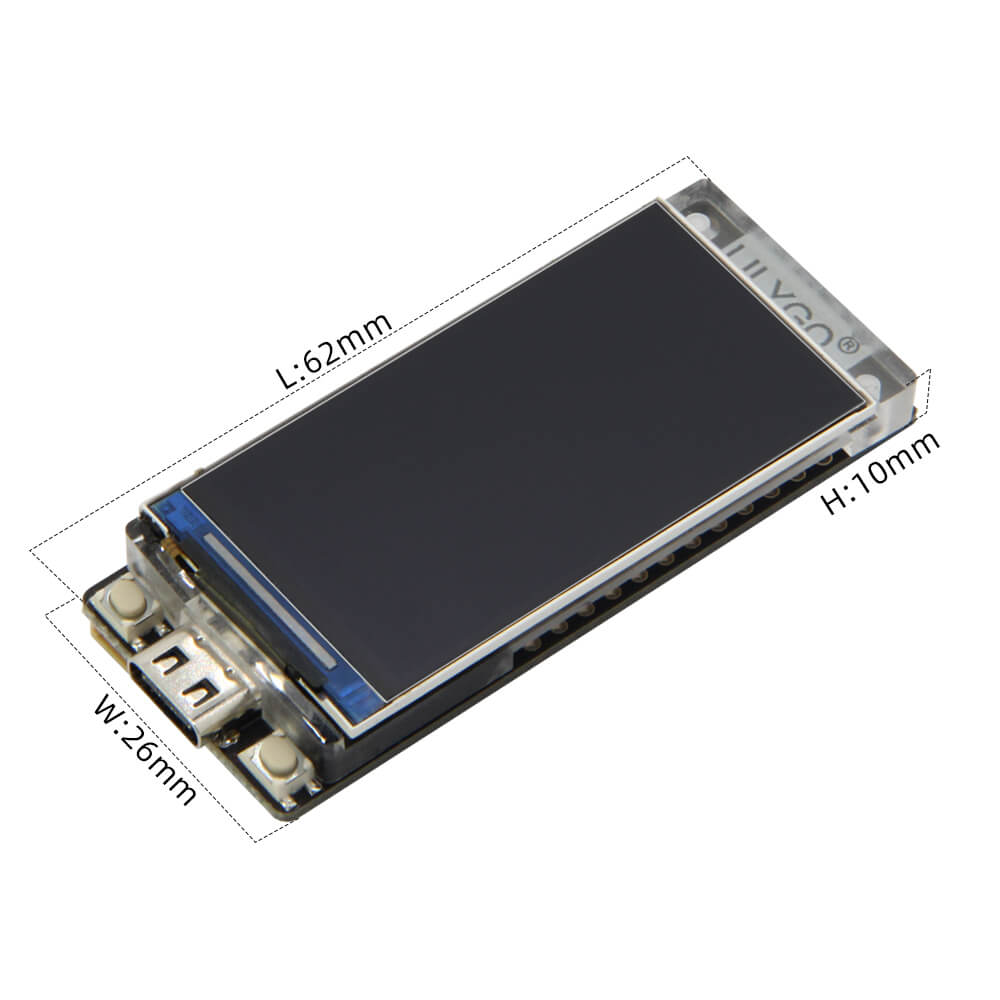

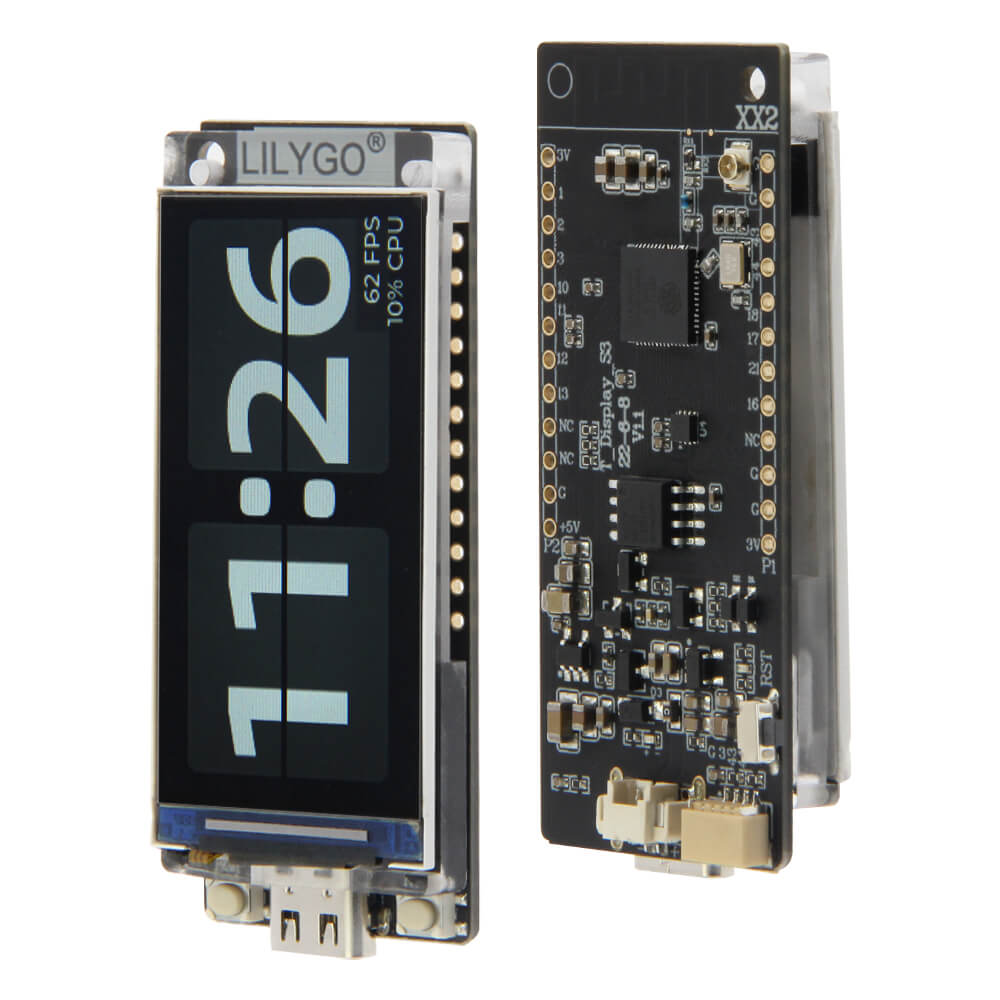

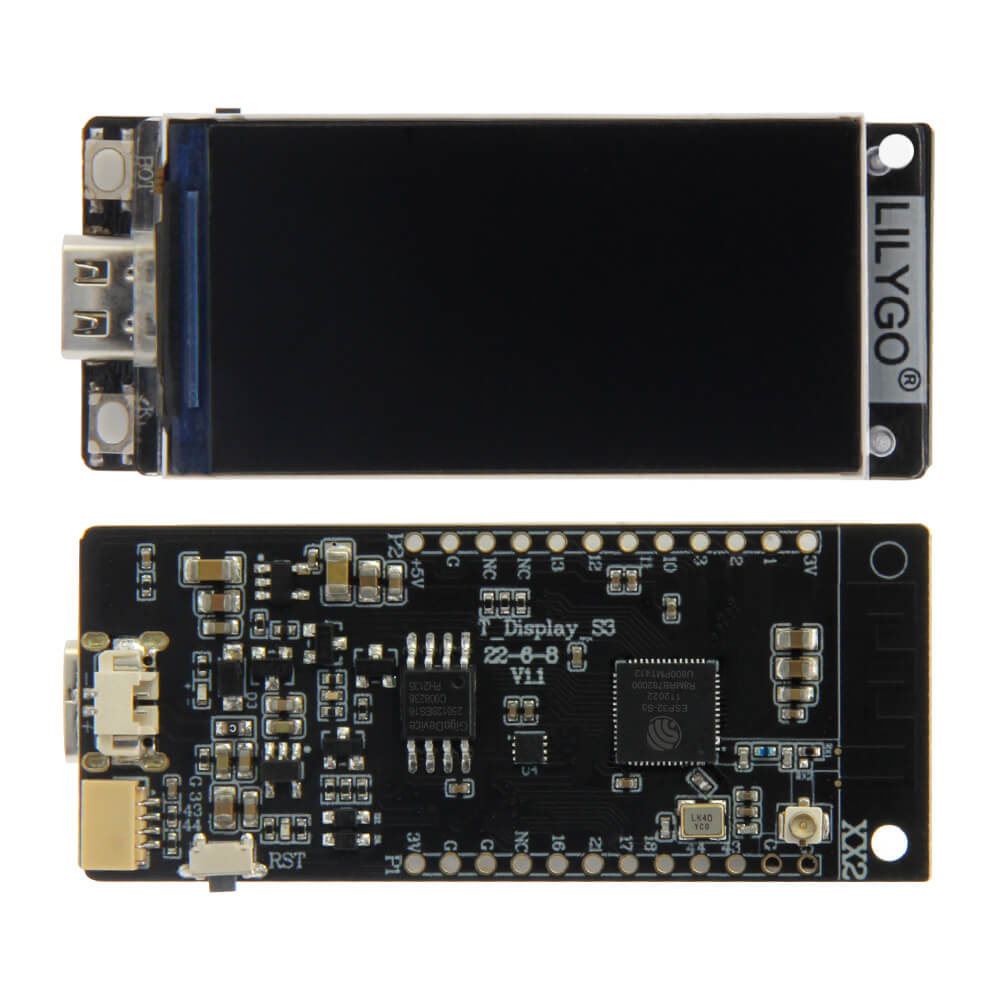

2. Appearance Details
