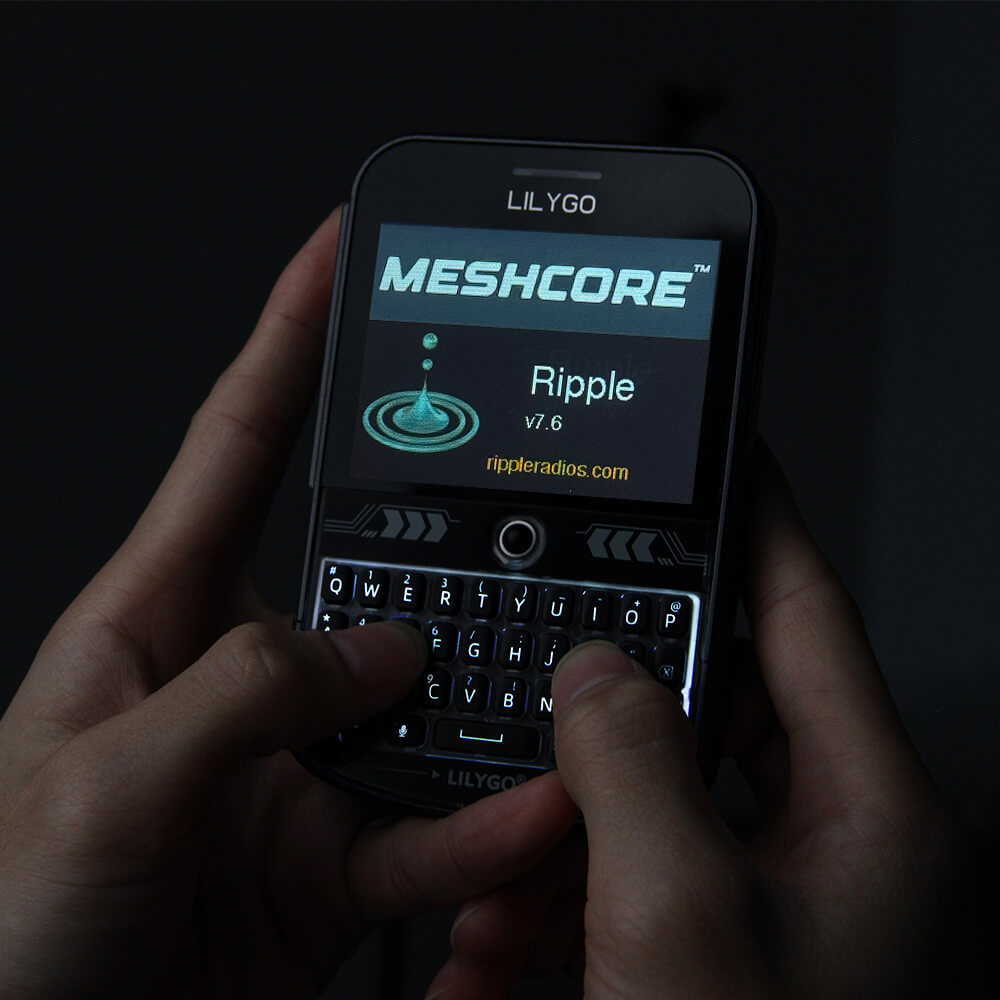

T-Deck Plus

T-Deck Plus

Choose the right firmware version for your needs, MIC certified

$70.99
$70.99
Sale Sold out
Firmware
Frequency

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  3. DHL: 10-17 Days
  4. FedEx: 10-17 Days

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

We only charge the product cost and shipping cost.

1. For Standard Express Order: You may not need to deal with customs clearance, just need to pay attention to the track of the parcel, but this is not absolute, if your parcel is inspected by the customs, then you need to assist in dealing with customs clearance.

2. For DHL/ FedEx Order: You need to deal with the relevant customs clearance matters, as well as pay the tariff, the specific amount of tariff please pay attention to the policy of your country.

----------------------

The above tariffs are for reference only, please pay attention to your country's tax policy for more detailed instructions, if you need our help or have questions please feel free to contact us.

Upgraded based on T-Deck, mainly added GPS module, and Built-in 2000 mah battery

Specifications

MCU ESP32-S3FN16R8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
Development Arduino, PlatformlO-IDE, Micropython
Flash 16MB
PSRAM 8MB
Battery ADC PIN IO04
Onboard functions  GPS,TF Card,Microphone,Speaker

 2.8 inch ST7789 SPI Interface IPS LCD:

Resolution: 320 x 240 Full viewing angle
 SX1262 LoRa Transceiver
Transmit power +22dBm
Frequency Optional  433/868/915Mhz

Tech Support

ℹ️Product Information
Check out our GitHub repository for sample code and more detailed information about this board.

 💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

ℹ️Meshcore
A new lightweight, hybrid routing mesh protocol for packet radios

What's In The Box

915Mhz/ 868Mhz

915Mhz/ 868Mhz/ 433Mhz  External antenna

View full details

  • Who can use

    It's easier to master these development boards with a basic programming knowledge [engineers/ students/ makers, etc..]

  • Accelerated processing

    International orders please make sure your address is in English
    For Hong Kong, Macau and Taiwan orders, please note your personal ID.

  • Got a question

    Click on the bubble in the bottom right corner where some frequently asked questions are answered, or just drop us a line.

Customer Reviews

Based on 48 reviews
65%
(31)
13%
(6)
10%
(5)
0%
(0)
13%
(6)
K
KE
Happy with purchase

It would be better if you would supply a unit with an 868mhz external antenna.
A discount for multiple purchases would be welcome.

D
Dimitar Ilkov

T-Deck Plus

P
Peter Kratochvíl
T-Deck Plus with external antenna

The delivery was missing an external antenna :( , I replaced it with my own. I am satisfied with the product. However, the trackball has a problematic response.

Hi Peter,

Thank you for your feedback.
Regarding the missing external antenna, could you please share a photo of the label on the product box? This will help us proceed with the investigation.

For the trackball issue, it would be very helpful if you could provide some pictures or a video that clearly demonstrate the problem. This will allow us to better understand the issue and see how we can help resolve it for you.

T
T Herbison
Great device for running Meshtastic UI

The T-Deck Plus with the external SMA antenna is a great device for running Meshtastic UI - It does a lot of what the phone app does but has some other very useful tools as well like the "Mesh Detector" and "Signal Scanner".

R
Rob Bowers
On its way to great.

Needs a beefier battery and/or better power management.
Could use an external GPS antenna option.
Meshtastic firmware is not entirely stable - not something that Lilygo controls, but could support.
Recess the Reset Switch please.
