LILYGO®

T5 V2.3.1

T5 V2.3.1

2.13inch E-Paper Display low Power Consumption Development Board

Regular price $12.20 USD
Regular price Sale price $12.20 USD
Sale Sold out

⚠️Please note that all policy page on site only applies to items purchased from our store: https://www.lilygo.cc.

Relevant technical or usage issues can be also discussed in our GitHub or Community.

How to pay with different payment methods

About Tax

At present, the price of the platform does not include tax.
Customers in Europe should pay attention to the tax problem after the package reaches the local country.

[orders over 150 euros may generate tax, which needs to be borne/handled by the customer, the local policy shall prevail.]

Commended User

People with programming foundation[engineers / students / makers, etc..]

Shipping & Delivery

Methods & Delivery Time

During ship, maybe some methods of transport do not update the logistic track until the parcel reaches the destination country.

  1. Standard Express: 25-30 Days
  2. EUB: 25-30 Days
  3. YunTu Express: 10-20 Days
  4. DHL: 10-17 Days
  5. FedEx: 10-17 Days

We can ship to DHL/FedEx through a third-party channel (Freight Forwarder) because we don't have DHL/FedEx account.
Means : we --> third-party channel(Freight Forwarder) -->official DHL /Fedex-->you

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for assistance.

Please note that all delivery times are estimated for reference only.

When we are processing the order, if the system suggests that your postcode is remote, we will automatically replace it with another shipping channel of the same class for you (except HDL and FedEx), We will send you an email if there are special situations, or you can leave us a message if you have any requirements.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

The Version‘s Picture Hasn't Changed

Please don't worry when the corresponding image doesn't change when you choose a certain version, just focus on the text describing the version and we'll make sure to put the right product in your package!

Overview

Due to the advantages like ultra-low power consumption, wide viewing angle, and clear display without electricity, it is an ideal choice for applications such as shelf labels, industrial instruments, and so on.

Features

No backlight keeps displaying the last content for a long time even when powered down at ultra-low power consumption, basically, power is only required for refreshing and comes with development resources and a manual (examples for Arduino-esp32)

 Specifications

Operating voltage

3.3V

Interface

3-wire SPI, 4-wire SPI

Display color

black, white

Grey level

2

Full refresh time

8s

Refresh power

26.4mW(typ.)

Driver chip

SSD1680

Display Driver

DEPG0213BN/ GDEM0213B74

resolution

212x104

Wide operating temperature range

-20℃ ~ 60℃

Power consumption

ultra-low power consumption

Viewing angle

180 degrees

support

Use in the sun; Ultra-wide temperature -20 degrees use


Technology Support [Github]

If you need technical support please check the link to find more details.

T5 V2.3.1

Size



Pin Diagram

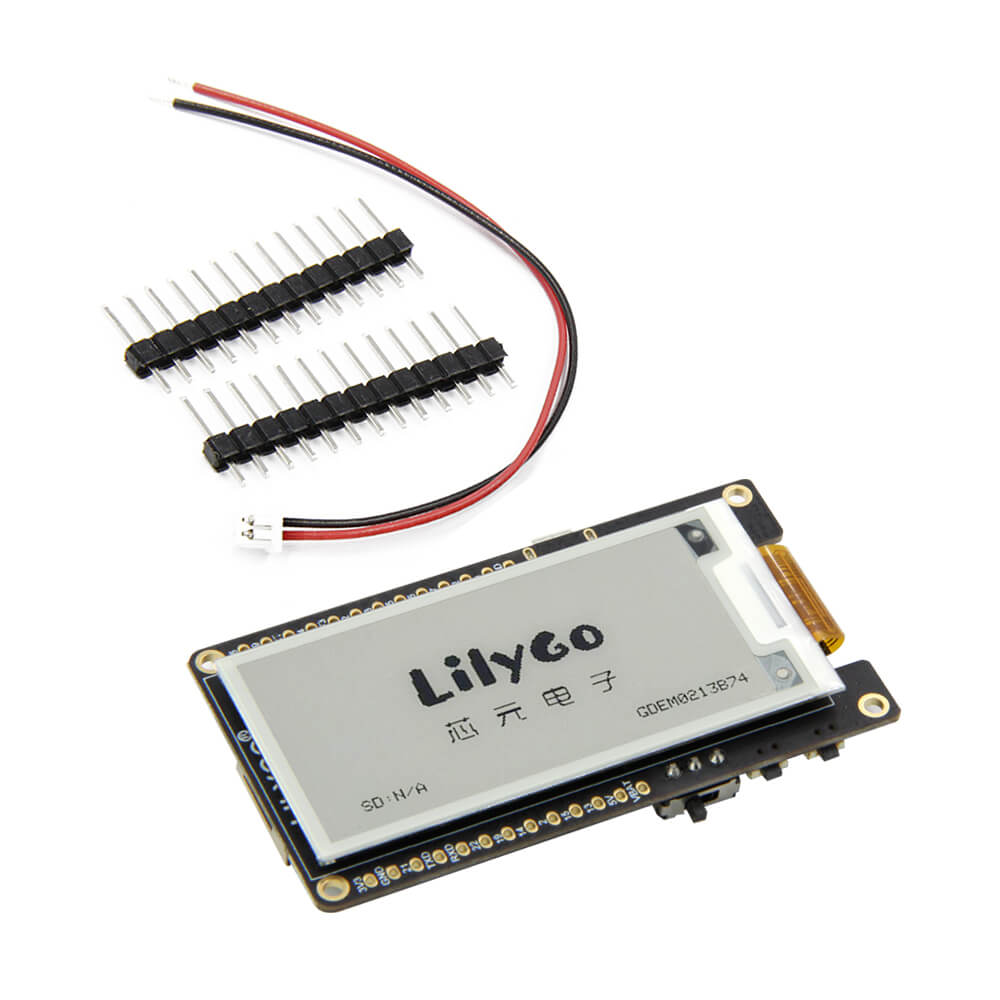

  • 1 X T5 V2.3.1_2.13
  • 1 X Power Cable(Jst 2pin 1.25mm)
  • 2 X Pin



View full details

Customer Reviews

Based on 5 reviews
40%
(2)
60%
(3)
0%
(0)
0%
(0)
0%
(0)
E
Edvards Bukovskis
Eink display

The display is very nice, love to do projects on it. The delivery is a bit slow but otherwise I am happy.

C
Craig Hollabaugh
Works great, display is bright!

I'm following volos videos to see the T5 capabilities.
https://www.youtube.com/@VolosProjects/videos

J
Jan Heynen
Excellent E-paper board for my ESP-GPS project !

This board has all options for my GPS-logger project : https://github.com/RP6conrad/ESP-GPS-Logger/blob/master/README.md
One weakness : the SMD-fuse on the batt connector easily blows. Work around : use the solder pin Vbat instead the batt connector !

M
Michael Layzell
great little board

Fantastic contrast, low battery use, built in charger works great, but it's perhaps a tad fragile. I've had a couple of the units turning on at random. But possibly because I wasn't rigorous enough about anti-static measures.
I found a problem with the SD card, it doesn't like "32GB Sandisk ultra Plus" cards, all other cards I've tried work fine even the 16GB Sandisk ultra plus card

W
Willem Aandewiel
Great Little Board!

It works as soon as you find out what type of board it is (which is nót obvious!).
It would have been nice to have examples specific for this board (and maybe combined with different revisions).
Can not get the SD card to work.
