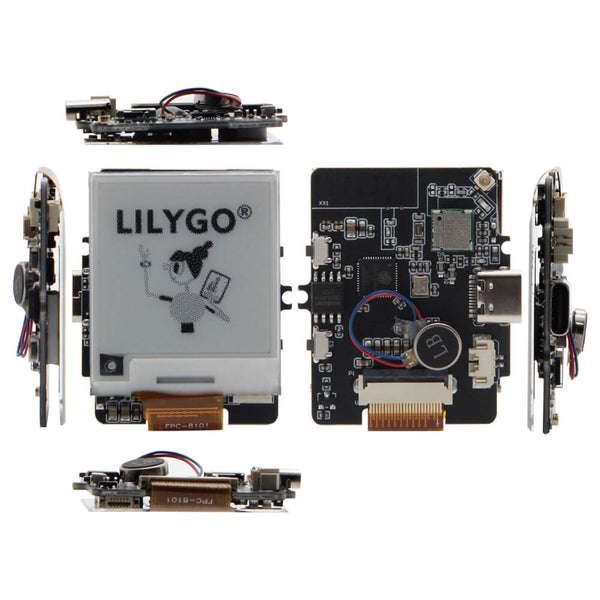

T-Wrist E-paper 1.54 Inch Display ESP32 Wireless Module
⚠️If you need technical support, you can get a quicker response on our GitHub (the tech team will check it directly). Please provide your Tax/Personal ID (if available), this will expedite the shipment of your order.
Instructions Before Order
Instructions Before Order
If you order the wrong product or want to add another or change your shipping address, please re-edit the correct information and place a new order, then contact us to cancel the incorrect order.
If you have a tax ID or personal ID please provide as much as possible, otherwise, if your country requires this information we will block your order and contact you via email, which will slow down the shipment.
We strongly recommend choosing DHL or FedEx if your order is over $200.
Generally, except for DHL or FedEx, we will automatically split orders over $150-200 into two packages due to customs clearance, loss prevention issues, etc.
For more please check here
Shipping & Delivery
Shipping & Delivery
Methods & Delivery Time
- Standard Express/ YanWen: 25-30 Days
- EUB: 25-30 Days
- YunTu Express : 10-20 Days
(Company name can't be used consignee) - DHL: 10-17 Days
- FedEx: 10-17 Days
Please note that all delivery times are estimated for reference only.
If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for help.
Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)
For more details please check our shipping policy.
About Tax
About Tax
At present, the price of the platform does not include any tax.
European customers should pay attention to the tax problem after the package reaches the local country, which needs to be borne/handled by the customer, the local policy shall prevail
[orders over 150 euros may generate tax (Amount for reference only), for orders over this amount, we will not inform the customer separately, so please pay attention to it by yourself.]

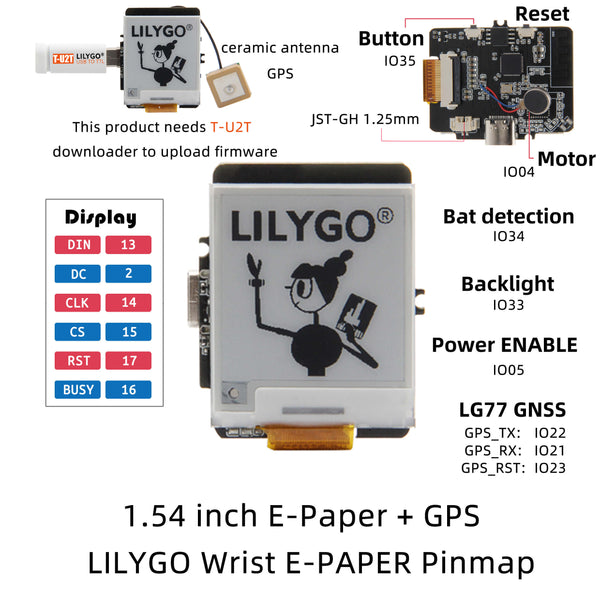

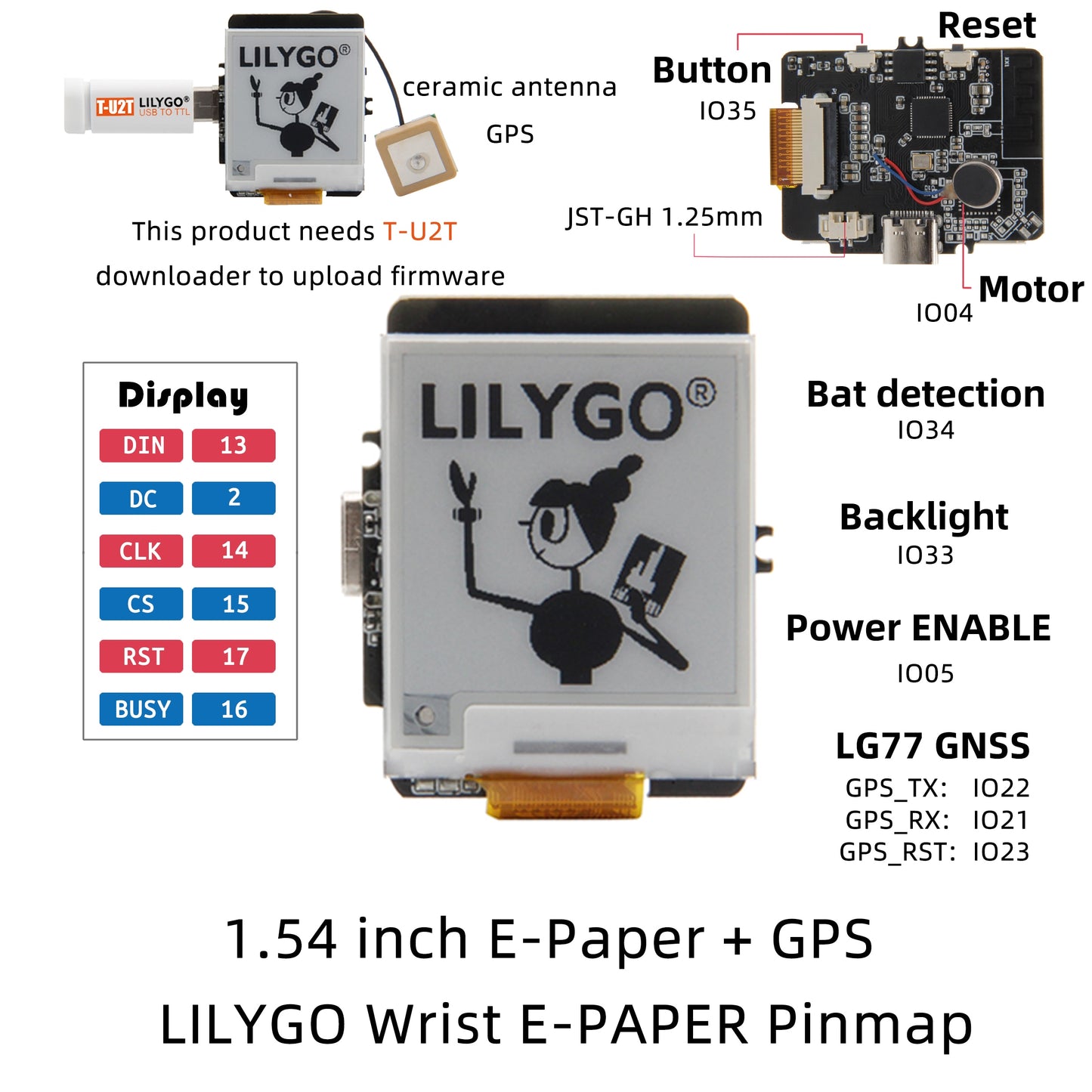

Specifications
MCU | ESP32 |
FLASH | 4MB |
Bus Interfaces | UART , SPL , 12C , CAN , 12S , SDIO |
Wireless Connectivity | Wi-fi , Bluetooth V4.2 |
Optional version | Basic / GNSS / Backlight |

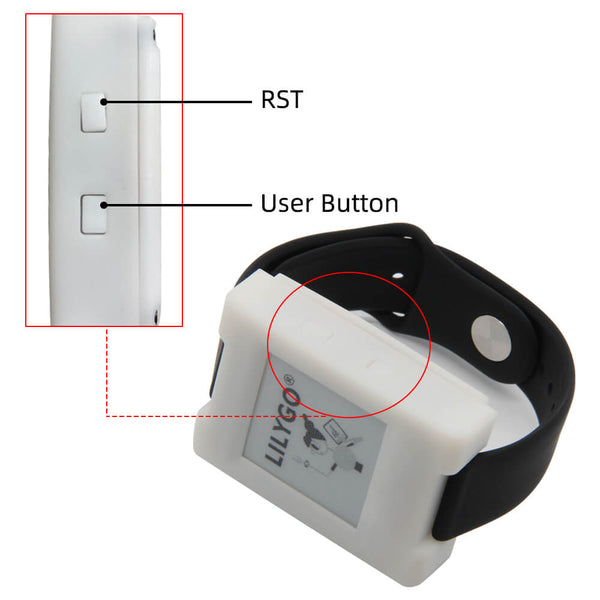

Onboard functions | Buttons : RST + 1035 , battery power detection |

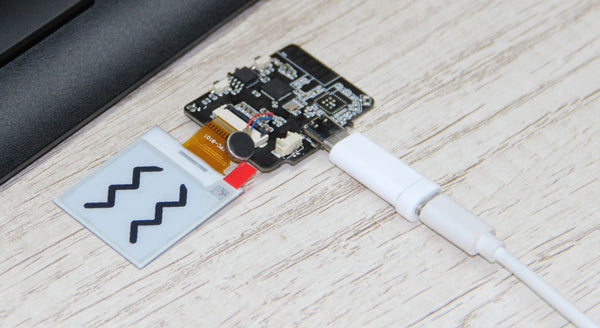

1 . 54 Inch SPI E-paper Display | Grey level : 2 |
Resolution | 200x200 |
Full refresh time | 2s |
Vibrating DC Motor | Strong vibration , low noise , fast speed |
LG77 GNSS module | supports GPS , GLONASS , Beidou |

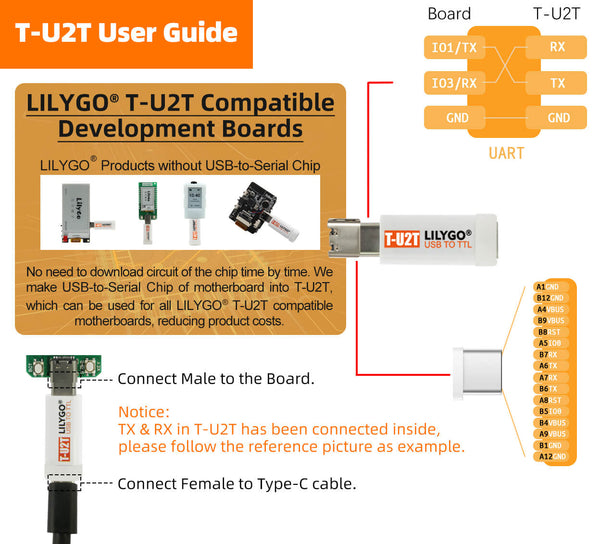

Support T-U2T Flash Download Tool
|
Technical support
If you need technical support, check out the links for more details.
3D printing shell, the product does not have a shell; if necessary, you can print it yourself.
3D printing shell, the product does not have a shell; if necessary, you can print it yourself.
https://github.com/Xinyuan-LilyGO/E-Paper-watch/tree/main/3D_file

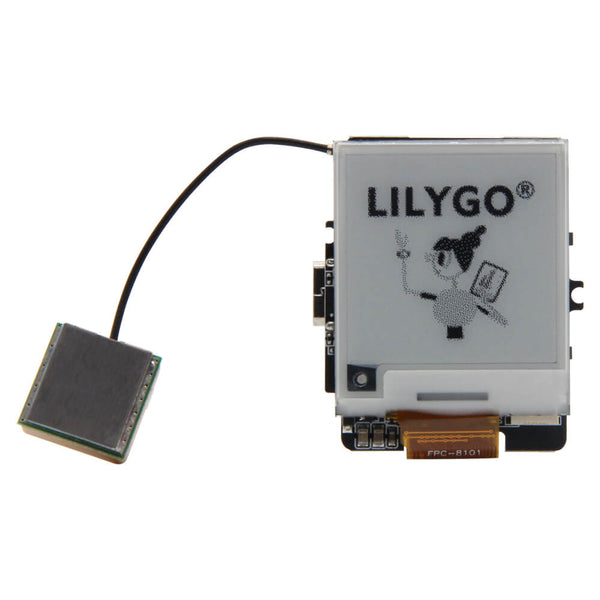

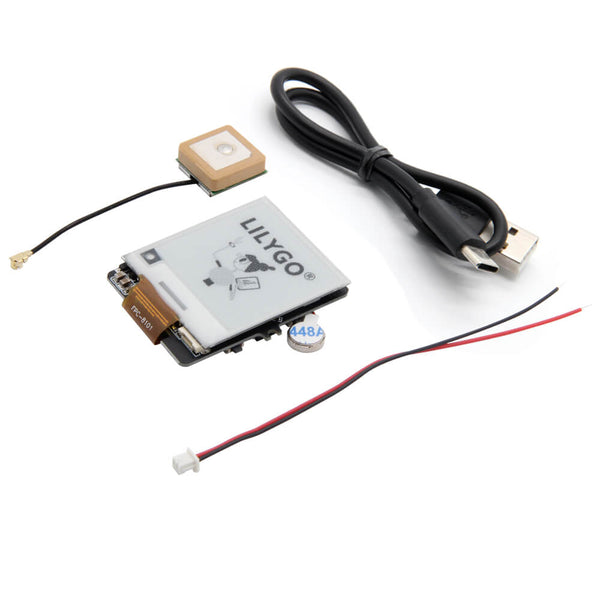

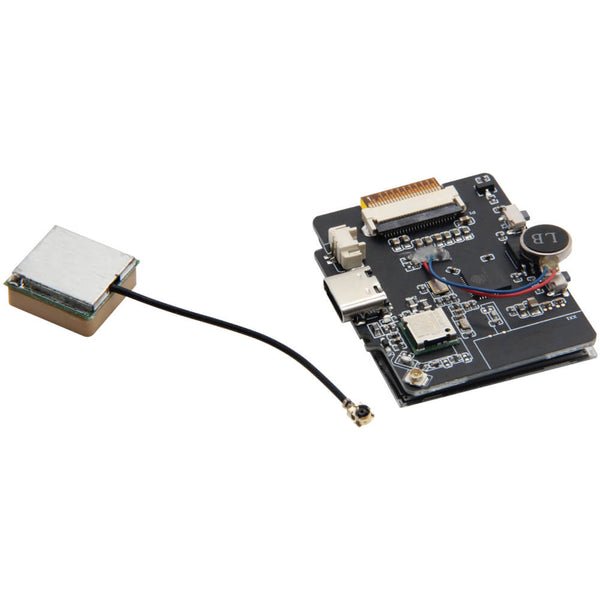

1.54 Inch Wrist E-paper GPS Options:
-
1 X 1.54 Inch Wrist E-paper
-

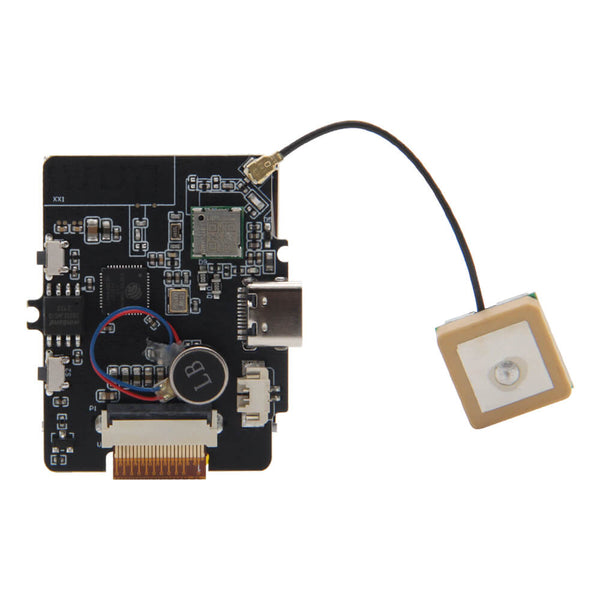

1 X GPS Antenna
-
1 X Power Cord (JST 1.25mm 2P)
-
1 X Type-C USB Cable

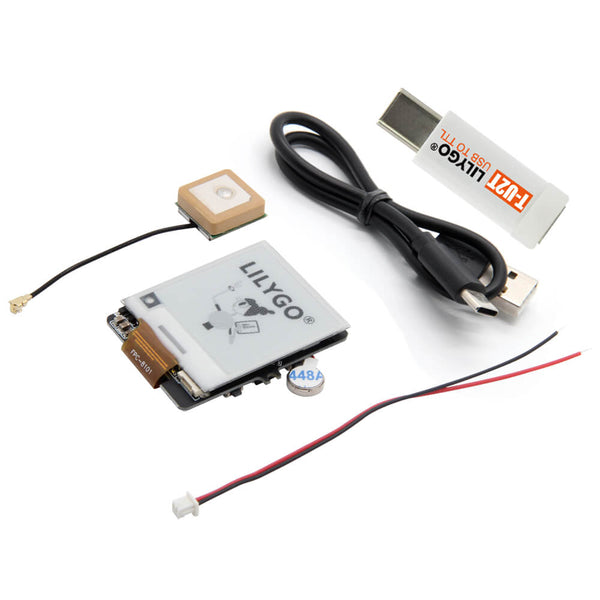

1.54 Inch Wrist E-paper GPS+T-U2T Options:
-
1 X 1.54 Inch Wrist E-paper
-
1 X GPS Antenna
-
1 X Power Cord (JST 1.25mm 2P)
-
1 X Type-C USB Cable
- 1 X T-U2T
Share
I enjoyed building a watch application for this device. Some small issues but for the price you can’t complain. Lilygo always build interesting products. You can find my efforts here https://github.com/z88kat/lilygo-paper-watch might help u get started
Very nice board overall. The e-paper display is just great and the GPS functionality is amazing. The only thing I didn't like was the vibration motor, for some reason it vibrated every time the ESP32 woke up from deep sleep and I couldn't find a solution to fix it so ı just removed the motor. Designed a custom watch case for it and currently writing firmware in order to turn it into a proper watch. You can check out my project at: https://github.com/qewer33/qpaperOS
