T-QT V1.1

T-QT V1.1

ESP32-S3 GC9107 0.85 Inch LCD Display Module Development Board

Regular price $9.10 USD
Regular price Sale price $9.10 USD
Sale Sold out

⚠️Please note that all policy page on site only applies to items purchased from our store: https://www.lilygo.cc.

Relevant technical or usage issues can be also discussed in our GitHub or Community.

How to pay with different payment methods

About Tax

At present, the price of the platform does not include tax.
Customers in Europe should pay attention to the tax problem after the package reaches the local country.

[orders over 150 euros may generate tax, which needs to be borne/handled by the customer, the local policy shall prevail.]

Commended User

People with programming foundation[engineers / students / makers, etc..]

Shipping & Delivery

Methods & Delivery Time

During ship, maybe some methods of transport do not update the logistic track until the parcel reaches the destination country.

  1. Standard Express: 25-30 Days
  2. EUB: 25-30 Days
  3. YunTu Express: 10-20 Days
  4. DHL: 10-17 Days
  5. FedEx: 10-17 Days

We can ship to DHL/FedEx through a third-party channel (Freight Forwarder) because we don't have DHL/FedEx account.
Means : we --> third-party channel(Freight Forwarder) -->official DHL /Fedex-->you

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for assistance.

Please note that all delivery times are estimated for reference only.

When we are processing the order, if the system suggests that your postcode is remote, we will automatically replace it with another shipping channel of the same class for you (except HDL and FedEx), We will send you an email if there are special situations, or you can leave us a message if you have any requirements.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

The Version‘s Picture Hasn't Changed

Please don't worry when the corresponding image doesn't change when you choose a certain version, just focus on the text describing the version and we'll make sure to put the right product in your package!

LILYGO® T-QT V1.1 ESP32-S3 GC9107 0.85 Inch LCD Display Module Development Board WIFI Bluetooth Full Color IPS 128*128 Screen

Already upgraded to T-QT Pro, Check it out now!

T-QT Pro

Specifications

MCU ESP32-S3 Xtensa dual-core LX7 microprocessor
Wireless Connectivity Wi-Fi 802.11 b/g/n, BL V5.0+BLE
Programming Platform Arduino-ide、 Micropython
Version Optional Flash: 8M
Serial chip  None, supports flash directly
 Onboard functions:
Buttons IO0+IO47+Reset
Battery detection IO04
Connector 4pin 1.0mm


0.85 inch GC9107 TFT IPS LCD

Resolution 128*128px Support 4-Wire SPI interface
Display Area 15.2064(H)*15.2064(V)
Display Colors 262K
Brightness  260 cd/m2


Note: Type C has a power supply function, but no charging function.

Technology Support [Github]

If you need technical support please check the link to find more details.

T-QT V1.1



T-QT V1.0 Introduction

  • T-QT V1.0 keeps the design style of T-Display, using 0.85 inch LCD Display equipped with ESP32-S3 main control chip, which is smaller in size on the basis of supporting WIFI and Bluetooth.

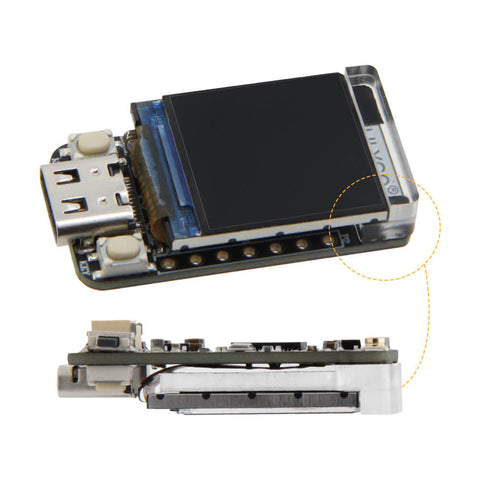

  • Innovative design: An acrylic plate is used to fix the screen to make it more stable.

LILYGO® 2022/6/24

When solder the pin ,you could take down the acrylic to solder it, and then paste it back. We will also update a operation video for reference soon.

1. Appearance Details

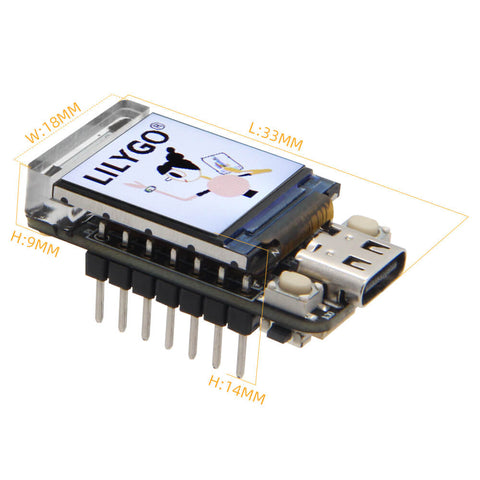

2. Size

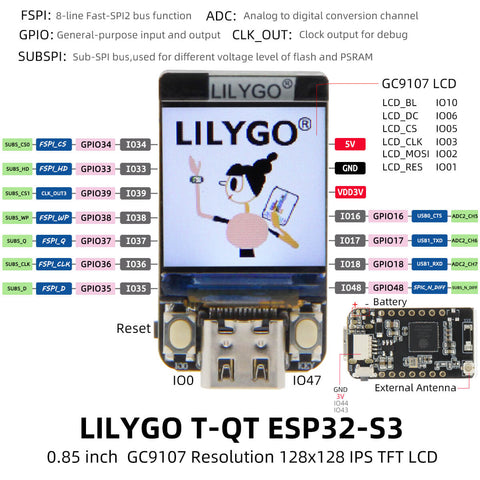

3. Pin Diagram
