T-ETH-Lite
T-ETH-Lite
4.89 / 5.0
(9) 9 total reviews
Couldn't load pickup availability
Share
About Shipping
About Shipping
Methods & Delivery Time
- Standard Express: 25-30 Days
- YunTu Express : 10-20 Days
(Company name can't be used consignee) - DHL: 10-17 Days
- FedEx: 10-17 Days
Please note that all delivery times are estimated for reference only.
Check More Info: Shipping Policy
About Tax
About Tax
We only charge the product cost and shipping cost.
1. For Standard Express Order: You may not need to deal with customs clearance, just need to pay attention to the track of the parcel, but this is not absolute, if your parcel is inspected by the customs, then you need to assist in dealing with customs clearance.
2. For DHL/ FedEx Order: You need to deal with the relevant customs clearance matters, as well as pay the tariff, the specific amount of tariff please pay attention to the policy of your country.
----------------------
The above tariffs are for reference only, please pay attention to your country's tax policy for more detailed instructions, if you need our help or have questions please feel free to contact us.
Specifications
T-ETH-Lite ESP32 | T-ETH-Lite ESP32 S3 |
![]() |
![]() |
Specification Differences |
MCU | ESP32-WOVER-E | ESP32-S3-WR0OM-1 |
Ethernet | RTL8201 | W5500 |

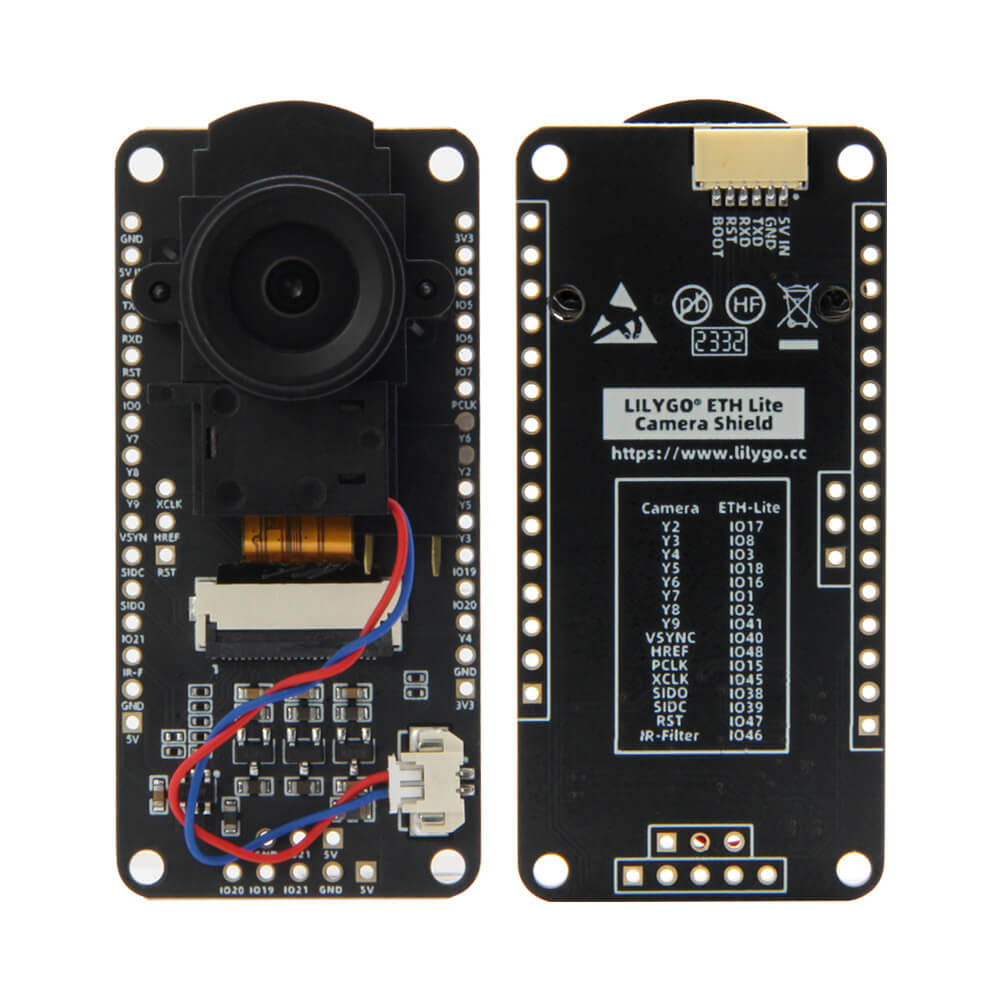

Shield | POE-Shield | POE/Camera-Shield |
Wireless | Wi-Fi: 802.11 b/g/n BR/EDRV4.2 +BLE |
Wi-Fi: 802.11 b/g/n BLE 5 + Bluetooth mesh |
Button | Reset + Boot |
Onboard | Ethernet + TF Card |
Memory | Flash: 16MB, PSRAM: 8MB |

Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
T-ETH-Lite

Size

Pin Diagram


More Details


-
Who can use
It's easier to master these development boards with a basic programming knowledge [engineers/ students/ makers, etc..]
-
Accelerated processing
International orders please make sure your address is in English
For Hong Kong, Macau and Taiwan orders, please note your personal ID. -
Got a question
Click on the bubble in the bottom right corner where some frequently asked questions are answered, or just drop us a line.
The T-ETH-Lite ESP32 module was deployed as part of a TCP-based labeling system in a live manufacturing environment. The board's Ethernet interface, based on the RTL8201 PHY, provided sufficient throughput and reliability for LAN communication with NiceLabel automation servers. Static IP configuration was essential for integration, and the ability to switch between DHCP and static modes via firmware was a key advantage. The module successfully handled real-time TCP client operations, with response handling and retry logic proving stable during extended operation. Hardware reliability was tested through scenarios including cable hot-plug, power cycling, and interference from nearby industrial equipment. The board also hosted a lightweight web server for local configuration, using NVS to persist Ethernet and application parameters. However, one of the two purchased modules exhibited erratic link behavior, which indicates potential quality variability. The I/O pins used for triggering actions via relays were responsive, though hardware debounce or isolation is strongly recommended for noisy environments. Overall, T-ETH-Lite demonstrates strong potential as an Ethernet-capable ESP32 platform in industrial scenarios, provided modules are pre-tested for stability.
T-ETH-Lite
I used this board to power several sensors I2C and analog as well as I2S microphone. It has performed great for me.
This is what I needed for my ESPHome projects.
High quality product with small footprint. Thank you!
T-ETH-Lite
