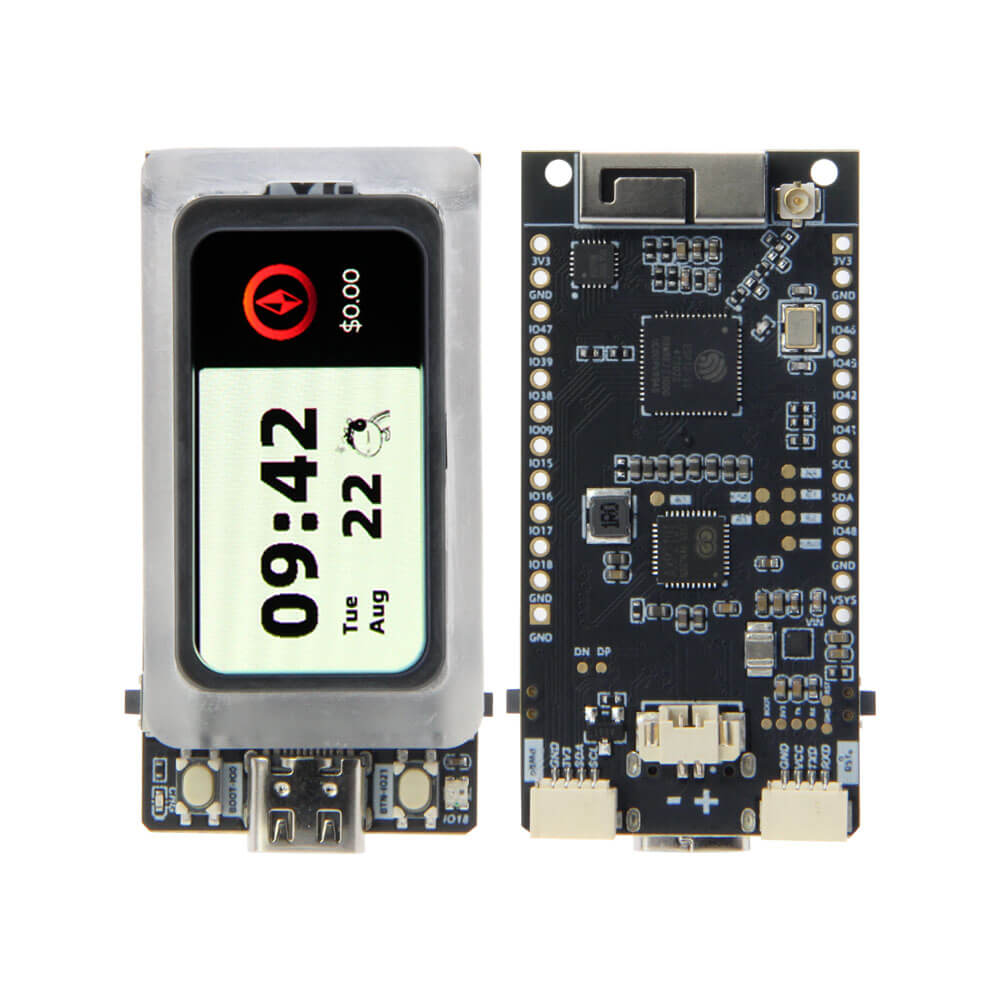

T-Display AMOLED Lite
T-Display AMOLED Lite
ESP32-S3 to drive AMOLED touch Development board
Couldn't load pickup availability
Payment Method
About Shipping
About Shipping
Methods & Delivery Time
- DHL 7-10 business days
- FedEx 7-10 business days
- Standard Express 10-25 business days
- Overseas Warehouse* 7-15 business days
*Available from: Germany, USA, Canada
Please note that all delivery times are estimated for reference only.
Check More Info: Shipping Policy
About Tax
About Tax
We only charge the product cost and shipping cost.
1. For Standard Express Order: You may not need to deal with customs clearance, just need to pay attention to the track of the parcel, but this is not absolute, if your parcel is inspected by the customs, then you need to assist in dealing with customs clearance.
2. For DHL/ FedEx Order: You need to deal with the relevant customs clearance matters, as well as pay the tariff, the specific amount of tariff please pay attention to the policy of your country.
----------------------
The above tariffs are for reference only, please pay attention to your country's tax policy for more detailed instructions, if you need our help or have questions please feel free to contact us.

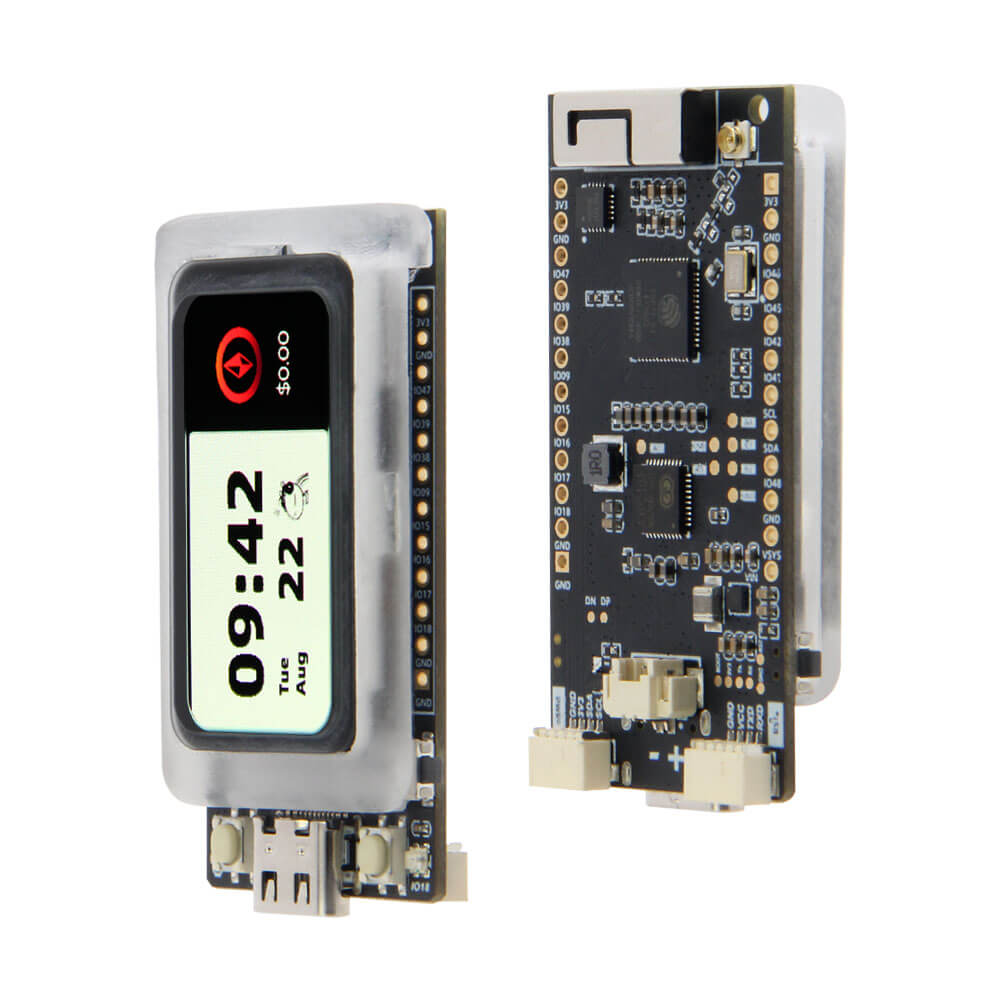

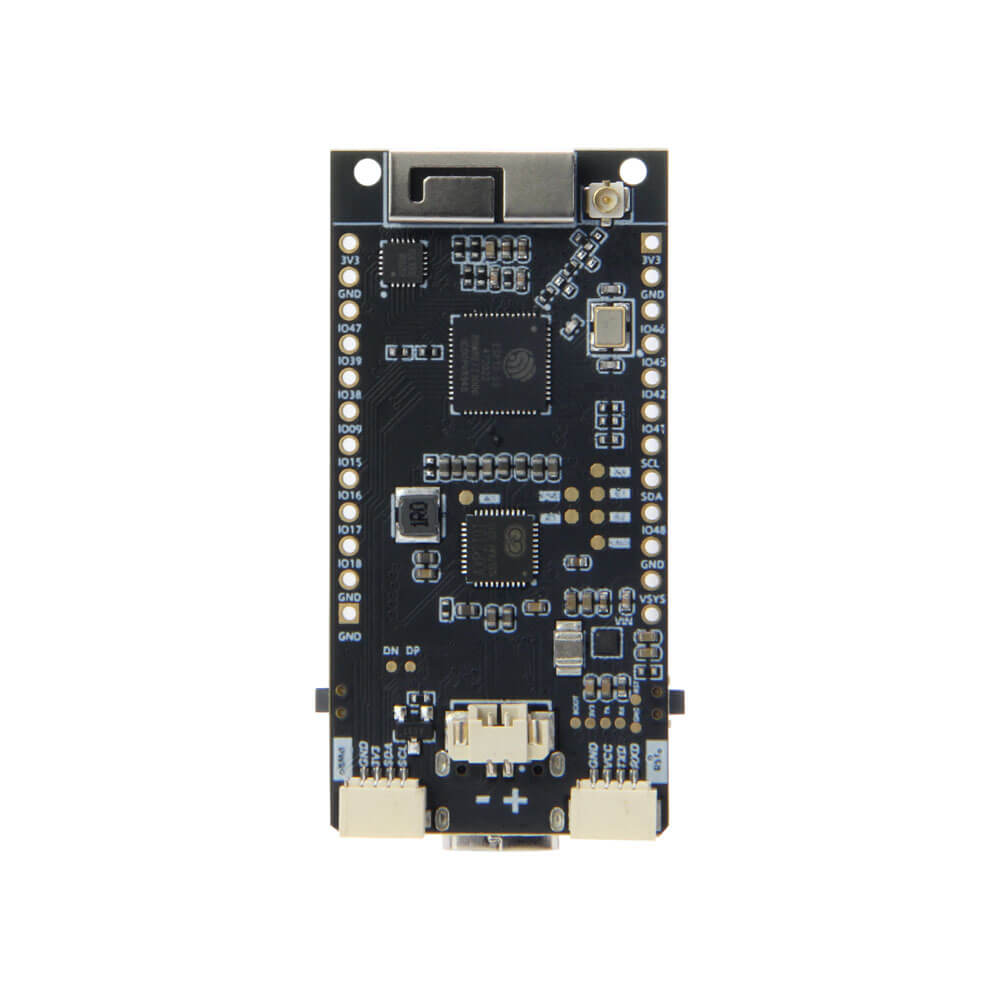

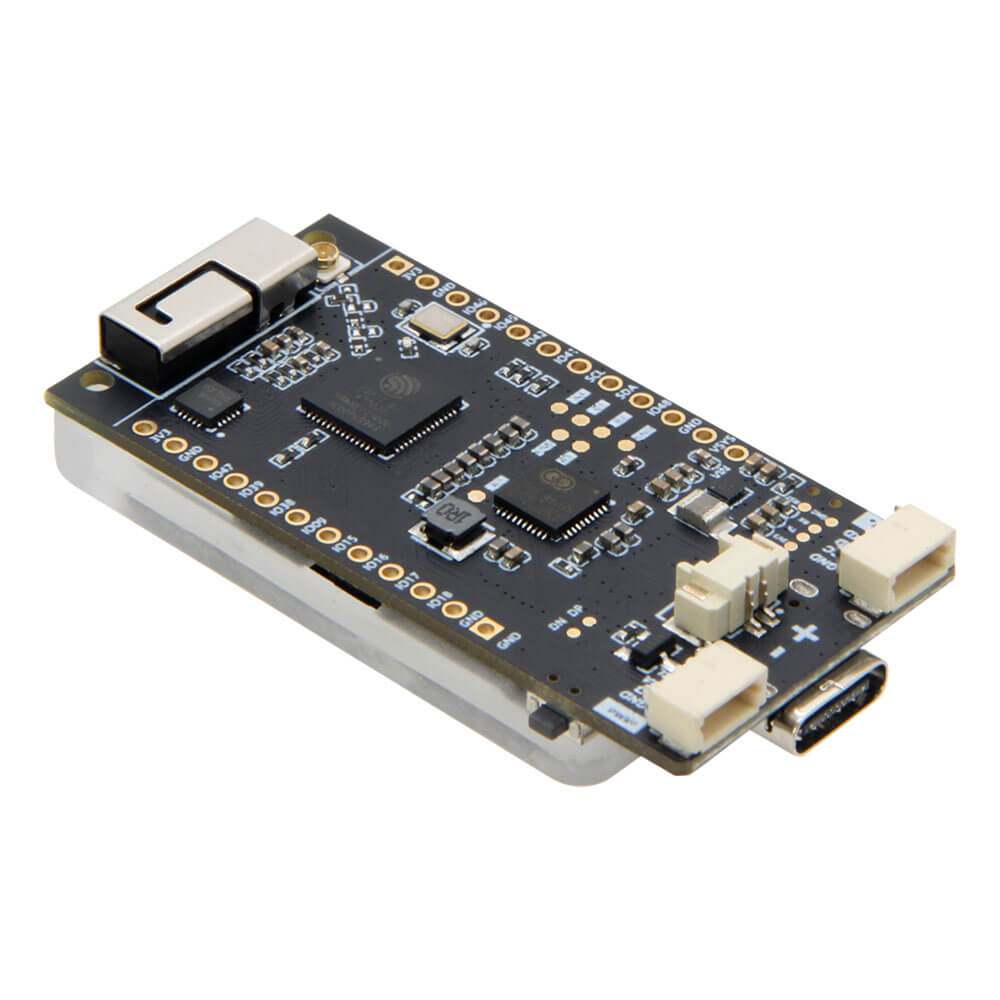

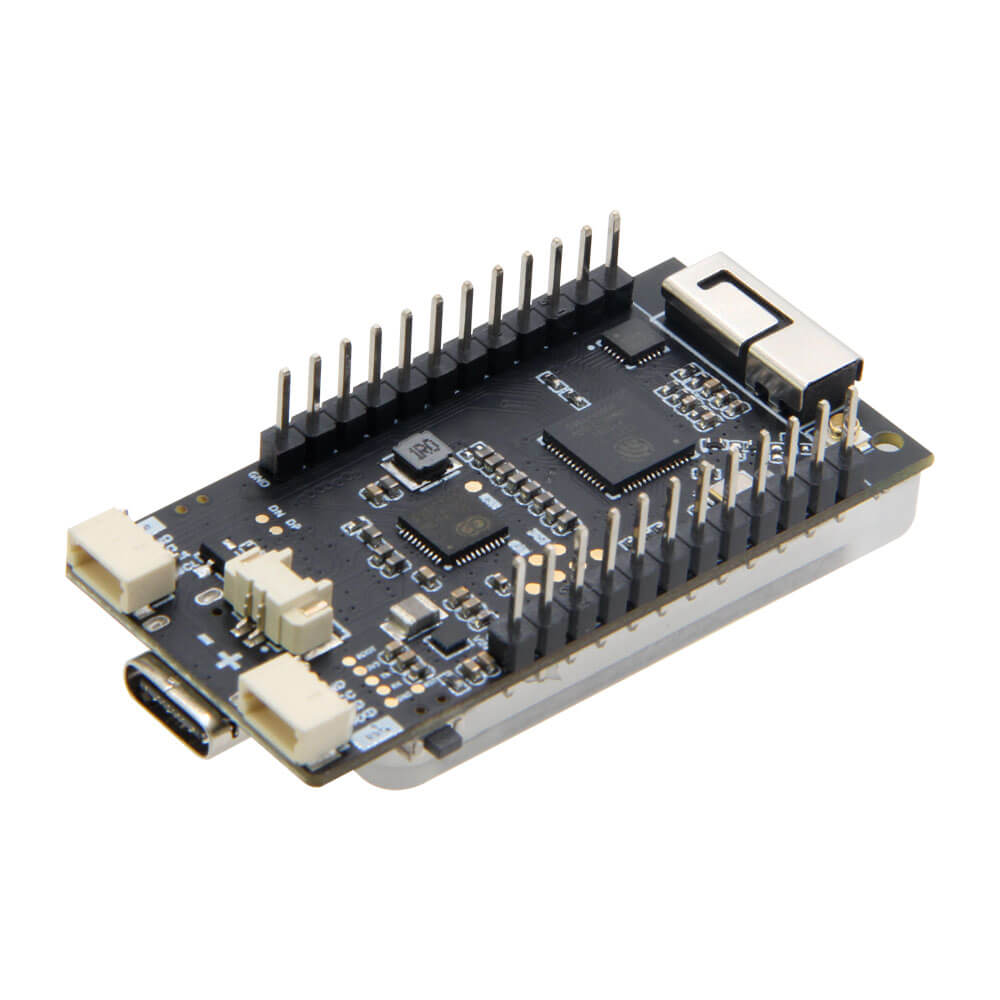

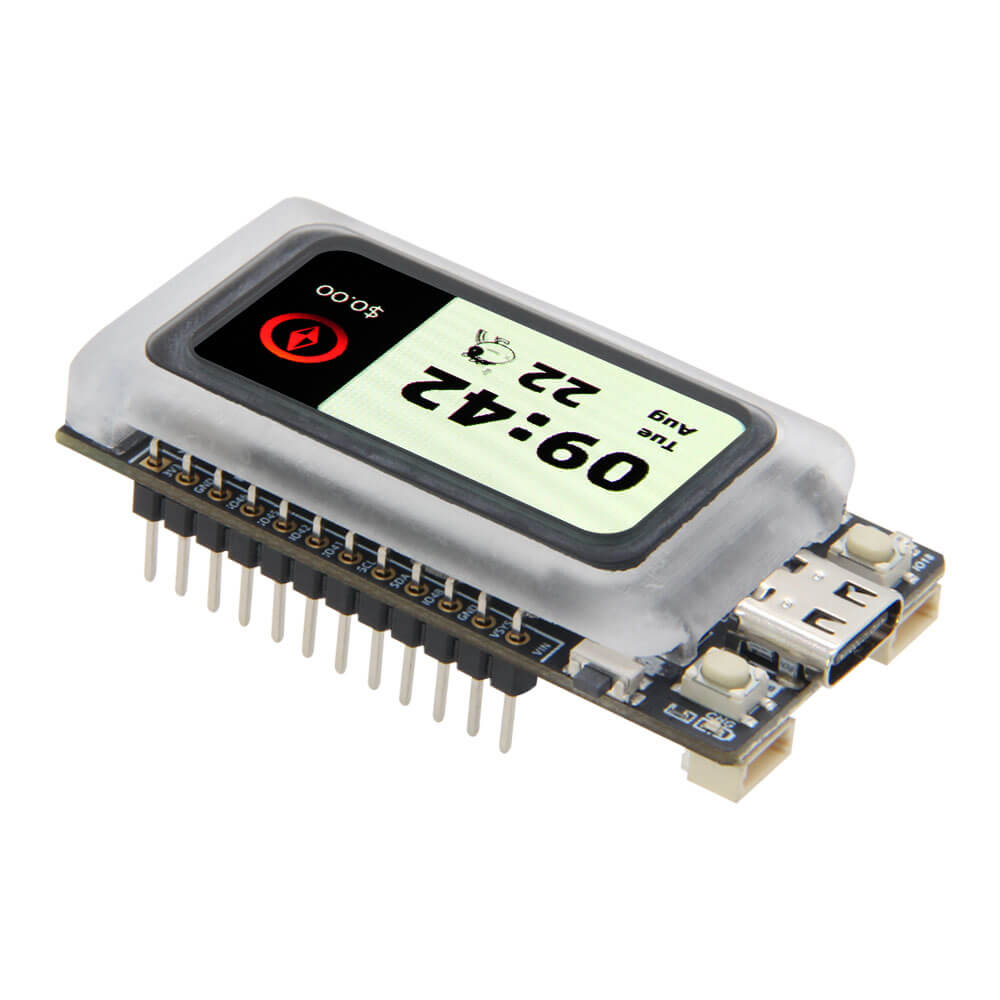

T-Display AMOLED Lite is the first board that uses ESP32-S3 to drive AMOLED. It continues T-Display's simple form factor structure, low power consumption, support for battery charging and discharging, GPIO expansion function and other features designed to make learning and developing applications easier.
Specifications
| MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | 2.4 GHz Wi-Fi & Bluetooth 5 (LE) |
| Development | Arduino, PlatformlO-IDE, Micropython |
| Flash | 16MB |
| PSRAM | 8MB |
| Onboard functions | Boot (IO00) + Power + Reset + IO21 |
| 1.47 inch RM67162 IPS AMOLED |
| Resolution | 194(W) X RGB X 368(H) |
| Interface | QSPI |
| Active area | 17.46*33.12mm |
| Driver IC | RM67162 |
| Viewing Angle | IPS Full View Angle |
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
Pin Diagram
