LILYGO®

T-Deck

T-Deck

Portable microcontroller programmer

Regular price $43.08 USD
Regular price Sale price $43.08 USD
Sale Sold out

⚠️Please note that all policy page on site only applies to items purchased from our store: https://www.lilygo.cc.

Relevant technical or usage issues can be also discussed in our GitHub or Community.

About Tax

At present, the price of the platform does not include any tax.
European customers should pay attention to the tax problem after the package reaches the local country, which needs to be borne/handled by the customer, the local policy shall prevail

[orders over 150 euros may generate tax (Amount for reference only), for orders over this amount, we will not inform the customer separately, so please pay attention to it by yourself.]

Commended User

People with programming foundation[engineers / students / makers, etc..]

Shipping & Delivery

Please read the following rules carefully before submitting your order, otherwise, we can't process your order.

  1. For international orders, please make sure the language of the delivery address is in English
  2. For domestic orders (Mainland China), please make sure the language of the delivery address is Chinese.
  3. For Hong Kong, Macau, and Taiwan orders, please provide your tax ID number, or the corresponding ID card number, and the corresponding GUI Number if the recipient is a company name.

----------------------------------------------------------------

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. EUB: 25-30 Days
  3. YunTu Express: 10-20 Days
  4. DHL: 10-17 Days
  5. FedEx: 10-17 Days
  6. YanWen: 20-35 Days

Please note that all delivery times are estimated for reference only.

During ship, maybe some methods of transport do not update the logistic track until the parcel reaches the destination country.

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for help.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

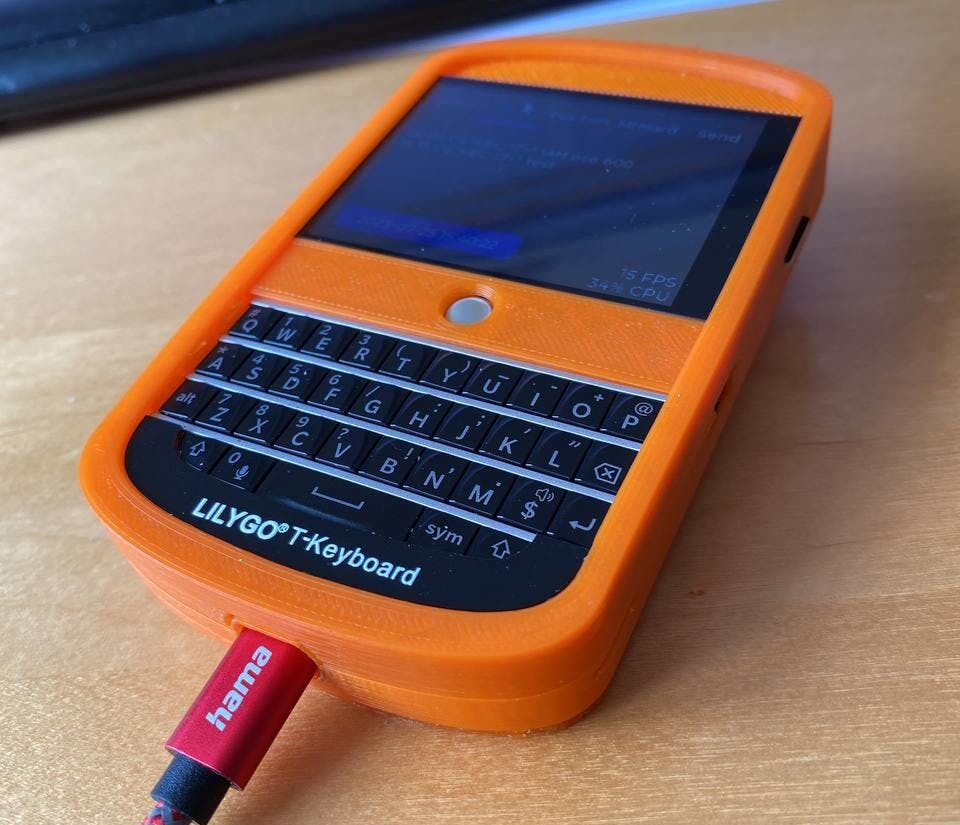

T-Deck is a pocket-sized gadget with a 2.8-inch, 320 x 240 pixel IPS LCD display, a mini keyboard, and an ESP32 dual-core processor. While it's not exactly a smartphone, you can use your programming knowledge to turn it into a standalone messaging device, or coding software.

Specifications

MCU ESP32-S3FN16R8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
Development Arduino, PlatformlO-IDE, Micropython
Flash 16MB
PSRAM 8MB
Battery ADC PIN IO04
Onboard functions  Trackball, Microphone, Speaker

 2.8 inch ST7789 SPI Interface IPS LCD:

Resolution: 320 x 240 Full viewing angle

 SX1262 LoRa Transceiver (Chip Optional)
Transmit power +22dBm
Frequency Optional  433/868/915Mhz

Sample Code For Reference [Github]

If you need technical support please check the link to find more details.

T-Deck

Size

Pin Diagram



Without LoRa



  • 1 X T-Deck
  • 1 X Pin(6pin)
  • 1 X Power cable

With LoRa

View full details

Customer Reviews

Based on 6 reviews
67%
(4)
17%
(1)
17%
(1)
0%
(0)
0%
(0)
A
Arthur Lawrence
Out of the box

I just started using the T-Deck and so far I like the looks of it and all the features. I have not had a chance to download code but expect to work on the device next week. So far, so very good....

J
Jakob Gurnhofer
perfect LoRa standalone device

A perfect client device for MeshCom (https.//icssw.org/meshcom), only the shell from the github repository needed modifications to support a bigger battery (2000mAh) and to fit the ipex connector of the LoRa antenna.

T
Tom Foth
One small but important thing

I'd really like to be able to purchase a back for the device.

K
Kurt Baumann
T-DECK a very great LoRa allround-Tool

.) We use 3D-schema for Lilygo and modiefied to fit a larger BATT
.) We use DEMO-Code and modiefied it to a usefuilly "APP" for our MeshCVom 4.0 project

https.//icssw.org/meshcom

D
David Moscoso EC154X64351N
Nice Kit

Very complete development platform
