LILYGO®

T-Beam

T-Beam

V1.1 ESP32 LoRa Wireless Module

Regular price $28.42 USD
Regular price Sale price $28.42 USD
Sale Sold out

⚠️Please note that all policy page on site only applies to items purchased from our store: https://www.lilygo.cc.

Relevant technical or usage issues can be also discussed in our GitHub or Community.

About Tax

At present, the price of the platform does not include tax.
Customers in Europe should pay attention to the tax problem after the package reaches the local country.

[orders over 150 euros may generate tax, which needs to be borne/handled by the customer, the local policy shall prevail.]

Commended User

People with programming foundation[engineers / students / makers, etc..]

Shipping & Delivery

Methods & Delivery Time

Standard Express: 25-30 Days

YunTu Express: 10-20 Days

DHL: 10-17 Days

FedEx: 10-17 Days

NOTE

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for assistance.

Please note that all delivery times are estimated for reference only.

Please make sure your address is fully filled in (including province and continent, which will affect the shipping time of your order)

For more details please check our shipping policy.

Meshtastic T-Beam V1.1 ESP32 LoRa 433/868/915/923Mhz SX1276/SX1278 Wireless Module WiFi GPS NEO-6M With 0.96 inch OLED Display For Arduino.

Specifications

MCU ESP32
Flash 4MB
PSRAM 8MB
Serial Chip CH9102
Wireless protocol Wi-Fi + Bluetooth 4.2
PMU AXP192
Onboard functions  3 Buttons (Power+IO38+Reset)
Antenna


3D WiFi Antenna [Use by default]

(Support WiFi IPEX external antenna, but you need to jump resistance)

----

LoRa antenna

----

GPS ceramic antenna




Description


GPS

  • NE0-6M GPS Modules: Support GPS protocol
  • Onboard RTC crystal, Support interrupt/ wakeup

LoRa

  • Long Range Low Power LoRa Transceiver
  • High sensitivity: -i48dBm
  • Transceive rate: 300 kbps
  • Optional Hardware
  • Version: SX1278[433Mhz] / SX1276[868/915/923Mhz]

Display Details

  • OLED: 0.96 inch
  • Driver: SSD1306

Software

  • Meshtastic

Power Supply Mode

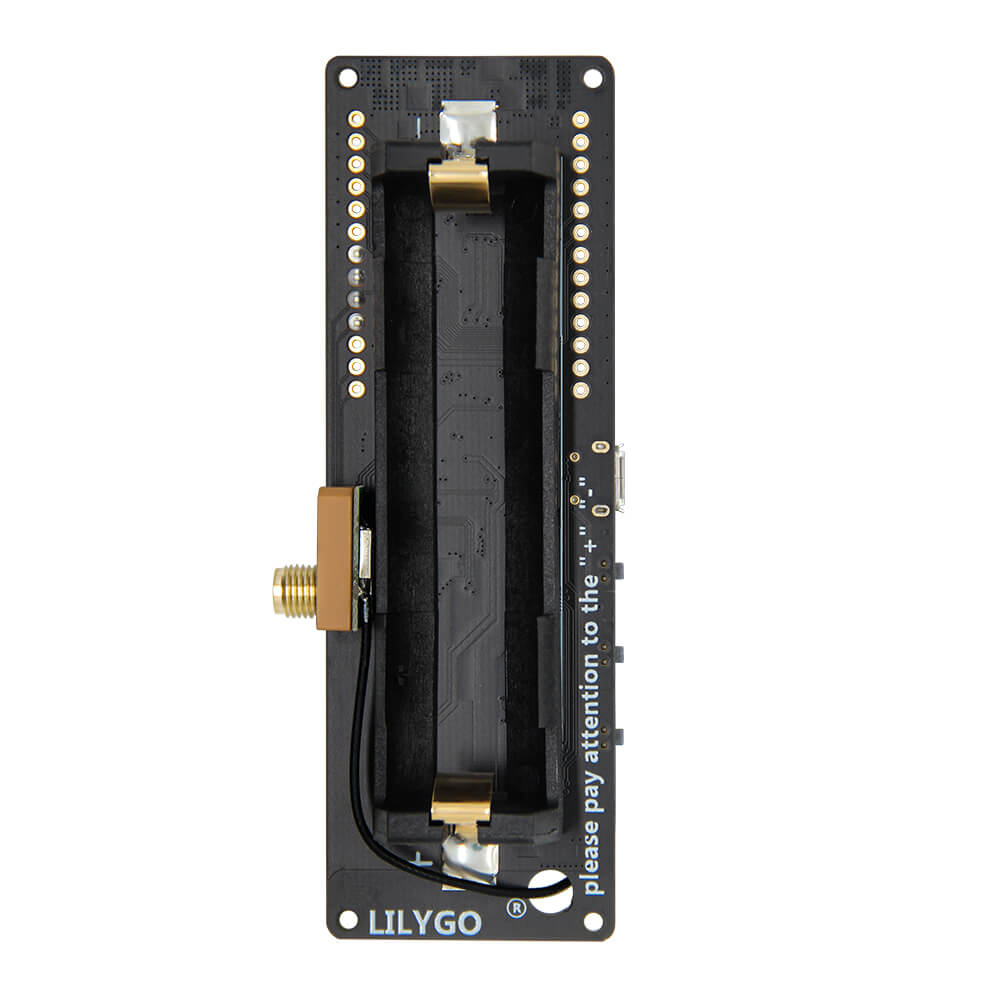

Support USB Micro/ 18650 battery holder [USB can power the battery]

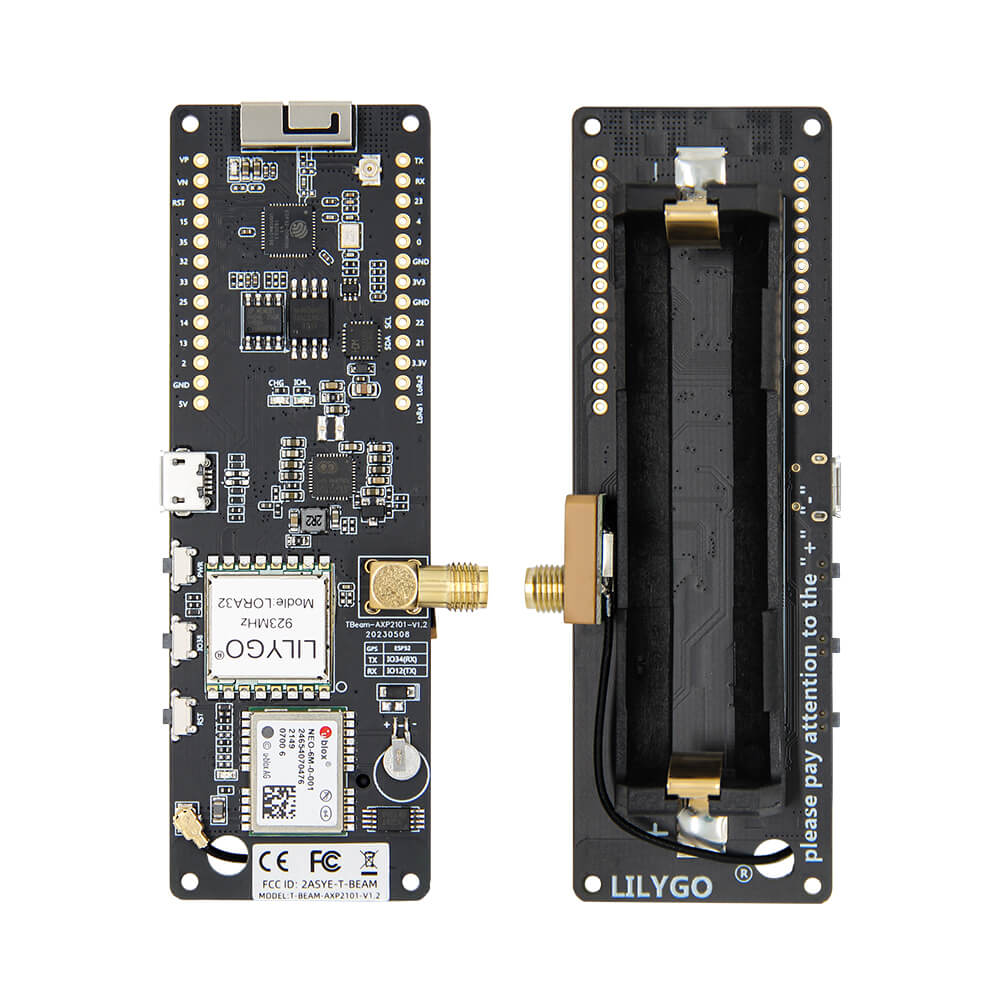

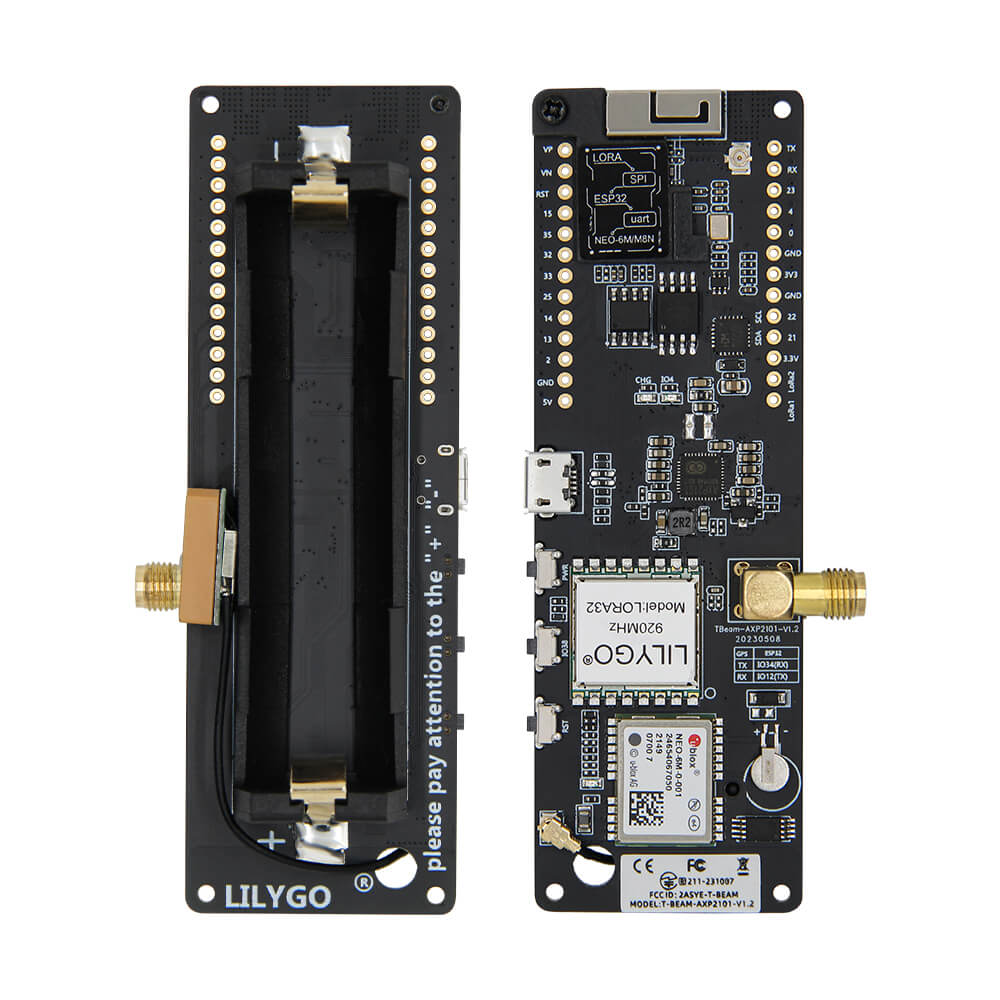

1. Appearance

2. Size

3. Pin Diagram

[Pay attention to the OLED when opening the box, ship without 18650 battery]



433Mhz or 868Mhz Options

(OLED Not Soldered Version)

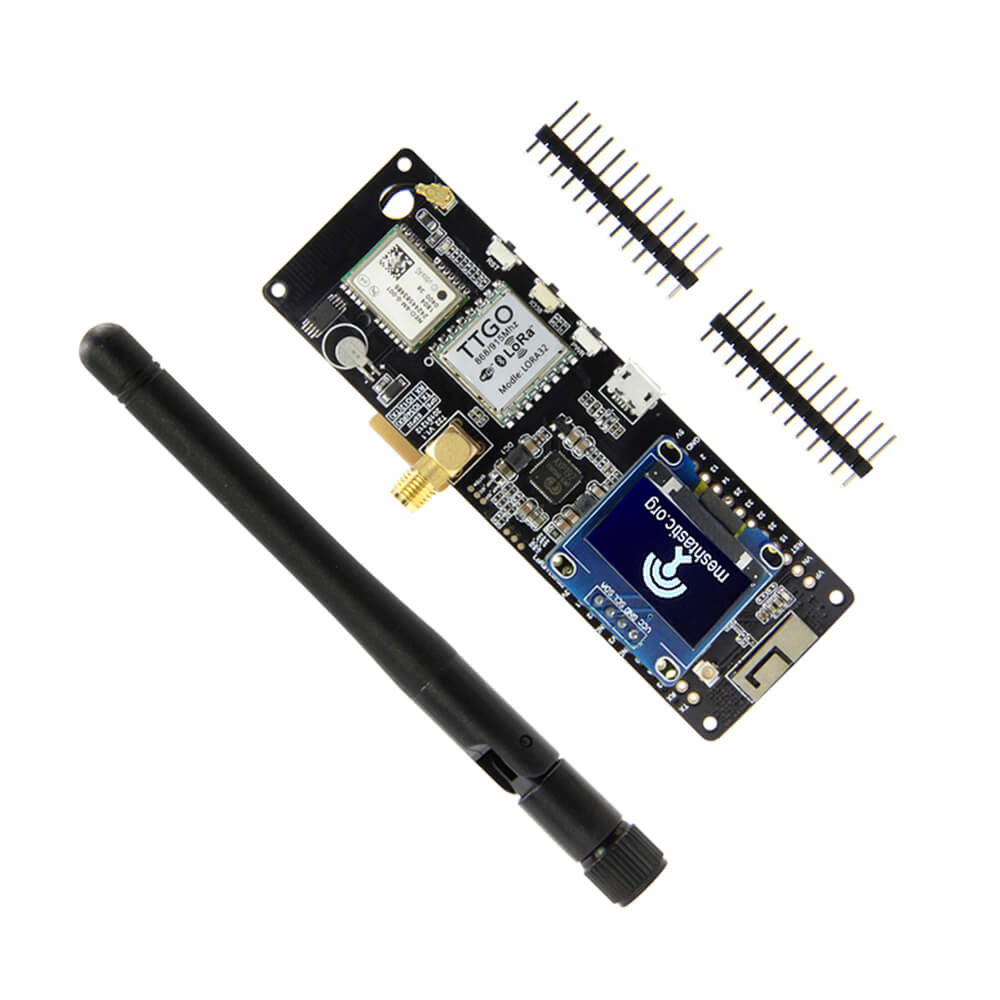

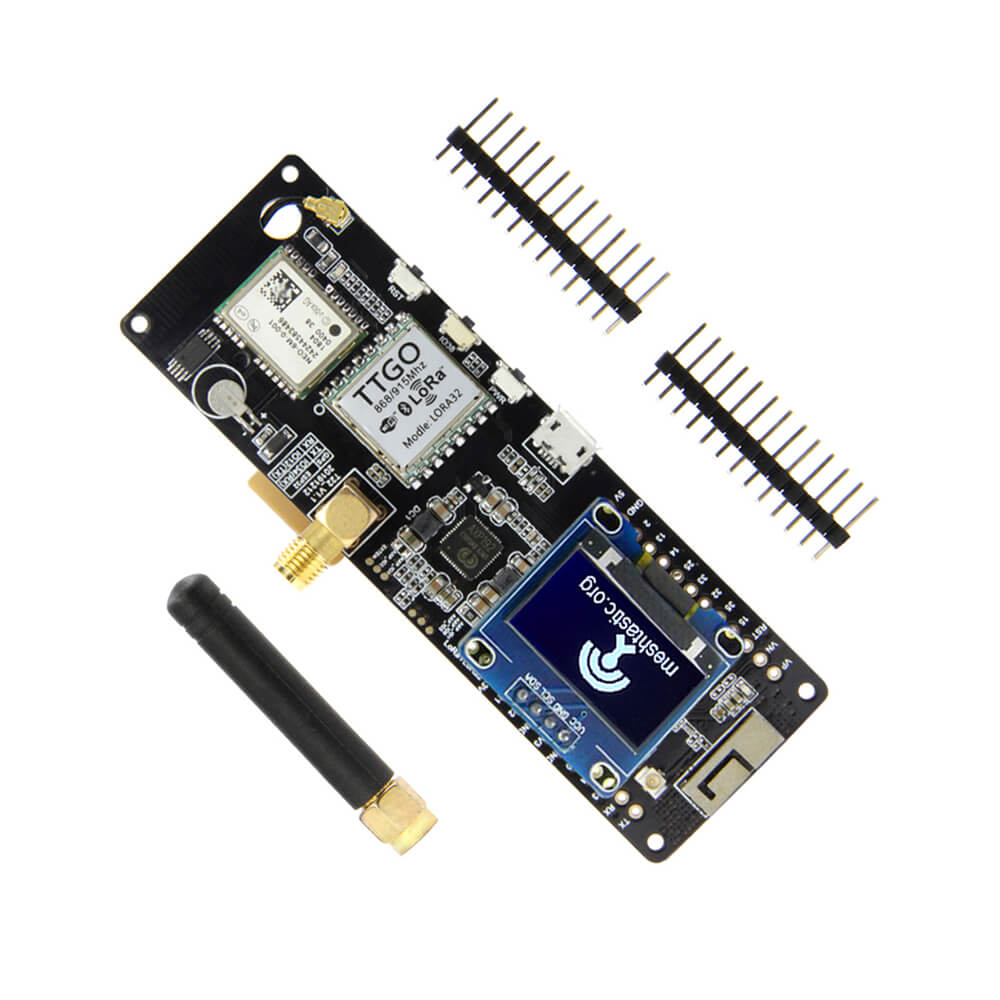

  • 1 X T-Beam V1.1 CH9102

  • 1 X 433Mhz or 868Mhz Antenna

  • 1 X 0.96 inch 128X64  OLED

  • 2 X Pin

915Mhz or 923Mhz Options

(OLED Not Soldered Version)

  • 1 X T-Beam V1.1 CH9102

  • 1 X 915Mhz or 923Mhz Antenna

  • 1 X 0.96 inch 128X64 OLED

  • 2 X Pin

433Mhz or 868Mhz Options

(OLED Soldered Version)

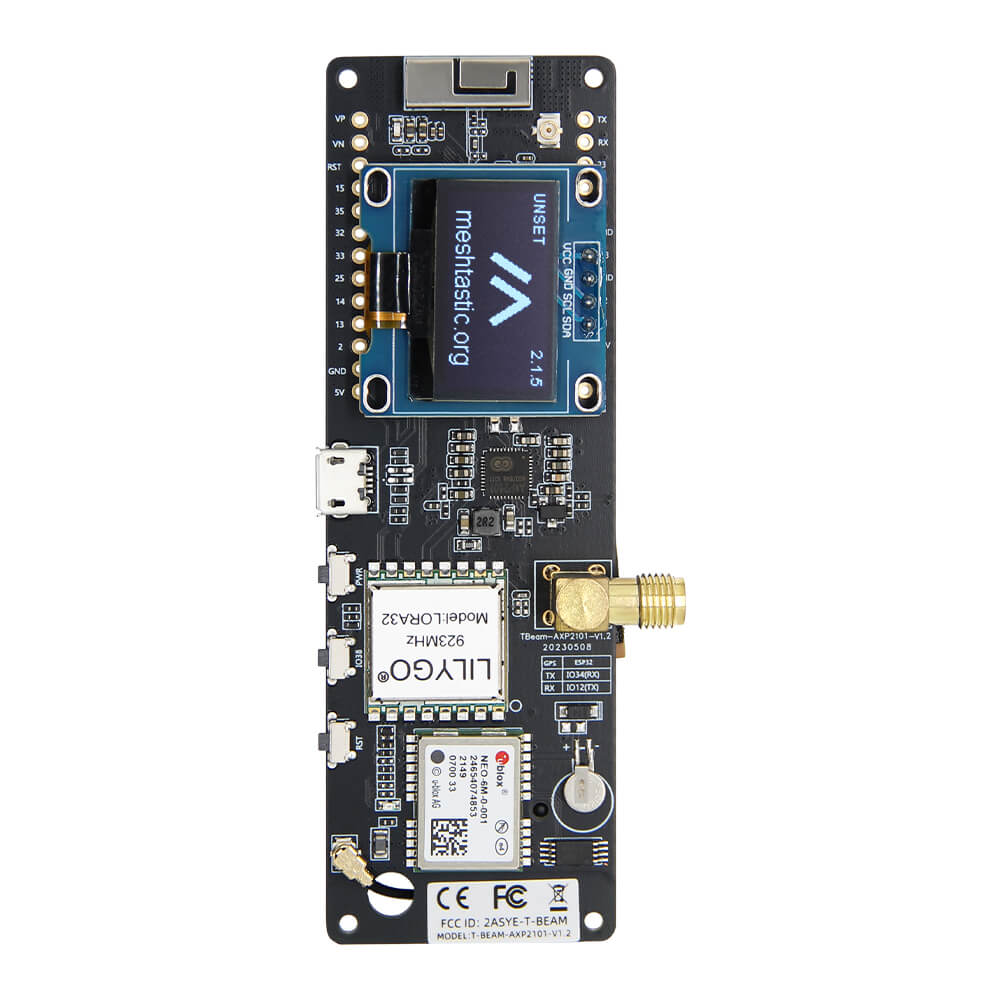

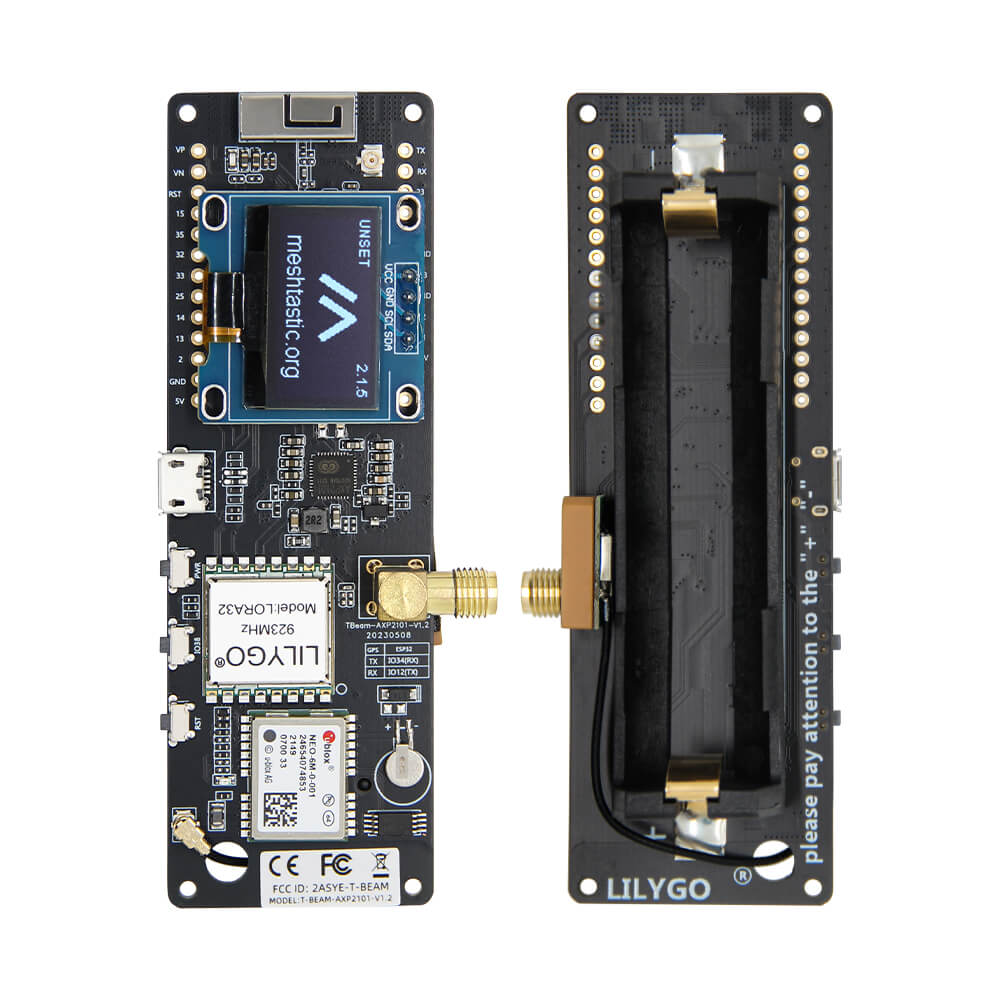

  • 1 X T-Beam V1.1 (Include Soldered OLED)

  • 1 X 433Mhz or 868Mhz Antenna

  • 2 X Pin

915Mhz or 923Mhz Options

(OLED Soldered Version)

  • 1 X T-Beam V1.1 (Include Soldered OLED)

  • 1 X 915Mhz or 923Mhz Antenna

  • 2 X Pin

Technology Support [Github]

If you need technical support please check the link to find more details.

  1. Meshtastic-Android
  2. Meshtastic-device
  3. LilyGo LoRa Series
