LILYGO®

T-PicoC3

T-PicoC3

ESP32-C3 RP2040 WIFI Bluetooth Module For Arduino

Regular price $8.52 USD
Regular price Sale price $8.52 USD
Sale Sold out

⚠️Please note that all policy page on site only applies to items purchased from our store: https://www.lilygo.cc.

Relevant technical or usage issues can be also discussed in our GitHub or Community.

About Tax

At present, the price of the platform does not include tax.
Customers in Europe should pay attention to the tax problem after the package reaches the local country.

[orders over 150 euros may generate tax, which needs to be borne/handled by the customer, the local policy shall prevail.]

Commended User

People with programming foundation[engineers / students / makers, etc..]

Shipping & Delivery

Our default shipping method: General transportation
[shipped by Freight Forwarder]

Receive Package

After shipment:

15-30days

【PS: If there are force majeure factors such as epidemic situation/ strike or local policy adjustment, transportation may be delayed,Maybe you will receive your package within 17-70 days】

NoteAll the times just for reference only

Tracking your order:

http://m-track.4px.com/#/

Also, if you want to get other shipping support please reference our shipping policy.

T-PicoC3 is LILYGO®'s first motherboard with dual MCUs. (Notice: Two chips can work at the same time)
Equipped with Raspberry Pi RP2040 and ESP32-C3 chip (Supporting WIFI and Bluetooth)

Specifications

Model T-PicoC3[H553]
MCU

[RP2040 Dual ARM Cortex-M0+

ESP32-C3: Support Wi-Fi, Bluetooth V5.0+BLE]

Flash 4MB
Programming language C/C++, MicroPython
Onboard functions

Buttons: IO06+IO07, Boot, Run

Battery power detection

 Support machine learning library TensorFlow Lite

Description

1.14 inch ST7789V IPS LCD

  • Resolution: 135X240
  • Full color
  • TFT Display
  • 4-Wire SPI interface
  • Working Power Supply: 3.3V
  • Operating Temperature: -20 ~ 70®C

Power Supply

  • Supports USB Type-C / Li-Po Battery Dual Power Supply
  • JST Connect type : JST GH 2pin 1.25mm

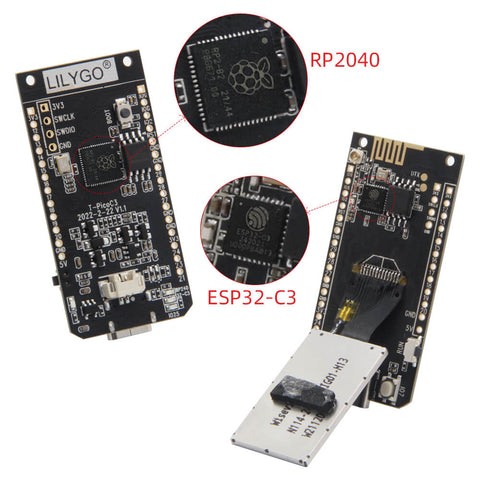

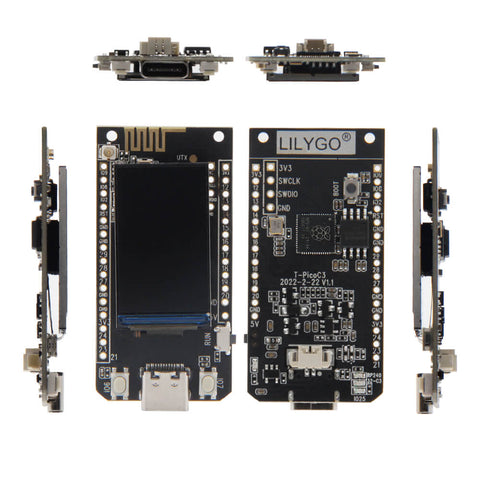

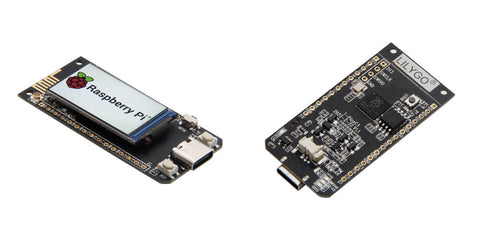

1. Appearance

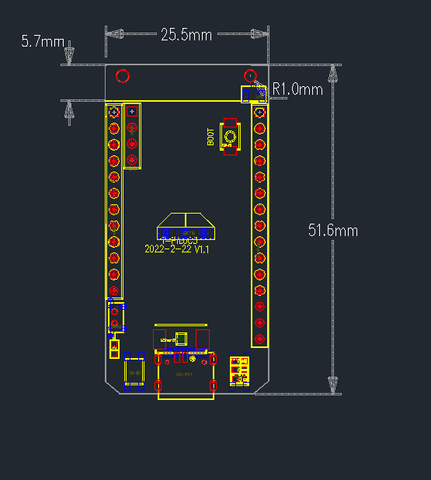

2. Size

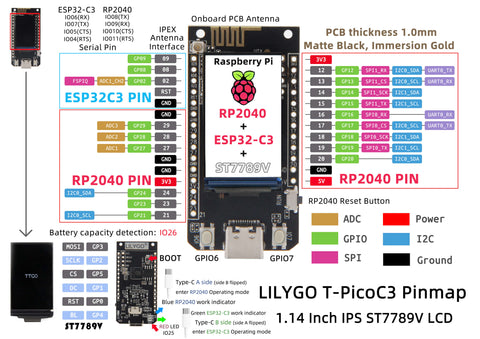

3. Pin Diagram

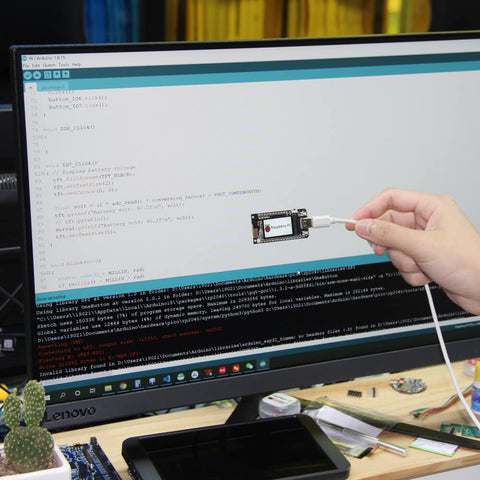

4. How To Use

T-PicoC3 Option

  • 1 X T-PicoC3
  • 1 X Power Cable (2 PIN JST 1.25mm POWER CONNECTOR)
  • 2 X Pin

Technology Support [Github]

If you need technical support please check the link to find more details.

T-PicoC3
