LILYGO®

T-Color

T-Color

Hexagon LED ESP32-C3 APA102 Wireless Module

Regular price $13.30 USD
Regular price Sale price $13.30 USD
Sale Sold out

⚠️Please note that all policy page on site only applies to items purchased from our store: https://www.lilygo.cc.

Relevant technical or usage issues can be also discussed in our GitHub or Community.

About Tax

At present, the price of the platform does not include tax.
Customers in Europe should pay attention to the tax problem after the package reaches the local country.

[orders over 150 euros may generate tax, which needs to be borne/handled by the customer, the local policy shall prevail.]

Commended User

People with programming foundation[engineers / students / makers, etc..]

Shipping & Delivery

Methods & Delivery Time

Standard Express: 25-30 Days

YunTu Express: 15-20 Days

DHL: 10-17 Days

FedEx: 10-17 Days

NOTE

If you do not see one of the above shipping methods when checking out, it may be because your country does not support that shipping method, please select one of the available channels already listed or contact us for assistance.

Please note that all delivery times are estimated for reference only.

For more details please check our shipping policy.

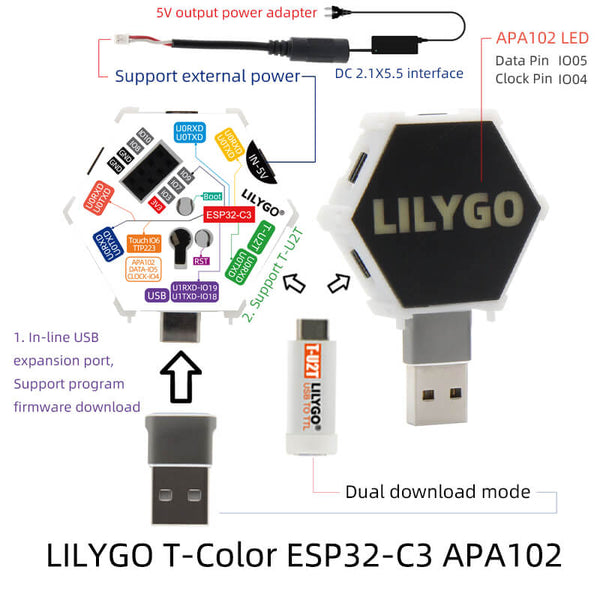

LILYGO® T-Color Hexagon LED is equipped with USB type-c interface on six sides, and the usage method is flexible; it can be freely spliced into any pattern.

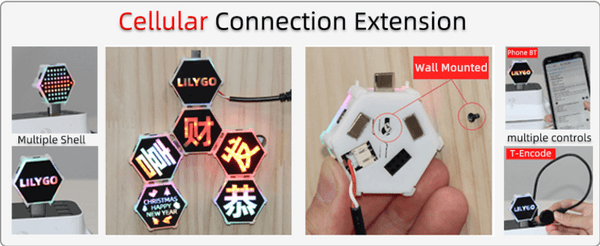

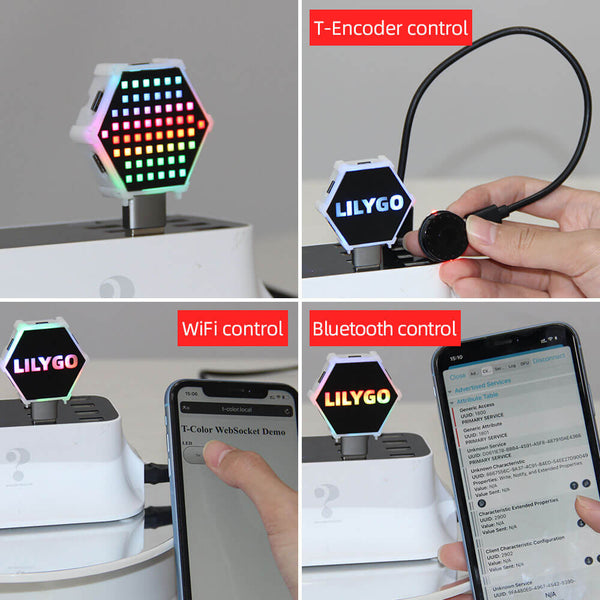

-Support T-Encoder, WIFI, Bluetooth multiple control methods.

-T-U2T

Specifications

MCU  ESP32-C3
FLASH 4MB
Bus Interfaces UART, SPI, I2C, CAN, I2S, SDIO
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth5
Onboard Buttons RST+BOOT; External power: DC 5V input
APA102 LED Data Pin -- IO05, Clock Pin -- IO04
 TTP223 Low Power Touch Detector
Operating Voltage 2.0V~5.5V
Low power mode typical 1.5uA, maximum 3.0uA
Features: Flexible Application, Multiple Control Methods, Portable Clip Fixed.



Technology Support [Github]

If you need technical support please check the link to find more details.

T-Color

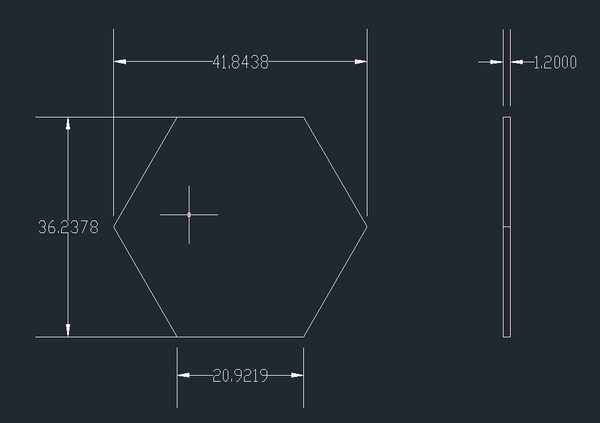

Size

Pin Diagram

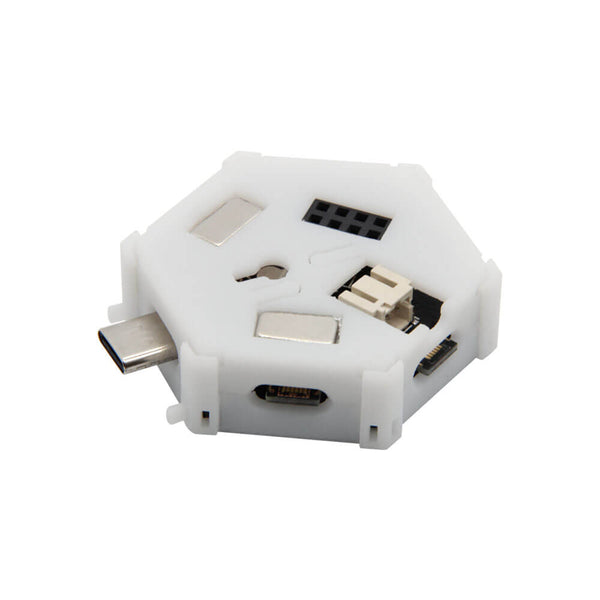

Appearance Details

Notice: If you need a custom PCB cover, you can consult customer service.

  • 1 X T-Color (Battery not included)
  • 1 X USB
  • 1 X LILYGO cover
  • 1 X Conversion Cable

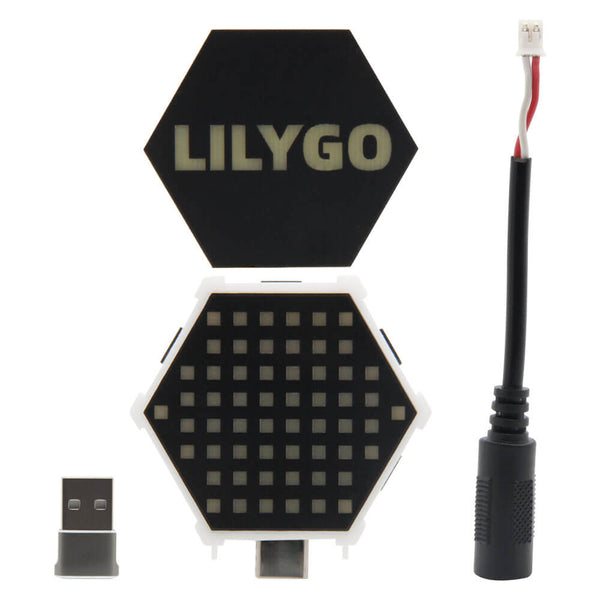

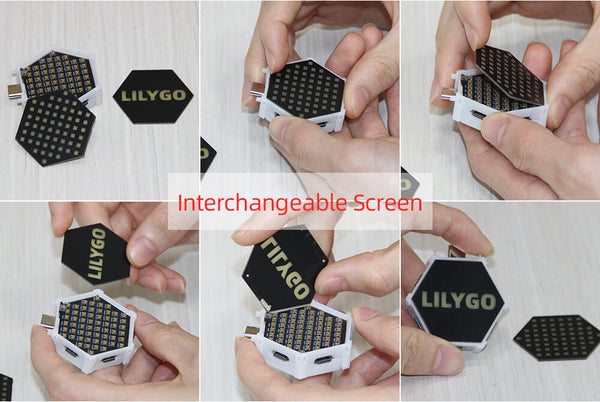

 The delivery is equipped with a dot matrix pattern PCB cover by default, the PCB cover can be replaced
