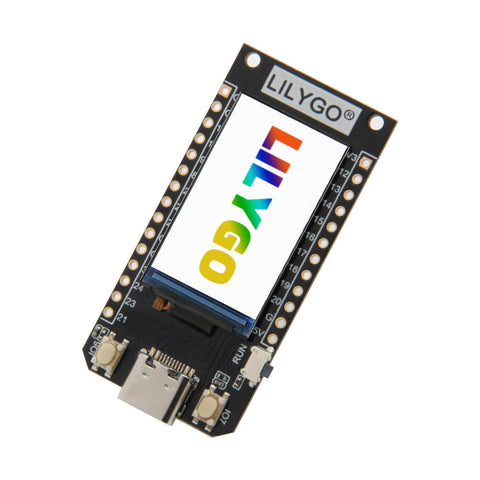

T-Display RP2040 Dual ARM Raspberry Pi Module 1.14 inch LCD IPS HD Screen Circuits Development Board for Arduino
|MCU||RP2040 Dual ARM Cortex-MO+|
|Bus Interfaces||2 UART, 2x SPI, 2xl2C, 6 PWM|
|Programming language||C/C++, MicroPython|
|Support machine learning library TensorFlow Lite|
|Onboard functions||IO06+IO07, battery power detection|
|ST Connect type||JST GH 1.25mm|
|Support USB/Li-P0 Battery Dual power supply|
|1.14 inch ST7789V IPS LCD|
|Resolution||135X240, Full Color TFT Display, 4-Wire SPI interface|
|Working Power Supply||3.3V|
-20 - 70°C
Technology Support [Github]
If you need technical support please check the link to find more details.
Official Website Example GitHub (C Language)
Micropython Getting Started (Raspberrypi)
C/C++ Getting Started (Raspberrypi)
1. Open up the Arduino IDE and go to File->Preferences.
3. Go to Tools->Boards->Board Manager in the IDE

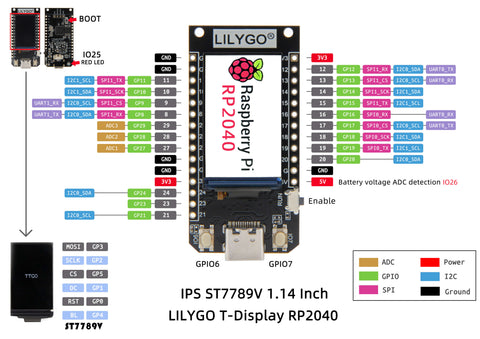

2. Pin Diagram

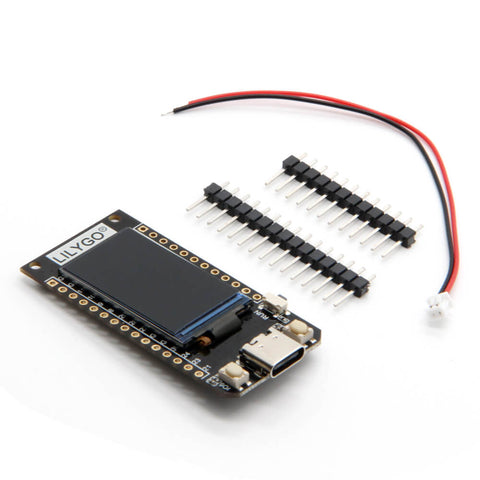

- 1 X T-Display RP2040
- 1 X Power Cable
- 2 X Pin
