Meshtastic T-Beam V1.1 ESP32 LoRa 433/868/915/923Mhz SX1276/SX1278 Wireless Module WiFi GPS NEO-6M With 0.96 inch OLED Display For Arduino.
Specifications
| MCU | ESP32 |
| Flash | 4MB |
| PSRAM | 8MB |
| Serial Chip | CH9102 |
| Wireless protocol | Wi-Fi + Bluetooth 4.2 |
| PMU | AXP192 |
| Onboard functions | 3 Buttons (Power+IO38+Reset) |
| Antenna |
---- GPS ceramic antenna |
Description
GPS
- NE0-6M GPS Modules: Support GPS protocol
- Onboard RTC crystal, Support interrupt/ wakeup
LoRa
- Long Range Low Power LoRa Transceiver
- High sensitivity: -i48dBm
- Transceive rate: 300 kbps
- Optional Hardware
- Version: SX1278[433Mhz] / SX1276[868/915/923Mhz]
Display Details
- OLED: 0.96 inch
- Driver: SSD1306
Software
- Meshtastic
Power Supply Mode
Support USB Micro/ 18650 battery holder [USB can power the battery]
1. Appearance

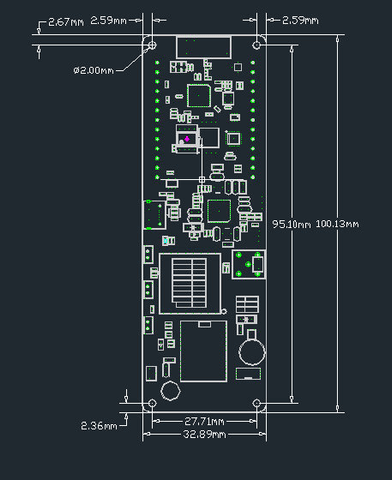

2. Size

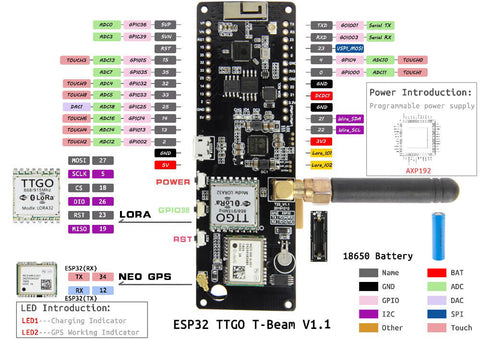

3. Pin Diagram
[Pay attention to the OLED when opening the box, ship without 18650 battery]
433Mhz or 868Mhz Options
(OLED Not Soldered Version)
-
1 X T-Beam V1.1 CH9102
-
1 X 433Mhz or 868Mhz Antenna
-
1 X 0.96 inch 128X64 OLED
-
2 X Pin
915Mhz or 923Mhz Options
(OLED Not Soldered Version)
-
1 X T-Beam V1.1 CH9102
-
1 X 915Mhz or 923Mhz Antenna
-
1 X 0.96 inch 128X64 OLED
-
2 X Pin
433Mhz or 868Mhz Options
(OLED Soldered Version)
-
1 X T-Beam V1.1 (Include Soldered OLED)
-
1 X 433Mhz or 868Mhz Antenna
-
2 X Pin
915Mhz or 923Mhz Options
(OLED Soldered Version)
-
1 X T-Beam V1.1 (Include Soldered OLED)
-
1 X 915Mhz or 923Mhz Antenna
-
2 X Pin
Technology Support [Github]
If you need technical support please check the link to find more details.
