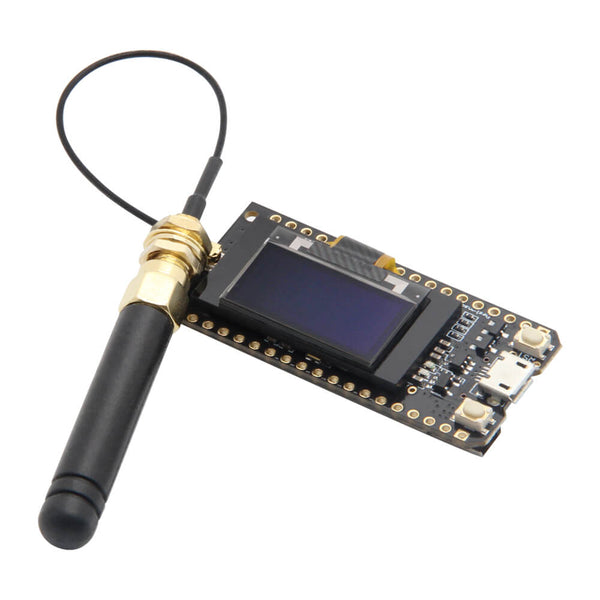

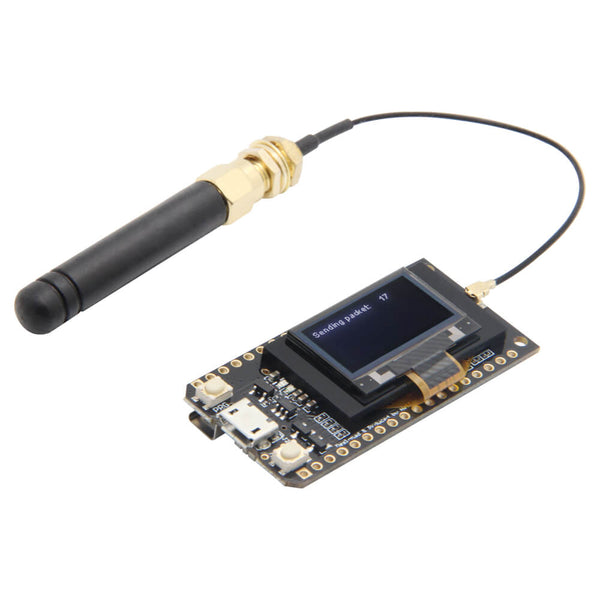

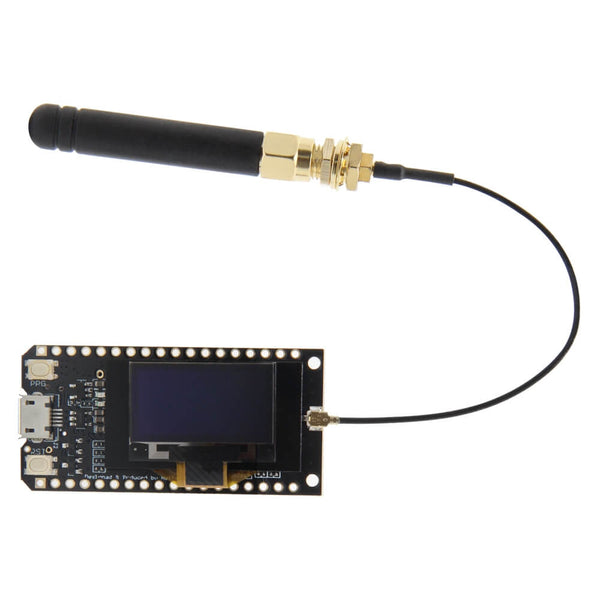

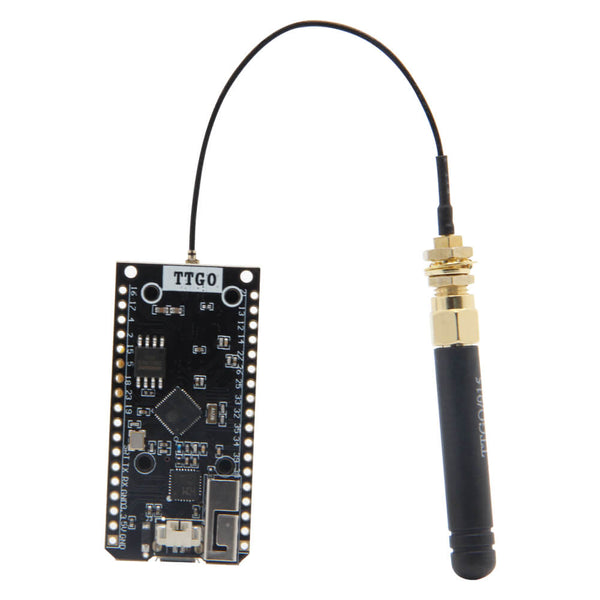

LILYGO® TTGO 1/2Pcs LoRa32 V1.0 LoRa 868MHz 915MHz ESP32 Development Board OLED 0.96 inch Display Wireless Module WIFI Bluetooth


LoRa32 V1.0 Introduction

  • This product is a SX1276 chip based on ESP32 WIFI increased OLED, namely LoRa remote modem, 868-915MHz frequency, high sensitivity is over-148dBm, + 20dBm output power, high reliability, long transmission distance.

  • Onboard 4Mt bytes (32 Mt bit) Flash wi-fi antenna, 0.96 inch oled display, lithium battery charging circuit, support for Arduino development environment perfectly, can be used for program checking and product development is very easy and fast.

Specifications

Operating voltage: 3.3 – 7 V
Operating temperature range: -40 to 90°C (-40 to 194°F)
Support for Sniffer software protocol analysis, Station, SoftAP, and Wi-Fi Direct modes
Data rates: 150 Mbps @ 11n HT40, 72 Mbps @ 11n HT20, 54 Mbps @ 11g, 11 Mbps @ 11b
Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
Receiver sensitivity up to -98 dBm
 UDP sustained throughput: 135 Mbps



Github:

https://github.com/Xinyuan-LilyGO/LilyGo-LoRa-Series



Reminders



- The 868/915 MHz antenna needs to be connected with the IPEX interface.
- When the battery is full, the blue LED will stop working.
- When using, pay attention to “+” and “-” of the battery.
- With the IO port touchscreen Touch signal input, you need to add the 100nF pull-down capacitor to this pin.
- Red light: power indicator
- Blue light: IO25 programmable control
 Reminder: This product does not include the battery.

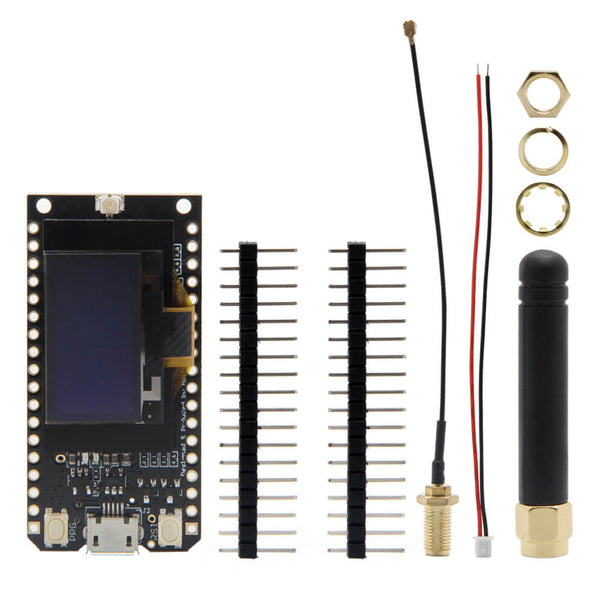

868/915MHz CH9102 1pcs Options

1 x LILYGO LoRa32 V1.0 (868MHz or 915MHz)

1 x Power cable (Jst 2pin 1.25mm)

1 x LoRa Antenna

2 X 2.54mm Male Pin(1*18P)

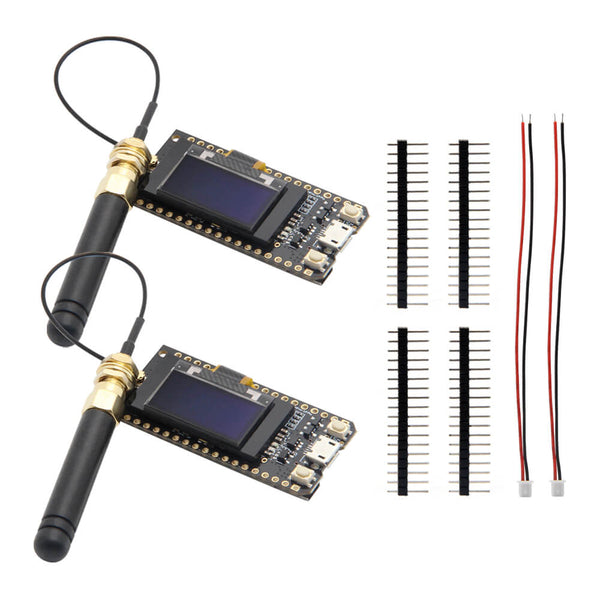

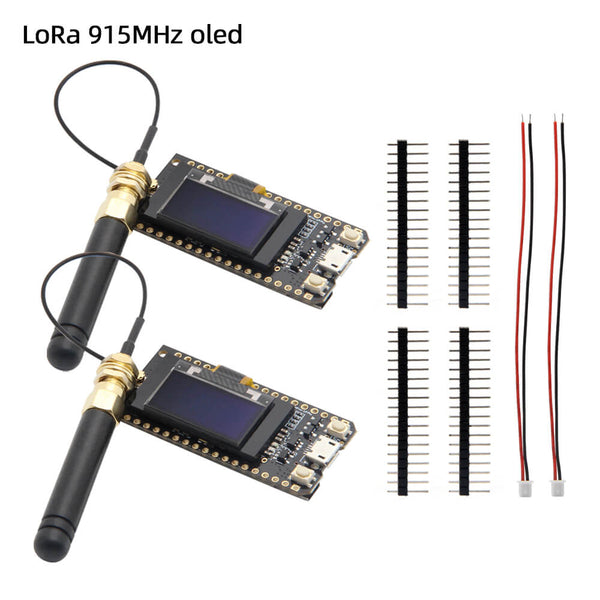

868/915MHz CH9102 2pcs Options

2 x LILYGO LoRa32 V1.0 (868MHz or 915MHz)

2 x Power cable (Jst 2pin 1.25mm)

2 x LoRa Antenna

4 X 2.54mm Male Pin(1*18P)
